01 |
924 915 40
|

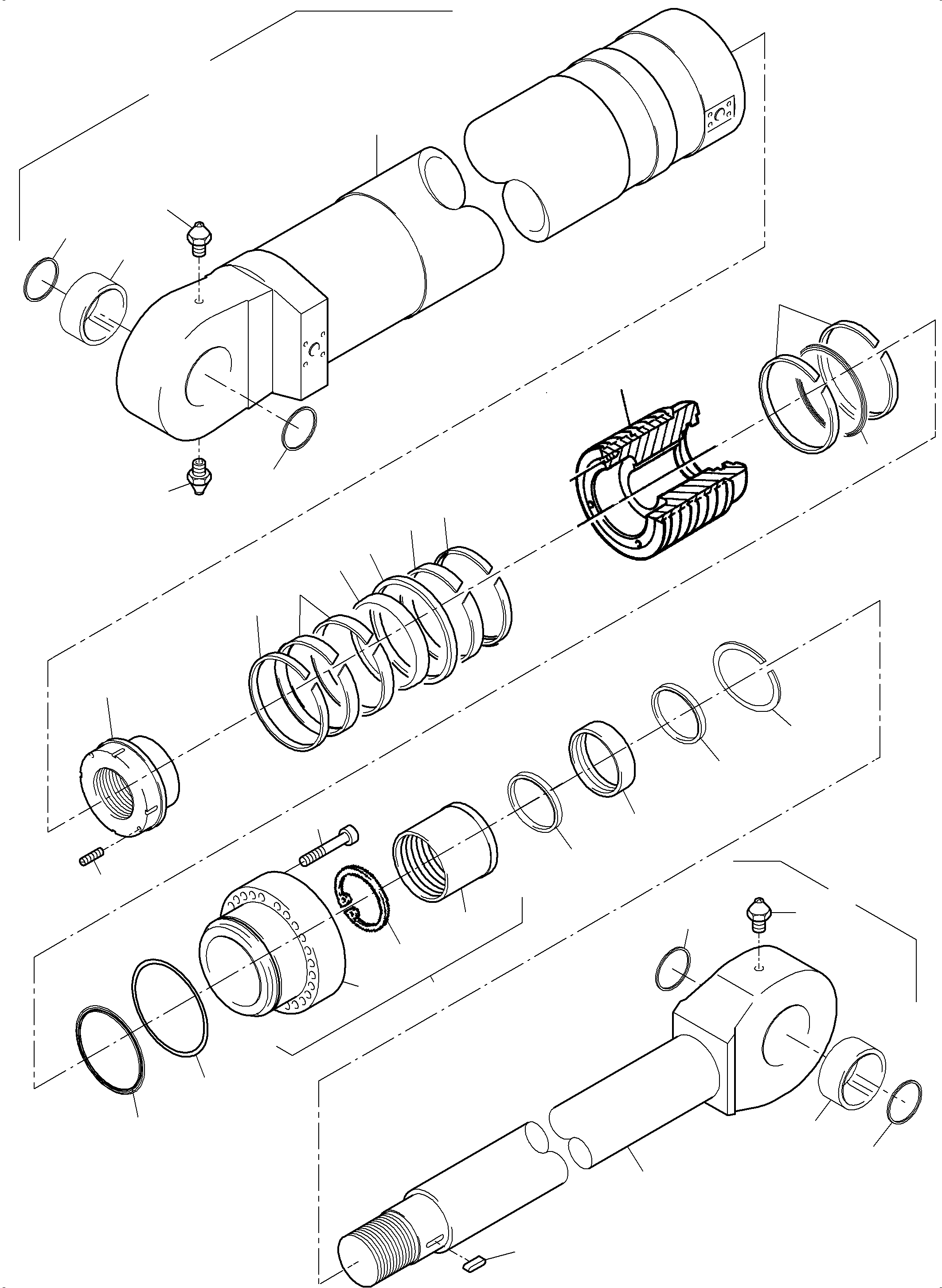

Hydr. Cylinder (standard) |
1 |
InternBDB: 200/110x640 (1390) | InternKon: 934 621 40 / 1
|
|
|
|
01 |
934 630 40
|
Hydr. Cylinder (cold weather design) |
1 |
InternBDB: 200/110x640 (1390)
|
|
|
|
03 |
|
Cylinder barrel
Seal kit - piston rod consist. of fig-nos: 22-25,28 (cold weather design) |
1 |
InternBDB: 908 969 40 | InternKon: 934 630 40 / 1
|
|
|
|
04 |
627 597 40
|
Freeze-in bush |
2 |
InternKon: 934 630 40 / 6
|
|
|
|
06 |
004 860 98
|
Grease nipple |
3 |
InternBDB: AR 1/4 /011 207 99 | InternKon: 934 630 40 / 23
|
|
|
|
07 |
792 115 73
|
Piston rod assy. incl. fig-nos. 04,06,08, 30 |
1 |
InternBDB: E-ST
|
|
|
|
08 |
|
Piston rod
Seal kit - piston rod consist. of fig-nos: 22-25,28 (cold weather design) |
1 |
InternBDB: 886 808 40 | InternKon: 934 630 40 / 2
|
|
|
|
09 |
926 856 40
|
Sealing flange assy. incl. fig-nos. 10-12 |
1 |
InternKon: 934 630 40 / 3
|
|
|
|
10 |
|
Flanged bush
Seal kit - piston rod consist. of fig-nos: 22-25,28 (cold weather design) |
1 |
InternBDB: 926 857 40 | InternKon: 926 856 40 / 1
|
|
|
|
11 |
926 867 40
|
Bearing bush (no field repair item) |
1 |
InternKon: 926 856 40 / 2
|
|
|
|
12 |
342 676 99
|
Circlip |
1 |
InternKon: 926 856 40 / 3
|
|
|
|
13 |
481 006 40
|
Piston |
1 |
InternKon: 934 630 40 / 4
|
|
|
|
14 |
948 401 40
|
Groove nut |
1 |
InternKon: 934 630 40 / 5
|
|
|
|
16 |
324 910 40
|
Piston guide strap |
2 |
InternKon: 934 630 40 / 11
|
|
|
|
17 |
323 255 40
|
Piston guide ring |
3 |
InternKon: 934 630 40 / 10
|
|
|
|
18 |
200 299 40
|
O-ring (standard) |
1 |
InternBDB: 177,17x7,0 B | InternKon: 934 630 40 / 9
|
|
|
|
18 |
502 586 98
|
O-ring (cold weather design) |
1 |
InternBDB: O-RING 177,17X 7,00B N7T40 KALTZ WN 01174599 | InternKon: 934 630 40 / 9
|
|
|
|
19 |
635 671 40
|
Seal ring |
1 |
InternBDB: B + S T PT-04-02000-T46 | InternKon: 934 630 40 / 8
|
|
|
|
20 |
502 005 98
|
O-ring (standard) |
1 |
InternBDB: 110,49x5,33 B NB70 /011 745 99 | InternKon: 934 630 40 / 17
|
|
|
|
20 |
932 670 40
|
O-ring (cold weather design) |
1 |
InternBDB: O-RING 110,49X 5,33 ORAR 00348 N7T40 WN 01174599 | InternKon: 934 630 40 / 17
|
|
|
|
21 |
270 354 40
|
Support ring |
2 |
InternBDB: B + S BP-09-0A348-PT005 | InternKon: 934 630 40 / 18
|
|
|
|
22 |
517 557 98
|
O-ring (standard) |
1 |
InternBDB: 189,3x5,7 B NB70 | InternKon: 934 630 40 / 15
|
|
|
|
22 |
516 409 98
|
O-ring (cold weather design) |
1 |
InternBDB: O-RING 189,20X 5,70B N7T40 KALTZ WN 01174599 | InternKon: 934 630 40 / 15
|
|
|
|
23 |
907 658 40
|
Support ring |
1 |
InternBDB: 191,8x201x0,85 BP4602010PT00 | InternKon: 934 630 40 / 16
|
|
|
|
24 |
907 657 40
|
Rod seal (standard) |
1 |
InternBDB: 110x130x13,0 A505 19YF IUY | InternKon: 934 630 40 / 13
|
|
|
|
24 |
932 902 40
|
Rod seal (cold weather design) |
1 |
InternBDB: ROD SEAL 110X130,0X13,0 A903 19YF IUY | InternKon: 934 630 40 / 13
|
|
|
|
25 |
011 616 79
|
Scraper |
1 |
InternBDB: 110x126x9x12 UR-4 SPCC DKBI / KLTD x200 | InternKon: 934 630 40 / 14
|
|
|
|
26 |
354 277 99
|
Feather key |
1 |
InternBDB: A8x7x40 /6885 | InternKon: 934 630 40 / 19
|
|
|
|
27 |
319 309 99
|
Bolt (standard) |
12 |
InternBDB: M20x80 /912 10.9 | InternKon: 934 630 40 / 21
|
|
|
|
27 |
500 565 98
|
Bolt (cold weather design) |
12 |
InternBDB: ZYLSHR M20 X 80 10.9 KALTZ DIN 00912 | InternKon: 934 630 40 / 21
|
|
|
|
28 |
907 853 40
|
Buffer ring |
1 |
InternBDB: 110x125,5x6 U641 80NP HBY | InternKon: 934 630 40 / 12
|
|
|
|
29 |
947 184 40
|
Threaded pin |
1 |
InternBDB: M12x40 | InternKon: 934 630 40 / 22
|
|
|
|
30 |
907 016 40
|
Seal ring |
4 |
InternBDB: 110/4x4 | InternKon: 934 630 40 / 7
|
|
|
|
31 |
011 799 79
|
Snap ring |
1 |
InternKon: 934 630 40 / 20
|
|
|
|
|$$35 |
780 454 73
|
Seal kit - piston consist. of fig-nos: 16-21 (standard) |
-2 |
InternBDB: E-ST
|
|
|
|
|$$36 |
793 474 73
|
Seal kit - piston rod consist. of fig-nos: 22-25,28 (standard) |
-2 |
InternBDB: E-ST
|
|
|
|
|$$37 |
794 974 73
|
Seal kit - piston consist. of fig-nos: 16-21 (cold weather design) |
-2 |
InternBDB: E-ST
|
|
