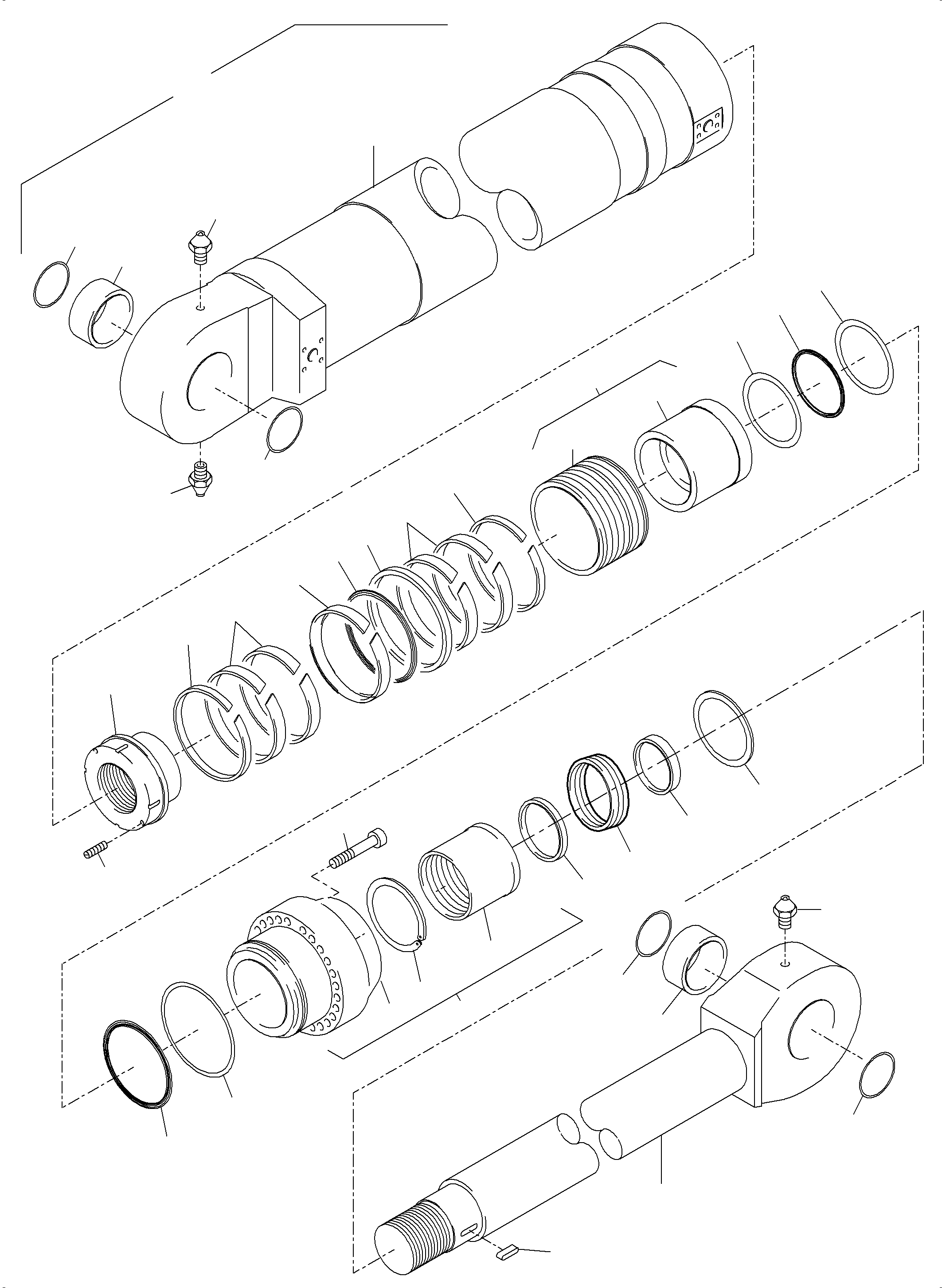

HYDR.-CYLINDER | PC3000-6E S/N 06262 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
01	924 900 40	Hydraulic cylinder (standard)	1	InternBDB: KMG 320/200x2000 (3600) \| InternKon: 934 615 40 / 1
01	934 615 40	Hydraulic cylinder (cold weather design)	1	InternBDB: KMG 320/200x2000 (3600) \| InternKon: 934 615 40 / 1
03		Cylinder barrel	1	InternBDB: 659 092 40 \| InternKon: 934 615 40 / 1
05	907 022 40	Seal ring	4	InternBDB: RXYD - 091603T46 170/7x4 \| InternKon: 934 615 40 / 7
06	004 860 98	Grease nipple	3	InternBDB: AR 1/4 / WN 011 207 99 \| InternKon: 934 615 40 / 23
07	792 429 73	Piston rod assy. incl. fig-nos. 05,06,08,09	1	InternBDB: E-ST
08		Piston rod	1	InternBDB: 909 307 40 \| InternKon: 934 615 40 / 2
09	627 572 40	Freeze-in bushing	1	InternKon: 934 615 40 / 6
10	926 859 40	Sealing flange incl. fig-nos. 11,12+17	1	InternKon: 934 615 40 / 3
11		Flanged bush	1	InternBDB: 926 858 40 \| InternKon: 926 859 40 / 1
12	926 899 40	Bearing bush (no field repair item)	1	InternKon: 926 859 40 / 2
13	659 097 40	Piston assy. incl. fig-nos. 14+15	1	InternKon: 934 615 40 / 4
14		Piston	1	InternBDB: 659 098 40 \| InternKon: 659 097 40 / 1
15	445 393 40	Liner (no field repair item)	1	InternKon: 659 097 40 / 2
16	947 190 40	Groove nut	1	InternKon: 934 615 40 / 5
17	342 698 99	Circlip	1	InternBDB: 225x5 / DIN 472 \| InternKon: 926 859 40 / 3
19	269 475 40	Sealing element (standard)	1	InternKon: 934 615 40 / 8
19	896 587 40	Sealing element (cold weather design)	1	InternBDB: TURCON-GLYD-RING PT-08- 03200-T46 \| InternKon: 934 615 40 / 8
20	256 248 40	O-ring (standard)	1	InternBDB: 291,47x7,0 B NB70 / WN 011 745 99 \| InternKon: 934 615 40 / 9
20	515 788 98	O-ring (cold weather design)	1	InternBDB: O-RING 291,47X 7,00B N7T40 WN 01174599 \| InternKon: 934 615 40 / 9
21	256 245 40	Piston guide ring	5	InternKon: 934 615 40 / 10
22	269 785 40	Piston guide strap	2	InternKon: 934 615 40 / 11
23	440 675 40	O-ring (standard)	1	InternBDB: 202,57 x 5,33B \| InternKon: 934 615 40 / 17
23	510 414 98	O-ring (cold weather design)	1	InternBDB: O-RING 202,57X 5,33B N7T40 KALTZ WN 01174599 \| InternKon: 934 615 40 / 17
24	655 589 40	Support ring	2	InternBDB: 200,0x208,6x1,7 \| InternKon: 934 615 40 / 18
26	517 018 98	O-ring (standard)	1	InternBDB: 307,0x7,0 B NB70 \| InternKon: 934 615 40 / 15
26	502 670 98	O-ring (cold weather design)	1	InternBDB: O-RING 304,17X 7,00B N7T40 KALTZ WN 01174599 \| InternKon: 934 615 40 / 15
27	907 666 40	Support ring	1	InternBDB: 320x308,4x1,25 \| InternKon: 934 615 40 / 16
29	318 798 99	Bolt (standard)	18	InternBDB: M30x180 / DIN 912 \| InternKon: 934 615 40 / 21
29	511 722 98	Screw (cold weather design)	18	InternBDB: ZYLSHR M30X180 10.9 KALTZ DIN 00912 \| InternKon: 934 615 40 / 21
31	354 389 99	Feather key	1	InternBDB: A 20x12x70 / DIN 6885 \| InternKon: 934 615 40 / 19
32	947 188 40	Threaded pin	1	InternBDB: M16x50 \| InternKon: 934 615 40 / 22
33	907 669 40	Buffer ring	1	InternBDB: 200x225x9,6 \| InternKon: 934 615 40 / 12
34	907 668 40	Rod seal (standard)	1	InternBDB: 200x225x20,0 \| InternKon: 934 615 40 / 13
34	932 900 40	Rod seal (cold weather design)	1	InternBDB: ROD SEAL 200X225,0X20,0 A903 19YF IUY \| InternKon: 934 615 40 / 13
35	907 667 40	Dust seal	1	InternBDB: 200x216x8,0 \| InternKon: 934 615 40 / 14
36	517 563 98	Circlip	1	InternBDB: A215 / WN 010 718 99 \| InternKon: 934 615 40 / 20
\|$$38	767 498 73	Seal kit piston consist. of fig nos: 19-24 (standard)	1
\|$$39	793 480 73	Seal kit piston rod consist. of fig.-nos: 26,27,33-35 (standard)	1
\|$$40	794 967 73	Seal kit piston consist. of fig nos: 19-24 (cold weather design)	1
\|$$41	794 968 73	Seal kit piston rod consist. of fig.-nos: 26,27,33-35 (cold weather design)	1
