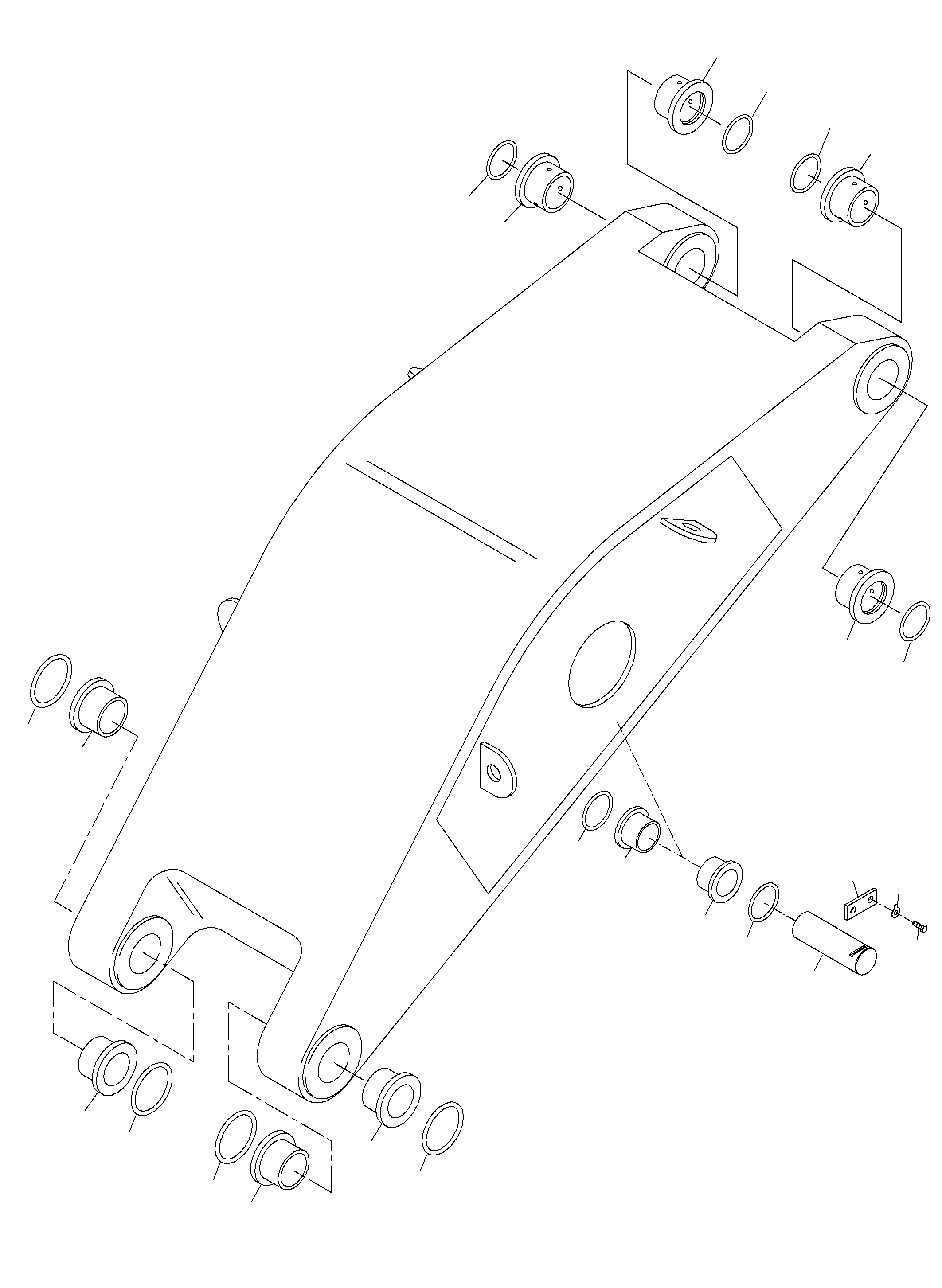

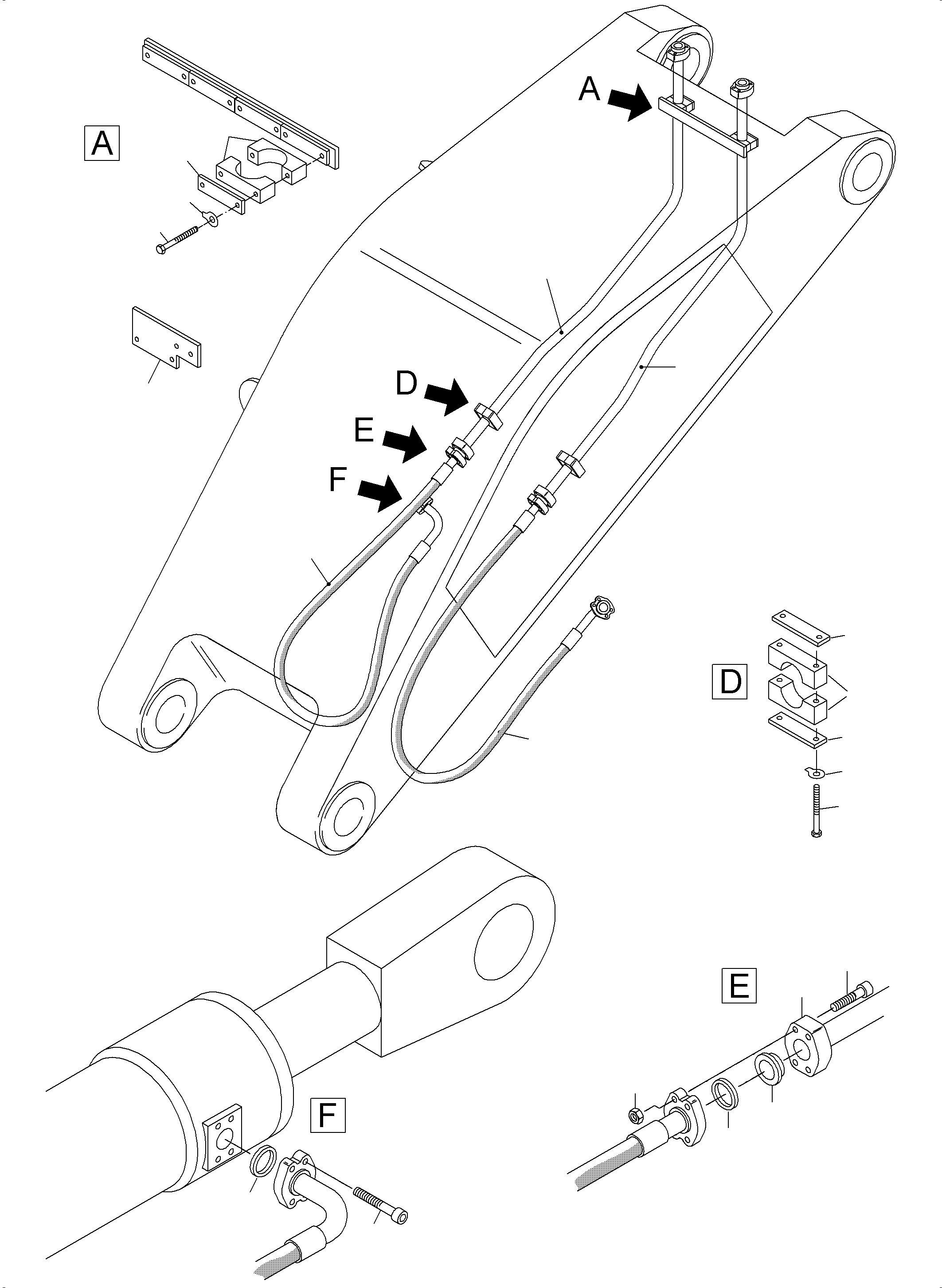

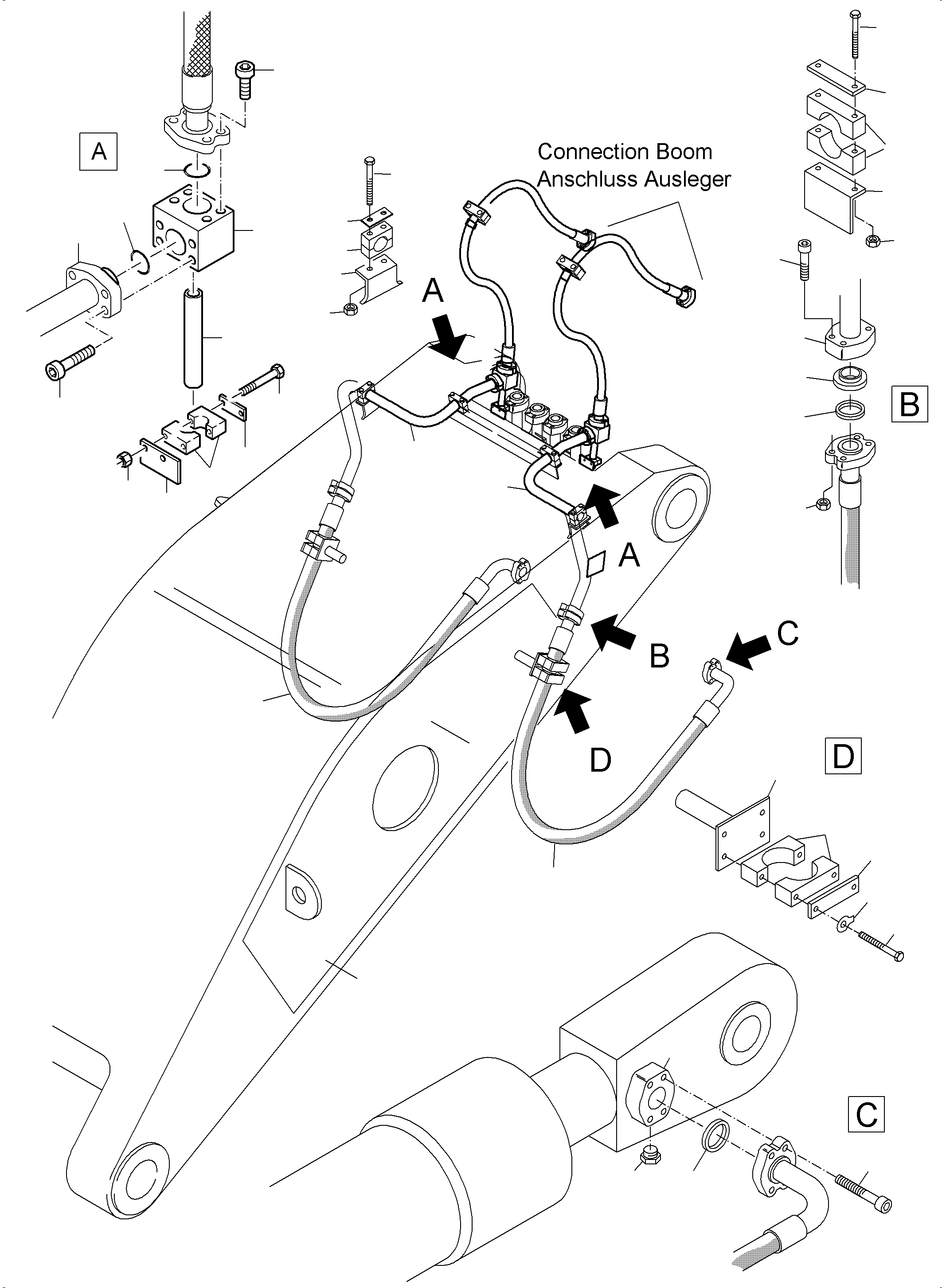

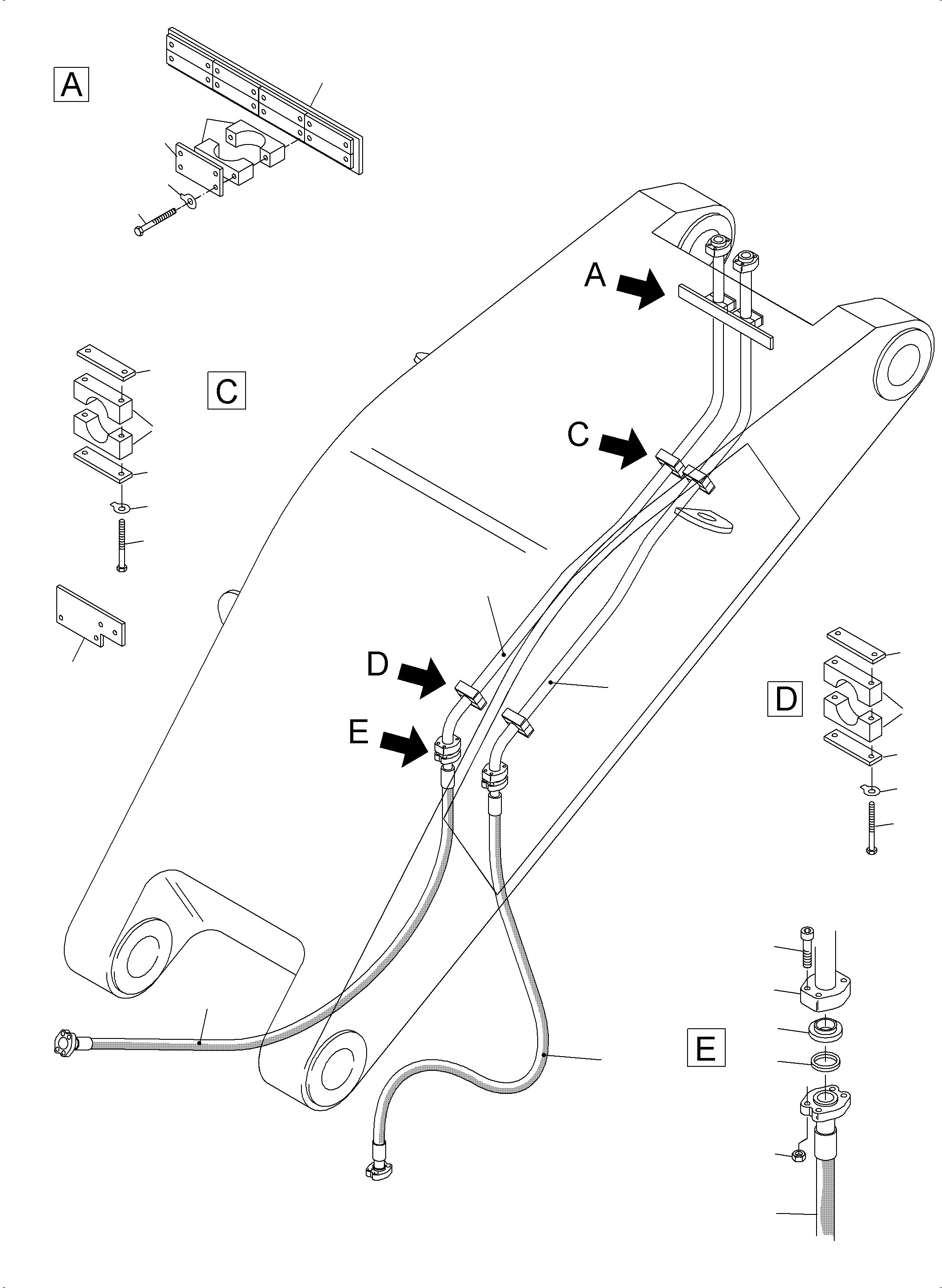

Diagram image 1 of 4

PC3000-6E S/N 06262

01 04 04 09 09 10 11 13 13 14 21 21 21 22 23 27 27 28 29 29 29 29 30 31 34 35 36 40 40 44 44 50 51 61 62 63 64 65 66 67 69 70

PC3000-6E S/N 06262

15 16 17 18 19 20 20 21 21 22 22 22 23 23 23 24 26 26 32 33 43 43 43 46 47 68

PC3000-6E S/N 06262

15 16 17 17 18 19 20 20 21 21 22 22 23 23 25 26 33 45 45 48 49

PC3000-6E S/N 06262

05 05 05 05 06 06 06 06 07 07 08 08 12 12 12 12 42 42 42 42 55 56 57 58

#	Part Number	Partname	Quantity	Options
01	952 760 40	Bullclam bucket stick	1	InternBDB: SK 904 449 40
04	332 334 99	Nut	4	InternBDB: M 12 / 934 \| InternKon: 952 760 40 / 34
05	894 199 40	Flanged bush	4	InternKon: 952 760 40 / 2
06	913 798 40	Flanged bush	4	InternKon: 952 760 40 / 4
07	900 690 40	Flanged bush	2	InternKon: 952 760 40 / 5
08	907 020 40	Seal	4	InternBDB: 150/4x4 \| InternKon: 952 760 40 / 6
09	504 445 98	Pair of clamps	6	InternBDB: KLEMMHPAAR S-4-R-65 AL DIN 03015 \| InternKon: 952 760 40 / 30
10	308 599 99	Bolt	8	InternBDB: M 12x105 / 931 \| InternKon: 952 760 40 / 32
11	502 961 98	Weld on plate	2	InternBDB: S-AP-S-4 / 3015 \| InternKon: 952 760 40 / 33
12	907 022 40	Seal	4	InternBDB: 170/7x4 \| InternKon: 952 760 40 / 3
13	504 448 98	Flange	4	InternBDB: FE-6500-32/6 WN 011 747 99
14	504 449 98	Ring	2	InternBDB: KO-6580-32
15	500 127 98	Flange	8	InternBDB: FE-5000-24/6 WN 011 747 99
16	500 203 98	Ring	8	InternBDB: KO-5060-24 WN 011 747 99
17	356 209 40	Flange seal	10	InternBDB: 1 1/2 NBR 90 WN 341 986 40 \| InternKon: 952 760 40 / 9
18	332 355 99	Nut	32	InternBDB: M 16 /934 \| InternKon: 952 760 40 / 11
19	319 292 99	Bolt	32	InternBDB: M16x90 /912 \| InternKon: 952 760 40 / 10
20	502 976 98	Pair of clamps	12	InternBDB: KLEMMHPAAR S-4-R-50 AL DIN 03015 \| InternKon: 952 760 40 / 21
21	534 008 99	Cover plate	20	InternBDB: D-PLATTE S-DP-A-4 W1 DIN 03015 \| InternKon: 952 760 40 / 23
22	308 612 99	Bolt	28	InternBDB: M12x100 /931 \| InternKon: 952 760 40 / 24
23	509 310 98	Locking plate	18	InternBDB: SI 6 \| InternKon: 952 760 40 / 25
24	502 977 98	Pair of clamps	2	InternBDB: KLEMMHPAAR S-4-G-50 PA DIN 03015 \| InternKon: 952 760 40 / 22
25	319 288 99	Bolt	8	InternBDB: M16x50 /912 \| InternKon: 952 760 40 / 12
26	534 009 99	Weld on plate	6	InternBDB: S-AP-A-4 / 3015 \| InternKon: 952 760 40 / 28
27	319 313 99	Bolt	8	InternBDB: M 20x120 / 912 \| InternKon: 952 760 40 / 16
28	504 662 98	Nut	8	InternBDB: M 20 / 934 \| InternKon: 952 760 40 / 17
29	385 243 40	Flange seal	8	InternBDB: 2" NBR 90 \| InternKon: 952 760 40 / 15
30	504 461 98	Ring	2	InternBDB: K-6580-32 WN 011 747 99
31	900 675 40	Angle	1	InternBDB: 168x910 \| InternKon: 952 760 40 / 31
32	952 761 40	Retainer assy.	1	InternKon: 952 760 40 / 26
33	913 794 40	Plate	2	InternBDB: 100x175 \| InternKon: 952 760 40 / 29
34	655 071 40	Flange	2	InternBDB: SAE 2" 6000 Psi Havit AGL 406 mit MeЯanschluЯ \| InternKon: 952 760 40 / 18
35	180 113 40	Plug	2	InternBDB: Vsti R 1/4 ed WN 341 913 40 \| InternKon: 952 760 40 / 20
36	319 309 99	Bolt	8	InternBDB: M20x80 /912 10.9 \| InternKon: 952 760 40 / 19
40	510 151 98	Bolt	8	InternBDB: 6KTSHR M12 X 120 8.8 DIN 00933 \| InternKon: 952 760 40 / 36
42	923 251 40	Ring	4	InternBDB: RING 330/ 240X 15 \| InternKon: 952 760 40 / 42
43	516 300 98	Hose assy. DN 40x3600	2	InternBDB: FS 1 1/2 /FS 1 1/2 - 45 WN 341 951 40 \| InternKon: 952 760 40 / 38
44	940 378 40	Hose assy. DN 50x2600	2	InternBDB: SHL NW 50 GH466-32X 2600 FS2/FS2 90 \| InternKon: 952 760 40 / 37
45	515 908 98	Hose assy. DN 40x2650	2	InternBDB: SHL 350 FS 1 1/2 /FS 1 1/2 - 90 WN 341 951 40 \| InternKon: 952 760 40 / 39
46	952 715 40	Pipe assy. Ш 50	1	InternKon: 946 577 40 / 13
47	952 714 40	Pipe assy. Ш 50	1	InternKon: 946 577 40 / 14
48	952 713 40	Pipe assy. Ш 50	1	InternKon: 946 577 40 / 8
49	952 711 40	Pipe assy. Ш 50	1	InternKon: 946 577 40 / 41
50	952 709 40	Pipe assy. Ш 65	1	InternKon: 946 578 40 / 40
51	952 711 40	Pipe assy. Ш 65	1	InternKon: 946 578 40 / 41
55	913 912 40	Pin (Standard)	2	InternBDB: 385 \| InternKon: 934 614 40 / 4
55	934 617 40	Pin (Cold weather design)	2	InternBDB: 385 \| InternKon: 934 614 40 / 4
56	650 426 40	Retainer	2	InternBDB: 65x240 \| InternKon: 934 614 40 / 5
57	308 407 99	Bolt	4	InternBDB: M 24x100 / 931 \| InternKon: 934 614 40 / 8
58	340 471 99	Washer	4	InternBDB: B 25 / 125 \| InternKon: 934 614 40 / 9
61	931 605 40	Angle	2	InternKon: 952 760 40 / 43
62	505 440 98	Pair of clamps	2	InternBDB: S-4-R-65 PA DIN 03015 \| InternKon: 952 760 40 / 44
63	952 708 40	Plate	2	InternKon: 952 760 40 / 45
64	534 004 99	Cover plate	2	InternBDB: S-DP-A-3 W1 DIN 03015 \| InternKon: 952 760 40 / 46
65	504 818 98	Pair of clamps	2	InternBDB: S-3-G-38 PA DIN 03015 \| InternKon: 952 760 40 / 47
66	307 791 99	Bolt	4	InternBDB: M10 X 90 8.8 DIN 00933 \| InternKon: 952 760 40 / 48
67	507 037 98	Nut	4	InternBDB: M10 8 DIN 00985 \| InternKon: 952 760 40 / 49
68	502 965 98	Cover plate	4	InternBDB: S-DP-S-4 W1 DIN 03015 \| InternKon: 952 760 40 / 50
69	164 960 40	Pipe	2	InternBDB: 38 X 5 X 290 \| InternKon: 952 760 40 / 51
70	952 701 40	SAE-L-BLOCK 2"	2	InternBDB: SAE-L-BLOCK 2" \| InternKon: 952 760 40 / 52

Komatsu PC3000-6E S/N 06262 parts catalog PDF

BULLCALM BUCKET STICK 4.3 M (485-4200e) in PC3000-6E S/N 06262. Diagram image and parts list.
