Diagram image 1 of 3

PC3000-6E S/N 06262

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6E S/N 06262

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6E S/N 06262

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options	Reference
?		Bullclam bucket	1	InternBDB: 936 350 40; 946 738 40 \| InternKon: KO-LISTE 908 725 40 / 1
?		Back panel (Weldment)	1	InternBDB: 936 320 40 \| InternKon: 936 325 40 / 1
?		Bucket clam (Weldment)	1	InternBDB: 936 305 40; 946 749 40 \| InternKon: 946 739 40 / 1
?	936 351 40	Pin with plate (standard)	2	InternKon: 946 739 40 / 2
?	936 355 40	Pin with plate (cold weather design)	2	InternKon: 946 739 40 / 2
?	919 256 40	Freeze-in bush	2	InternKon: 946 739 40 / 3
?	917 513 40	Pin with plate (standard)	2	InternKon: 936 357 40 / 4
?	936 359 40	Pin with plate (cold weather design)	2	InternKon: 936 357 40 / 4
?	936 349 40	Ring	4	InternBDB: RING 248/ 180X 20 \| InternKon: 936 357 40 / 37
?	890 896 40	Pin (standard)	2	InternKon: 936 357 40 / 5
?	936 361 40	Pin (cold weather design)	2	InternKon: 936 357 40 / 5
?	908 735 40	Pin (standard)	2	InternKon: 936 357 40 / 6
?	936 362 40	Pin (cold weather design)	2	InternKon: 936 357 40 / 6
?	917 511 40	Pin with plate (standard)	2	InternKon: 936 357 40 / 3
?	936 358 40	Pin with plate (cold weather design)	2	InternKon: 936 357 40 / 3
?	872 456 40	Flanged bush	4	InternKon: 936 357 40 / 7
?		Clamping cylinder	2	InternBDB: 924 974 40; 934 621 40 \| InternKon: 936 357 40 / 2	485-5035b
?	872 457 40	Flanged bush	4	InternKon: 936 357 40 / 8
?	908 743 40	Flanged bush	4	InternKon: 936 357 40 / 9
?	923 252 40	Ring	4	InternBDB: 340x250x25 \| InternKon: 936 357 40 / 38
?	449 731 40	Catch	4	InternKon: 936 357 40 / 12
?	872 461 40	Catch	4	InternKon: 936 357 40 / 13
?	872 462 40	Axle stirrup	4	InternKon: 936 357 40 / 14
?	872 463 40	Axle stirrup	4	InternKon: 936 357 40 / 15
?	872 464 40	Shackle	2	InternKon: 936 357 40 / 16
?	872 465 40	Shackle	2	InternKon: 936 357 40 / 17
?	499 251 40	Manifold	2	InternKon: 936 357 40 / 18
?	577 368 40	Protective frame	4	InternBDB: 240x288 \| InternKon: 936 357 40 / 10
?	506 179 40	Square	8	InternBDB: 20x120 \| InternKon: 936 357 40 / 11
?	577 369 40	Catch	4	InternKon: 936 357 40 / 23
?	006 637 98	Half flange	16	InternBDB: 25 /420 / 011 735 99 \| InternKon: 936 357 40 / 24
?	324 524 40	Seal	8	InternBDB: 1 NBR 90 / 341 986 40 \| InternKon: 936 357 40 / 25
?	319 274 99	Bolt	32	InternBDB: M12x40 /912 \| InternKon: 936 357 40 / 26
?	320 374 99	Bolt	4	InternBDB: M16x20 /6912 \| InternKon: 936 357 40 / 27
?	307 826 99	Bolt	16	InternBDB: M16x50 /933 \| InternKon: 936 357 40 / 28
?	517 123 98	Lock washer	24	InternBDB: 16 / WN 655 938 40 \| InternKon: 936 357 40 / 29
?	320 230 99	Bolt	8	InternBDB: M14x110 /912
?	319 288 99	Bolt	8	InternBDB: M16x50 /912 \| InternKon: 936 357 40 / 30
?	356 209 40	Seal	2	InternBDB: 1 1/2 NBR 90 / 341 986 40 \| InternKon: 936 357 40 / 31
?	516 427 98	Hose assy. DN 25x1900	1	InternBDB: SHL350 25X 1900 FS1 FS1 * WN 34195140 \| InternKon: 936 357 40 / 19
?	517 936 98	Hose assy. DN 25x1800	1	InternBDB: SHL350 25X 1800 FS1 FS1 * WN 34195140 \| InternKon: 936 357 40 / 20
?	516 428 98	Hose assy. DN 25x1270	1	InternBDB: SHL350 25X 1270 FS1 FS1 45 * WN 34195140 \| InternKon: 936 357 40 / 21
?	516 429 98	Hose assy. DN 25x1410	1	InternBDB: SHL350 25X 1410 FS1 FS1 45 * WN 34195140 \| InternKon: 936 357 40 / 22
?	896 665 40	Plug	4	InternKon: 936 357 40 / 32
?	908 744 40	Cover	2	InternKon: 936 357 40 / 33
?	510 213 98	Thread pin	8	InternBDB: PM 12x30 / 32500 \| InternKon: 936 357 40 / 34
?	506 129 98	Washer	8	InternBDB: 13.5 \| InternKon: 936 357 40 / 35
?	334 600 99	Nut	8	InternBDB: M 12 / 895 \| InternKon: 936 357 40 / 36
?	925 573 40	Cover	2	InternKon: 936 357 40 / 39
?	307 775 99	Bolt	6	InternBDB: M 10x20 / 933 \| InternKon: 936 357 40 / 40
?	517 122 98	Lock washer	6	InternBDB: 10/ 655 938 40 \| InternKon: 936 357 40 / 41
?	908 745 40	Lip assy. incl. fig-nos. 71+72	1
?	908 747 40	Corner adapter	2	InternKon: 908 745 40 / 1
?	660 397 40	Tooth adapter	3	InternBDB: Esco 6806-V81 \| InternKon: 908 745 40 / 2
?	654 634 40	Toplok shroud	2	InternBDB: TOPLOK SHROUD TBC 140X490-2RA \| InternKon: 933 745 40 / 1
?	654 633 40	Toplok shroud	2	InternBDB: TOPLOK SHROUD TBC 140X490-2LA \| InternKon: 933 745 40 / 2
?	660 485 40	Boss	4	InternBDB: Esco TBB \| InternKon: 933 745 40 / 4
?	660 486 40	Pin	4	InternBDB: Esco TBP \| InternKon: 933 745 40 / 5
?	660 330 40	Tooth SYL	5	InternBDB: Super V81 SYL \| InternKon: KO-LISTE 908 725 40 / 6
?	660 331 40	Tooth SD	5	InternBDB: Super V81 SD \| InternKon: KO-LISTE 908 725 40 / 8
?	660 383 40	Tooth RYL	5	InternBDB: Super V81 RYL \| InternKon: KO-LISTE 908 725 40 / 10
?	660 384 40	Tooth VX	5	InternBDB: Super V81 VX \| InternKon: KO-LISTE 908 725 40 / 12
?	660 332 40	Key	5	InternBDB: Super V81 PN \| InternKon: KO-LISTE 908 725 40 / 17
?	896 225 40	Plate	2	InternBDB: 200x430 \| InternKon: 946 738 40 / 3
?	923 636 40	Rail	2	InternBDB: 880 \| InternKon: 946 738 40 / 9
?	507 037 98	Nut	14	InternBDB: M 10 / 985 \| InternKon: 946 738 40 / 8
?	511 263 98	Thread pin	14	InternBDB: PM 10x25 / 32500 \| InternKon: 946 738 40 / 7
?	896 219 40	Rail	2	InternBDB: 650 \| InternKon: 946 738 40 / 6
?	919 257 40	Rubber	2	InternKon: 946 738 40 / 4
?	919 258 40	Rail	2	InternKon: 946 738 40 / 5
?	935 515 40	Catch	4	InternKon: 946 739 40 / 5
?	935 516 40	Shackle	2	InternKon: 946 739 40 / 4
?	307 824 99	Bolt	8	InternBDB: M16x40 /933 \| InternKon: 946 739 40 / 6
?	907 017 40	Seal ring	4	InternBDB: BOLZENDICHTRG 120/4 X4 RXYD091598T46 \| InternKon: 946 739 40 / 8

Komatsu PC3000-6E S/N 06262 parts catalog PDF

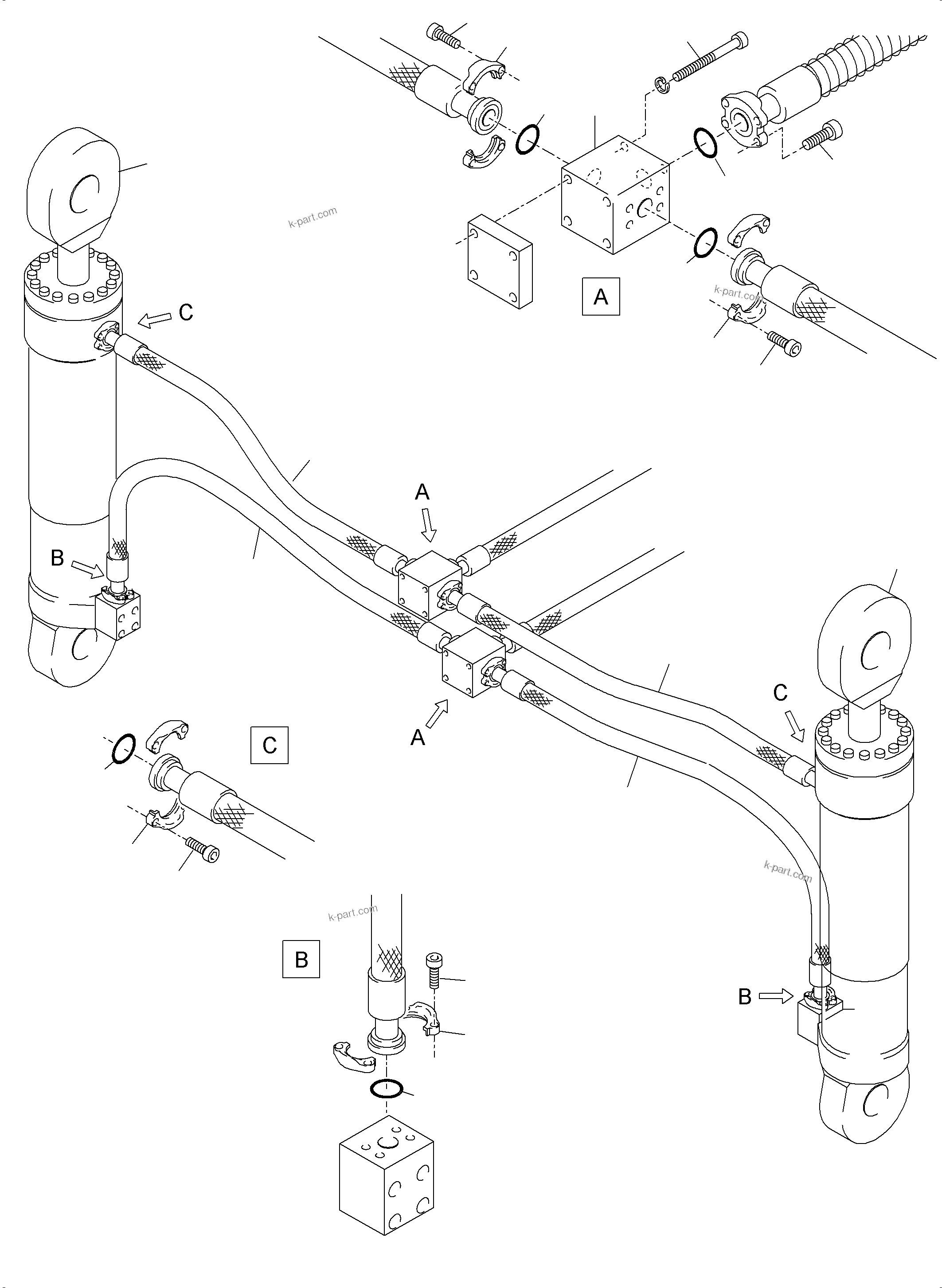

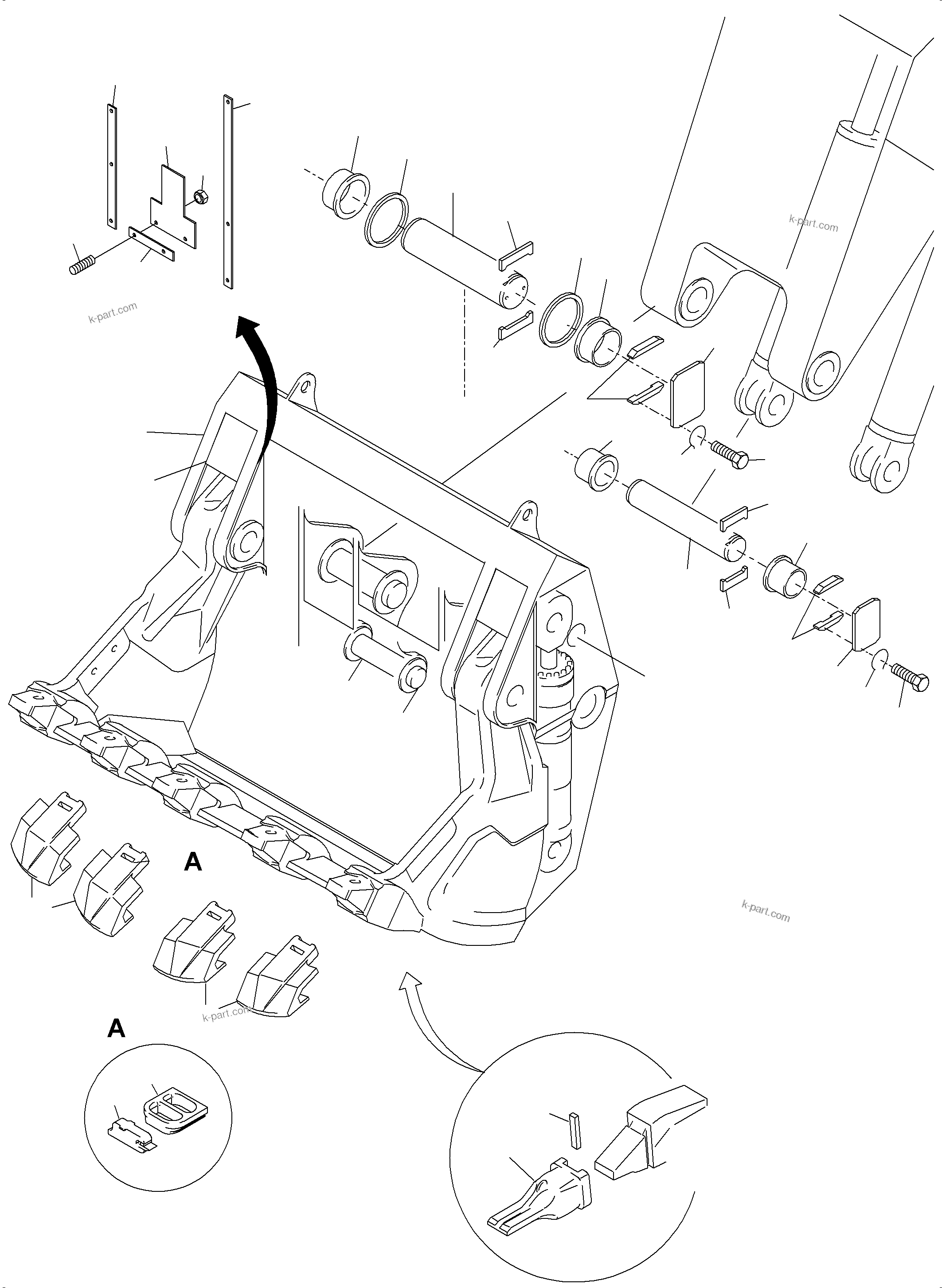

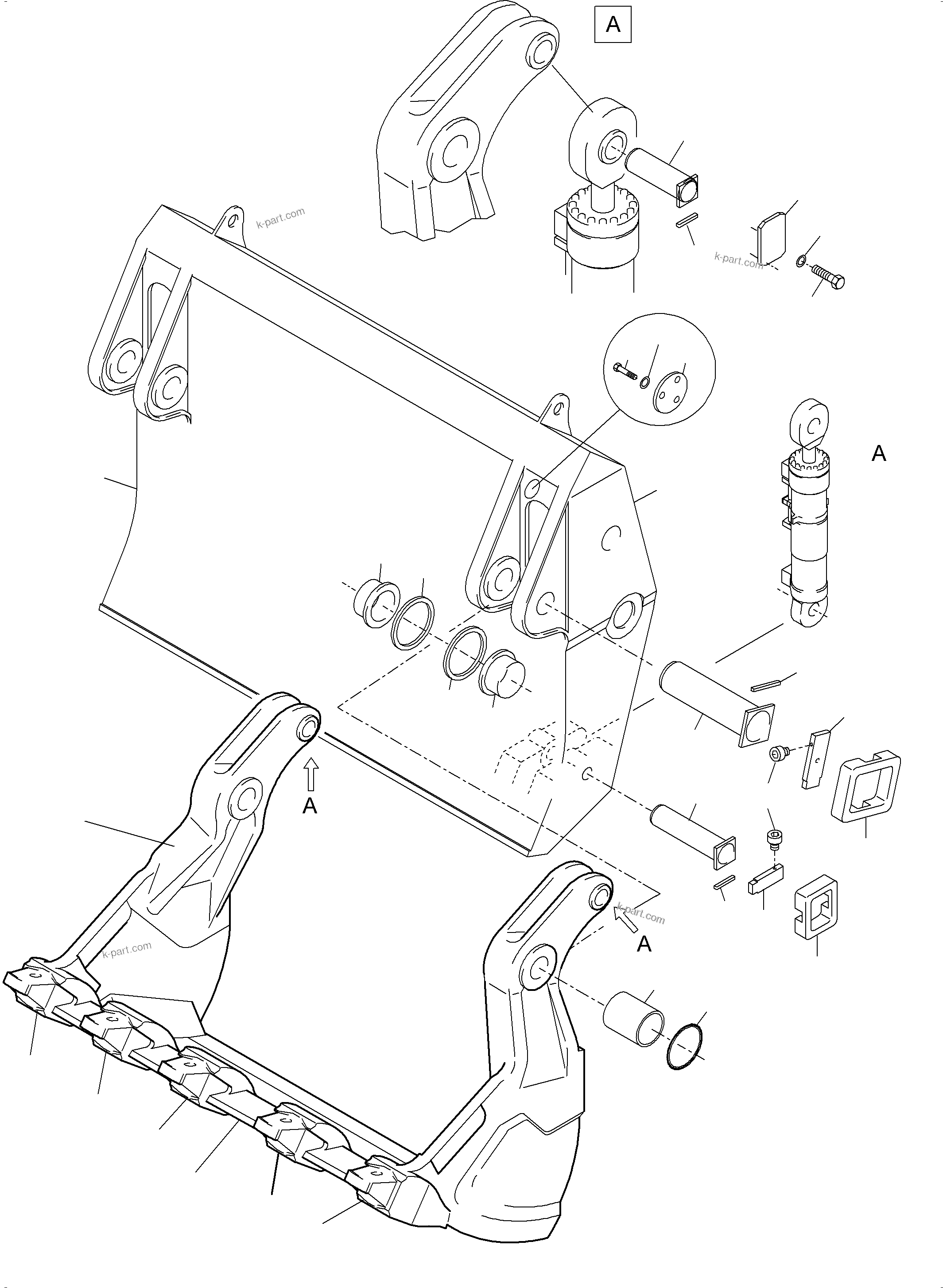

BULLCLAM BUCKET 12 CBM (485-5002a) in PC3000-6E S/N 06262. Diagram image and parts list.
