932 450 40
|

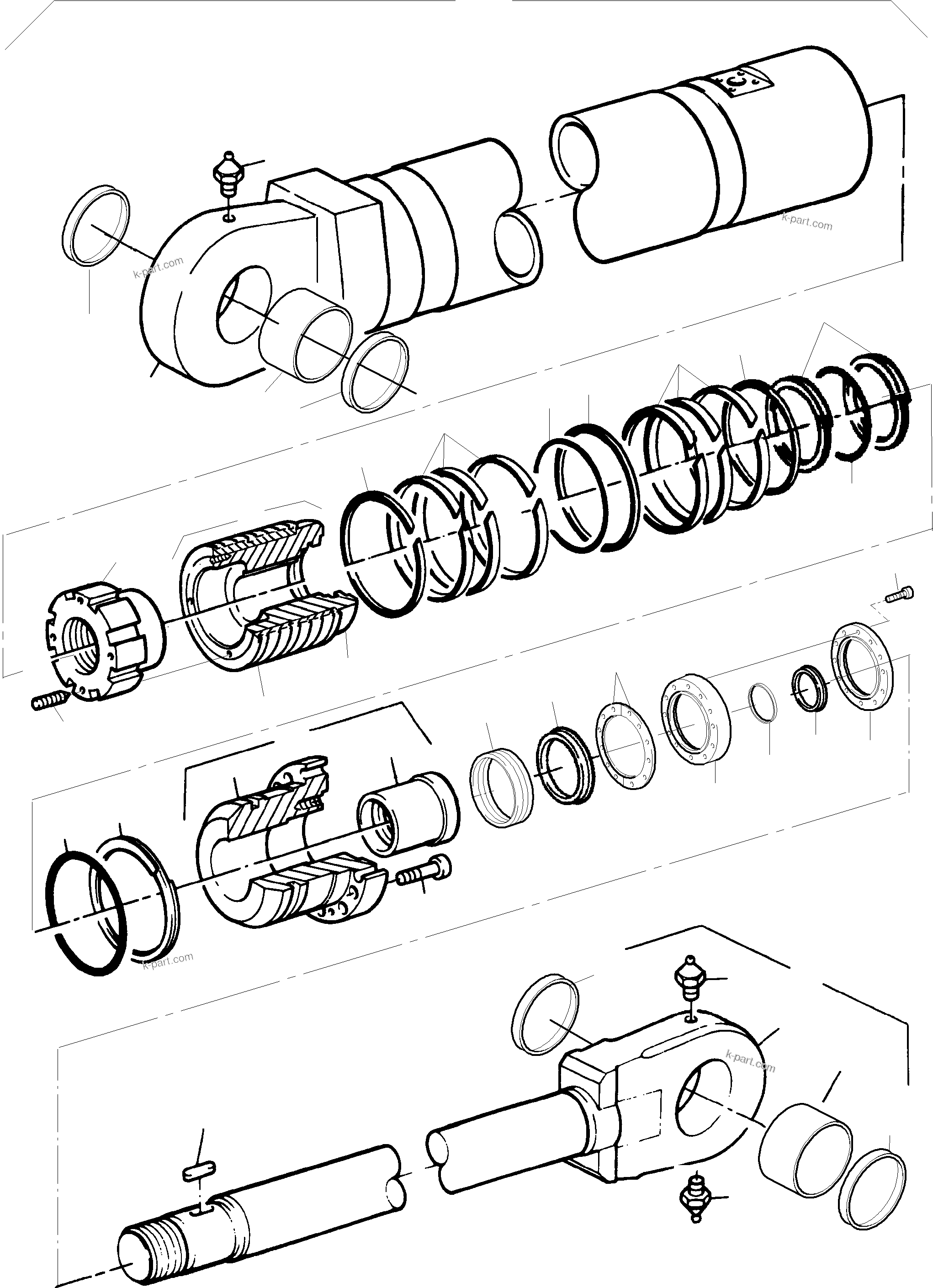

Hydraulic Cylinder ( Cold weather design ) |
1 |
InternBDB: 380/260x3500 (5100) TL / AT-Nr.
|
|
|
|
? |
|
Cylinder barrel |
1 |
InternBDB: 932 442 40 | InternKon: 932 454 40 / 1
|
|
|
|
? |
904 527 40
|
Freeze in bushing |
1 |
InternKon: 932 454 40 / 9
|
|
|
|
? |
907 026 40
|
Seal ring |
2 |
InternBDB: 225/7 RXY091607T46 | InternKon: 932 454 40 / 10
|
|
|
|
? |
004 860 98
|
Grease nipple |
4 |
InternBDB: AR 1/4 | InternKon: 932 454 40 / 27
|
|
|
|
? |
795 426 73
|
Piston rod assy. incl. fig-nos. 05,06,08,09,27 |
1 |
InternBDB: E-ST
|
|
|
|
? |
|
Piston rod |
1 |
InternBDB: 932 443 40 | InternKon: 932 454 40 / 2
|
|
|
|
? |
932 407 40
|
Freeze in bushing |
1 |
InternKon: 932 454 40 / 8
|
|
|
|
? |
932 444 40
|
Sealing flange assy. incl. fig-nos. 11+12 |
1 |
InternKon: 932 454 40 / 3
|
|
|
|
? |
|
Flanged bush |
1 |
InternBDB: 932 452 40 | InternKon: 932 444 40 / 1
|
|
|
|
? |
932 453 40
|
Bearing bush |
1 |
InternKon: 932 444 40 / 2
|
|
|
|
? |
932 445 40
|
Piston assy. fig-nos. 34 and 35 |
1 |
InternKon: 932 450 40 / 4
|
|
|
|
? |
917 044 40
|
Groove nut |
1 |
InternKon: 932 450 40 / 5
|
|
|
|
? |
917 043 40
|
Cover |
1 |
InternKon: 932 450 40 / 6
|
|
|
|
? |
907 317 40
|
Support ring |
1 |
InternBDB: 270x300x6,3 | InternKon: 932 450 40 / 17
|
|
|
|
? |
324 468 40
|
Seal ring |
1 |
InternBDB: Bu&Sh PG-042-04000-T46 | InternKon: 932 450 40 / 12
|
|
|
|
? |
324 465 40
|
O-ring |
1 |
InternBDB: 372x8,4 NB70 | InternKon: 932 450 40 / 13
|
|
|
|
? |
324 464 40
|
Piston guide ring |
6 |
InternKon: 932 450 40 / 14
|
|
|
|
? |
324 905 40
|
Piston guide strap |
2 |
InternBDB: Bu&Sh GP-099-04000-T47 | InternKon: 932 450 40 / 15
|
|
|
|
? |
517 111 98
|
Seal kit |
1 |
InternBDB: 270x300x67,5 NBR | InternKon: 932 450 40 / 16
|
|
|
|
? |
907 318 40
|
Scraper |
1 |
InternBDB: 270x296x16,4/12,1 Y3 -2 0002 P5008 | InternKon: 932 450 40 / 18
|
|
|
|
? |
504 779 98
|
O-ring |
1 |
InternBDB: 380,37x6,99 NB 70 | InternKon: 932 450 40 / 19
|
|
|
|
? |
324 467 40
|
Support ring |
1 |
InternKon: 932 450 40 / 20
|
|
|
|
? |
502 119 98
|
O-ring |
1 |
InternBDB: 269,3x5,7 NB 80 | InternKon: 932 450 40 / 21
|
|
|
|
? |
907 320 40
|
Support ring |
2 |
InternBDB: 260x269,4x0,85 | InternKon: 932 450 40 / 22
|
|
|
|
? |
501 352 98
|
Feather key |
1 |
InternBDB: A20x12x60 /6885 | InternKon: 932 450 40 / 23
|
|
|
|
? |
514 759 98
|
Bolt Cold weather design |
28 |
InternBDB: M30x240 /912 10.9 | InternKon: 932 450 40 / 24
|
|
|
|
? |
502 572 98
|
Bolt Cold weather design |
16 |
InternBDB: M20x70 /912 10.9 | InternKon: 932 450 40 / 25
|
|
|
|
? |
347 418 99
|
Threaded pin |
1 |
InternBDB: M16x40 /915 10.9 | InternKon: 932 450 40 / 26
|
|
|
|
? |
907 025 40
|
Seal ring |
2 |
InternKon: 932 450 40 / 11
|
|
|
|
? |
|
Piston |
1 |
InternBDB: 932 449 40 | InternKon: 932 445 40 / 1
|
|
|
|
? |
|
Liner |
1 |
InternBDB: 395 620 40 | InternKon: 932 445 40 / 2
|
|
|
|
? |
917 046 40
|
Half shim |
12 |
InternKon: 932 450 40 / 28
|
|
|
|
? |
907 319 40
|
Support ring for fig. no. 22 |
1 |
InternBDB: Y3-270 | InternKon: 932 450 40 / 29
|
|
|
|
? |
917 042 40
|
Cover ring |
1 |
InternKon: 932 450 40 / 7
|
|
|
|
? |
795 427 73
|
Seal kit - piston consist. of fig-nos: 17-20,25,26 |
1 |
InternBDB: E-ST
|
|
|
|
? |
795 428 73
|
Seal kit - piston rod consist. of fig-nos: 16,21-24,37 |
1 |
InternBDB: E-ST
|
|
