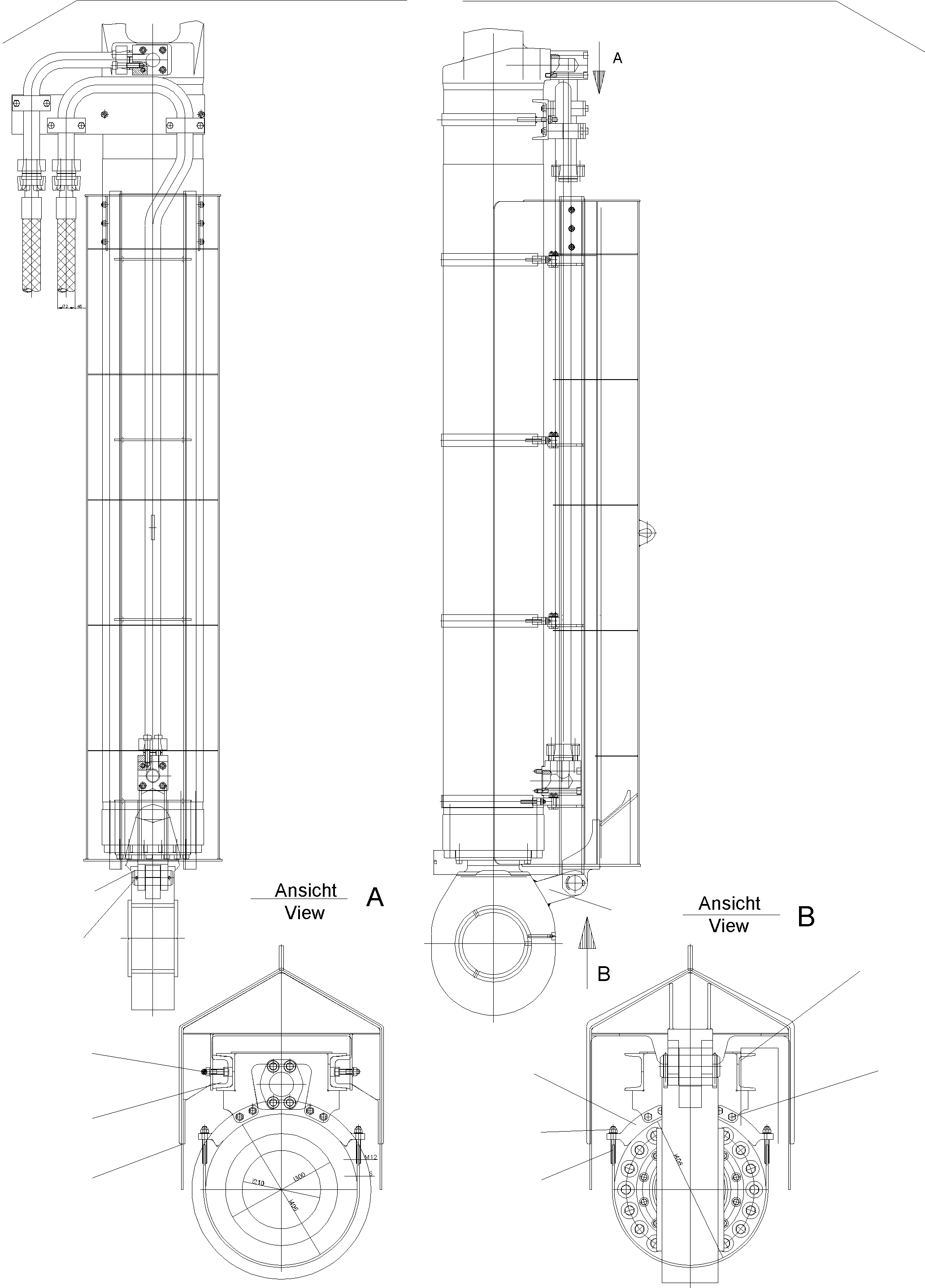

Komatsu parts book diagram for PC5500-6 S/N 15049: BACKHOE BUCKET CYLINDER - ROD PROTECTION

01 02 03 04 05 06 07 08 09 09 10 10 10 11 11 11 12

	#	Part Number	Partname	Quantity	Options	Reference
	01	910 107 40	Cover, rod	1	InternBDB: PC 5500 \| InternKon: 912 620 40 / 1
	02	909 588 40	Guide, rail	1	InternBDB: PC 5500 \| InternKon: 912 620 40 / 2
	03	910 142 40	Clamp Clip	4	InternBDB: RD 406 7 PC 4000-6 \| InternKon: 912 620 40 / 3
	04	910 149 40	Yoke	4	InternBDB: RD 406 /109x446 \| InternKon: 912 620 40 / 4
	05	909 584 40	Cam	1	InternBDB: 135x214 \| InternKon: 912 620 40 / 5
	06	674 868 40	Sliding block	2	InternBDB: SUPRANIL 6G / Stintmann \| InternKon: 912 620 40 / 6
	07	342 145 99	Cotter pin	2	InternBDB: 10x90 / DIN 94 \| InternKon: 912 620 40 / 7
	08	512 108 98	Pin	1	InternBDB: B60H / 9x160x132 DIN 01443 \| InternKon: 912 620 40 / 8
	09	319 268 99	Bolt	12	InternBDB: M12x55 10.9 / DIN 912 \| InternKon: 912 620 40 / 9
	10	334 600 99	Nut	30	InternBDB: M12 / DIN 985 \| InternKon: 912 620 40 / 10
	11	340 467 99	Washer Ш13	30	InternBDB: B 13 / DIN 125 \| InternKon: 912 620 40 / 11
	12	912 620 40	Cover Rod Assy consist of fig- nos 01-11	1

Komatsu PC5500-6 S/N 15049 parts catalog PDF

BACKHOE BUCKET CYLINDER - ROD PROTECTION (515-4260) in PC5500-6 S/N 15049. Diagram image and parts list.
