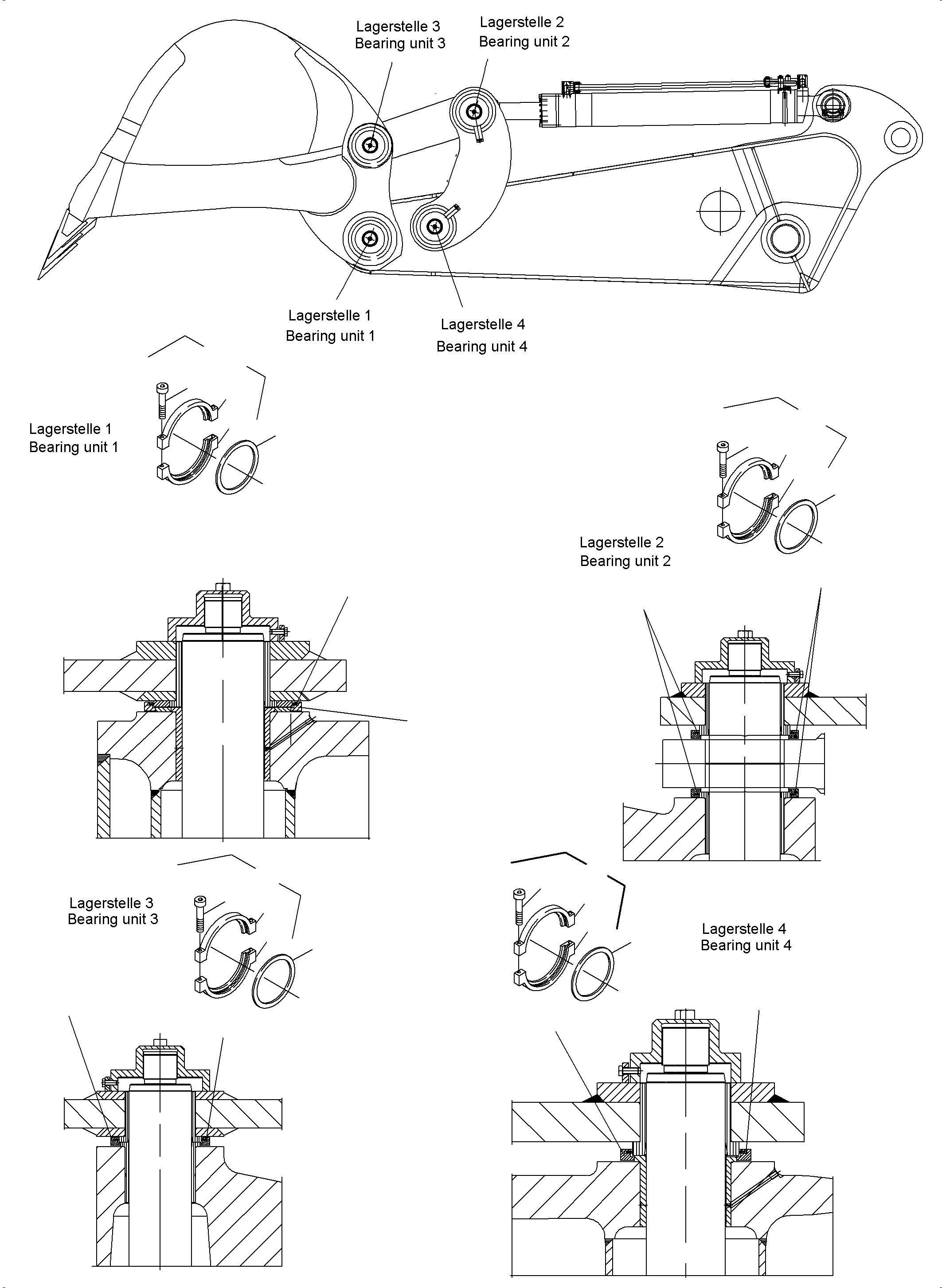

Komatsu parts book diagram for PC5500-6 S/N 15049: PIN SEALING STEERING AND ROD

01 02 02 03 03 04 04 05 05 06 06 07 08 10 10 11 11 12 13 14 14 15 15 16 17 20 20 20 21

	#	Part Number	Partname	Quantity	Options	Reference
	01	627 808 40	Seal fixing fig-nos. 3, 4, 20	2	InternBDB: H 485-3 \| InternKon: 925 464 40 / 1
	02	627 824 40	Seal ring	2	InternBDB: RXZH-090375-T49 \| InternKon: 925 464 40 / 2
	03		Upper ring half These parts are not sold separately	2	InternBDB: 627 811 40 \| InternKon: 627 808 40 / 1
	04		Lower ring half These parts are not sold separately	2	InternBDB: 627 809 40 \| InternKon: 627 808 40 / 2
	05	890 909 40	Seal fixing fig-nos. 07, 08, 21	4	InternBDB: H 485-3 \| InternKon: 925 464 40 / 3
	06	655 733 40	Seal ring	4	InternBDB: RXZH-091152-T46 \| InternKon: 925 464 40 / 4
	07		Upper ring half These parts are not sold separately	2	InternBDB: 890 910 40 \| InternKon: 890 909 40 / 1
	08		Lower ring half These parts are not sold separately	2	InternBDB: 890 911 40 \| InternKon: 890 909 40 / 2
	10	905 216 40	Seal fixing fig-nos. 07, 08, 20	2	InternBDB: H 455 S \| InternKon: 925 464 40 / 5
	11	247 090 40	Seal ring	2	InternBDB: S- 53122-46G \| InternKon: 925 464 40 / 6
	12		Upper ring half These parts are not sold separately	2	InternBDB: 905 217 40 \| InternKon: 905 216 40 / 1
	13		Lower ring half These parts are not sold separately	2	InternBDB: 905 218 40 \| InternKon: 905 216 40 / 2
	14	900 758 40	Seal fixing fig-nos. 07, 08, 20	2	InternBDB: PC 4000-6 \| InternKon: 925 464 40 / 7
	15	652 174 40	Seal ring	2	InternBDB: GDZH-840089-T49 \| InternKon: 925 464 40 / 8
	16		Upper ring half These parts are not sold separately	2	InternBDB: 900 759 40 \| InternKon: 900 758 40 / 1
	17		Lower ring half These parts are not sold separately	2	InternBDB: 900 760 40 \| InternKon: 900 758 40 / 2
	20	509 170 98	Bolt	12	InternBDB: M16x90 /912
	21	319 293 99	Bolt	8	InternBDB: M16x100 /912

Komatsu PC5500-6 S/N 15049 parts catalog PDF

PIN SEALING STEERING AND ROD (515-4600c) in PC5500-6 S/N 15049. Diagram image and parts list.
