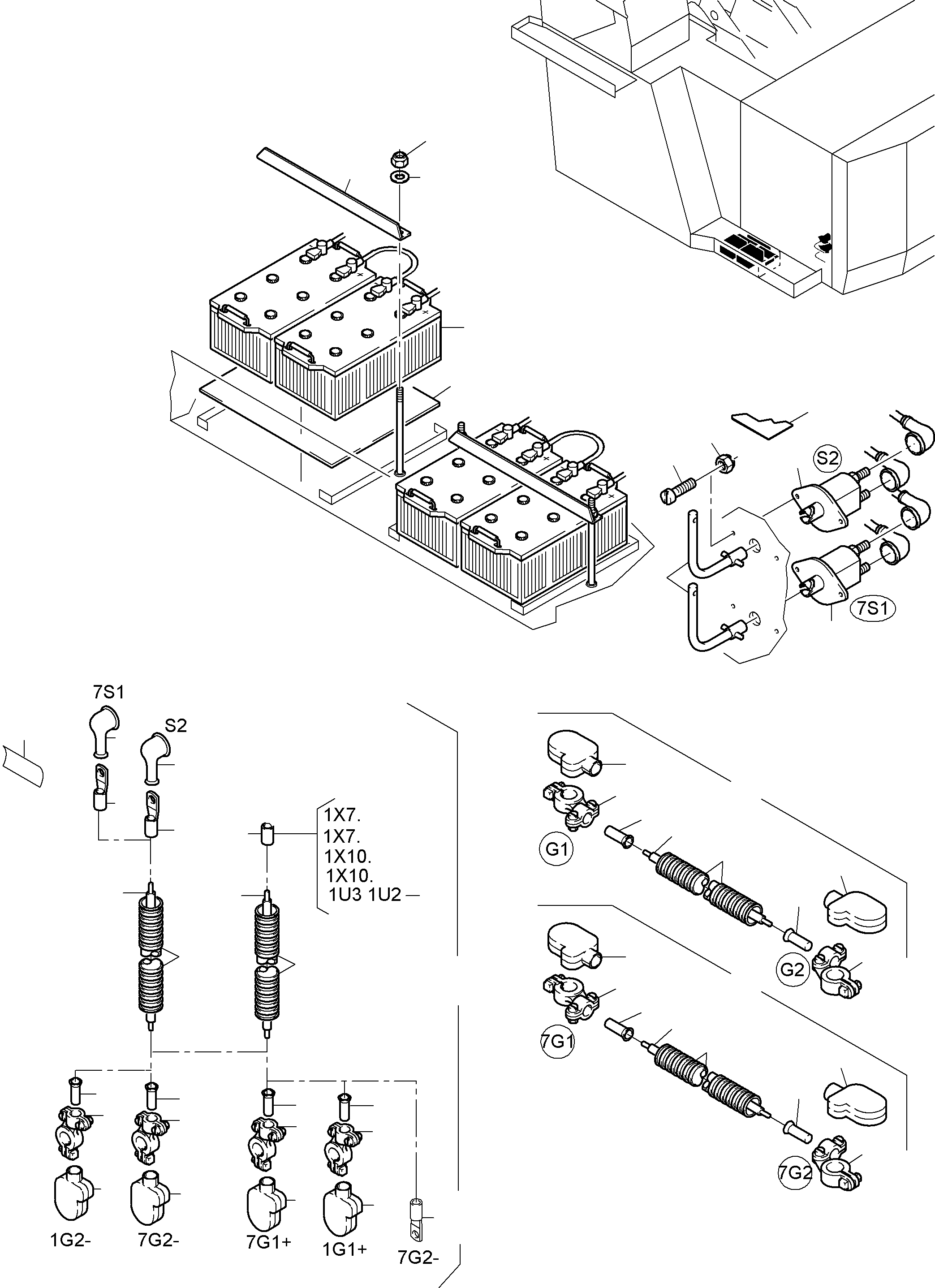

01 |
309 691 40
|
Battery 12V 200AH |
4 |
InternBDB: /70027 | InternKon: 939 021 40 / 1
|
|
|
|
02 |
159 984 40
|
Battery switch |
2 |
InternBDB: Bosch 0341.002.003 | InternKon: 946 414 40 / 24
|
|
|
|
03 |
966 673
|
Gear shift-lever |
2 |
|
|
|
|
04 |
308 534 99
|
Bolt |
4 |
InternBDB: M6x16/84
|
|
|
|
05 |
350 762 99
|
Washer |
4 |
InternBDB: R 6,6 /440
|
|
|
|
06 |
507 025 98
|
Nut |
4 |
InternBDB: M 6 /985
|
|
|
|
07 |
939 008 40
|
Harness battery box |
1 |
InternKon: 946 414 40 / 2
|
|
|
|
08 |
939 011 40
|
Harness battery 7G1-7G2 |
1 |
InternKon: 946 414 40 / 3
|
|
|
|
09 |
939 009 40
|
Harness battery G1-G2 |
1 |
InternKon: 946 414 40 / 4
|
|
|
|
10 |
902 076 40
|
Angle |
4 |
InternKon: 946 414 40 / 5
|
|
|
|
11 |
655 516 40
|
Moulding material 270x495 |
4 |
InternKon: 946 414 40 / 8
|
|
|
|
12 |
340 652 99
|
Washer |
8 |
InternBDB: 13 /125 | InternKon: 946 414 40 / 6
|
|
|
|
13 |
334 600 99
|
Nut |
8 |
InternBDB: M 12 /985 | InternKon: 946 414 40 / 7
|
|
|
|
14 |
906 023 40
|
Cable 25,0 bl |
-2 |
InternKon: 939 008 40 / 2
|
|
|
|
15 |
256 514 40
|
Plate |
14 |
InternKon: 939 008 40 / 3
|
|
|
|
16 |
906 670 40
|
Wire end ferrule 25mm |
2 |
InternBDB: 175 7071 | InternKon: 939 008 40 / 5
|
|
|
|
17 |
269 078 40
|
Wire end ferrule 16/28,7 |
2 |
InternBDB: 5660.0 H16/28,7 | InternKon: 939 008 40 / 6
|
|
|
|
18 |
906 940 40
|
Pole, plus |
4 |
InternBDB: Mastervolt 06-80-60900/T +M12 | InternKon: 939 008 40 / 7
|
|
|
|
19 |
906 941 40
|
Pole, minus |
4 |
InternBDB: Mastervolt 06-80-61000/T -M12 | InternKon: 939 008 40 / 8
|
|
|
|
20 |
906 942 40
|
Pole end plate, red |
4 |
InternBDB: Mastervolt 06-84-57302/T 457N3V02 | InternKon: 939 008 40 / 11
|
|
|
|
21 |
906 943 40
|
Pole end plate, black |
4 |
InternBDB: Mastervolt 06-84-57314/T 457N3V14 | InternKon: 939 008 40 / 12
|
|
|
|
22 |
056 076 40
|
Protection cap |
4 |
InternKon: 939 008 40 / 13
|
|
|
|
23 |
655 696 40
|
Cable protection hose DN29 |
-2 |
InternBDB: VCSG - 29 B | InternKon: 939 008 40 / 14
|
|
|
|
24 |
654 422 40
|
Cable lug 25/10 |
4 |
InternBDB: M10 104 R/10 | InternKon: 939 008 40 / 15
|
|
|
|
25 |
654 423 40
|
Cable lug 25/12 |
4 |
InternBDB: M12 104 R/12 | InternKon: 939 008 40 / 17
|
|
|
|
26 |
600 259 99
|
Cable lug 12-16 |
1 |
InternBDB: 12-16 /46234 | InternKon: 939 008 40 / 18
|
|
|
|
27 |
907 697 40
|
Temperatur sensor |
2 |
InternKon: 939 008 40 / 1
|
|
|
|
28 |
655 651 40
|
Cable protection hose DN17 |
-2 |
InternBDB: VCSG - 17 B | InternKon: 939 011 40 / 6
|
|
|
|
29 |
600 227 99
|
Cable lug 12-120 |
4 |
InternBDB: 12-120/46234 | InternKon: 939 011 40 / 5
|
|
