Diagram image 1 of 3

PC4000-6E S/N 08202

01 02 03 04 05 06 06 07 07 08 08 09 10 11 12 13 14 15 16 17 18 20 26 26 27 29 29 29 29 29 29 29 30 32 33 34 34 35 36 36 38 39 40 41 42 43 43 44 44 47 48 48 49 49 50 50 50 50 50 50 51 51 52 53 53 53 53 53 54 54 55 55 56 57 57 58 59 59 60 61 61 62 62 63 63 64 64 64 64 64 64 64 64 65 65 66 67 67 67 67 67 67 67 67 68 68 68 68 68 68 69 70 72

PC4000-6E S/N 08202

19 21 21 22 22 23 23 24 24 24 25 25 26 26 26 26 26 27 27 28 28 29 29 29 29 29 29 29 30 30 31 32 33 34 34 34 35 36 36 37 37 37 37 41 42 43 43 43 44 44 45 45 46 46 77 78 78 79

PC4000-6E S/N 08202

07 07 07 14 14 71 73 74 75 76 80 81 81 82 83 84 85 85 86

#	Part Number	Partname	Quantity	Options
01	0443453411	Clip	24	InternKon: 944 018 40 / 1
02	0443452711	Clip	9	InternKon: 944 018 40 / 2
03	0443452110	Clip	1	InternKon: 944 018 40 / 3
04	0443451410	Clip	9	InternKon: 944 018 40 / 4
05	0443551210	Clip	12	InternKon: 944 018 40 / 6
06	507 037 98	Nut	22	InternBDB: M10/985 \| InternKon: 944 018 40 / 14
07	340 508 99	Washer	86	InternBDB: 10,5/125 \| InternKon: 944 018 40 / 15
08	307 445 99	Bolt	50	InternBDB: M10x20/933 \| InternKon: 944 018 40 / 18
09	308 624 99	Bolt	1	InternBDB: M10x65/931 \| InternKon: 944 018 40 / 16
10	307 772 99	Bolt	4	InternBDB: M10x12/933 \| InternKon: 944 018 40 / 17
11	307 773 99	Bolt	16	InternBDB: M10x16/933 \| InternKon: 944 018 40 / 19
12	308 576 99	Bolt	16	InternBDB: M10x45/931 \| InternKon: 944 018 40 / 20
13	319 126 99	Bolt	4	InternBDB: M5x45/912 \| InternKon: 944 018 40 / 10
14	516 143 98	Resilent sleeve	15	InternBDB: 10,5/25x25 WN 341 948 40 \| InternKon: 944 018 40 / 7
15	510 746 98	Resilent sleeve	16	InternBDB: 10,5/25x35 WN 341 948 40 \| InternKon: 944 018 40 / 8
16	607 492 40	Resilent sleeve	1	InternBDB: 10,5/25x40 WN 341 948 40 \| InternKon: 944 018 40 / 9
17	932 899 40	Pressure measuring transducer 500 bar	4	InternBDB: Hydac 4740-G-600-161 \| InternKon: 944 018 40 / 11
18	0819320010	Clip	35	InternKon: 944 018 40 / 21
19	944 946 40	Harness control plates	1	InternKon: 944 018 40 / 22
20	942 753 40	Harness h.p. filter	1	InternKon: 944 018 40 / 23
21	940 447 40	Cable union	2	InternBDB: Pflitsch 23255 YPM 30x3,0 \| InternKon: 944 946 40 / 13
22	907 710 40	Cable union	2	InternBDB: Pflitsch 22553 YNPM 18x2,4 \| InternKon: 944 946 40 / 14
23	907 948 40	Fitting	2	InternBDB: PMA BVIR-M253 M25/DN23 \| InternKon: 944 946 40 / 12
24	932 531 40	Fitting	3	InternBDB: PMA BVIR-M329 \| InternKon: 944 946 40 / 11
25	907 976 40	Fitting	3	InternBDB: PMA BVIVG-U293 \| InternKon: 944 946 40 / 10
26	655 696 40	Protecting hose DN 29	-2	InternBDB: PMA VCSG-29 B \| InternKon: 944 946 40 / 2
27	515 213 40	Cable	-2	InternBDB: 1 mmІ \| InternKon: 944 946 40 / 26
28	655 834 40	Protecting hose DN 36	-2	InternBDB: PMA VCSG-36 B \| InternKon: 944 946 40 / 1
29	655 652 40	Protecting hose DN 23	-2	InternBDB: PMA VCSG-23 B \| InternKon: 944 946 40 / 3
30	896 558 40	Pipe adapter DN 29/23	5	InternBDB: PMA BAVR 29 G 23 G \| InternKon: 944 946 40 / 9
31	940 474 40	Distributor DN 36/29	1	InternBDB: PMA BVYR-36 29 29 GGG \| InternKon: 944 946 40 / 4
32	256 514 40	Plate	62	InternKon: 944 946 40 / 20
33	056 292 40	Cable strap	62	InternKon: 944 946 40 / 21
34	906 079 40	T-Distributor DN 29	5	InternBDB: PMA BFTL-29 29 29 GGG \| InternKon: 944 946 40 / 7
35	907 947 40	Distributor DN 29 / DN 23	2	InternBDB: PMA BVYR-29 23 23 GGG \| InternKon: 944 946 40 / 5
36	896 520 40	End pin	19	InternBDB: Pflitsch BD 3,0x25 \| InternKon: 944 946 40 / 15
37	940 461 40	Insulating tube B 5 x 0,6	-2	InternKon: 944 946 40 / 16
38	502 367 98	Clamp	2	InternBDB: RSGU 1100 38/25 WN 011 660 99 \| InternKon: 910 715 40 / 1
39	509 875 98	Thread pin	2	InternBDB: PM8x25/32500 \| InternKon: 910 715 40 / 2
40	334 599 99	Nut	2	InternBDB: M8/985 \| InternKon: 910 715 40 / 3
41	795 131 73	Plug assy.	21	InternBDB: 0819212820 \| InternKon: 944 946 40 / 18
42	795 132 73	Plug assy.	32	InternBDB: 0819212920 \| InternKon: 944 946 40 / 17
43	795 157 73	Pin	115	InternBDB: Deutsch 0460-202-16141 0819105320 \| InternKon: 944 946 40 / 23
44	795 122 73	Sealing plug	16	InternBDB: No.114 017 / 0819100770 \| InternKon: 944 946 40 / 19
45	795 129 73	Plug assy.	3	InternBDB: 0819191206 HD36-24-31PE-059 \| InternKon: 944 946 40 / 22
46	907 999 40	Pipe adapter DN 36/29	2	InternBDB: PMA BAVR 36 G 29 G \| InternKon: 944 946 40 / 8
47	944 020 40	Sealing plug	1	InternKon: 942 753 40 / 38
48	795 128 73	Plug assy.	2	InternBDB: 0819181206 HD36-24-23PE-059 23XAWG16 \| InternKon: 942 753 40 / 30
49	907 980 40	Fitting DN 23	2	InternBDB: PMA BVIVG-U353 \| InternKon: 942 753 40 / 5
50	940 520 40	Fitting	5	InternBDB: PMA BVIR-M202 \| InternKon: 942 753 40 / 4
51	940 471 40	Fitting	2	InternBDB: PMA BVIR-M160 \| InternKon: 942 753 40 / 6
52	907 703 40	Cable union	2	InternBDB: Pflitsch 21650 YNPM 4x3,0 \| InternKon: 942 753 40 / 7
53	907 705 40	Cable union	5	InternBDB: Pflitsch 22051 YNPM 5x2,5 \| InternKon: 942 753 40 / 8
54	907 692 40	Fitting	1	InternBDB: PMA BVIR-M162 \| InternKon: 942 753 40 / 9
55	907 733 40	T-Distributor DN 23	2	InternBDB: PMA BVTR-23 23 23 GGG \| InternKon: 942 753 40 / 21
56	655 629 40	T-Distributor DN 17	1	InternBDB: PMA BFTL-17 17 17GGG \| InternKon: 942 753 40 / 20
57	906 420 40	T-Distributor DN 12	2	InternBDB: PMA BVTR-12 12 12 TTT \| InternKon: 942 753 40 / 19
58	940 169 40	Cable 4x1	-2	InternBDB: KENPUR 600C 4x1mmІ CE \| InternKon: 942 753 40 / 34
59	655 810 40	Pipe adapter DN 29/12	2	InternBDB: PMA BAVR 29 G 12 T \| InternKon: 942 753 40 / 25
60	655 634 40	Pipe adapter DN 23/17	1	InternBDB: PMA BAVR 29 G 17 G \| InternKon: 942 753 40 / 26
61	907 971 40	Pipe adapter DN 23/12	2	InternBDB: PMA BAVR 23 G 12 \| InternKon: 942 753 40 / 28
62	655 633 40	Pipe adapter DN 17/12	2	InternBDB: PMA BAVR 17 G 12 T \| InternKon: 942 753 40 / 24
63	655 631 40	Pipe adapter DN 12/10	2	InternBDB: PMA BAVR 12 T 10 T \| InternKon: 942 753 40 / 23
64	655 650 40	Protecting hose DN 12	-2	InternBDB: PMA VCSG-12 B \| InternKon: 942 753 40 / 14
65	655 649 40	Protecting hose DN 10	-2	InternBDB: PMA VCSG-10 B \| InternKon: 942 753 40 / 15
66	655 651 40	Protecting hose DN 17	-2	InternBDB: PMA VCSG-17 B \| InternKon: 942 753 40 / 16
67	940 462 40	Insulating tube B 6 x 0.6	-2	InternKon: 942 753 40 / 12
68	940 463 40	Insulating tube B 7 x 0,7	-2	InternKon: 942 753 40 / 13
69	795 461 73	Plug assy.	5	InternBDB: 0819213820 \| InternKon: 942 753 40 / 1
70	346 524 40	Plug	1	InternBDB: VG-95234-E-10SL-3SN \| InternKon: 910 029 40 / 1
71	307 804 99	Bolt	2	InternBDB: M12x30/ DIN 933 \| InternKon: 944 018 40 / 35
72	795 134 73	Plug assy.	4	InternBDB: 0819213920 \| InternKon: 944 018 40 / 13
73	937 351 40	Retainer	4	InternKon: 944 018 40 / 24
74	937 352 40	Cable retainer	4	InternKon: 944 018 40 / 25
75	937 333 40	Bracket	1	InternKon: 944 018 40 / 34
76	937 328 40	Retainer assy.	1	InternKon: 944 018 40 / 27
77	907 500 40	T-Distributor DN 36	1	InternBDB: PMA BVTR-363636 \| InternKon: 944 946 40 / 6
78	940 629 40	Warmth shrink hose	-2	InternBDB: Bьrklin .05060 91F2570 \| InternKon: 944 946 40 / 25
79	517 335 98	Lockuing plug M32x1,5	1	InternBDB: CUZN39PB3 / DINEN 50262 \| InternKon: 944 946 40 / 24
80	340 467 99	Washer	2	InternBDB: 13,0/125 \| InternKon: 944 018 40 / 36
81	0443453211	Clip	6	InternKon: 944 018 40 / 28
82	0443451610	Clip	9	InternKon: 944 018 40 / 29
83	0443451210	Clip	1	InternKon: 944 018 40 / 30
84	308 624 99	Screw	1	InternBDB: M10x65 / DIN 931 \| InternKon: 944 018 40 / 33
85	507 037 98	Nut	12	InternBDB: M10/985 \| InternKon: 944 018 40 / 32
86	507 596 98	Washer	10	InternBDB: 11 DIN7989 \| InternKon: 944 018 40 / 31

Komatsu PC4000-6E S/N 08202 parts catalog PDF

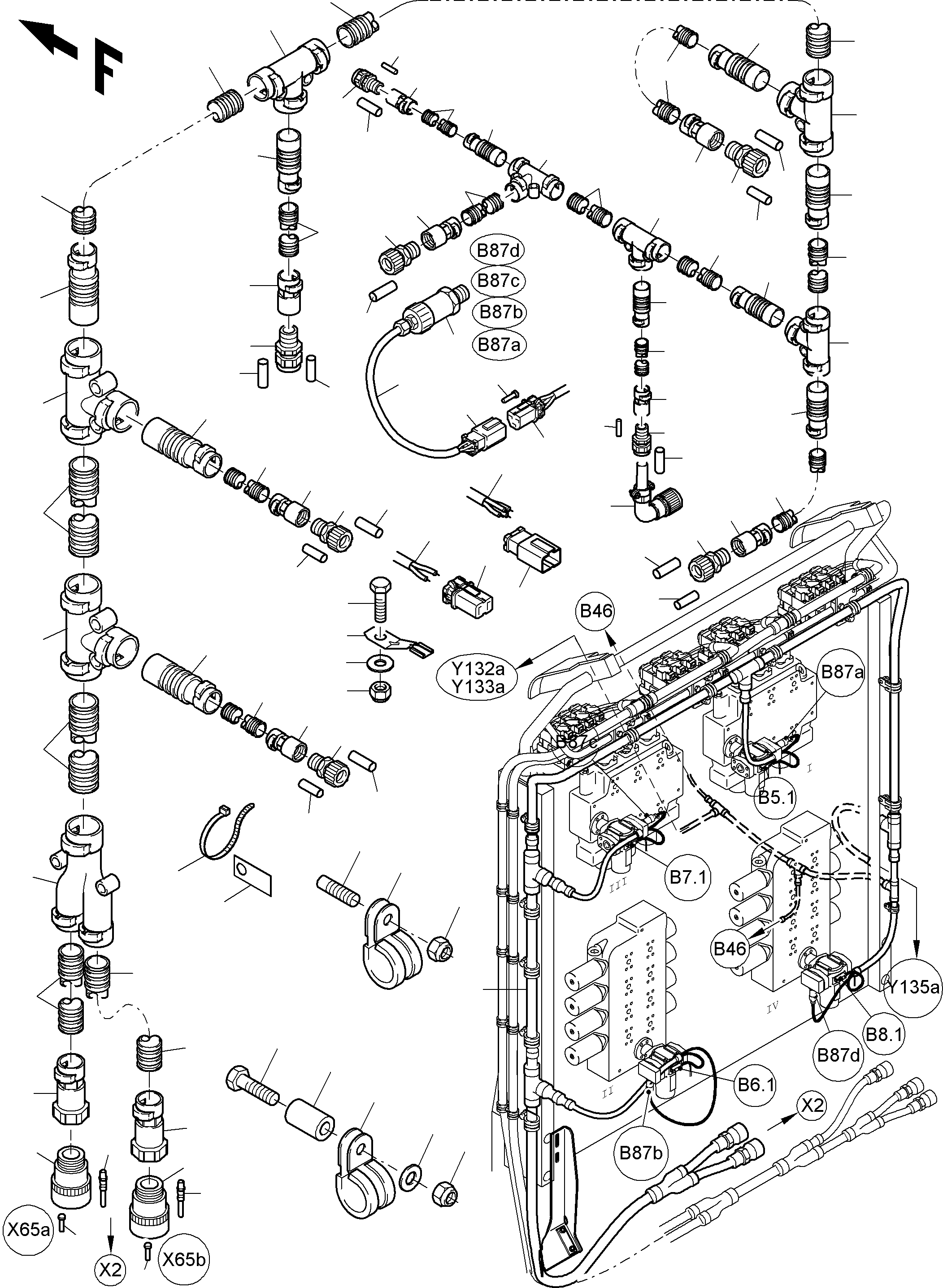

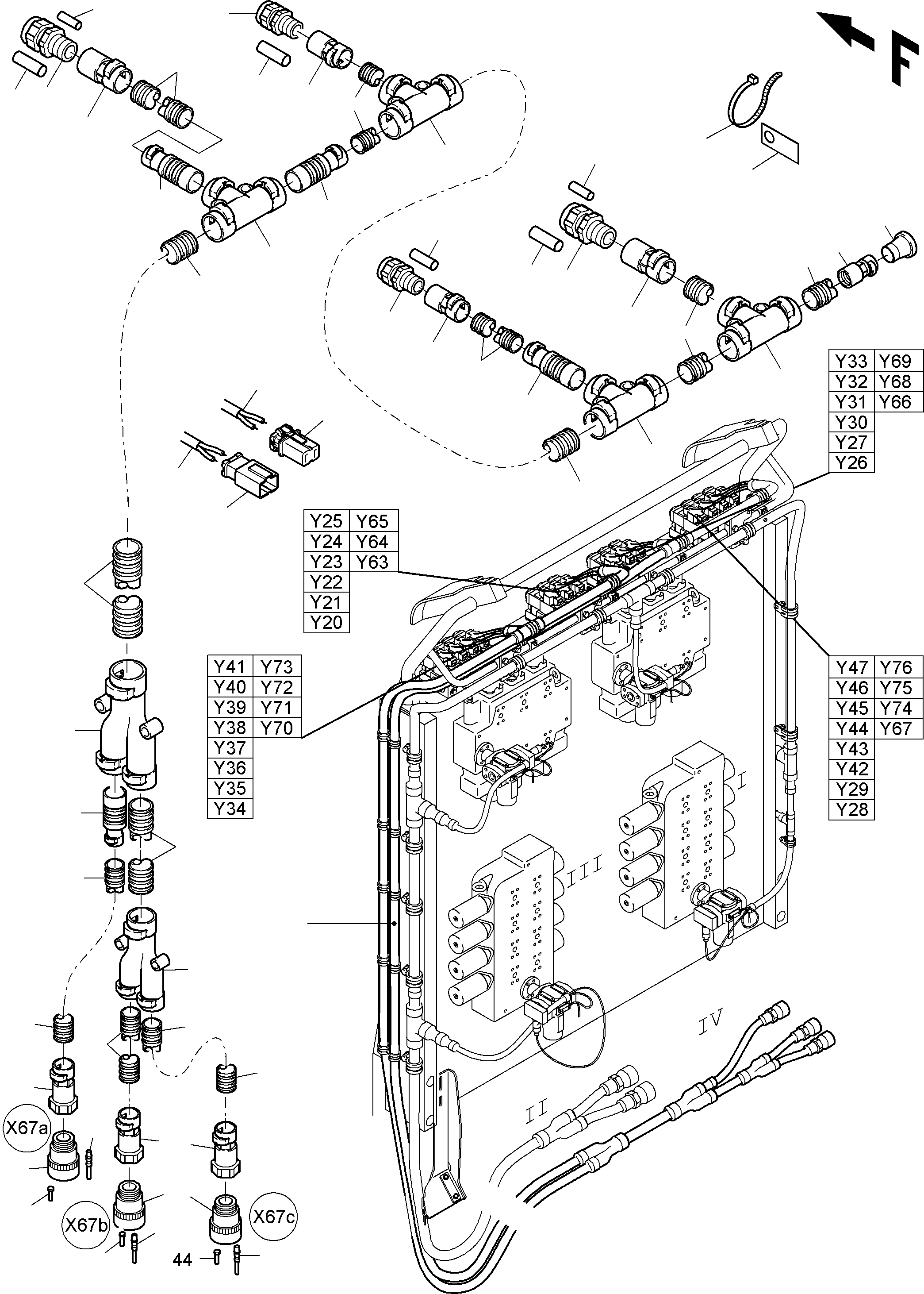

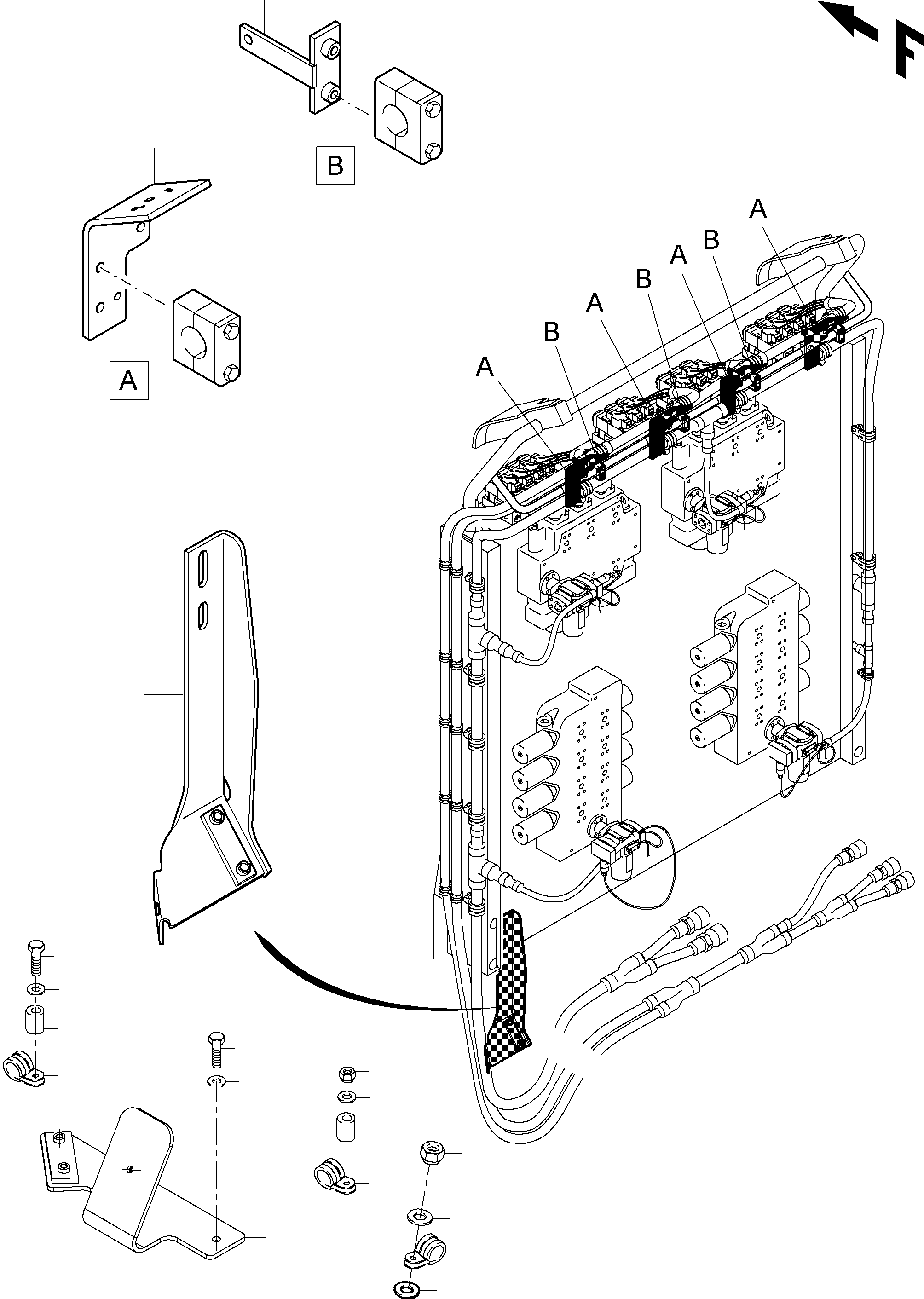

CABLES - CONTROL BLOCKS - H.P.-FILTER (355-2181b) in PC4000-6E S/N 08202. Diagram image and parts list.
