01 |
946 402 40
|

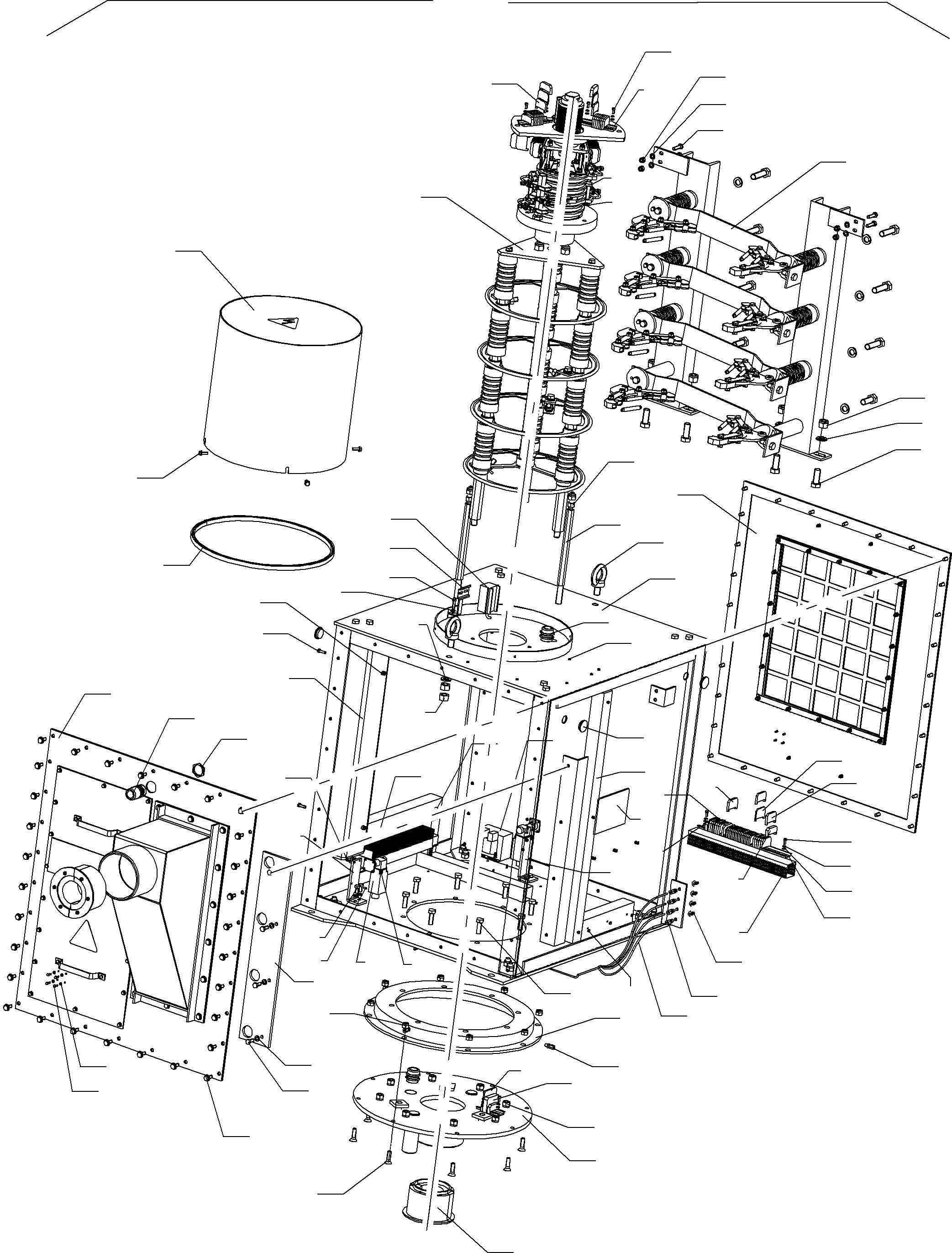

Slip ring assy. |
1 |
InternBDB: TL 70.211/12/2-0000:00 | InternKon: 946 400 40 / 4
|
|
|
|
01 |
946 437 40
|
Slip ring assy. |
1 |
InternBDB: TL 70.211/12/2-0000:00 | InternKon: 946 400 40 / 4
|
|
|
|
02 |
|
Ring body assy. |
1 |
InternBDB: 70.211/12/2-4000:00
|
991-0832 |
|
|
03 |
|
Frame assy. |
1 |
InternBDB: 70.211/12/2-2000:00
|
|
|
|
04 |
|
Hood assy. with line entrance |
1 |
InternBDB: 70.211/12/2-6000:00
|
991-0833 |
|
|
05 |
|
Hood assy. with inspection glass |
1 |
InternBDB: 70.211/5-5000:00
|
991-0699 |
|
|
06 |
|
Current supply unit |
1 |
InternBDB: 70.211/12-3000:00
|
991-0732 |
|
|
07 |
770 216 73
|
Hood |
1 |
InternBDB: 70.211/5-0100:00
|
|
|
|
08 |
505 955 99
|
Assembly rail TS 35 |
-2 |
InternBDB: 70.211/5-0200:01
|
|
|
|
09 |
906 612 40
|
Throught clamp |
12 |
InternBDB: Wago 870-531
|
|
|
|
10 |
906 630 40
|
Protective wire clip |
2 |
InternBDB: Wago 870-537
|
|
|
|
11 |
793 884 73
|
Throught clamp |
2 |
InternBDB: 16mmІ Serie 283
|
|
|
|
12 |
004 387 98
|
Plug |
4 |
InternBDB: NPG 21 /46320
|
|
|
|
13 |
|
Cable union |
3 |
InternBDB: M32x1,5 14-21mm Dichtbereich
|
|
|
|
14 |
313 541 99
|
Eyebolt |
2 |
InternBDB: M16 DIN580
|
|
|
|
15 |
332 336 99
|
Nut |
2 |
InternBDB: M16 ISO04032
|
|
|
|
16 |
307 732 99
|
Bolt |
1 |
InternBDB: M6x25 ISO04017
|
|
|
|
17 |
|
Angle with assembly rail |
1 |
InternBDB: 70.211/12-0300:00
|
|
|
|
18 |
|
Regulated radiator |
1 |
InternBDB: U und W nach TL
|
|
|
|
19 |
765 986 73
|
Light |
1 |
InternBDB: 1x18W /AEG Lichttechnick Galaxielux AWW 118 IND mit Leuchtstoffr
|
|
|
|
20 |
307 730 99
|
Bolt |
2 |
InternBDB: M6x20 ISO04017
|
|
|
|
21 |
512 465 98
|
Nut |
2 |
InternBDB: M6 DIN00982
|
|
|
|
22 |
|
Heater |
1 |
InternBDB: LH-3002-TK U und W nach TL
|
|
|
|
23 |
|
Bolt |
2 |
InternBDB: M5x16 ISO04017
|
|
|
|
24 |
764 584 73
|
Switch |
2 |
InternBDB: GC-U1 VT
|
|
|
|
25 |
|
Switch retainer |
2 |
InternBDB: 70.211/10-0000:03
|
|
|
|
26 |
343 106 99
|
Lock washer |
1 |
InternBDB: B6 FST DIN00127
|
|
|
|
27 |
377 750 99
|
Bolt |
4 |
InternBDB: M8x16 ISO04017
|
|
|
|
28 |
319 561 99
|
Screw |
4 |
InternBDB: M4x40 ISO01207
|
|
|
|
29 |
307 805 99
|
Bolt |
8 |
InternBDB: M12x35 ISO04017
|
|
|
|
30 |
765 568 73
|
Cable retainer |
1 |
InternBDB: 70.211/5-0000:01
|
|
|
|
31 |
346 510 99
|
Lock washer |
8 |
InternBDB: B8 FST DIN00127
|
|
|
|
32 |
377 752 99
|
Bolt |
4 |
InternBDB: M8x20 ISO04017
|
|
|
|
33 |
|
Cable channel |
-2 |
InternBDB: 40x40
|
|
|
|
34 |
|
Screw |
8 |
InternBDB: M4x12 ISO01207
|
|
|
|
35 |
|
Screw |
4 |
InternBDB: M6x20 B151 90
|
|
|
|
36 |
343 092 99
|
Lock washer |
37 |
InternBDB: B4 FST DIN00127
|
|
|
|
37 |
332 078 99
|
Nut |
29 |
InternBDB: M4 ISO04032
|
|
|
|
38 |
765 569 73
|
Hose (polyethylen) |
-2 |
|
|
|
|
39 |
|
Union |
4 |
|
|
|
|
40 |
350 560 99
|
Grease nipple |
4 |
InternBDB: AM 6 DIN71412
|
|
|
|
41 |
270 873 40
|
Cable channel |
-2 |
InternBDB: 40x40 /BA 640 0040 Tehalit
|
|
|
|
42 |
307 756 99
|
Bolt |
4 |
InternBDB: M8x30 ISO04017
|
|
|
|
43 |
340 507 99
|
Washer |
4 |
InternBDB: B8,4 DIN00125
|
|
|
|
44 |
512 557 98
|
Nut |
4 |
InternBDB: M8 DIN00982
|
|
|
|
45 |
512 466 98
|
Nut |
4 |
InternBDB: M16 DIN00982
|
|
|
|
46 |
340 469 99
|
Washer |
4 |
InternBDB: B17 DIN00125
|
|
|
|
47 |
307 824 99
|
Bolt |
4 |
InternBDB: M16x40 ISO04017
|
|
|
|
48 |
|
Cable clamp |
2 |
InternBDB: Roxtec RS nach TL
|
|
|
|
49 |
764 607 73
|
Ball bearing |
1 |
InternBDB: 13/500.0 ungehдrtet
|
|
|
|
50 |
|
Lower plate, weld on part |
1 |
InternBDB: 70.211/12/2-1100:00
|
|
|
|
51 |
511 459 98
|
Fuse screw |
60 |
InternBDB: M8x20 B151 90
|
|
|
|
52 |
318 367 99
|
Bolt |
8 |
InternBDB: M10x35 DIN007991
|
|
|
|
53 |
507 037 98
|
Nut |
8 |
InternBDB: M10 DIN00980
|
|
|
|
54 |
765 560 73
|
Union |
4 |
InternBDB: GE 04-LLM A3C
|
|
|
|
55 |
512 467 98
|
Nut |
8 |
InternBDB: M12 DIN00982
|
|
|
|
56 |
765 987 73
|
Fluorescent lamp |
1 |
InternBDB: 106.1882 TL-D 18W/827
|
|
|
|
57 |
770 217 73
|
Sealing 3x12 |
-2 |
|
|
|
|
58 |
|
nameplate |
1 |
InternBDB: 70.211/12/2-2000:01
|
|
|
|
59 |
343 095 99
|
Lock washer |
3 |
InternBDB: B10 FST DIN00127
|
|
|
|
60 |
307 781 99
|
Bolt |
3 |
InternBDB: M10x40 ISO04017
|
|
|
|
61 |
|
Bolt |
2 |
InternBDB: M5x12 ISO04017
|
|
|
|
62 |
512 470 98
|
Lock washer |
12 |
InternBDB: B5 DIN00127
|
|
|
|
63 |
340 461 99
|
Washer |
24 |
InternBDB: B5,3 DIN00125
|
|
|
|
64 |
906 613 40
|
Disconnect terminal |
3 |
InternBDB: 2,5mmІ
|
|
|
|
65 |
356 265 40
|
Clamp |
8 |
InternBDB: TS 35/7,5
|
|
|
|
66 |
517 324 98
|
Nut |
1 |
InternBDB: M32x1,5
|
|
|
|
67 |
|
Union |
1 |
InternBDB: M32x1,5 14-21mm Dichtbereich
|
|
|
|
68 |
906 612 40
|
Through clamp |
32 |
InternBDB: 2,5mmІ Serie 281
|
|
|
|
69 |
|
Current collector bold |
2 |
InternBDB: 70211/12-0000:18
|
|
|
|
70 |
795 926 73
|
Assembly rail |
2 |
InternBDB: 70-211/12-0000:20
|
|
|
|
71 |
795 927 73
|
Switch retainer |
1 |
InternBDB: 70.211/10-0000:19
|
|
|
|
72 |
332 334 99
|
Nut |
2 |
InternBDB: M12 ISO04032
|
|
|
|
73 |
|
Parallel pin |
2 |
InternBDB: 4x10 ISO08734
|
|
|
|
74 |
343 817 99
|
Lock washer |
2 |
InternBDB: B16 DIN00127
|
|
|
|
75 |
318 983 99
|
Screw |
13 |
InternBDB: M4x16 ISO01207
|
|
|
|
76 |
319 003 99
|
Screw |
11 |
InternBDB: M4x8 ISO1207
|
|
|
|
77 |
318 076 99
|
Screw |
4 |
InternBDB: M5x12 ISO01207
|
|
|
|
78 |
|
Transformer 0,1 KV |
1 |
InternBDB: BV EI/84b/UV/230V nach TL
|
|
|
|
79 |
|
cross connection link |
2 |
InternBDB: 4mmІ Serie 281
|
|
|
|
80 |
|
Disconnect terminal |
1 |
InternBDB: 16mmІ
|
|
|
|
81 |
|
Disconnect terminal |
2 |
InternBDB: 4mmІ
|
|
