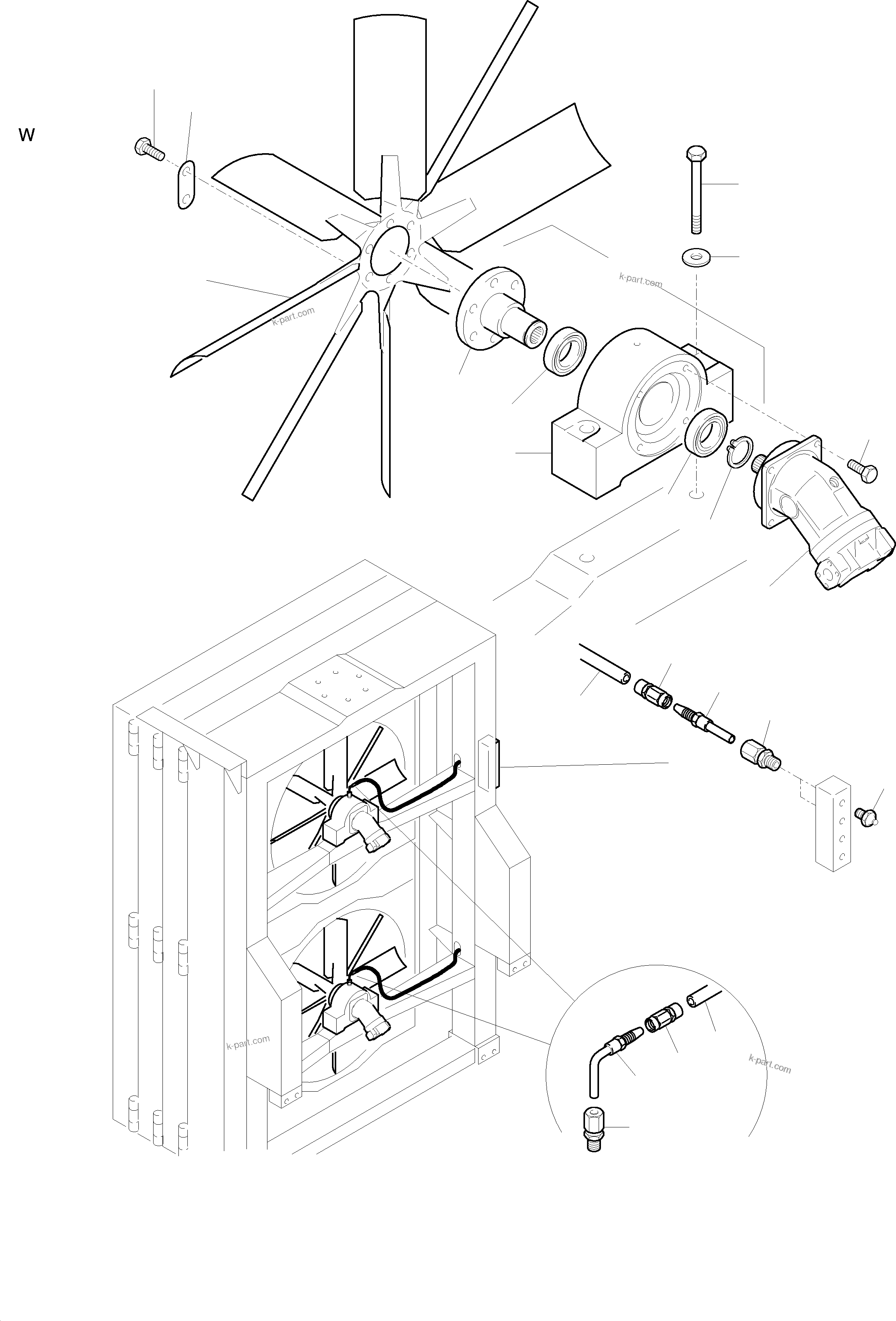

Komatsu parts book diagram for H455S S/N 15005: OIL COOLER - FAN DRIVE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	307 869 99	Bolt	8	InternBDB: M12x35 \| InternKon: 574 500 40 / 23
	?	409 978 40	Locking plate	4	InternKon: 574 500 40 / 16
	?	461 548 40	Fan	2	InternBDB: 44" \| InternKon: 574 500 40 / 12
	?	372 351 40	Fan mounting assy.	2	InternKon: 574 500 40 / 10
	?	395 511 40	Bearing retainer	2	InternKon: 372 351 40 / 1
	?	606 673 40	Shaft	2	InternKon: 372 351 40 / 2
	?	342 555 99	Circlip	2	InternKon: 372 351 40 / 3
	?	368 252 99	Ball bearing	4	InternBDB: 6212 RS /625 \| InternKon: 372 351 40 / 4
	?	308 337 99	Bolt	4	InternBDB: M24x180 \| InternKon: 574 500 40 / 24
	?	316 213 99	Washer	4	InternBDB: Ш 25 \| InternKon: 574 500 40 / 28
	?		Fan motor	2	InternBDB: 358 666 40 \| InternKon: 574 500 40 / 11	090-1368
	?	307 806 99	Bolt	8	InternBDB: M12x40 \| InternKon: 574 500 40 / 21
	?	370 500 99	Union	2	InternBDB: CL 6 \| InternKon: 574 500 40 / 42
	?	515 029 40	Hose fittings	2	InternKon: 574 500 40 / 43
	?	515 028 40	Hose fittings	4	InternKon: 574 500 40 / 44
	?	515 027 40	Hose fittings	2	InternKon: 574 500 40 / 46
	?	004 860 98	Grease nipple	2	InternBDB: AR 1/4 \| InternKon: 574 500 40 / 47
	?	576 269 40	Union	2	InternBDB: GE 6 SR 1/4" \| InternKon: 574 500 40 / 48
	?	576 160 40	Hose DN 4 Bulk ware, state length required	-2	InternKon: 574 500 40 / 45

Komatsu H455S S/N 15005 parts catalog PDF

OIL COOLER - FAN DRIVE (515-1812) in H455S S/N 15005. Diagram image and parts list.
