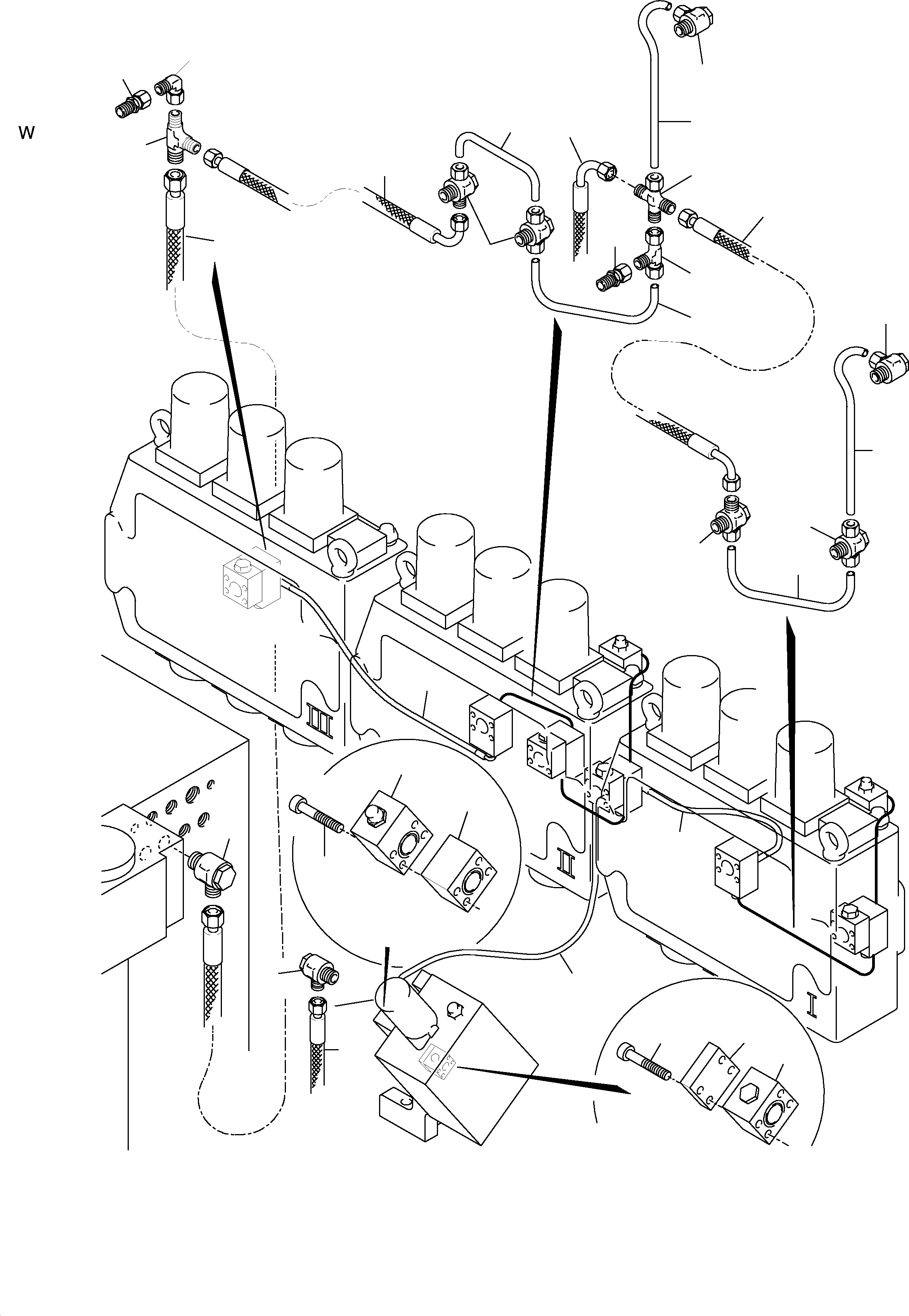

Komatsu parts book diagram for H455S S/N 15005: PIPING - SECONDARY VALVES

01 01 01 02 02 02 03 03 03 03 03 04 04 05 06 07 08 09 09 10 10 11 11 11 12 13 14 14 15 16 17 18

	#	Part Number	Partname	Quantity	Options	Reference
	01	006 894 98	Union	3	InternBDB: Voss 10-LR \| InternKon: 637 574 40 / 33
	02	509 699 98	Union	4	InternBDB: DSVT 10-LR \| InternKon: 637 574 40 / 34
	03	215 627 99	Pipe Ш 10 Bulk ware, state length required	-2	InternBDB: 10x2 /2391
	04	502 000 98	Socket	2	InternBDB: EVGE 10-PLR-ED \| InternKon: 637 574 40 / 30
	05	371 952 99	Union	1	InternBDB: FFL 10 /2353 \| InternKon: 637 574 40 / 31
	06	373 764 99	Union	1	InternBDB: TR 15/10/10 \| InternKon: 637 574 40 / 32
	07	372 496 99	Union	1	InternBDB: ZL 10 /2353 \| InternKon: 637 573 40 / 26
	08	372 171 99	Union	1	InternBDB: DDL 10 /2353
	09	643 708 40	Hose assy. DN 08 x 620	1	InternBDB: DOL 10 /DOL 10-90 \| InternKon: 637 574 40 / 44
	10	627 265 40	Hose assy. DN 08 x 820	1	InternBDB: DOL 10 /DOL 10-90 \| InternKon: 637 574 40 / 45
	11	650 749 40	Hose assy. DN 08 x 980	1	InternBDB: DOL 10 / DOL 10-90 \| InternKon: 637 573 40 / 37
	12		Pressure relief valve	1	InternBDB: 356 197 40 \| InternKon: 637 573 40 / 4	090-0359
	13	319 281 99	Bolt	4	InternBDB: M12x110 /912 \| InternKon: 637 573 40 / 30
	14		Anticavitation valve	2	InternBDB: 256 164 40 \| InternKon: 637 573 40 / 46	090-0226
	15	994 410	Sealing plate	1	InternBDB: Rexroth 303 897
	16	319 280 99	Bolt	4	InternBDB: M12x100 /912 \| InternKon: 637 573 40 / 48
	17	604 073 40	Hose assy. DN 12 x 3750	1	InternBDB: DOL 15 / DOL 15-90 \| InternKon: 647 801 40 / 21
	18	006 916 98	Union	1	InternBDB: 15-LM \| InternKon: 647 801 40 / 41

Komatsu H455S S/N 15005 parts catalog PDF

PIPING - SECONDARY VALVES (515-1837a) in H455S S/N 15005. Diagram image and parts list.
