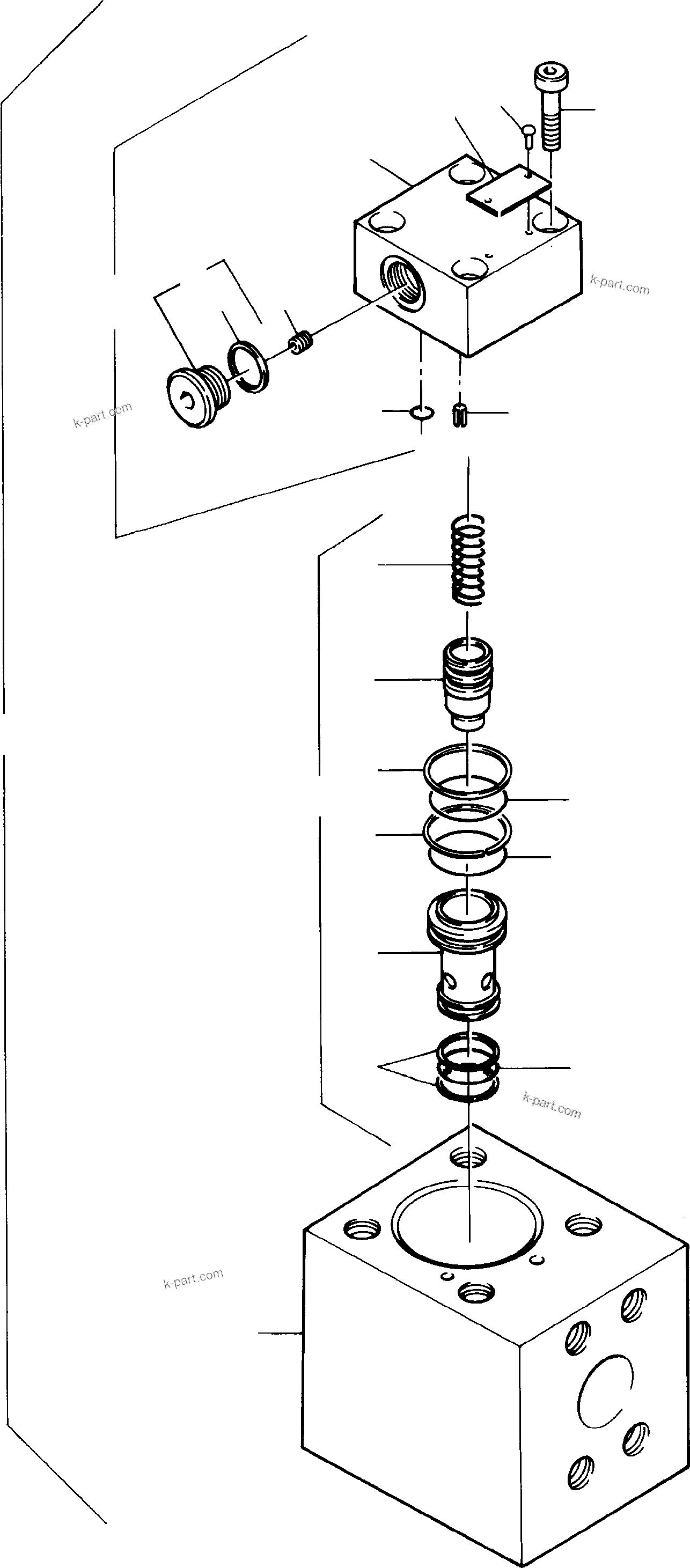

NON-RETURN VALVE | H455S S/N 15005 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	457 201 40	Non-return valve assy. fig-nos: 02-21	1	InternBDB: DBM
?	449 170 40	Valve block	1	InternKon: 457 201 40 / 1
?	440 777 40	Cartridge valve assy. fig-nos: 04-11	1	InternBDB: Rexroth LC 50 B05 D6X \| InternKon: 457 201 40 / 2
?	976 819 73	Back-up ring	2	InternBDB: 001 893 60,88x3
?	997 628	O-ring	1	InternBDB: 008 765 59,92x3,53
?		Valve body These parts are not sold separately	1
?	255 040 40	O-ring	2	InternBDB: 008 035 78,75x5,33
?	976 820 73	Back-up ring	1	InternBDB: 001 897 79,83x4,65
?	976 821 73	Back-up ring	1	InternBDB: 153 571 92,1x4,6
?		Valve taper These parts are not sold separately	1
?	696 386 73	Compression spring	1	InternBDB: 002 123 36/3,2x130/ 10,5
?	440 778 40	Control cover assy. fig-nos: 13-21	1	InternBDB: Rexroth LFA 50 D6X/ FX 30
?		Plug These parts are not sold separately	1
?		Shaped seal These parts are not sold separately	1	InternBDB: 012 472
?	696 387 73	Standard jet	1	InternBDB: 133 712 1,5-M8x1
?	501 376 98	O-ring	1	InternBDB: 004 489 12,37x2,62
?	506 288 98	Grooved pin	1	InternBDB: 005 079 8x16 /1474
?		Cover These parts are not sold separately	1
?	696 388 73	Identification plate	1	InternBDB: 005 158
?	350 818 99	Grooved drive stud	2	InternBDB: 005 106 2x6 /1476
?	319 314 99	Bolt	4	InternBDB: 003 287 M20x70 /912 10.9
