OIL COOLER SYSTEM | H455S S/N 15005 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

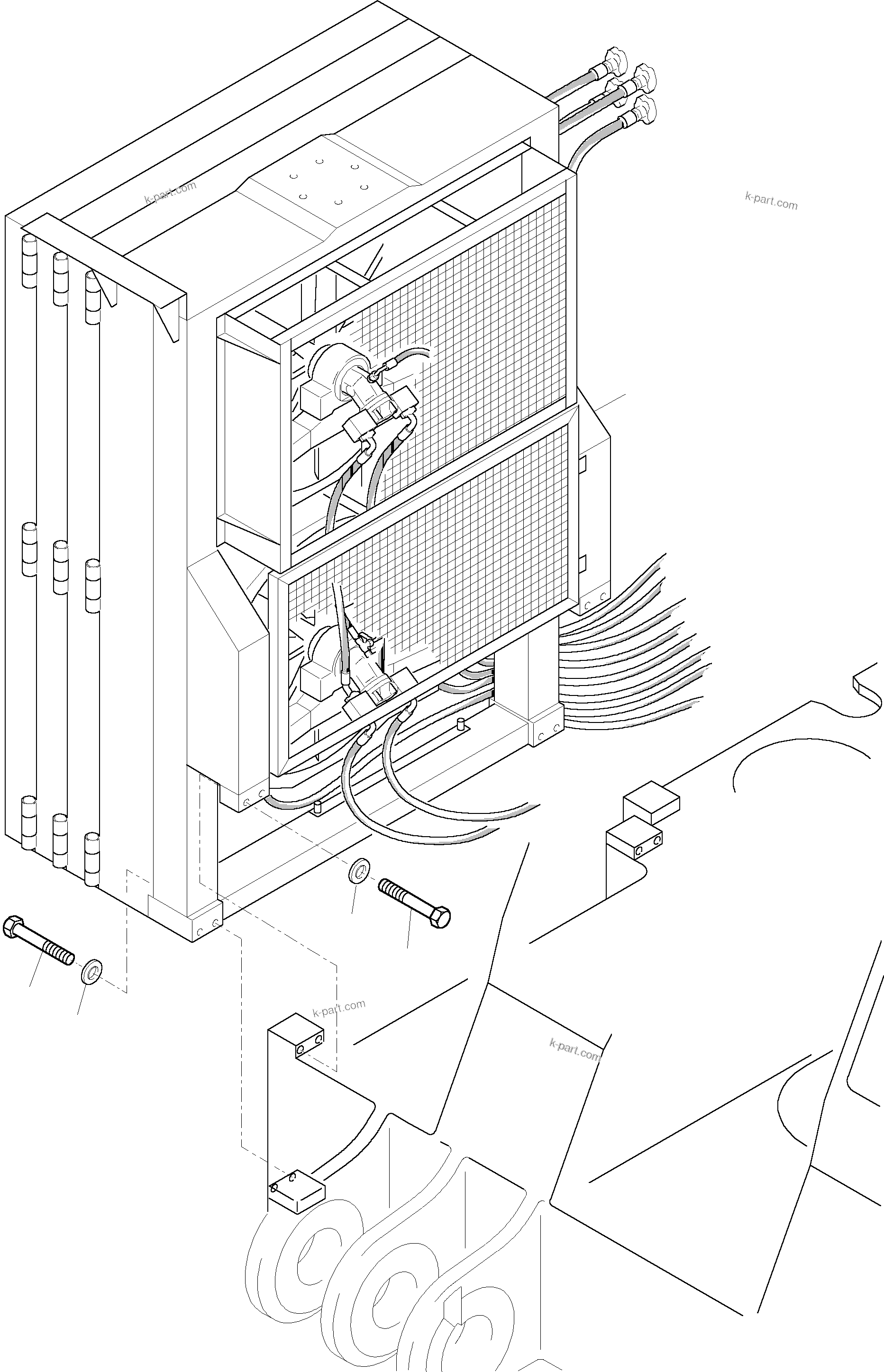

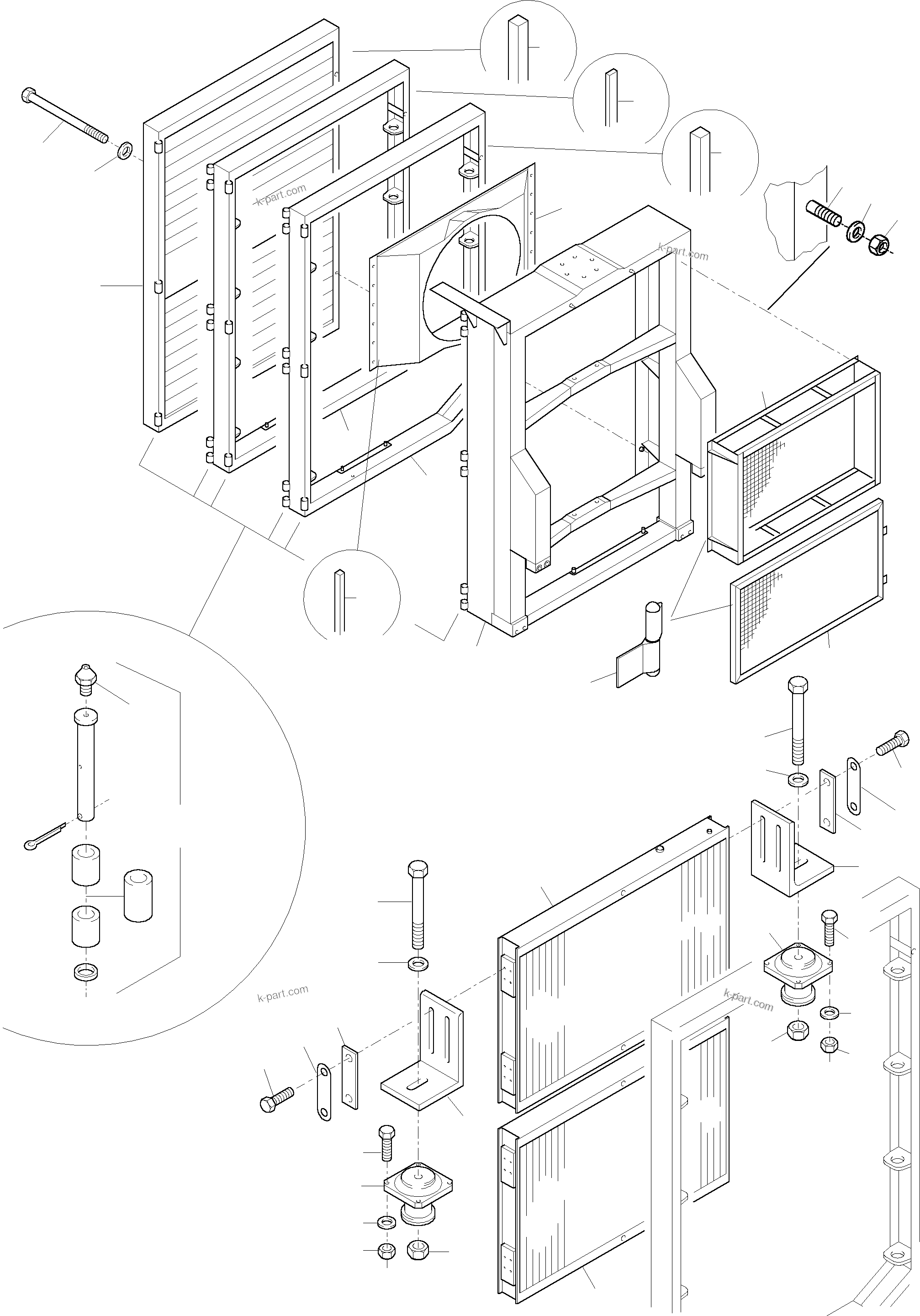

Diagram image 1 of 2

H455S S/N 15005

? ? ? ? ?

H455S S/N 15005

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	574 500 40	Oil cooler system assy.	1	InternKon: 653 660 40 / 6
?	566 197 40	Frame	1	InternKon: 574 500 40 / 1
?	574 502 40	Radiator mounting	2	InternKon: 574 501 40 / 1
?	655 476 40	Oil cooler	4	InternBDB: AKG \| InternKon: 574 501 40 / 2
?	637 518 40	Angle	16	InternKon: 574 501 40 / 3
?	461 587 40	Buffer elements	16	InternKon: 574 501 40 / 4
?		Plate	32
?	480 169 40	Locking plate	32	InternKon: 574 501 40 / 5
?	307 806 99	Bolt	64	InternBDB: M12x40 /933 \| InternKon: 574 501 40 / 7
?	308 640 99	Bolt	16	InternBDB: M16x120 /931 \| InternKon: 574 501 40 / 6
?	316 211 99	Washer	16	InternBDB: 17 \| InternKon: 574 501 40 / 11
?	334 601 99	Nut	16	InternKon: 574 501 40 / 9
?	507 037 98	Nut	64	InternKon: 574 501 40 / 10
?	308 575 99	Bolt	64	InternBDB: M10x40 /931 \| InternKon: 574 501 40 / 8
?	340 465 99	Washer	128	InternKon: 574 501 40 / 13
?	511 747 98	Bolt	4	InternBDB: M30x160 /931 \| InternKon: 872 255 40 / 19
?	512 152 98	Bolt	4	InternBDB: M30x340 /931 \| InternKon: 872 255 40 / 45
?	255 057 40	Washer	8	InternBDB: Ш 31 \| InternKon: 872 255 40 / 25
?	873 020 40	Door	1	InternKon: 574 500 40 / 6
?	675 582 40	Door	1	InternKon: 574 500 40 / 5
?	510 213 98	Thread pin	4	InternBDB: PM 12 x 30 / 32500 \| InternKon: 574 500 40 / 15
?	334 600 99	Nut	4	InternBDB: M12 / 985 \| InternKon: 574 500 40 / 25
?	653 691 40	Hinge	4	InternKon: 574 500 40 / 9
?	341 337 99	Washer	4	InternBDB: 13,5 / 436 \| InternKon: 574 500 40 / 26
?	574 527 40	Fan cowl	2	InternKon: 574 500 40 / 4
?	390 641 40	Hinge	9	InternKon: 574 500 40 / 8
?	350 562 99	Grease nipple	9	InternBDB: AM 10x1
?	637 530 40	Door	1	InternKon: 574 500 40 / 3
?	350 757 99	Washer	2	InternKon: 574 500 40 / 27
?	509 588 98	Bolt	2	InternBDB: M24x610 \| InternKon: 574 500 40 / 18
?	592 126 40	Profiled joint 15x30 Bulk ware, state length required	-2	InternKon: 574 500 40 / 29
?	440 821 40	Profiled joint 30x30 Bulk ware, state length required	-2	InternKon: 574 500 40 / 30
?	592 127 40	Profiled joint 15x15 Bulk ware, state length required	-2	InternKon: 574 500 40 / 31
