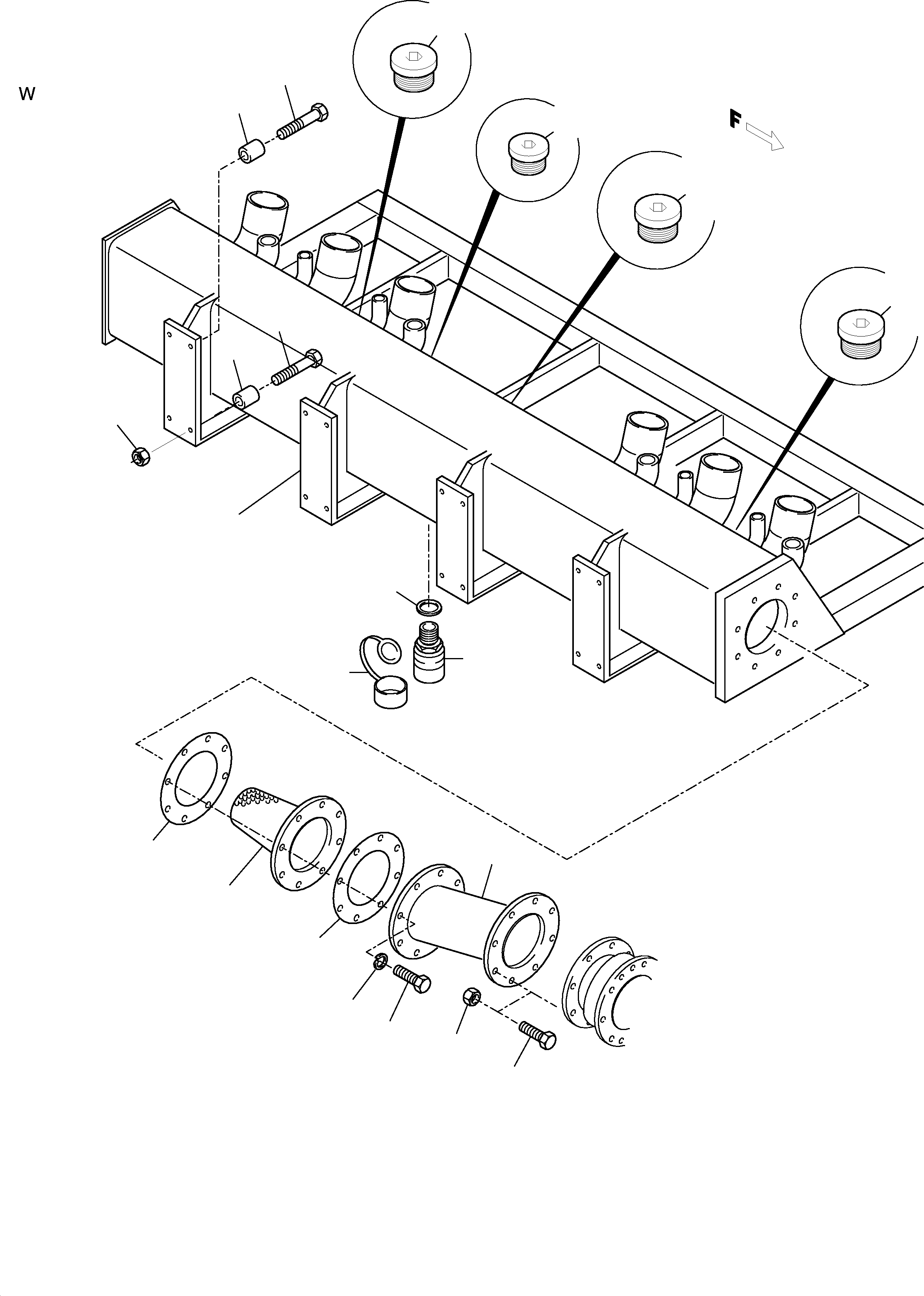

Komatsu parts book diagram for H455S S/N 15005: SUCTION TANK

01 02 03 04 04 05 06 07 08 09 10 10 10 11 12 13 13 14 15 16 17

	#	Part Number	Partname	Quantity	Options	Reference
	01	661 510 40	Suction tank	1	InternKon: 661 555 40 / 1
	02	624 062 40	Tube	1	InternKon: 661 555 40 / 2
	03	490 067 40	Strainer	1	InternBDB: Hydac 4 413 478 \| InternKon: 661 555 40 / 3
	04	396 093 40	Seal	2	InternBDB: 340/205 x 2 \| InternKon: 661 555 40 / 4
	05	081 495 40	Quick disconnect coupling	1	InternBDB: 61-6511-620-022 \| InternKon: 661 555 40 / 5
	06	081 496 40	Protection cap	1	InternBDB: 63-6591-620-051 \| InternKon: 661 555 40 / 6
	07	340 086 99	Seal ring	1	InternBDB: A 30 x 38 / 7603 \| InternKon: 661 555 40 / 7
	08	307 846 99	Bolt	8	InternBDB: M20 x 55 / 933 \| InternKon: 661 555 40 / 8
	09	346 511 99	Lock washer	8	InternBDB: A20 / 128 \| InternKon: 661 555 40 / 9
	10	358 657 40	Plug	3	InternBDB: 1" NPT \| InternKon: 661 555 40 / 10
	11	324 550 40	Plug	1	InternBDB: 3/4" NPT \| InternKon: 661 555 40 / 11
	12	511 688 98	Bolt	8	InternBDB: M24 x 150 / 931 \| InternKon: 872 264 40 / 12
	13	510 731 98	Reslilient sleeve	16	InternBDB: 25/45 x 50 \| InternKon: 872 264 40 / 11
	14	308 667 99	Bolt	8	InternBDB: M20 x 75 / 931 \| InternKon: 872 254 40 / 16
	15	334 686 99	Nut	8	InternBDB: M20 / 985 \| InternKon: 872 254 40 / 17
	16	513 030 98	Bolt	8	InternBDB: M24 x 110 / 931 \| InternKon: 872 264 40 / 13
	17	501 393 98	Nut	8	InternBDB: M24 / 934 \| InternKon: 872 264 40 / 14

Komatsu H455S S/N 15005 parts catalog PDF

SUCTION TANK (515-1804) in H455S S/N 15005. Diagram image and parts list.
