H455S S/N 15005

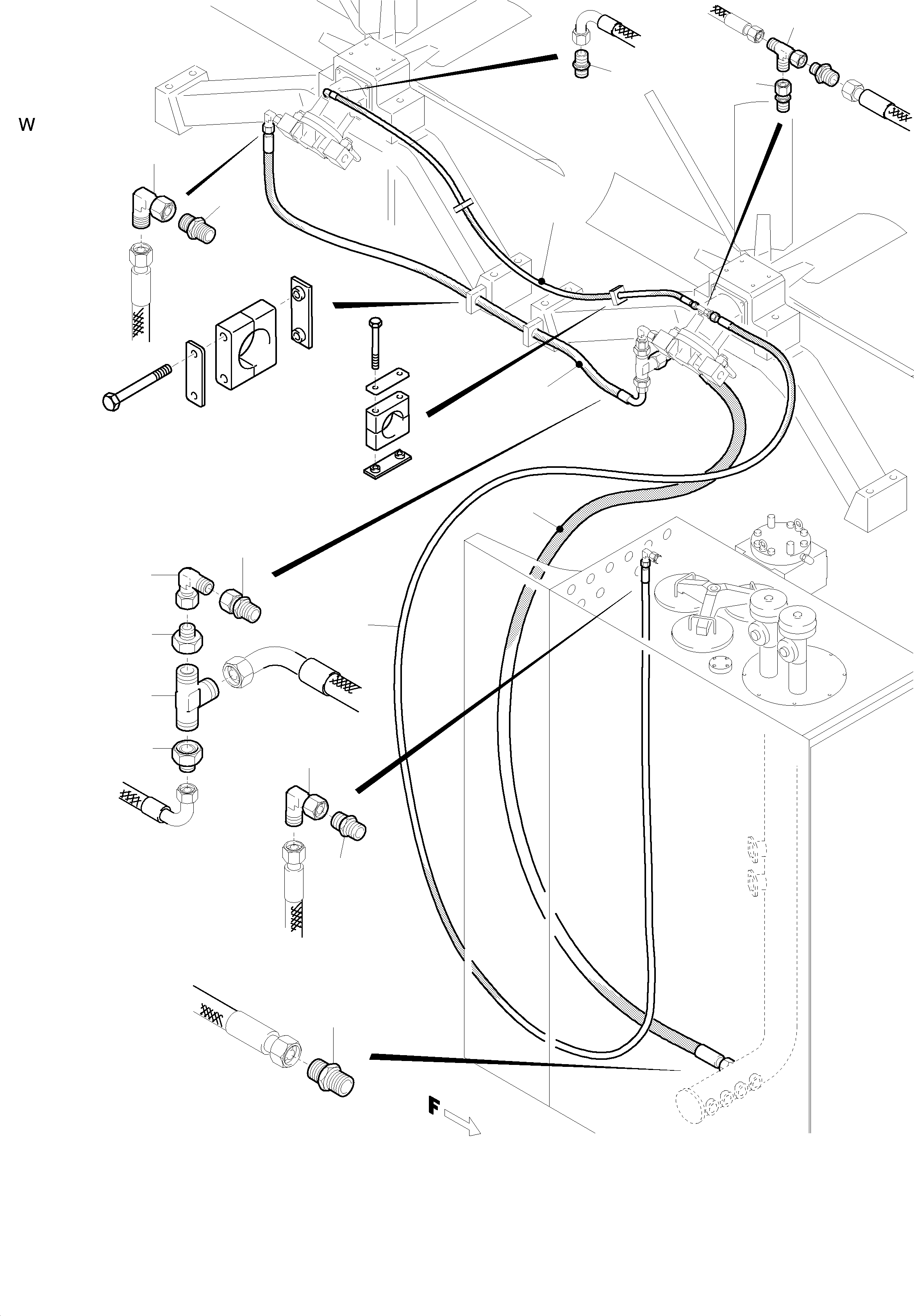

Komatsu parts book diagram for H455S S/N 15005: RETURN LINES - FAN MOTORS

01 02 03 04 05 06 07 08 09 10 11 12 12 13 14 14 15

	#	Part Number	Partname	Quantity	Options	Reference
	01	650 709 40	Hose assy. DN 12 x 2100	1	InternBDB: DOL 15 / DOL 15 - 90 \| InternKon: 674 955 40 / 34
	02	513 842 98	Hose assy. DN 20 x 8200	1	InternBDB: DOL 22 / DOL 22 \| InternKon: 674 955 40 / 33
	03	513 840 98	Hose assy. DN 25 x 2300	1	InternBDB: DOL 28 / Dol 28 - 90 \| InternKon: 674 955 40 / 31
	04	513 841 98	Hose assy. DN 40 x 6400	1	InternBDB: DOL 42 / DOL 42 - 90 \| InternKon: 674 955 40 / 32
	05	374 407 99	Socket	1	InternBDB: L15B-M / 3901 \| InternKon: 674 955 40 / 62
	06	371 783 99	Socket	1	InternBDB: EVGE 15-LM-ED \| InternKon: 674 955 40 / 60
	07	373 732 99	Union	1	InternBDB: TR 15/22/15-PL \| InternKon: 674 955 40 / 61
	08	374 409 99	Union	1	InternBDB: L 22 \| InternKon: 674 955 40 / 59
	09	372 175 99	Union	1	InternBDB: DDL 22
	10	374 415 99	Socket	1	InternBDB: L 42 \| InternKon: 674 955 40 / 63
	11	374 431 99	Socket	1	InternBDB: L 28 \| InternKon: 674 955 40 / 53
	12	372 176 99	Union	1	InternBDB: DDL 28
	13	372 619 99	Union	1	InternBDB: QL 42 \| InternKon: 674 955 40 / 82
	14	372 933 99	Union	2	InternBDB: KOR 42/28 \| InternKon: 674 955 40 / 81
	15	371 941 99	Union	1	InternBDB: EVGE 28 \| InternKon: 674 955 40 / 79

Komatsu H455S S/N 15005 parts catalog PDF

RETURN LINES - FAN MOTORS (515-1819) in H455S S/N 15005. Diagram image and parts list.
