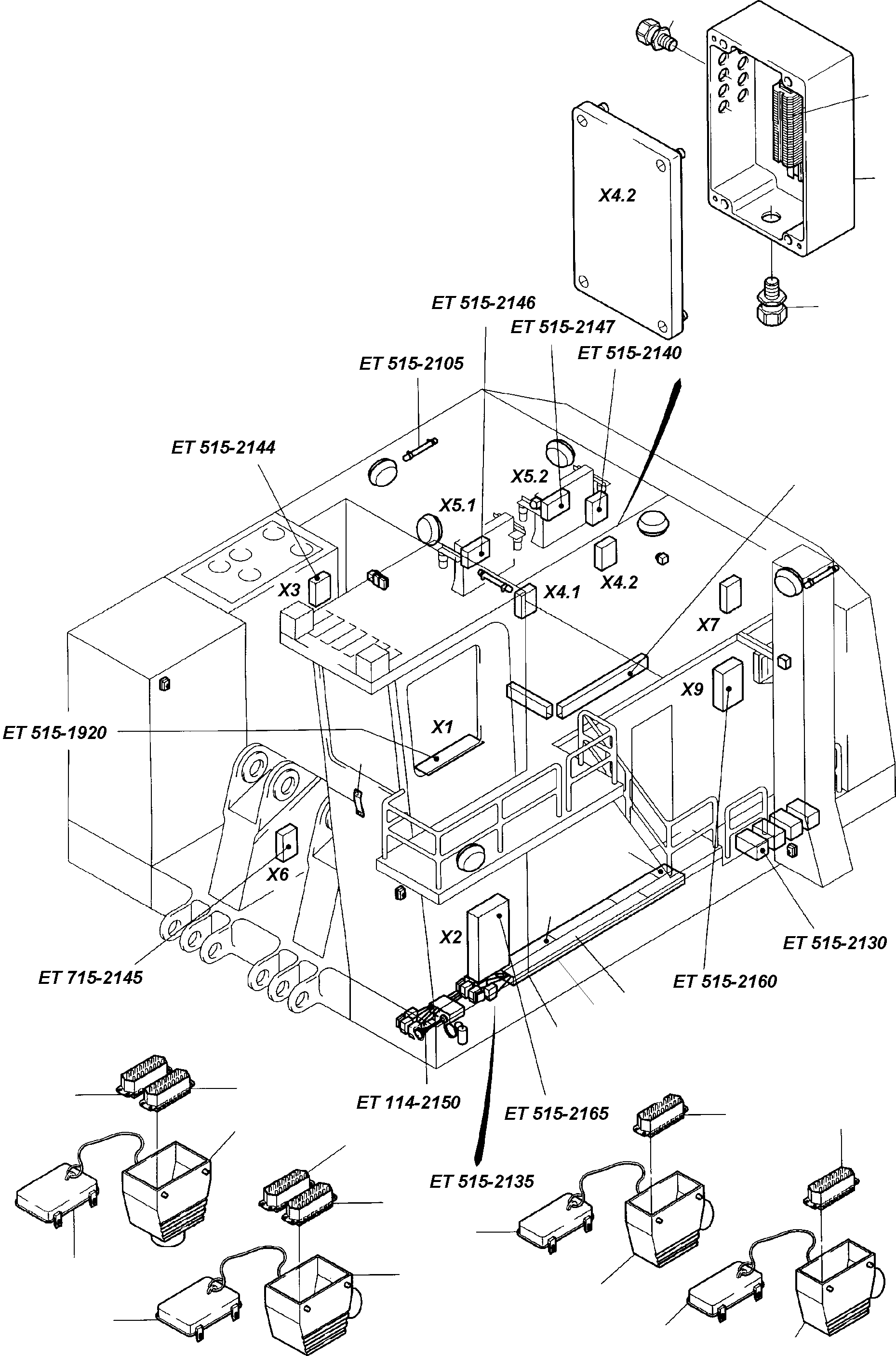

ELECTRIC - GENERAL VIEW | H455S S/N 15005 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
01	255 032 40	Housing, empty	2	InternBDB: Bopla A 160 \| InternKon: 659 800 40 / 11
02	505 940 99	Assembly rail TS 32 Bulk ware, state length required	-2	InternBDB: 32 / 46277 \| InternKon: 659 800 40 / 12
03	356 271 40	Series terminal	10	InternBDB: 115 116-07
04	356 272 40	Cover plate	2	InternBDB: 118 368-16
05	356 269 40	Bridge	1	InternBDB: OV4-173 517-13
06	356 276 40	Separator	1	InternBDB: 113 003-10
07	356 265 40	Clamp	2	InternBDB: Entrelec 116 535-04
08	490 372 40	Protective wire clip	5	InternBDB: 165 113-06
09	323 950 40	Cable union PG 9	-2	InternBDB: 5010.130.009 \| InternKon: 659 800 40 / 64
10	323 354 40	Cable union PG 21	-2	InternBDB: 5010.130.021 \| InternKon: 659 800 40 / 41
11	461 933 40	Ground strap 70 qmm x 300	1	InternKon: 659 800 40 / 13
13	634 936 40	Socket	-2	InternBDB: 10.5770 H-A 32 TS 29 \| InternKon: 659 800 40 / 103
14	385 225 40	Plug insert	-2	InternBDB: 10.5330 H-A 16 BS (1-16) \| InternKon: 659 800 40 / 33
15	385 226 40	Plug insert	-2	InternBDB: 10.5430 H-A 16 BS (17-32) \| InternKon: 659 800 40 / 34
16	358 264 40	Protecting cover	-2	InternBDB: 10.4816 \| InternKon: 659 800 40 / 35
17	385 224 40	Socket	-2	InternBDB: 10.5830 \| InternKon: 659 800 40 / 32
18	385 227 40	Insert	-2	InternBDB: 10.5320 A-A 16 SS (1-16) \| InternKon: 659 800 40 / 141
19	385 228 40	Insert	-2	InternBDB: 10.5420 H-A 16 SS (17-32) \| InternKon: 659 800 40 / 142
20	621 450 40	Socket	-2	InternBDB: 10.5645 \| InternKon: 659 800 40 / 140
21	604 094 40	Cable protection hose PG 29 Bulk ware, state length required	-2	InternBDB: Anaconda DLPG 29 307.026.1 \| InternKon: 659 800 40 / 112
22	604 093 40	Cable protection hose PG 21 Bulk ware, state length required	-2	InternBDB: Anaconda DLPG 21 307.020.2 \| InternKon: 659 800 40 / 111
23	604 092 40	Cable protection hose PG 16 Bulk ware, state length required	-2	InternBDB: Anaconda DLPG 16 307.016.2 \| InternKon: 659 800 40 / 110
25	358 263 40	Protecting cover	-2	InternBDB: 10.4815 \| InternKon: 659 800 40 / 143
26	621 748 40	Cable channel Bulk ware, state length required	-2	InternBDB: Tehalit KBL 80150 \| InternKon: 659 800 40 / 150
27	621 749 40	Cable channel Bulk ware, state length required	-2	InternBDB: Tehalit KBL 80200 \| InternKon: 659 800 40 / 151
28	621 750 40	Cover Bulk ware, state length required	-2	InternBDB: KBA 80150 \| InternKon: 659 800 40 / 152
29	621 751 40	Cover Bulk ware, state length required	-2	InternBDB: KBA 80200 \| InternKon: 659 800 40 / 153
30	621 754 40	Spring	-2	InternBDB: Tehalit L 7000 \| InternKon: 659 800 40 / 156
31	621 755 40	Spring	-2	InternBDB: Tehalit L 7030 \| InternKon: 659 800 40 / 157
32	621 756 40	Tail piece	-2	InternBDB: Tehalit M 5933 \| InternKon: 659 800 40 / 158
33	621 757 40	Tail piece	-2	InternBDB: Tehalit M 5903 \| InternKon: 659 800 40 / 159
34	621 752 40	Cable channel Bulk ware, state length required	-2	InternBDB: LFG 40060/0 \| InternKon: 659 800 40 / 154
35	621 753 40	Cable channel Bulk ware, state length required	-2	InternBDB: LFG 50100/0 \| InternKon: 659 800 40 / 155
36	621 758 40	Tail piece	-2	InternBDB: L 7123 \| InternKon: 659 800 40 / 160
37	621 759 40	Tail piece	-2	InternBDB: L 7133 \| InternKon: 659 800 40 / 161
38	769 337 73	Harness X2-X6 (serial-no. 15 003)	1	InternBDB: E-ST
\|$$37	769 672 73	Harness X2-X6 (serial-no. 15 004)	1	InternBDB: E-ST
\|$$38	769 673 73	Harness X2-X4 (serial-no. 15 004)	1	InternBDB: E-ST
\|$$39	769 674 73	Harness X2-X4.1 (serial-no. 15 004)	1	InternBDB: E-ST
\|$$40	769 675 73	Harness X2-X5 (serial-no. 15 004)	1	InternBDB: E-ST
\|$$41	769 676 73	Harness X2-X5.1 (serial-no. 15 004)	1	InternBDB: E-ST
\|$$42	769 677 73	Harness X2-X15 (serial-no. 15 004)	1	InternBDB: E-ST
\|$$43	769 678 73	Harness X2-X13 (serial-no. 15 004)	1	InternBDB: E-ST
