Diagram image 1 of 3

H455S S/N 15005

01 01 01 01 02 03 04 04 04 04 05 05 05 05 05 05 06 06 07 07 07 07 07 07 08 09 09 10 10 10 10 11 11 11 11 12 13 15 16 16 16 17 17 17 18 18 18 19 19 19 20 20 20 21 21 23 24 27 32 32 46 47 48 48

H455S S/N 15005

01 01 01 01 01 01 03 04 04 04 04 04 04 05 05 05 05 05 05 07 07 07 07 07 07 07 07 07 07 07 07 07 07 07 07 07 07 07 07 07 07 14 22 23 24 25 25 26 26 28 29 30 31 31 33 34 35 36 37 38 38 38 38 38 38 38 38 38 39 40 40 40 40 40 41 42 42 43 43 44 44 45 45 48 48 48 48 48 48 48 48 48 48 48 48 49 49 49 49 50 50 50 50 51 51 52 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67

#	Part Number	Partname	Quantity	Options
00	659 875 40	Switch framing with electr. parts	-2	InternKon: 659 874 40 / 1
01	655 416 40	Sectional plate	10	InternBDB: SNA 120x860 /330495 \| InternKon: 659 875 40 / 3
02	490 929 40	Assembly rail 1450 mm	2	InternBDB: 33 111 / WP \| InternKon: 659 875 40 / 2
03	323 237 40	Wiring terminal	5	InternBDB: KP 300 /33004 \| InternKon: 659 875 40 / 4
04	500 106 98	Bolt	40	InternBDB: M8x16 /933 \| InternKon: 659 875 40 / 18
05	334 599 99	Nut	44	InternBDB: M8 /985 \| InternKon: 659 875 40 / 19
06	346 543 40	Rail collector Bulk ware, state length required	-2	InternBDB: K 61 M \| InternKon: 659 875 40 / 46
07	356 265 40	Clamp	25	InternBDB: 116 535-04 \| InternKon: 659 875 40 / 48
08	270 873 40	Cable channel ca. 1400 mm Bulk ware, state length required	-2	InternBDB: 131 083
09	654 856 40	Breaker 25 A	2	InternBDB: ABB S 271 - K 25 \| InternKon: 659 875 40 / 12
10	654 298 40	Breaker 16 A	20	InternBDB: ABB S 271 - K 16 \| InternKon: 659 875 40 / 13
11	654 854 40	Breaker 6 A	8	InternBDB: ABB S 271 - K 6 \| InternKon: 659 875 40 / 14
12	654 855 40	Breaker 10 A	5	InternBDB: ABB S 271 - K 10 \| InternKon: 659 875 40 / 17
13	883 465 40	SPC control	1	InternBDB: E-ST \| InternKon: 659 875 40 / 15
\|$$15	650 928 40	Base unit - SPC	1	InternKon: 659 802 40 / 1
\|$$16	650 929 40	Binary module	2	InternKon: 659 802 40 / 2
\|$$17	650 930 40	Temperature module	3	InternKon: 659 802 40 / 3
14	654 439 40	Time-lag module	1	InternBDB: Dold BA 7924.21/002 DC 24V 1S \| InternKon: 659 875 40 / 21
15	603 368 40	Connection cable analog	3	InternKon: 659 875 40 / 16
16	356 184 40	Relay	19	InternKon: 659 875 40 / 43
17	323 910 40	Relay socket	19	InternKon: 659 875 40 / 44
18	323 911 40	Retainer	19	InternKon: 659 875 40 / 45
19	399 773 40	Relay	22	InternKon: 659 875 40 / 10
20	592 338 40	Relay socket	22	InternBDB: ZG 78700 \| InternKon: 659 875 40 / 9
21	414 369 40	Spring retainer	22	InternKon: 659 875 40 / 11
22	603 346 40	Voltage measuring terminal	1	InternBDB: TL \| InternKon: 659 875 40 / 26
23	603 345 40	Resistor terminal	40	InternBDB: TL \| InternKon: 659 875 40 / 23
24	323 590 40	Switch modul	1	InternBDB: 1040.6 EGT 2 \| InternKon: 659 875 40 / 20
25	603 342 40	Frequency/current transformer	2	InternBDB: DKG Rohteil 621 266 40 \| InternKon: 659 875 40 / 22
26	399 723 40	Ramp generator	2	InternBDB: DYN 2-9000 \| InternKon: 659 875 40 / 25
27	634 173 40	Electronic - connecting cable, binary	3	InternBDB: Intercontrol 4306.02.008 \| InternKon: 659 875 40 / 42
28	490 680 40	Time lag relay	1	InternBDB: 010 515-15 \| InternKon: 659 875 40 / 1
29	621 021 40	Toggle switch	2	InternBDB: Kissling 08.1.2.13 \| InternKon: 659 875 40 / 99
30	461 582 40	Safety trap	2	InternBDB: 08.0.0.01 \| InternKon: 659 875 40 / 100
31	694 669	Electronic relay	1	InternBDB: Cummins P/N 303 7359 S/NE 44052
32	358 257 40	System power braker	4	InternBDB: DIL 1 AM-G /24V \| InternKon: 659 875 40 / 27
33	323 233 40	Wiring profile Bulk ware, state length required	-2	InternBDB: 33002 \| InternKon: 659 875 40 / 5
34	323 234 40	Cover Bulk ware, state length required	-2	InternBDB: 30071 \| InternKon: 659 875 40 / 6
35	323 235 40	Decals Bulk ware, state length required	-2	InternBDB: 800 431 \| InternKon: 659 875 40 / 7
36	323 236 40	Covering Bulk ware, state length required	-2	InternBDB: 30092 \| InternKon: 659 875 40 / 8
37	323 346 40	Touch contact	2	InternBDB: EGT 6 1146.6 \| InternKon: 659 875 40 / 29
38	634 575 40	Amplifier	10	InternBDB: VT 11550-21 \| InternKon: 659 875 40 / 24
39	461 039 40	Amplifier	1	InternBDB: VT 11015-1x \| InternKon: 659 875 40 / 87
40	621 735 40	Capacitor	5	InternBDB: VT 11110-11 \| InternKon: 659 875 40 / 86
41	621 506 40	Module	1	InternBDB: ESG \| InternKon: 659 875 40 / 93
42	494 014 40	Amplifier	2	InternBDB: 461 039 40 VT 11015-1x \| InternKon: 659 875 40 / 91
43	494 011 40	Main supply unit	2	InternBDB: 449 965 40 DBM / EPM \| InternKon: 659 875 40 / 88
44	482 221 40	PID-governor	1	InternBDB: 490 893 40 DBM / ELL \| InternKon: 659 875 40 / 90
45	603 383 40	Engine transmitter	2	InternBDB: 621 645 40 / ERM \| InternKon: 659 875 40 / 89
46	461 029 40	Circular bearing	4	InternBDB: B 5218-195 11 MN 60 \| InternKon: 659 875 40 / 41
47	057 278 40	Socket	1	InternBDB: 0352 221 001
48	490 372 40	Protective wire clip	50
49	356 264 40	Twin terminal	160	InternBDB: 115 271-22 \| InternKon: 659 875 40 / 47
50	356 266 40	Cover plate	-2	InternBDB: 118 499-23 \| InternKon: 659 875 40 / 49
51	461 321 40	Terminal	60	InternBDB: 115 212-17 \| InternKon: 659 875 40 / 96
52	461 322 40	Cover plate	-2	InternBDB: 113 137-02 \| InternKon: 659 875 40 / 97
53	356 276 40	Separator	-2	InternBDB: 113 003-10 \| InternKon: 659 875 40 / 59
54	323 943 40	Sleeve marker	-2	InternKon: 659 875 40 / 38
55	323 942 40	Sleeve marker	-2	InternKon: 659 875 40 / 37
56	270 318 40	Sleeve marker	-2	InternKon: 659 875 40 / 39
57	323 944 40	Sleeve marker	-2	InternKon: 659 875 40 / 40
58	997 892 73	Marking strip set	-2
59	471 861 99	Cable 1 qmm Bulk ware, state length required	-2
60	471 731 99	Cable 6 qmm Bulk ware, state length required	-2
61	356 267 40	Cross connection 2	-2	InternKon: 659 875 40 / 50
62	356 268 40	Cross connection 3	-2	InternKon: 659 875 40 / 51
63	356 269 40	Cross connection 4	-2	InternKon: 659 875 40 / 52
64	356 270 40	Cross connection 10	-2	InternKon: 659 875 40 / 53
65	356 273 40	Cross connection 10	-2	InternKon: 659 875 40 / 56
66	356 279 40	Cross connection 4	-2	InternKon: 659 875 40 / 62
67	356 280 40	Cross connection 10	-2	InternKon: 659 875 40 / 63

Komatsu H455S S/N 15005 parts catalog PDF

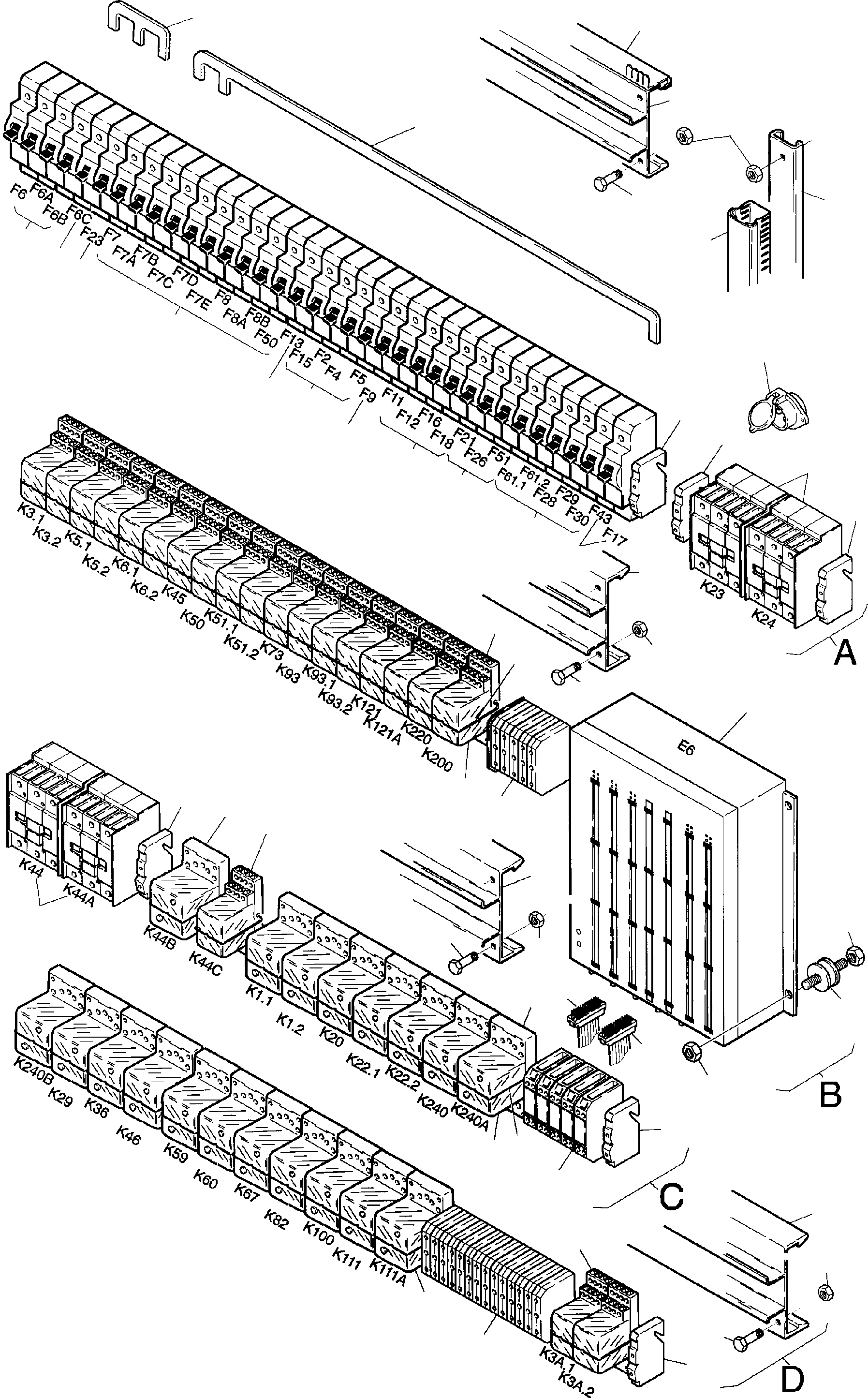

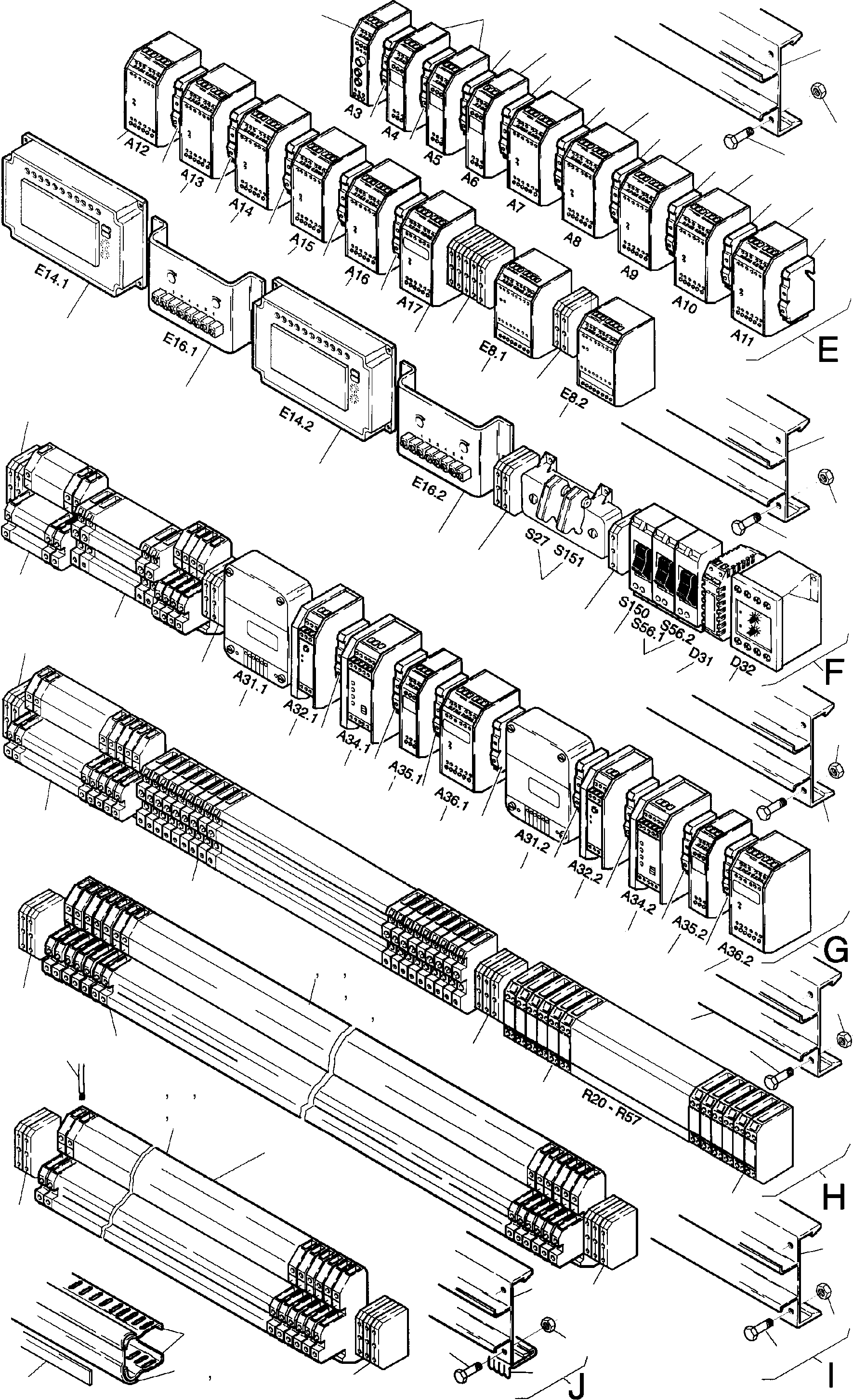

SWITCH FRAMING IN CABSUPPORT (515-2165a) in H455S S/N 15005. Diagram image and parts list.
