CABLES - OIL TANK | H455S S/N 15005 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

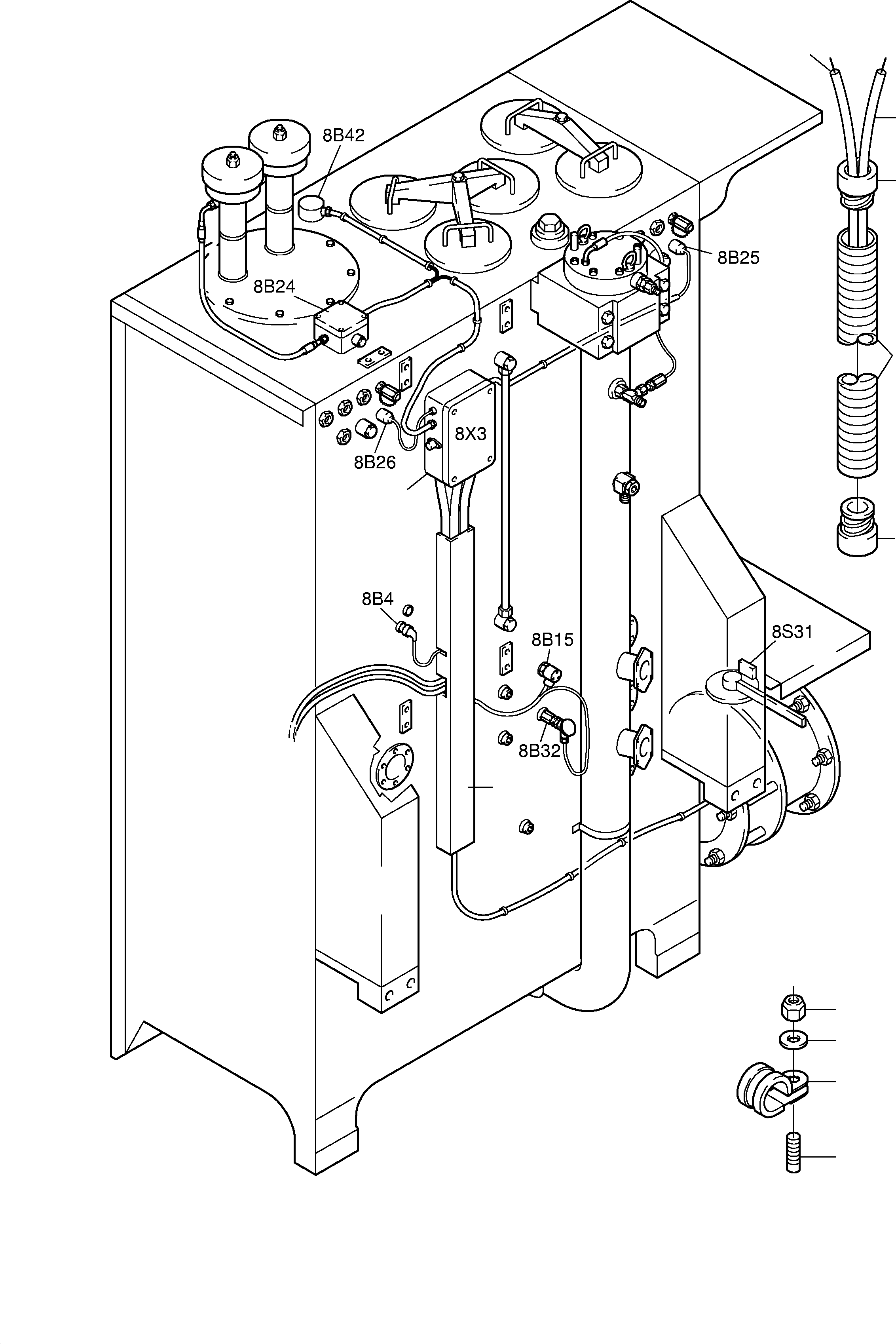

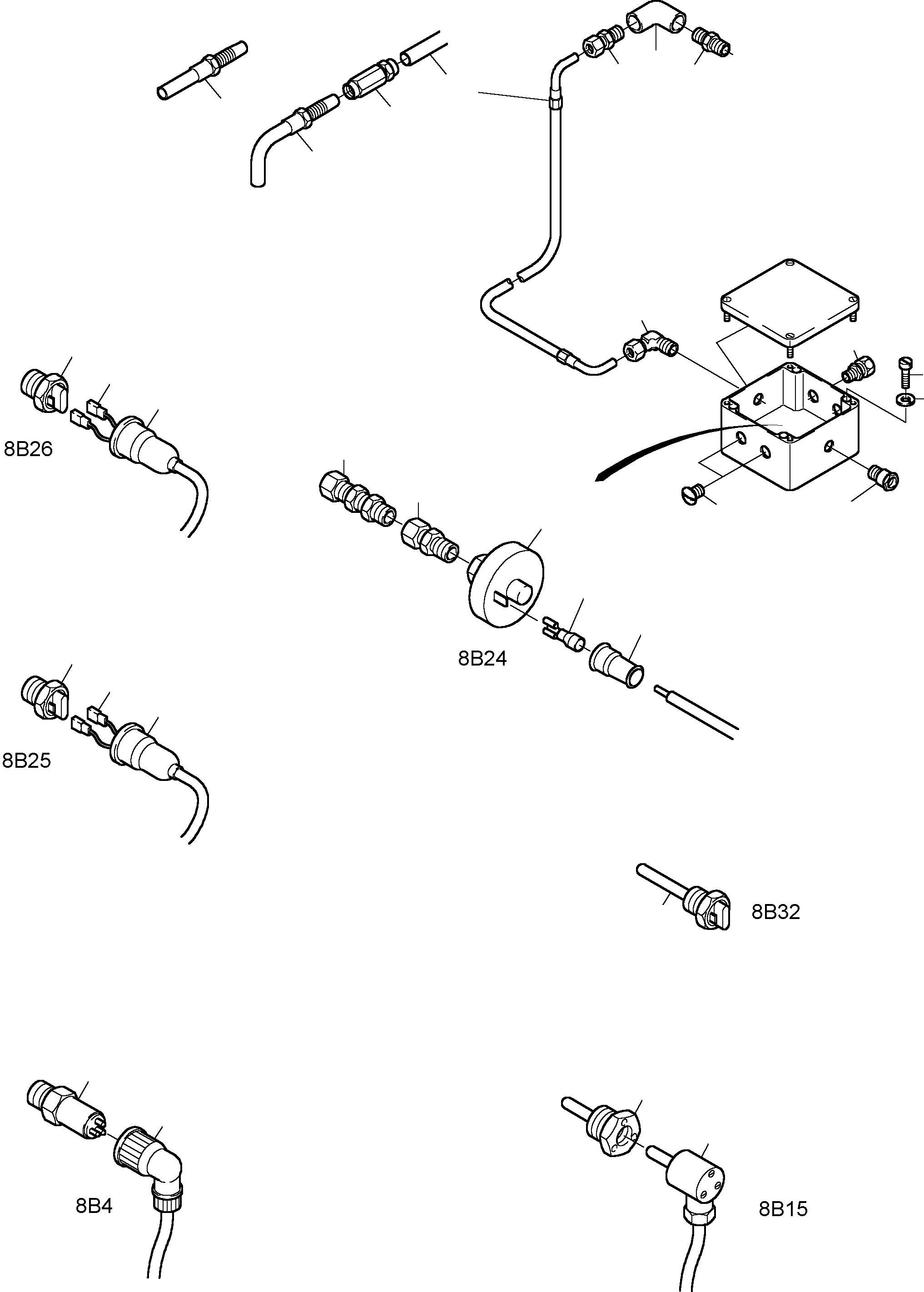

Diagram image 1 of 2

H455S S/N 15005

01 02 03 04 05 06 07 08 09 09 10 10 11 12 13

H455S S/N 15005

20 21 22 23 24 25 26 27 28 29 29 29 30 31 32 33 34 35 36 37 37 40 41 41 42 43 44 49 50 51

#	Part Number	Partname	Quantity	Options	Reference
01		Junction box (8x3)	1	InternBDB: 255 032 40 \| InternKon: 659 800 40 / 11	585-2292a
02	323 945 40	Thread pin	-2	InternBDB: M6x15 /32501 \| InternKon: 659 800 40 / 56
03	621 753 40	Cable channel Bulk ware, state length required	1	InternBDB: LFG 50100 \| InternKon: 659 800 40 / 155
04	006 302 98	Clamp	-2	InternBDB: RSGU 1100 15/15
05	507 025 98	Nut	-2	InternBDB: M 6 /985
06	346 499 99	Lock washer	-2	InternBDB: 6 /128
07	356 241 40	Cable protection hose PG 16 Bulk ware, state length required	-2	InternBDB: Sievert 220.101.017 \| InternKon: 659 800 40 / 62
08	356 238 40	Cable protection hose PG 9 Bulk ware, state length required	-2	InternBDB: Sievert 220.101.010 \| InternKon: 659 800 40 / 92
09	356 249 40	Socket PG 16	-2	InternBDB: Sievert 520.030.016 \| InternKon: 659 800 40 / 72
10	356 246 40	Socket PG 9	-2	InternBDB: 520.030.009 \| InternKon: 659 800 40 / 69
11	323 413 40	Cable 1 qmm bl Bulk ware, state length required	-2
12	323 414 40	Cable 1 qmm rt Bulk ware, state length required	-2
13	323 164 40	Cable 2-polig Bulk ware, state length required	-2	InternBDB: AWG 12 sw.
20	607 464 40	Housing, empty	1	InternKon: 603 344 40 / 2
21	255 721 40	Maintenance switch	1	InternBDB: Ma. u. Hu. 390 006 2901 \| InternKon: 603 344 40 / 1
22	371 780 99	Socket	1	InternBDB: EVGE 6-LM-ED \| InternKon: 603 344 40 / 3
23	370 380 99	Union	1	InternBDB: RL 6 /2353 \| InternKon: 603 344 40 / 5
24	440 944 40	Aeration assy.	1	InternBDB: Elek 85-0128 PLST \| InternKon: 603 344 40 / 4
25	004 387 98	Plug	1	InternBDB: NPG 21 \| InternKon: 603 344 40 / 7
26	300 970 40	Cable union PG 9	1	InternBDB: WADI D 107.09.09 \| InternKon: 603 344 40 / 6
27	320 819 99	Screw	4	InternBDB: M 6x10 / 84
28	346 499 99	Lock Washer	4	InternBDB: 6/128
29	440 151 99	Receptacle for tabs	5	InternBDB: He. u. Bu. 50.252.510
30	256 721 40	Insulation kap	1	InternBDB: He. u. Bu. 50.251.562
31	356 241 40	Cable protection hose PG 16 Bulk ware, state length required	-2
32	515 028 40	Collet	2	InternBDB: 432-23031-1
33	515 029 40	Pipe socket 90 ?	-2	InternBDB: 532-30739-1
34	515 027 40	Pipe socket, straight	-2	InternBDB: 432-23030-1
35	370 753 99	Twin nipple	1	InternBDB: 1/8 /2990
36	370 690 99	Elbow union	1	InternBDB: 1/8 /2987
37	372 446 99	Union	1	InternBDB: DL 6 /2353
40	621 338 40	Pressure switch 2 bar	1	InternBDB: Suco 0166 407 01 1025 \| InternKon: 659 800 40 / 22
41	323 592 40	Insulation kap	2	InternBDB: Suco 1-1-53621-001 \| InternKon: 659 800 40 / 40
42	604 732 40	Pressure switch 0.5 bar	1	InternBDB: Suco 0166 403 02 1010 \| InternKon: 659 800 40 / 21
43	654 913 40	Level probe	1	InternBDB: Bedia 425 029 3/8-NPT \| InternKon: 659 800 40 / 14
44	515 908 40	Coupling	1	InternBDB: Bedia 21 673 \| InternKon: 659 800 40 / 29
49	269 870 40	Cover tube	1	InternBDB: Noris MX2-R12 R 1/2 \| InternKon: 659 800 40 / 17
50	440 382 40	Sensor	1	InternBDB: Noris TP 31 - PT 100 \| InternKon: 659 800 40 / 15
51	431 168 40	Sensor	1	InternBDB: Moto Meter 642.007.1006
