H455S S/N 15005

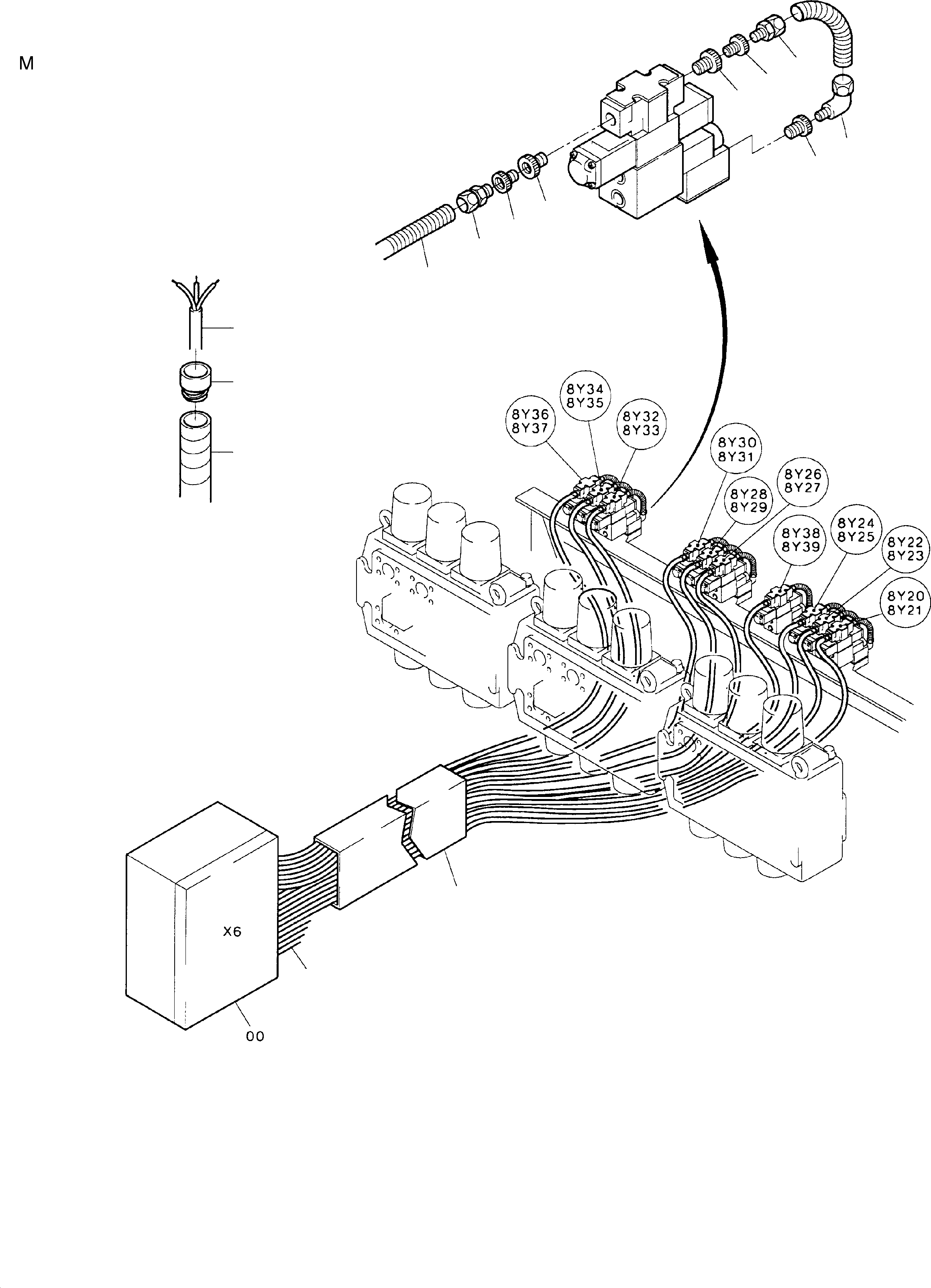

Komatsu parts book diagram for H455S S/N 15005: CABLES CONTROL BLOCKS

01 01 01 02 02 03 03 04 05 05 06 07 07 08 09 10 10

	#	Part Number	Partname	Quantity	Options	Reference
	00		Junction box	1		785-2297
	01	600 790 99	Reducing nut	30	InternBDB: HPG 11-9 / 46320-MS
	02	600 849 99	Reducing nut	20	InternBDB: HPG 16-11 / 46320-MS
	03	323 950 40	Cable union PG 9	20	InternBDB: 5010.100.009 \| InternKon: 630 175 40 / 64
	04	515 523 40	Cable union PG 9-90 ?	10	InternBDB: 5010.026.009 Flexa 90 ?
	05	356 238 40	Cable protection hose PG 9 Bulk ware, state length required	-2	InternBDB: 220.101.010 \| InternKon: 630 175 40 / 92
	06	356 246 40	Socket PG 9	-2	InternBDB: 520.030.009 \| InternKon: 630 175 40 / 69
	07	356 242 40	Cable protection hose PG 21 Bulk ware, state length required	-2	InternBDB: 220.101.021 \| InternKon: 630 175 40 / 94
	08	621 752 40	Cable channel Bulk ware, state length required	-2	InternBDB: LFG 400 60/0 Tehalit \| InternKon: 630 175 40 / 154
	09	356 250 40	Socket PG 21	-2	InternBDB: 520.030.021 \| InternKon: 630 175 40 / 45
	10	502 609 98	Cable Bulk ware, state length required	-2	InternBDB: 1 qmm bl.

Komatsu H455S S/N 15005 parts catalog PDF

CABLES CONTROL BLOCKS (715-2145) in H455S S/N 15005. Diagram image and parts list.
