H455S S/N 15005

01 01 02 03 04 04 04 04 05 06 07 07 07 07 07 08 08 08 08 08 09 09 09 09 09 10 11 11 12 12 12 12 12 13 13 13 14 15 16 17 18 19 20 20 20 21 21 21 22 23 24 25 26 27 28 29 30 31 32 33 34 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63

#	Part Number	Partname	Quantity	Options
01	634 009 40	Head light	8	InternBDB: ABL/AB-05-03 mit H1-Lampe \| InternKon: 659 874 40 / 26
02	635 645 40	Emergency switch-off	5	InternBDB: Klц.u.Mцl. FAK-R/V/KC/I-090794 \| InternKon: 659 874 40 / 31
03	507 383 98	Halogen lamp to fig-no. 01	8	InternBDB: ABL 11-50320/H1 24V 70W
04	634 135 40	Fluorescent Lamp	3	InternBDB: KIRA / KECL-DW 6318/24-0 \| InternKon: 659 874 40 / 27
05	764 201 73	Fluorescent Lamp to fig-nos. 05,06	3	InternBDB: Philips / PL-L36W/84/4P
06	600 847 99	Reducing 16-9	-2	InternBDB: Fa. Sievert 123 964
07	323 950 40	Cable union	-2	InternBDB: PG 9 / 5010.100.009 \| InternKon: 659 874 40 / 42
08	356 238 40	Cable protection hose PG 9 Bulk ware, state length required	-2	InternBDB: Sievert 220.101.010 \| InternKon: 659 874 40 / 92
09	471 861 99	Cable 1x1.5 Bulk ware, state length required	-2
10	006 302 98	Clamp	100	InternBDB: RSGU 1100/ 15/15
11	255 034 40	Housing, empty	4	InternBDB: Bopla A 105 \| InternKon: 659 874 40 / 8
12	356 246 40	Socket	-2	InternBDB: Sievert 520.030.009 \| InternKon: 659 874 40 / 69
13	360 887 40	Connector	10	InternBDB: 2,8x0,8 1148/01 \| InternKon: 659 874 40 / 79
14	307 425 99	Bolt	40	InternBDB: M8x20 /933
15	343 004 99	Washer	40	InternBDB: 8,4 /93
16	471 915 99	Cable 4x1.5 Bulk ware, state length required	-2	InternBDB: 4x1,5 /97718
17	440 373 40	Cam switch	5	InternBDB: Sievert 153 202 20A 3-polig \| InternKon: 659 874 40 / 24
18	323 946 40	Thread pin	-2	InternBDB: M6x20 /32501 \| InternKon: 659 874 40 / 57
19	507 025 98	Nut	-2	InternBDB: M 6 /985
20	323 960 40	Tab 6.3x0.8	-2	InternKon: 659 874 40 / 54
21	323 961 40	Sleeve 6.3x0.8	-2	InternKon: 659 874 40 / 55
22	621 748 40	Cable channel 80/150 Bulk ware, state length required	-2	InternBDB: KBL 80150 Tehalit \| InternKon: 659 874 40 / 150
23	621 749 40	Cable channel 80/200 Bulk ware, state length required	-2	InternBDB: KBL 80200 Tehalit \| InternKon: 659 874 40 / 151
24	621 750 40	Cover to fig-no. 22 Bulk ware, state length required	-2	InternBDB: KBA 80150 Tehalit \| InternKon: 659 874 40 / 152
25	621 751 40	Cover to fig-no. 23 Bulk ware, state length required	-2	InternBDB: KBA 80200 Tehalit \| InternKon: 659 874 40 / 153
26	621 752 40	Cable channel Bulk ware, state length required	-2	InternBDB: LFG 40060/0 Tehalit \| InternKon: 659 874 40 / 154
27	621 753 40	Cable channel Bulk ware, state length required	-2	InternBDB: LFG 50100/0 Tehalit \| InternKon: 659 874 40 / 155
28	621 754 40	Spring	50	InternBDB: L 7000 Tehalit \| InternKon: 659 874 40 / 156
29	621 755 40	Spring	80	InternBDB: L 7030 Tehalit \| InternKon: 659 874 40 / 157
30	621 756 40	Tail piece	3	InternBDB: M 5933 Tehalit \| InternKon: 659 874 40 / 158
31	621 757 40	Tail piece	5	InternBDB: M 5903 Tehalit \| InternKon: 659 874 40 / 159
32	621 758 40	Tail piece	5	InternBDB: L 7123 Tehalit \| InternKon: 659 874 40 / 160
33	621 759 40	Tail piece	5	InternBDB: L 7133 Tehalit \| InternKon: 659 874 40 / 161
34	057 295 40	Socket	9	InternBDB: 0332 030 002
35	400 830 40	Headlamp housing, assy. consist. of fig nos. 36 - 49	9	InternKon: 887 030 40 / 11
36	403 524 40	Protection casing	1	InternKon: 400 830 40 / 2
37	329 002 40	Head light mount	1	InternKon: 400 830 40 / 3
38	329 003 40	Support	1	InternKon: 400 830 40 / 4
39	329 004 40	Lock washer	1	InternKon: 400 830 40 / 5
40	329 005 40	Lock washer	1	InternKon: 400 830 40 / 6
41	342 096 40	Disk	1	InternKon: 400 830 40 / 7
42	340 409 99	Washer	1	InternBDB: 15 /433 \| InternKon: 400 830 40 / 9
43	340 467 99	Washer	4	InternBDB: 13 /125 \| InternKon: 400 830 40 / 10
44	307 802 99	Bolt	2	InternBDB: M12x25 /933 \| InternKon: 400 830 40 / 11
45	343 112 99	Lock washer	2	InternBDB: 12 /128 \| InternKon: 400 830 40 / 12
46	320 343 99	Screw	4	InternBDB: M10x15 /6912 \| InternKon: 400 830 40 / 15
47	346 500 99	Lock washer	4	InternBDB: 10 /128 \| InternKon: 400 830 40 / 16
48	307 339 99	Bolt	2	InternBDB: M12x15 /933 \| InternKon: 400 830 40 / 13
49	343 006 99	Washer	2	InternBDB: 13 /93 \| InternKon: 400 830 40 / 14
50	256 297 40	Headlamp	9	InternBDB: Schmidt 2x100 W PSH 500 24V \| InternKon: 887 030 40 / 12
51	269 021 40	Halogen lamp 100 W /24 V	12	InternBDB: QJ 100W /24V Osram - 64460 \| InternKon: 887 030 40 / 13
52	057 245 40	Plug	9	InternBDB: Bosch 0.352.130.001
53	255 309 40	Housing, empty	2	InternBDB: Bopla A 110 \| InternKon: 659 874 40 / 9
54	887 028 40	Console	2	InternKon: 887 030 40 / 1
55	887 031 40	Plate	3	InternKon: 887 030 40 / 2
56	509 857 98	Thread pin	2	InternBDB: PM 12x35 /32500 \| InternKon: 887 030 40 / 3
57	340 467 99	Washer	20	InternBDB: 13 /125 \| InternKon: 887 030 40 / 4
58	334 600 99	Nut	2	InternBDB: M 12 /985 \| InternKon: 887 030 40 / 5
59	308 637 99	Bolt	4	InternBDB: M16x90 /931 \| InternKon: 887 030 40 / 6
60	340 469 99	Washer	4	InternBDB: 17 /125 \| InternKon: 887 030 40 / 7
61	334 601 99	Nut	4	InternBDB: M 16 /985 \| InternKon: 887 030 40 / 8
62	307 800 99	Bolt	18	InternBDB: M12x20 /933 \| InternKon: 887 030 40 / 9
63	319 429 99	Bolt	36	InternBDB: M10x20 /912 \| InternKon: 887 030 40 / 10

Komatsu H455S S/N 15005 parts catalog PDF

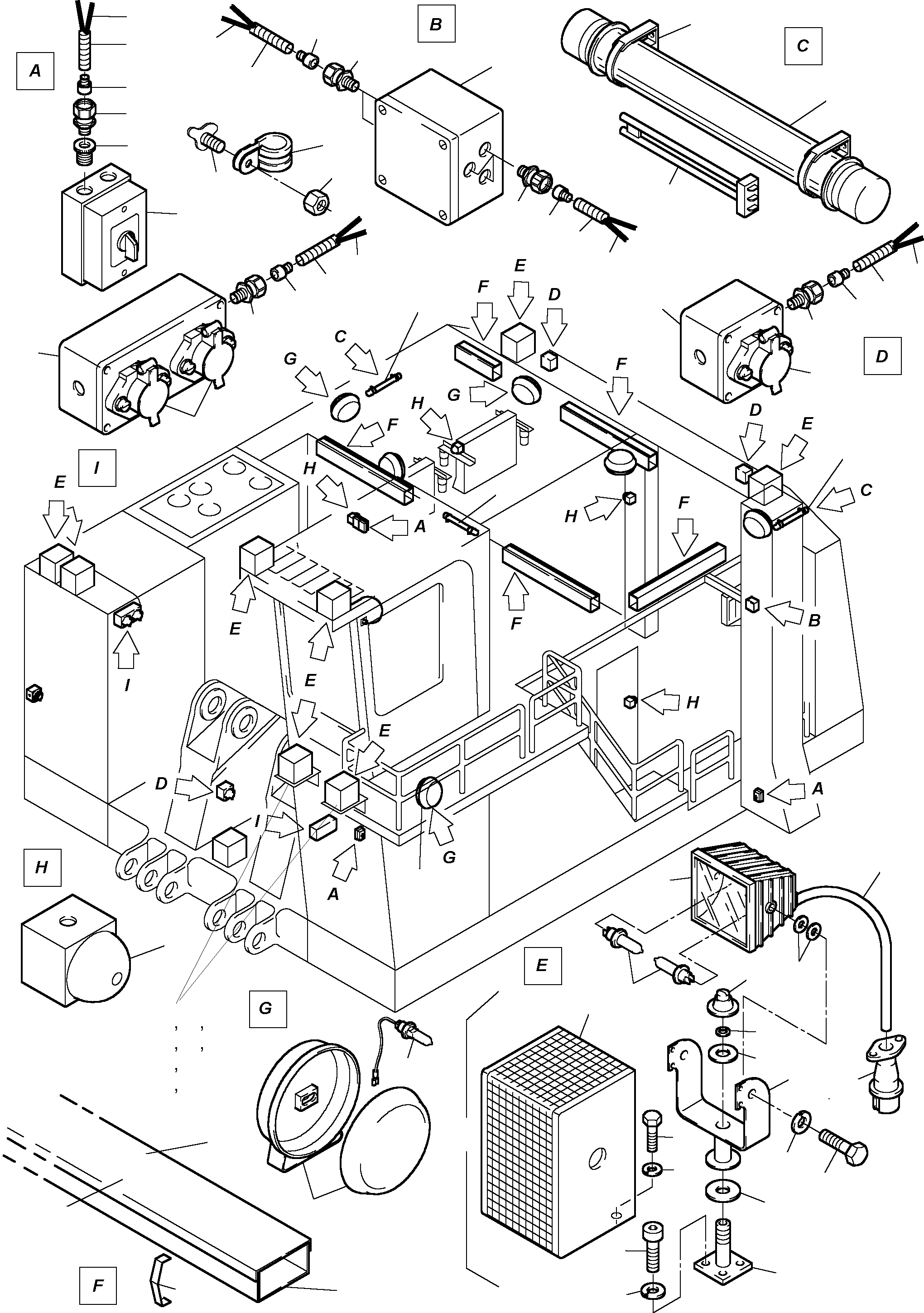

LIGHTING EQUIPMENT (515-2105a) in H455S S/N 15005. Diagram image and parts list.
