CABLES - CONTROL-AND FILTER PLATE 1 | H455S S/N 15005

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

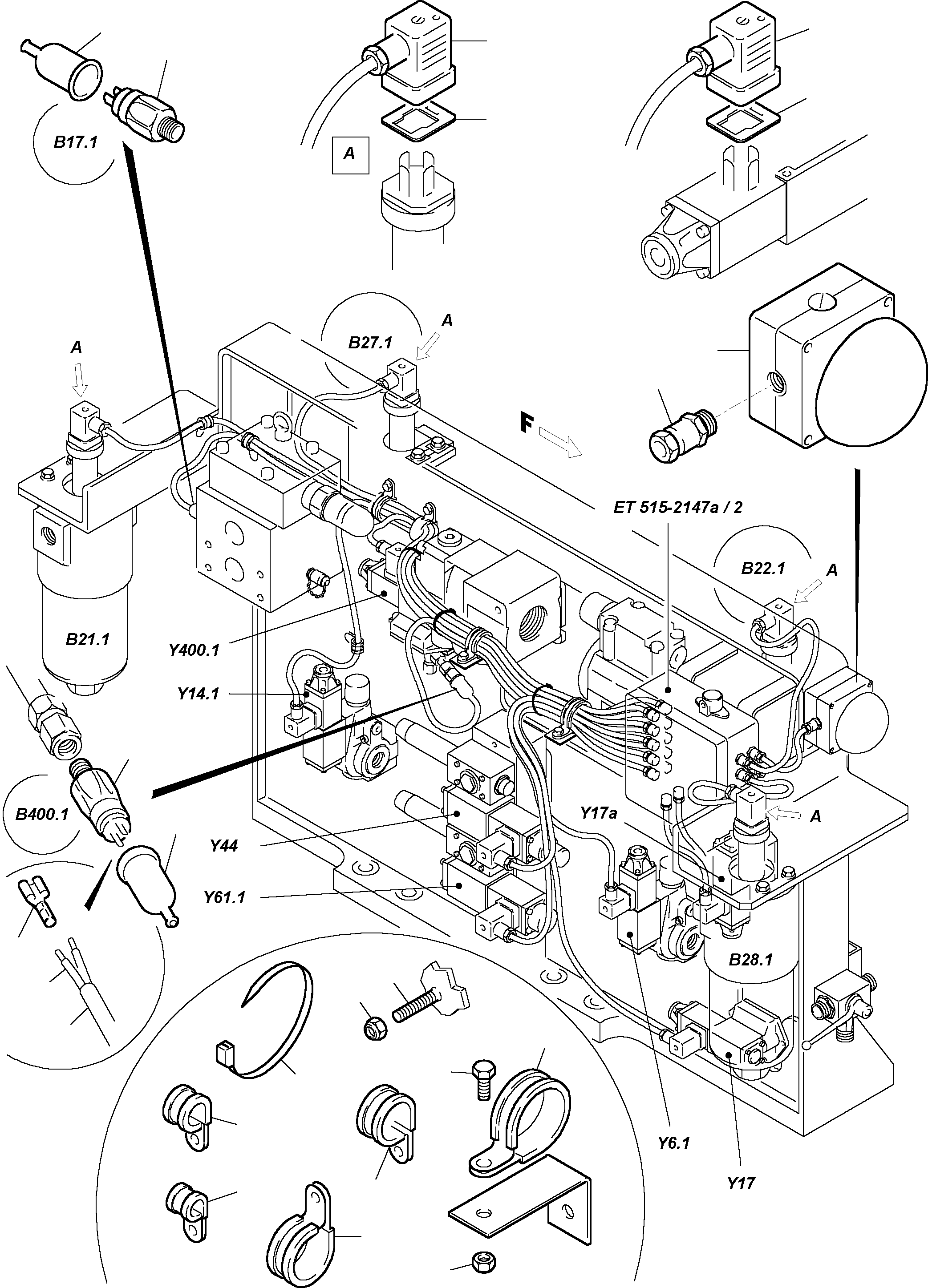

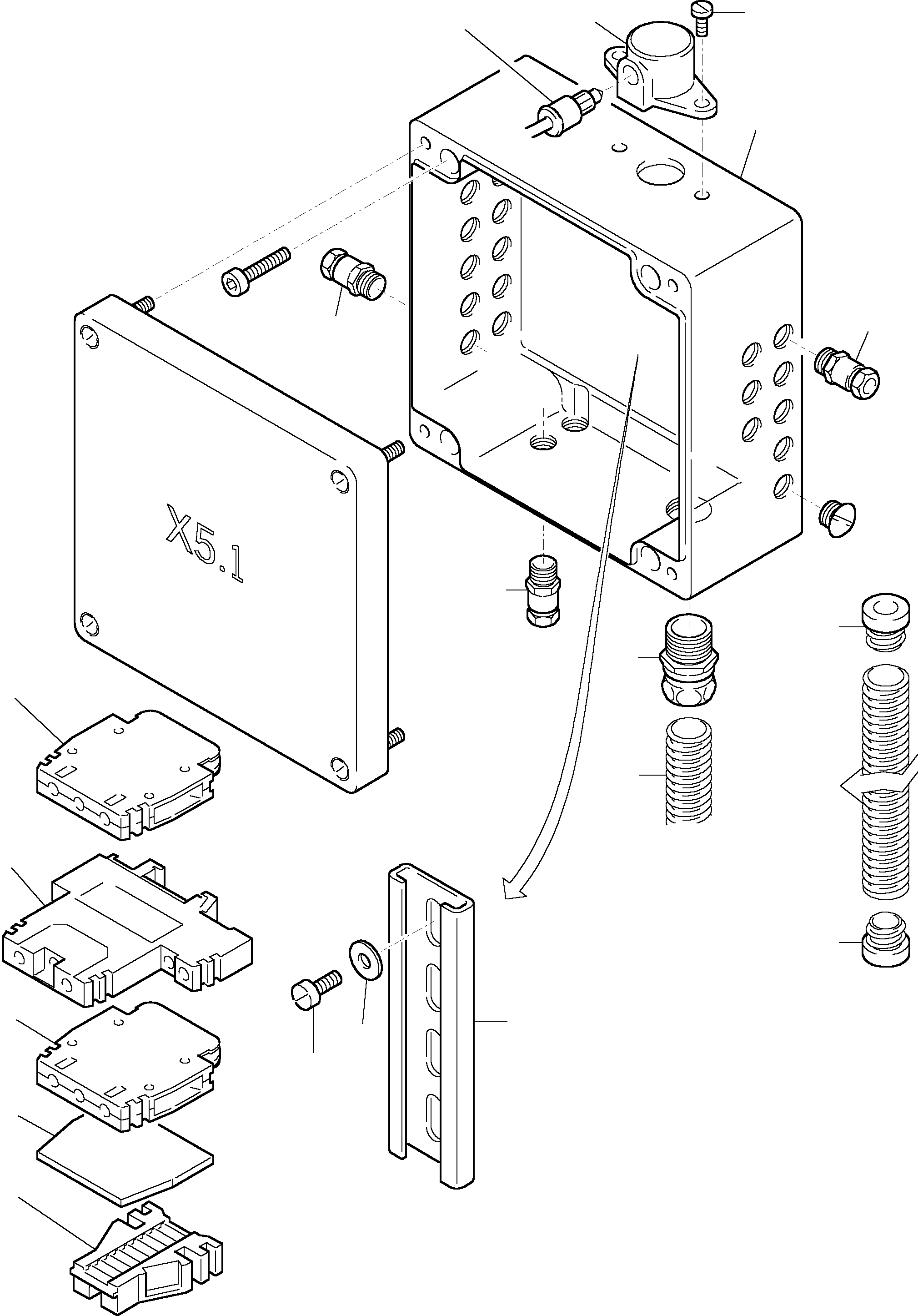

Diagram image 1 of 2

H455S S/N 15005

03 05 06 07 07 08 09 10 11 12 13 15 24 25 25 26 26 28 29 31 32 33 34

H455S S/N 15005

01 01 02 02 04 14 16 17 18 19 20 21 22 23 23 24 24 24 27 30

#	Part Number	Partname	Quantity	Options
01	356 241 40	Cable protection hose PG 16 Bulk ware, state length required	-2	InternBDB: Sievert 2020.101.016 \| InternKon: 659 800 40 / 62
02	356 249 40	Socket	-2	InternBDB: Sievert 520.030.016 \| InternKon: 659 800 40 / 72
03	502 609 98	Cable 1 qmm bl. Bulk ware, state length required	-2	InternBDB: LTG H07V-K1x1 PVC /CU
03	323 413 40	Cable (cold weather design) 1 qmm bl. Bulk ware, state length required	-2	InternBDB: SIF
04	057 278 40	Socket	1	InternBDB: 0352 221 001
05	654 904 40	Pressure switch	1	InternBDB: Suco 0166 40403 1015 \| InternKon: 659 800 40 / 18
06	323 945 40	Thread pin	10	InternBDB: M6x15 /32501 \| InternKon: 659 800 40 / 56
07	507 025 98	Nut	10	InternBDB: M 6 /985
08	592 669 40	Pressure switch 24 bar	1	InternBDB: Suco 0166 41603 1063
09	006 300 98	Clamp	-2	InternBDB: RSGU-1100 10/15
10	006 302 98	Clamp	-2	InternBDB: RSGU 1100 15/15
11	323 592 40	Protection cap	1	InternBDB: Suco 701.00.08 \| InternKon: 659 800 40 / 40
12	440 151 99	Receptacle for tabs	8	InternBDB: He. u. Be. 50.252.510
13	256 360 40	Shrinkdown tubing Bulk ware, state length required	-2	InternBDB: Atum 6/2-1200 \| InternKon: 659 800 40 / 38
14	323 953 40	Cable union	1	InternBDB: 5010.100.016 \| InternKon: 659 800 40 / 67
15	356 263 40	Protection cap	1	InternBDB: 1 350 558 014 \| InternKon: 659 800 40 / 78
16	255 712 40	Housing, empty	1	InternBDB: Bopla A 125 \| InternKon: 659 800 40 / 10
17	356 265 40	Clamp	2	InternBDB: Entrelec 10300-26
18	356 264 40	Twin terminal	10	InternBDB: 115 271-22
19	356 266 40	Cover plate	2	InternBDB: 118 499-23
20	505 940 99	Assembly rail ca. 150 mm Bulk ware, state length required	1	InternBDB: TS 32 /46277
21	320 819 99	Screw	4	InternBDB: AM 6x10 /84
22	346 499 99	Lock washer	4	InternBDB: 6 /128
23	490 372 40	Protective wire clip	4
24	323 949 40	Cable union PG 7	-2	InternBDB: 5010.100.007 \| InternKon: 659 800 40 / 63
25	604 286 40	Valve plug with cable	10	InternBDB: Murr MSUD-24 6543 Bauform A
26	348 648 40	Seal	10	InternBDB: Hirschmann GDM-3-17 \| InternKon: 659 800 40 / 99
27	320 975 99	Screw	2	InternBDB: AM 4x16 /84
28	006 304 98	Clamp	-2	InternBDB: RSGU 1100 20/25
29	534 092 98	Clamp	-2	InternBDB: RSGU 1100 8/15
30	440 305 99	Plug	-2
31	635 645 40	Emergency switch-off	1	InternBDB: FAK-R/V/KC/I 090 794 Klц.-Mцl. \| InternKon: 659 800 40 / 31
32	502 855 98	Clamp	-2	InternBDB: RSGU 1100 / 25/15
33	307 728 99	Bolt	-2	InternBDB: M6x16 /933
34	056 292 40	Cable strap	-2	InternBDB: TY 23 M
