Diagram image 1 of 4

H455-SD S/N 15009

01 02 03 04 05 06 06 07 08 09 10 11 12 13 14 15 16 17 17 17 18 18 18 19 19 20 20 21 22 23 24 25

H455-SD S/N 15009

31 32 33 34 35 36 37 38 39 40 41 41 42 42 42 43 44 44 45 45 46 47 48 48 48 49 49 49 50 50 50 51 51 52 52 53 54 54 55 56

H455-SD S/N 15009

61 62 63 64 65 65 66 67 68 69 70 71 72 72 73 74 75

H455-SD S/N 15009

81 81 82 82 83 84 85 86 87 88 89 90 91 92

#	Part Number	Partname	Quantity	Options

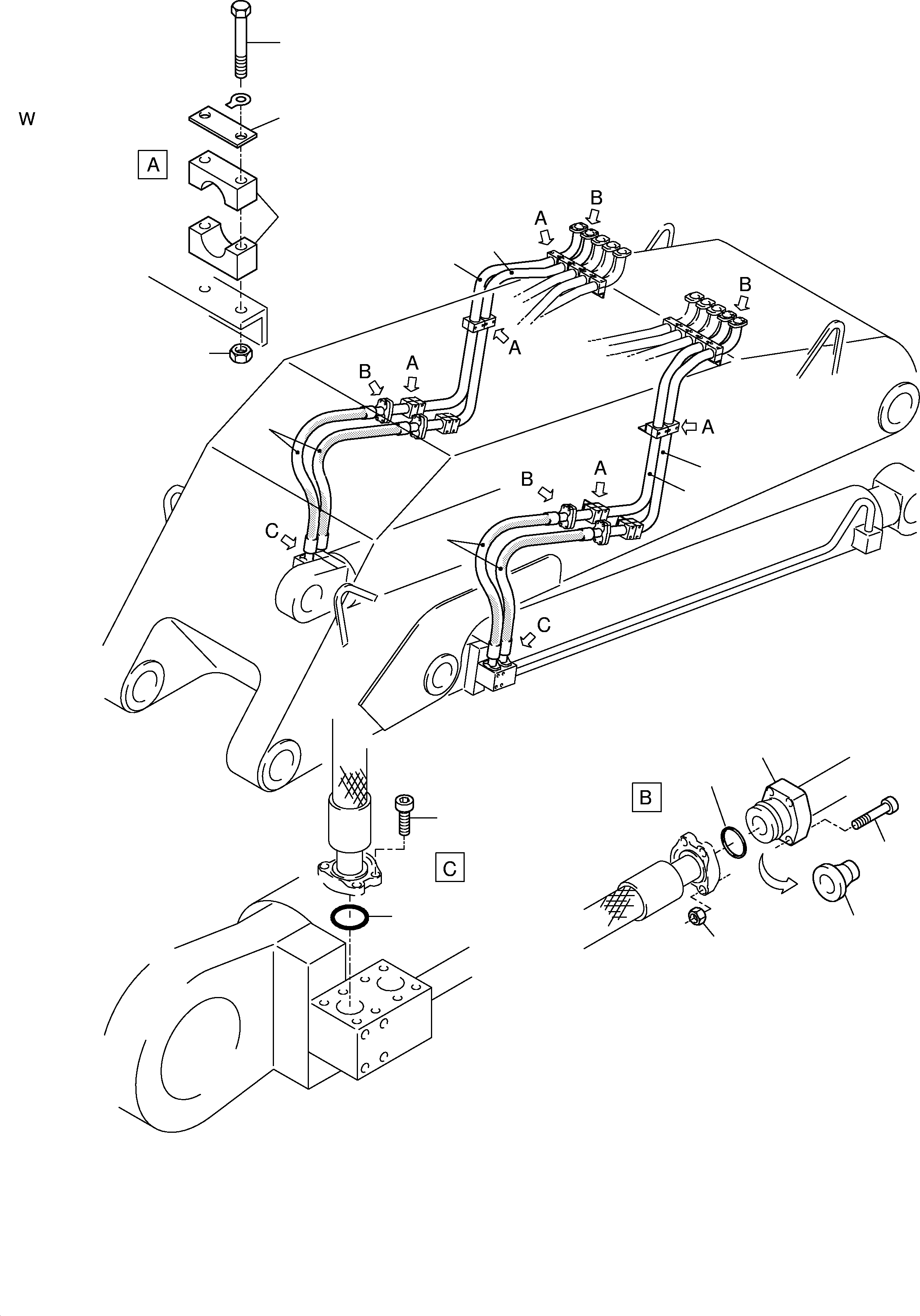

\|$$1		Graphic 1	-1
01	622 980 40	Boom assy.	1	InternBDB: SK 620 920 40 \| InternKon: KO-Liste 647 500 40 / 01
02	763 462 73	Boom with bushings	1	InternBDB: E-ST
03	763 463 73	Boom with bushings and pipes assy.	1	InternBDB: E-ST
04	651 361 40	Hose assy. DN 50x4125	2	InternBDB: 350 50x4125 FS 2 FS 2 /341 951 40 \| InternKon: 622 980 40 / 15
05	651 362 40	Hose assy. DN 50x4200	4	InternBDB: 350 50x4200 FS 2 FS 2 /341 591 40 \| InternKon: 622 980 40 / 16
06	504 448 98	Flange	6	InternBDB: FE-6500-32/6 /011 747 99 \| InternKon: 622 980 40 / 35
07	504 449 98	Collar ring	6	InternBDB: KO-6580-32 /011 747 99 \| InternKon: 622 980 40 / 33
08	385 243 40	Quadring	6	InternBDB: 58,1x2,79x3,2 \| InternKon: 622 980 40 / 34
09	319 313 99	Bolt	24	InternBDB: M20x120 /912 \| InternKon: 622 980 40 / 23
10	332 338 99	Nut	24	InternBDB: M 20 /934 \| InternKon: 622 980 40 / 26
11	304 357 99	Bolt	24	InternBDB: M16x160 /931 \| InternKon: 622 980 40 / 19
12	500 398 98	Cover plate	12	InternBDB: S-DP-A-5 /3015 \| InternKon: 622 980 40 / 32
13	504 853 98	Half clamp	24	InternBDB: S-5-E /3015 \| InternKon: 622 980 40 / 30
14	651 363 40	Distribution block	2	InternKon: 622 980 40 / 12
15	332 355 99	Nut	24	InternBDB: M 16 /934 \| InternKon: 622 980 40 / 25
16	653 103 40	Hose support incl. fig-nos. 17-22	1	InternKon: 622 980 40 / 49
17	308 612 99	Bolt	16	InternBDB: M12x100 /931 \| InternKon: 653 103 40 / 11
18	332 334 99	Nut	16	InternBDB: M12 /934 \| InternKon: 653 103 40 / 12
19	534 008 99	Cover plate	8	InternBDB: S-DP-A-4 /3015 \| InternKon: 653 103 40 / 7
20	504 004 98	Half clamp	8	InternBDB: S-4-R-38 /3015 \| InternKon: 653 103 40 / 9
21	763 464 73	Pipe assy.	4	InternBDB: E-ST \| InternKon: 653 103 40 / 6+8
22	504 445 98	Half clamp	8	InternBDB: S-4-R-65 /3015 \| InternKon: 653 103 40 / 10
23	896 570 40	Plug	2	InternKon: 653 103 40 / 13

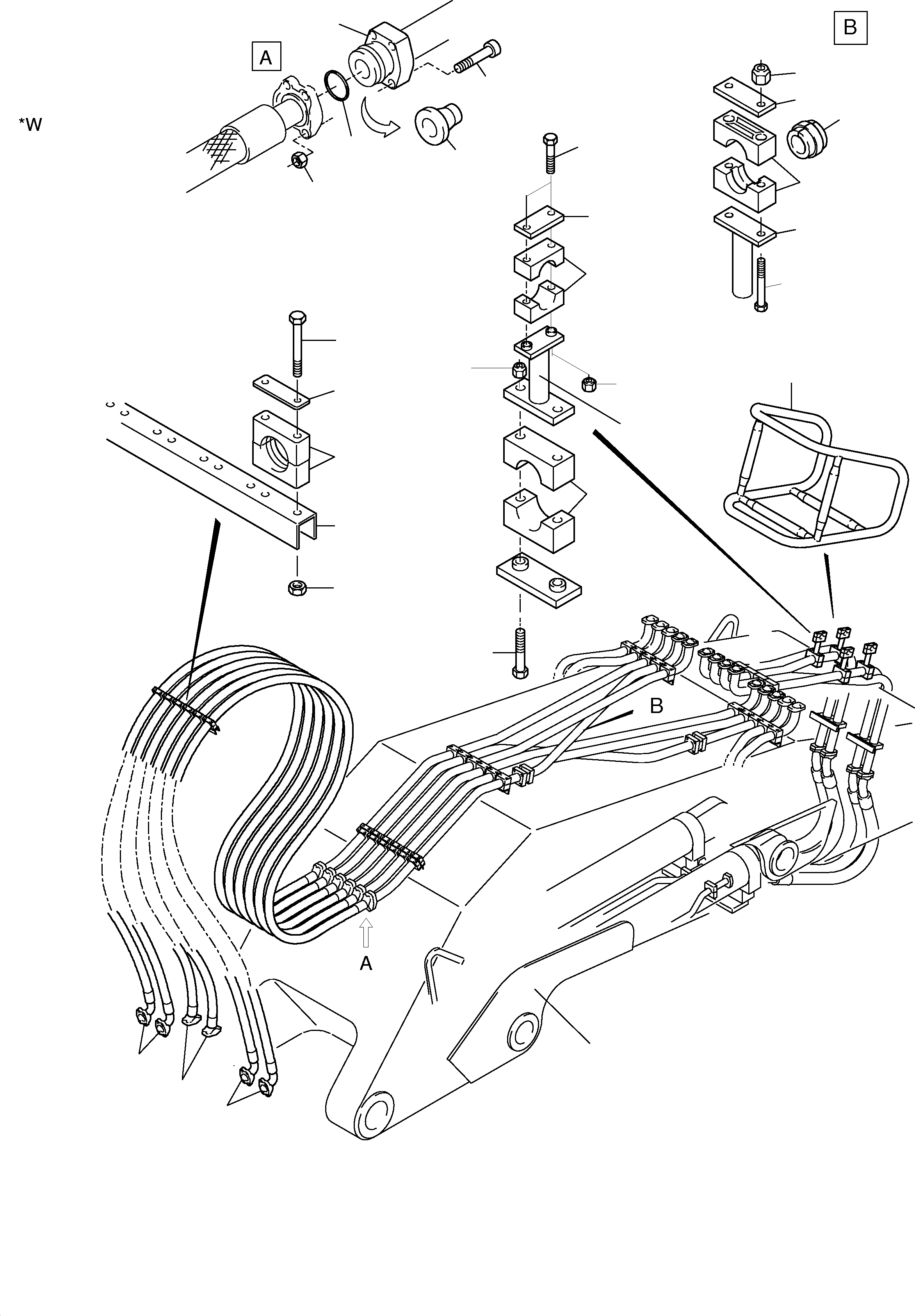

\|$$25		Graphic 2	-1
24	900 033 40	Pipe assy.	2	InternBDB: H455-2 \| InternKon: 622 980 40 / 55
25	502 626 98	Grommet	12	InternBDB: S-4-R-56,4 /3015 \| InternKon: 622 980 40 / 56
31	763 449 73	Pipe assy. Ш 65	2	InternBDB: 651 280 40 \| InternKon: 622 980 40 / 36
32	763 450 73	Pipe assy. Ш 65	2	InternBDB: 651 279 40 \| InternKon: 622 980 40 / 37
33	763 451 73	Pipe assy. Ш 65	1	InternBDB: 651 278 40 \| InternKon: 622 980 40 / 38
34	763 452 73	Pipe assy. Ш 65	1	InternBDB: 651 277 40 \| InternKon: 622 980 40 / 39
35	763 453 73	Pipe assy. Ш 65	2	InternBDB: 651 276 40 \| InternKon: 622 980 40 / 40
36	763 454 73	Pipe assy. Ш 65	1	InternBDB: 651 275 40 \| InternKon: 622 980 40 / 41
37	763 455 73	Pipe assy. Ш 65	1	InternBDB: 651 274 40 \| InternKon: 622 980 40 / 42
38	763 460 73	Pipe assy. Ш 65	1	InternBDB: 653 119 40 \| InternKon: 622 980 40 / 50
39	763 461 73	Pipe assy. Ш 65	1	InternBDB: 653 120 40 \| InternKon: 622 980 40 / 51
40	651 359 40	Hose assy. DN 50x2080	4	InternBDB: 350 50x2080 FS 2-45 FS 2-45 /341 951 40 \| InternKon: 622 980 40 / 13
41	308 615 99	Bolt	24	InternBDB: M12x130 /931 \| InternKon: 622 980 40 / 20
42	534 008 99	Cover plate	12	InternBDB: S-DP-A-4 /3015 \| InternKon: 622 980 40 / 31
43	504 445 98	Half clamp	12	InternBDB: S-4-R-65 /3015 \| InternKon: 622 980 40 / 28
44	332 353 99	Nut	24	InternBDB: M 12 /934 \| InternKon: 622 980 40 / 24
45	504 446 98	Half clamp	24	InternBDB: S-4-G-65 /3015 \| InternKon: 622 980 40 / 29
46	308 612 99	Bolt	12	InternBDB: M12x100 /931 \| InternKon: 622 980 40 / 21
47	509 310 98	Locking plate	6	InternBDB: SI 6 /010 839 99 \| InternKon: 622 980 40 / 27
48	504 662 98	Nut	120	InternBDB: M 20 /934 \| InternKon: 622 980 40 / 26
49	385 243 40	Quadring	16	InternBDB: 58,1x2,79x3,2 \| InternKon: 622 980 40 / 34
50	504 449 98	Collar ring	14	InternBDB: KO-6850-32 /011 747 99 \| InternKon: 622 980 40 / 33
51	504 448 98	Flange	16	InternBDB: FE-6500-32/6 /011 747 99 \| InternKon: 622 980 40 / 35
52	319 313 99	Bolt	48	InternBDB: M20x120 /912 \| InternKon: 622 980 40 / 23
53	502 538 98	Bolt	8	InternBDB: M20x150 /931 \| InternKon: 622 980 40 / 52
54	504 898 98	Flange	4	InternBDB: FE-6500 /011 747 99 \| InternKon: 622 980 40 / 53
55	504 461 98	Collar ring	2	InternBDB: K-6580-32 /011 747 99 \| InternKon: 622 980 40 / 54
56	319 305 99	Bolt	8	InternBDB: M20x60 /912 \| InternKon: 622 980 40 / 22

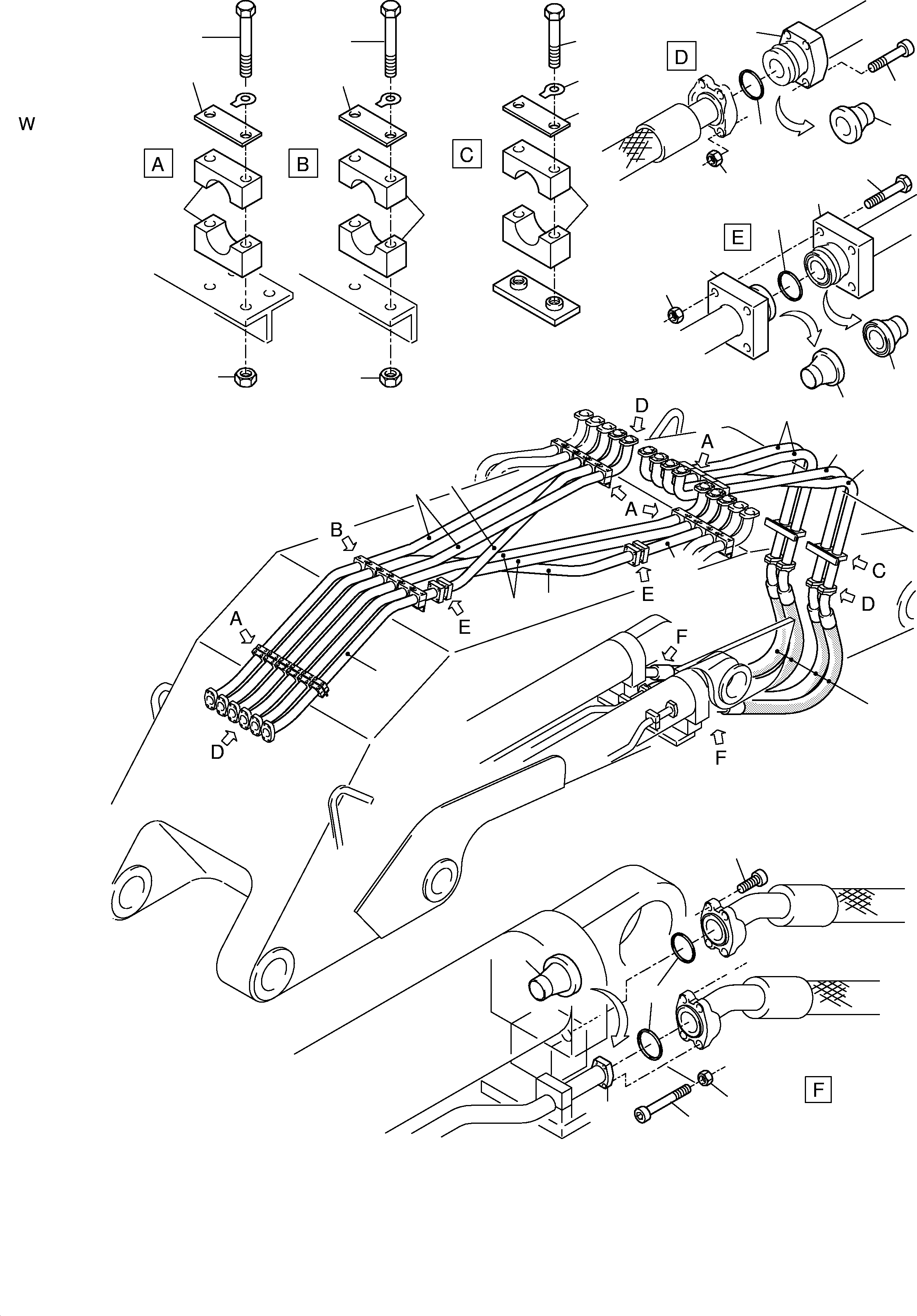

\|$$54		Graphic 3	-1
61	763 456 73	Pipe assy. Ш 65	1	InternBDB: 651 273 40 \| InternKon: 622 980 40 / 43
62	763 457 73	Pipe assy. Ш 65	1	InternBDB: 651 272 40 \| InternKon: 622 980 40 / 44
63	763 458 73	Pipe assy. Ш 65	1	InternBDB: 651 271 40 \| InternKon: 622 980 40 / 45
64	763 459 73	Pipe assy. Ш 65	1	InternBDB: 651 397 40 \| InternKon: 622 980 40 / 46
65	651 360 40	Hose assy. DN 50x2200	4	InternBDB: 350 50x2200 FS 2 FS 2 /341 951 40 \| InternKon: 622 980 40 / 14
66	510 151 98	Bolt	24	InternBDB: M12x120 /933 \| InternKon: 622 980 40 / 20
67	534 008 99	Cover plate	48	InternBDB: S-DP-A-4 /3015 \| InternKon: 622 980 40 / 31
68	504 445 98	Half clamp	72	InternBDB: S-4-R-65 /3015 \| InternKon: 622 980 40 / 28
69	332 353 99	Nut	88	InternBDB: M 12 /934 \| InternKon: 622 980 40 / 24
70	319 313 99	Bolt	2	InternBDB: M20x120 /912 \| InternKon: 622 980 40 / 23
71	504 448 98	Flange	8	InternBDB: FE-6500-32/6 /011 747 99 \| InternKon: 622 980 40 / 35
72	385 243 40	Quadring	12	InternBDB: 58,1x2,79x3,2 \| InternKon: 622 980 40 / 34
73	504 449 98	Collar ring	8	InternBDB: KO-6580-32 \| InternKon: 622 980 40 / 33
74	332 338 99	Nut	32	InternBDB: M 20 /934 \| InternKon: 622 980 40 / 26
75	319 305 99	Bolt	16	InternBDB: M20x60 /912 \| InternKon: 622 980 40 / 22

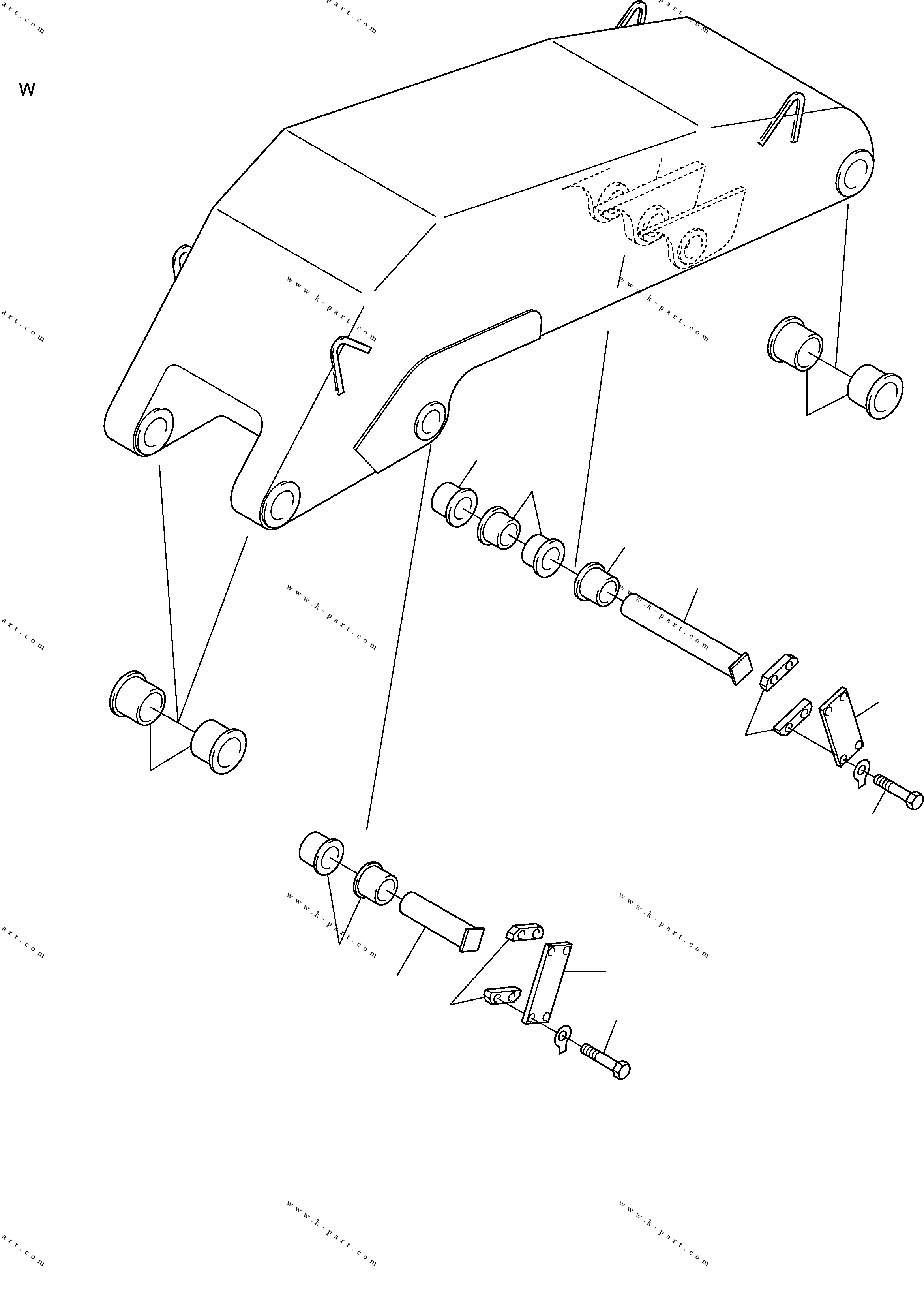

\|$$70		Graphic 4	-1
81	651 388 40	Bushing	8	InternKon: 622 980 40 / 2
82	651 385 40	Bushing	2	InternKon: 622 980 40 / 3
83	651 384 40	Bushing	2	InternKon: 622 980 40 / 4
84	651 383 40	Bushing	4	InternKon: 622 980 40 / 5
85	651 368 40	Pin with plate	1	InternKon: 622 980 40 / 6
86	462 208 40	Catch	2	InternKon: 622 980 40 / 7
87	462 207 40	Shackle	1	InternKon: 622 980 40 / 8
88	651 365 40	Pin with plate	2	InternKon: 622 980 40 / 9
89	480 997 40	Catch	4	InternKon: 622 980 40 / 10
90	651 364 40	Shackle	2	InternKon: 622 980 40 / 11
91	307 826 99	Bolt	8	InternBDB: M16x50 /933 \| InternKon: 622 980 40 / 17
92	307 825 99	Bolt	4	InternBDB: M16x45 /933 \| InternKon: 622 980 40 / 18

Komatsu H455-SD S/N 15009 parts catalog PDF

BULLCLAM BUCKET BOOM (515-4015a) in H455-SD S/N 15009. Diagram image and parts list.
