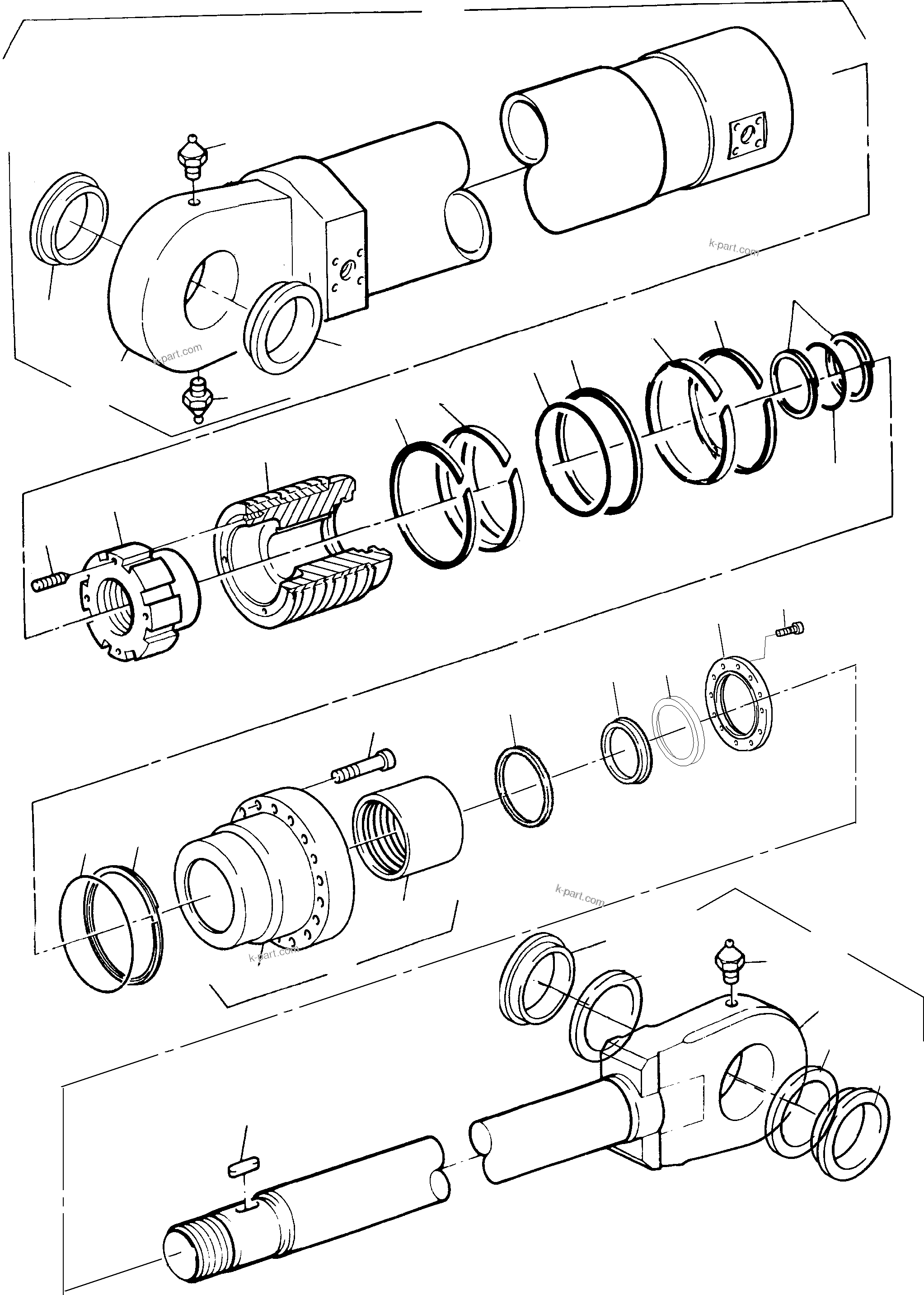

HYDRAULIC CYLINDER | H455-SD S/N 15009 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

H455-SD S/N 15009

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	904 535 40	Hydraulic cylinder assy. consist. of fig-no: 02-28	1	InternBDB: DBM 225x110x830 AT-Nr. 710 941 73
?	763 790 73	Cylinder assy. consist. of fig-no: 03-05	1	InternBDB: E-St
?		Cylinder These parts are not sold separately	1	InternBDB: 653 989 40 \| InternKon: 904 535 40 / 1
?	574 428 40	Freeze-in bush	2	InternBDB: Ш 120 \| InternKon: 904 535 40 / 8
?	004 860 98	Nipple	3	InternBDB: AR1/4" 011 207 99 \| InternKon: 904 535 40 / 25
?	347 403 99	Thread pin	1	InternBDB: M12x30/915- 10.9 \| InternKon: 904 535 40 / 24
?	445 372 40	Groove nut	1	InternKon: 904 535 40 / 5
?	445 369 40	Piston	1	InternKon: 904 535 40 / 4
?	440 212 40	Piston sliding strip 684 length	2	InternBDB: Bu. u. Lu. BS-50740-2250 -A-47-9,5x4 \| InternKon: 904 535 40 / 14
?	269 254 40	Piston wear-ring	2	InternBDB: Bu. u. Lu. BS-50706- 2250-A-900 \| InternKon: 904 535 40 / 13
?	501 901 98	O-ring	1	InternBDB: 196,20x7B NB70 011 745 99 \| InternKon: 904 535 40 / 12
?	202 700 40	Seal	1	InternBDB: Bu. u. Lu. S-55044-2250- 46N \| InternKon: 904 535 40 / 11
?	270 354 40	Back-up ring	2	InternBDB: Bu. u. Lu. S-11109-348 C-110 \| InternKon: 904 535 40 / 20
?	502 005 98	O-ring	1	InternBDB: 110,49x5,33 NB70 011 745 99 \| InternKon: 904 535 40 / 19
?	500 669 98	O-ring	1	InternBDB: 212X7BNB80 011 745 99 \| InternKon: 904 535 40 / 17
?	269 247 40	Back-up ring	1	InternBDB: Prдdifa 212x7/2 \| InternKon: 904 535 40 / 18
?	504 583 98	Bolt	16	InternBDB: M24x110/912- 10.9 Kaltzдh \| InternKon: 904 535 40 / 22
?	904 596 40	Sealing flange assy. consist. of fig.-nos: 19 and 20 (finish work after bush is installed)	1	InternKon: 904 535 40 / 3
?		Bush These parts are not sold separately	1	InternBDB: 904 597 40 \| InternKon: 904 596 40 / 1
?	429 361 40	Bush	1	InternKon: 904 596 40 / 2
?	414 822 40	Seal kit	1	InternBDB: BD 042 0110 / 110x130x14,5 \| InternKon: 904 535 40 / 15
?	430 932 40	Cover ring	1	InternBDB: 185x185 \| InternKon: 904 535 40 / 6
?	500 648 98	Bolt	4	InternBDB: M12x40 /10.9 - Kaltzдh /912 \| InternKon: 904 535 40 / 23
?	906 036 40	Stripper	1	InternBDB: Prдdifa 110x130x14,5 \| InternKon: 904 535 40 / 16
?	354 532 99	Feather key	1	InternBDB: A16x10x40/ 6885 \| InternKon: 904 535 40 / 21
?	768 115 73	Piston rod assy. consist. of fig-nos: 05,28,29	1	InternBDB: E-St
?		Piston rod These parts are not sold separately	1	InternBDB: 891 807 40 \| InternKon: 904 535 40 / 2
?	430 866 40	Freeze in bush	2	InternKon: 904 535 40 / 9
?	575 782 40	Seal ring	2	InternBDB: RXZH 090064-T46 130/120x4 \| InternKon: 904 535 40 / 10
?	906 719 40	Back-up ring	1	InternBDB: Praedifa Y3 - 110 Y3 B 787 W 5001 \| InternKon: 904 535 40 / 26
?	696 426 73	Sealing kit for piston consist. of fig-nos: 09-14	-2	InternBDB: E-St
?	768 720 73	Sealing kit for sealing flange consist. of fig-nos: 15,16,21,25	-2	InternBDB: E-St
