01 |
430 950 40
|

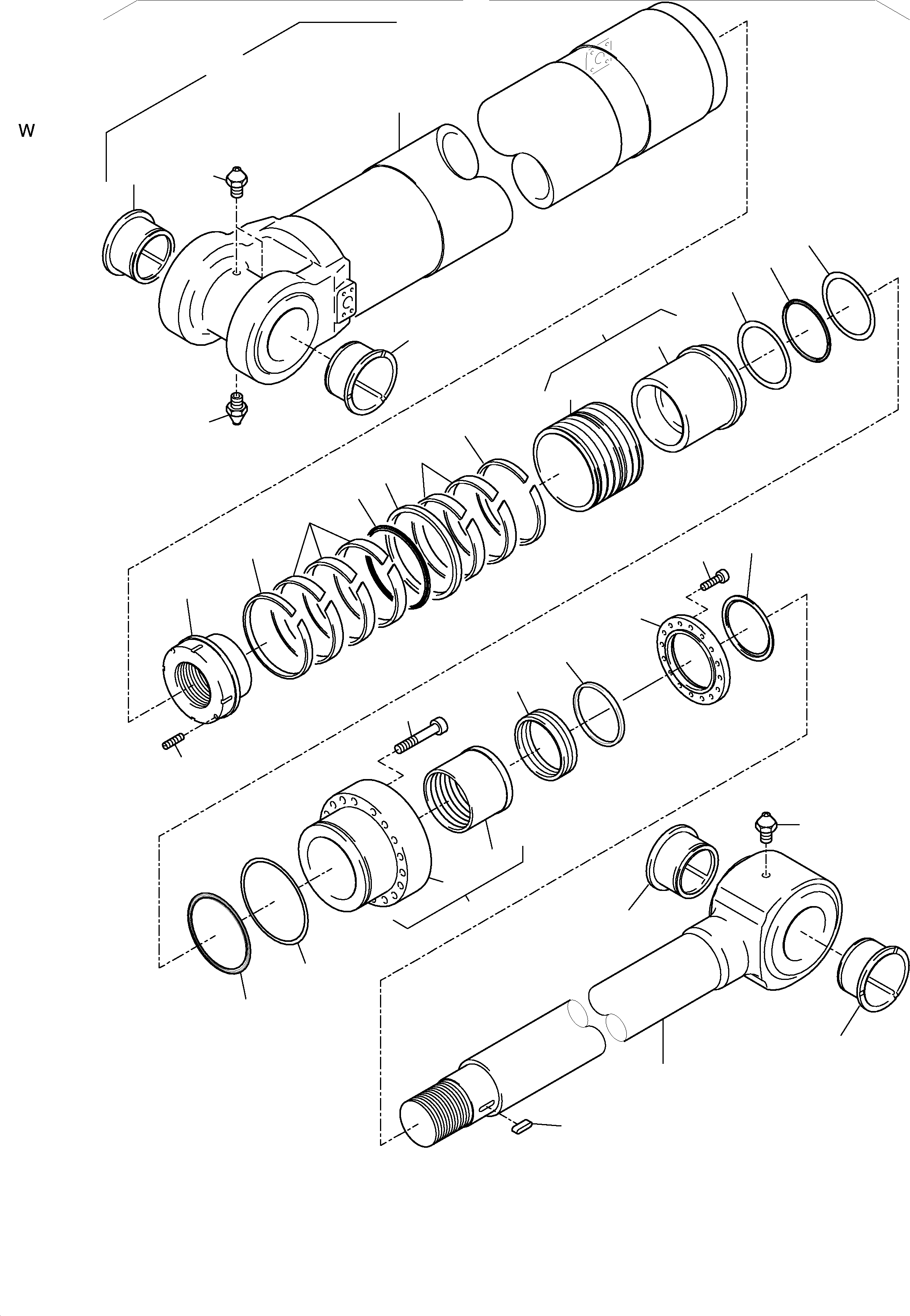

Hydraulic cylinder assy.
fig-nos: 02-31 |
1 |
InternBDB: DKG 330x230x1900 AT-Nr. 710 857 73 | InternKon: 515-4235 / 1
|
|
|
|
02 |
767 602 73
|
Cylinder assy.
fig-nos: 03-05 |
1 |
InternBDB: E-St
|
|
|
|
03 |
|
Cylinder
These parts are not sold
separately |
1 |
InternBDB: 886 818 40 | InternKon: 886 830 40 / 1
|
|
|
|
04 |
886 823 40
|
Freeze-in bush |
2 |
InternBDB: Ш 170 | InternKon: 886 830 40 / 8
|
|
|
|
05 |
004 860 98
|
Nipple |
5 |
InternBDB: AR1/4" 011 207 99 | InternKon: 886 830 40 / 23
|
|
|
|
06 |
347 449 99
|
Thread pin |
1 |
InternBDB: M16x40/915 | InternKon: 886 830 40 / 22
|
|
|
|
07 |
445 398 40
|
Groove nut |
1 |
InternKon: 886 830 40 / 5
|
|
|
|
08 |
461 050 40
|
Piston guide 1009 lg |
2 |
InternBDB: Bu. u. Sh. GM-99-00000-T47 | InternKon: 886 830 40 / 12
|
|
|
|
09 |
440 716 40
|
Piston guide |
5 |
InternBDB: Bu. u. Sh. GP-75-033000-C900 | InternKon: 886 830 40 / 11
|
|
|
|
10 |
440 718 40
|
O-ring |
1 |
InternBDB: Bu. u. Sh. 453-8307 304,20x7,00 B | InternKon: 886 830 40 / 10
|
|
|
|
11 |
440 717 40
|
Seal |
1 |
InternBDB: Bu. u. Sh. PG-44-03300-T46 | InternKon: 886 830 40 / 9
|
|
|
|
12 |
456 104 40
|
Piston assy.
fig-nos. 13 and 14
(finish work after bush is
( installed) |
1 |
InternKon: 886 830 40 / 3
|
|
|
|
13 |
|
Piston bush
These parts are not sold
separately |
1 |
InternBDB: 456 123 40 | InternKon: 456 104 40 / 2
|
|
|
|
14 |
|
Piston
These parts are not sold
separately |
1 |
InternBDB: 456 105 40 | InternKon: 456 104 40 / 1
|
|
|
|
15 |
256 249 40
|
O-ring |
1 |
InternBDB: Bu. u. Sh. 234,32x5,33 374-N 7038 | InternKon: 430 950 40 / 17
|
|
|
|
16 |
256 250 40
|
Support ring |
2 |
InternBDB: 230/239,4/1,7 Bu. u. Sh. BG 470 2300 PT 005 | InternKon: 430 950 40 / 18
|
|
|
|
17 |
502 086 98
|
O-ring |
1 |
InternBDB: 316,90x7,00 /NB 70 011 745 99 | InternKon: 430 950 40 / 16
|
|
|
|
18 |
440 715 40
|
Support ring |
1 |
InternBDB: B 17,8x330,0x1,25 Bu. u. Sh. BP 610 3178 PT 005 | InternKon: 430 950 40 / 17
|
|
|
|
19 |
891 892 40
|
Sealing flange
fig-nos: 20 and 21
(finish work after bush is
installed) |
1 |
InternKon: 430 950 40 / 4
|
|
|
|
20 |
|
Bush
These parts are not sold
separately |
1 |
InternBDB: 891 891 40 | InternKon: 891 892 40 / 1
|
|
|
|
21 |
445 397 40
|
Bush |
1 |
InternBDB: E-ST | InternKon: 891 892 40 / 2
|
|
|
|
22 |
502 095 98
|
Screw |
20 |
InternBDB: M30x160/912 -10.9 Kaltzдh | InternKon: 430 950 40 / 20
|
|
|
|
23 |
440 710 40
|
Seal kit |
1 |
InternBDB: Prдdifa 230x260x22,7 | InternKon: 430 950 40 / 13
|
|
|
|
24 |
365 074 40
|
Support ring |
1 |
InternBDB: 260x230 | InternKon: 430 950 40 / 7
|
|
|
|
25 |
891 893 40
|
Cover |
1 |
InternKon: 430 950 40 / 6
|
|
|
|
26 |
319 285 99
|
Screw |
16 |
InternBDB: M16x30/912 -10.9 Kaltzдh | InternKon: 430 950 40 / 22
|
|
|
|
27 |
440 712 40
|
Stripper |
1 |
InternBDB: Prдdifa 230x245x13 | InternKon: 430 950 40 / 14
|
|
|
|
28 |
354 507 99
|
Feather key |
1 |
InternBDB: A20x12x88/ 6885 | InternKon: 430 950 40 / 19
|
|
|
|
29 |
767 603 73
|
Piston rod assy.
fig-nos: 05,30 and 31 |
1 |
InternBDB: E-St
|
|
|
|
30 |
|
Piston rod
These parts are not sold
separately |
1 |
InternBDB: 886 819 40 | InternKon: 430 950 40 / 2
|
|
|
|
31 |
627 092 40
|
Freeze-in bushing |
2 |
InternBDB: Ш 200 | InternKon: 430 950 40 / 7
|
|
|
|
|$$32 |
767 604 73
|
Seal kit for piston
fig-nos. 08-11,15 and 16 |
-2 |
InternBDB: E-St
|
|
|
|
|$$33 |
768 274 73
|
Seal kit for sealing flange
fig-nos: 17,18,23 and 27 |
-2 |
InternBDB: E-St
|
|
