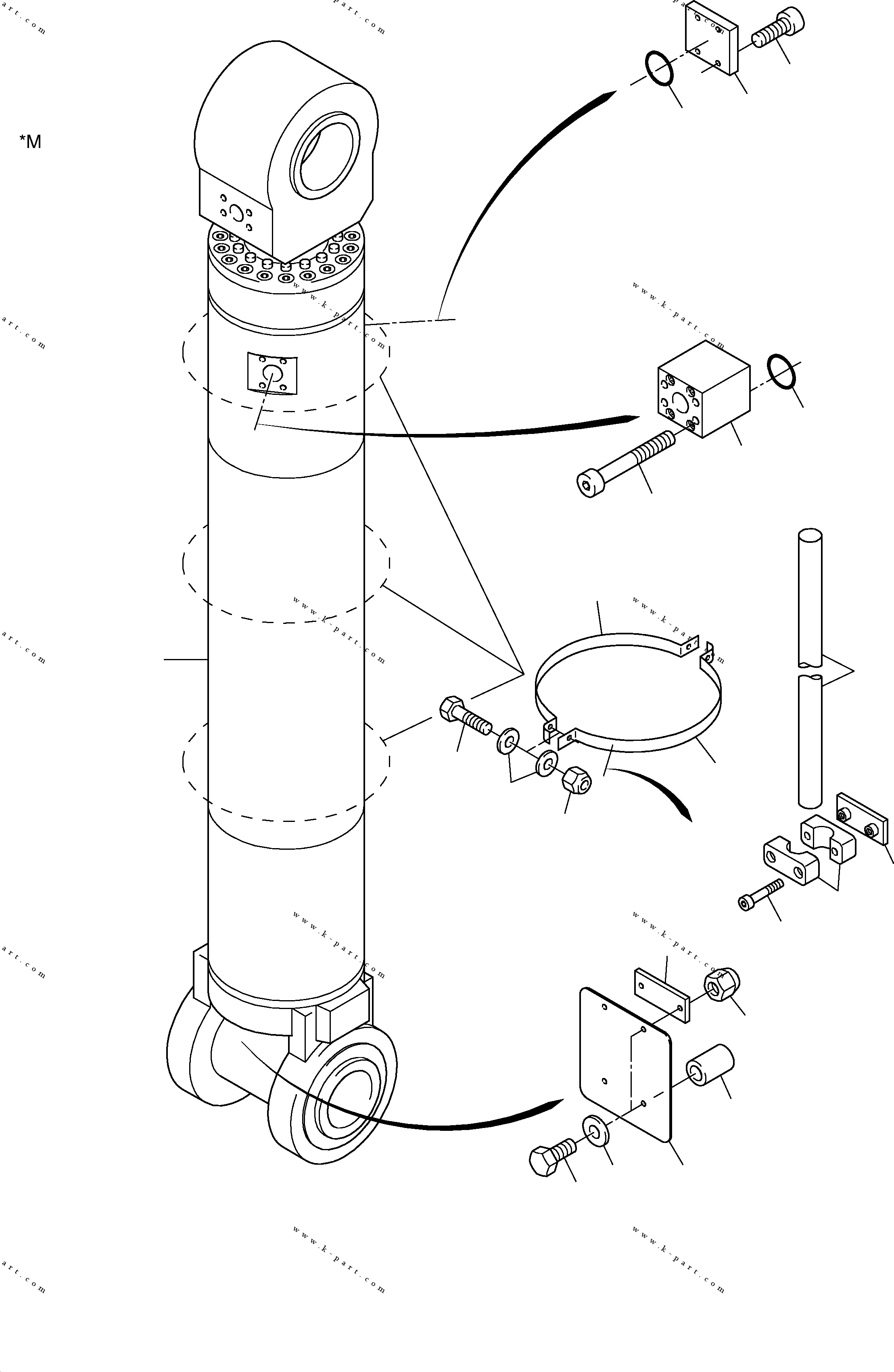

01 |
|
Hydraulic cylinder |
2 |
InternBDB: 430 950 40 | InternKon: 886 876 40 / 1
|
515-4276a |
|
|
02 |
653 916 40
|
Connector plate |
2 |
InternKon: 886 876 40 / 2
|
|
|
|
03 |
653 913 40
|
Locking plate |
2 |
InternKon: 886 876 40 / 3
|
|
|
|
04 |
882 158 40
|
Threaded sleeve |
4 |
InternKon: 886 876 40 / 4
|
|
|
|
05 |
897 774 40
|
Protection plate |
2 |
InternKon: 886 876 40 / 5
|
|
|
|
06 |
897 771 40
|
Pipe Ш 28 |
2 |
InternKon: 886 876 40 / 6
|
|
|
|
07 |
897 767 40
|
Half clamp |
6 |
InternKon: 886 876 40 / 7
|
|
|
|
08 |
500 398 98
|
Weld on plate |
2 |
InternKon: 886 876 40 / 8
|
|
|
|
09 |
509 059 98
|
Half clamp |
6 |
InternKon: 886 876 40 / 9
|
|
|
|
10 |
501 584 98
|
Weld on plate |
6 |
InternKon: 886 876 40 / 10
|
|
|
|
11 |
385 243 40
|
O-ring |
4 |
InternBDB: 2" | InternKon: 886 876 40 / 11
|
|
|
|
12 |
319 212 99
|
Bolt |
8 |
InternBDB: M16x150 /912 | InternKon: 886 876 40 / 12
|
|
|
|
13 |
319 288 99
|
Bolt |
8 |
InternBDB: M16x50 /912 | InternKon: 886 876 40 / 13
|
|
|
|
14 |
319 417 99
|
Screw |
12 |
InternBDB: M6x35 /912 | InternKon: 886 876 40 / 14
|
|
|
|
15 |
307 824 99
|
Bolt |
8 |
InternBDB: M16x40 /933 | InternKon: 886 876 40 / 15
|
|
|
|
16 |
308 605 99
|
Bolt |
12 |
InternBDB: M12x55 /931 | InternKon: 886 876 40 / 16
|
|
|
|
17 |
334 601 99
|
Nut |
4 |
InternBDB: M16 /985 | InternKon: 886 876 40 / 17
|
|
|
|
18 |
334 600 99
|
Nut |
12 |
InternBDB: M12 /985 | InternKon: 886 876 40 / 18
|
|
|
|
19 |
340 410 99
|
Washer |
8 |
InternBDB: 17 /433 | InternKon: 886 876 40 / 19
|
|
|
|
20 |
340 467 99
|
Washer |
24 |
InternBDB: 13 /125 | InternKon: 886 876 40 / 20
|
|
