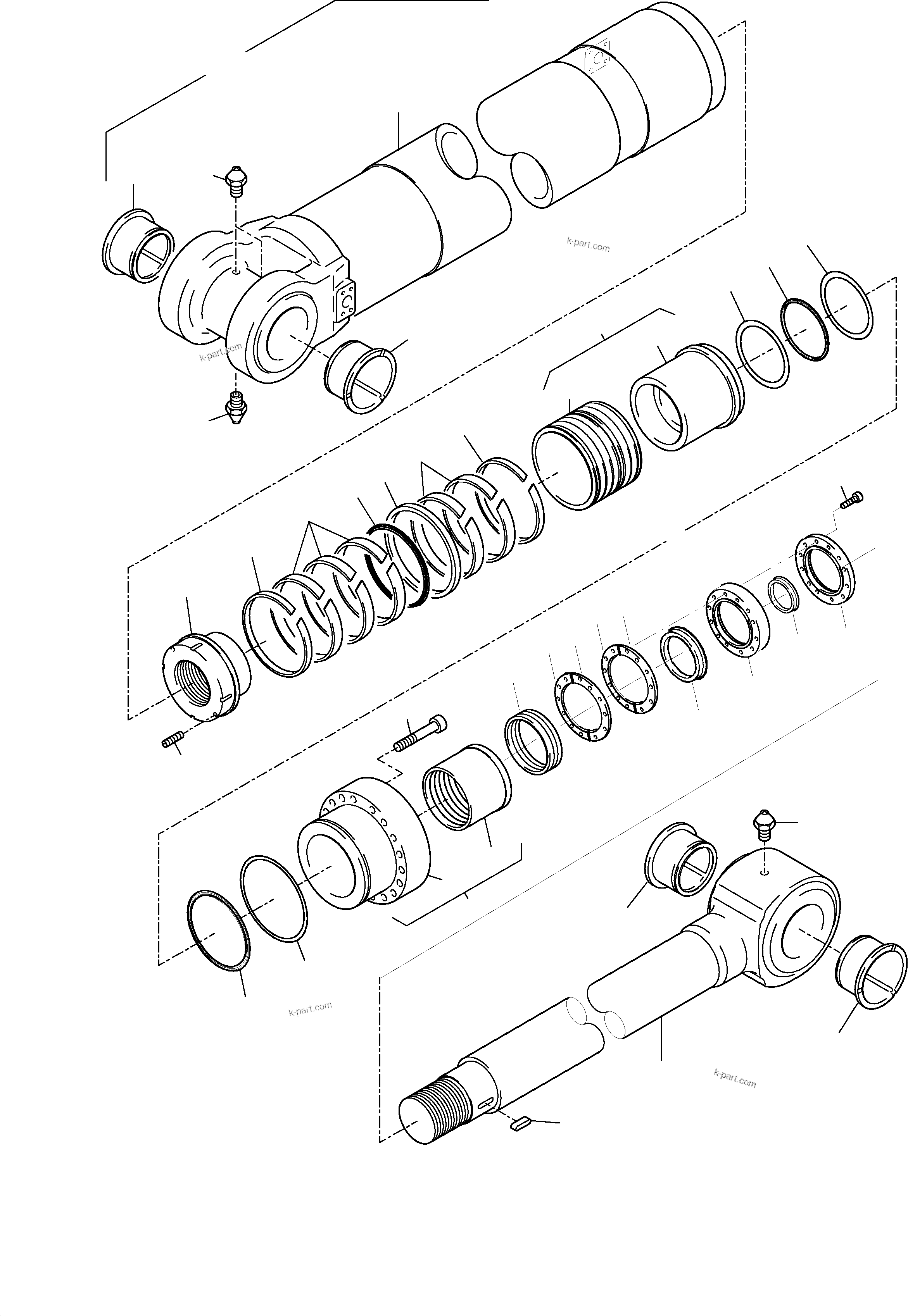

HYDRAULIC CYLINDER | H455-SD S/N 15009 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

H455-SD S/N 15009

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	905 930 40	Hydraulic cylinder assy. fig-nos: 02-30	1	InternBDB: DBM 330x230x3250 AT-Nr. 710 989 73 \| InternKon: H 455 / 1
?	768 225 73	Cylinder assy. fig-nos: 03-05	1	InternBDB: E-St
?		Cylinder These parts are not sold separately	1	InternBDB: 886 828 40 \| InternKon: 905 930 40 / 1
?	607 796 40	Freeze-in bush	4	InternKon: 905 930 40 / 9
?	004 860 98	Nipple	3	InternBDB: AR1/4" 011 207 99 \| InternKon: 905 930 40 / 24
?	347 449 99	Thread pin	1	InternBDB: M16x40/915 \| InternKon: 905 930 40 / 23
?	886 833 40	Groove nut	1	InternKon: 905 930 40 / 5
?	461 050 40	Piston guide	2	InternBDB: Bu. u. Lu. \| InternKon: 905 930 40 / 13
?	440 716 40	Piston guide	5	InternBDB: Bu. u. Sh. GP 75-03300-C900 \| InternKon: 905 930 40 / 12
?	440 718 40	O-ring	1	InternBDB: Bu. u. Sh. 304,20x7,00 B \| InternKon: 905 930 40 / 11
?	440 717 40	Seal	1	InternBDB: Bu. u. Sh. PG 44-03300-T46 \| InternKon: 905 930 40 / 10
?	886 838 40	Piston assy. fig-nos. 13 and 14 (finish work after bush is ( installed)	1	InternKon: 905 930 40 / 4
?	456 123 40	Piston bush	1	InternBDB: 456 123 40 \| InternKon: 886 838 40 / 2
?		Piston These parts are not sold separately	1	InternBDB: 886 832 40 \| InternKon: 886 838 40 / 1
?	504 768 98	O-ring	1	InternBDB: 240,67x5,33 NB70 \| InternKon: 905 930 40 / 18
?	324 443 40	Support ring	2	InternBDB: 240/239,4/1,7 P Spiral \| InternKon: 905 930 40 / 19
?	502 086 98	O-ring	1	InternBDB: 316,90x7,00 B NB \| InternKon: 905 930 40 / 16
?	440 715 40	Support ring	1	InternBDB: 317,8x330,0x1,2 BP 6103178 PT 005 \| InternKon: 905 930 40 / 17
?	905 931 40	Sealing flange fig-nos: 20 and 21 (finish work after bush is installed)	1	InternKon: 905 930 40 / 3
?		Bush These parts are not sold separately	1	InternBDB: 905 933 40 \| InternKon: 905 931 40 / 1
?	891 812 40	Bush	1	InternKon: 905 931 40 / 2
?	502 095 98	Screw	20	InternBDB: M30x160/912 -10.9 Kaltzдh \| InternKon: 905 930 40 / 21
?	324 440 40	Seal kit	1	InternBDB: NBR 240x270x60 \| InternKon: 905 930 40 / 14
?	906 074 40	Support ring	1	InternBDB: Prдdifa 240/270x6,3 \| InternKon: 905 930 40 / 8
?	904 581 40	Cover	1	InternBDB: 338x338 \| InternKon: 905 930 40 / 6
?	514 955 98	Screw	16	InternBDB: M16x75/912 -10.9 Kaltzдh \| InternKon: 905 930 40 / 22
?	906 051 40	Stripper	1	InternBDB: Prдdifa 240x266x16,6/13,1 Y3 N005 P5008 \| InternKon: 905 930 40 / 15
?	354 389 99	Feather key	1	InternBDB: A20x12x70/ 6885 \| InternKon: 905 930 40 / 20
?	768 224 73	Piston rod assy. fig-nos: 04,05,30	1	InternBDB: E-St
?		Piston rod These parts are not sold separately	1	InternBDB: 886 829 40 \| InternKon: 905 930 40 / 2
?	891 878 40	Half shim	2	InternBDB: ST52-3N \| InternKon: 905 930 40 / 25
?	891 819 40	Half shim	8	InternKon: 905 930 40 / 26
?	904 582 40	Cover ring	1	InternBDB: 338x338 \| InternKon: 905 930 40 / 7
?	768 227 73	Seal kit for piston fig-nos. 08-11,15 and 16	-2	InternBDB: E-St
?	768 725 73	Seal kit for sealing flange fig-nos: 17,18,23 and 27	-2	InternBDB: E-St
