01 |
931 545 40
|

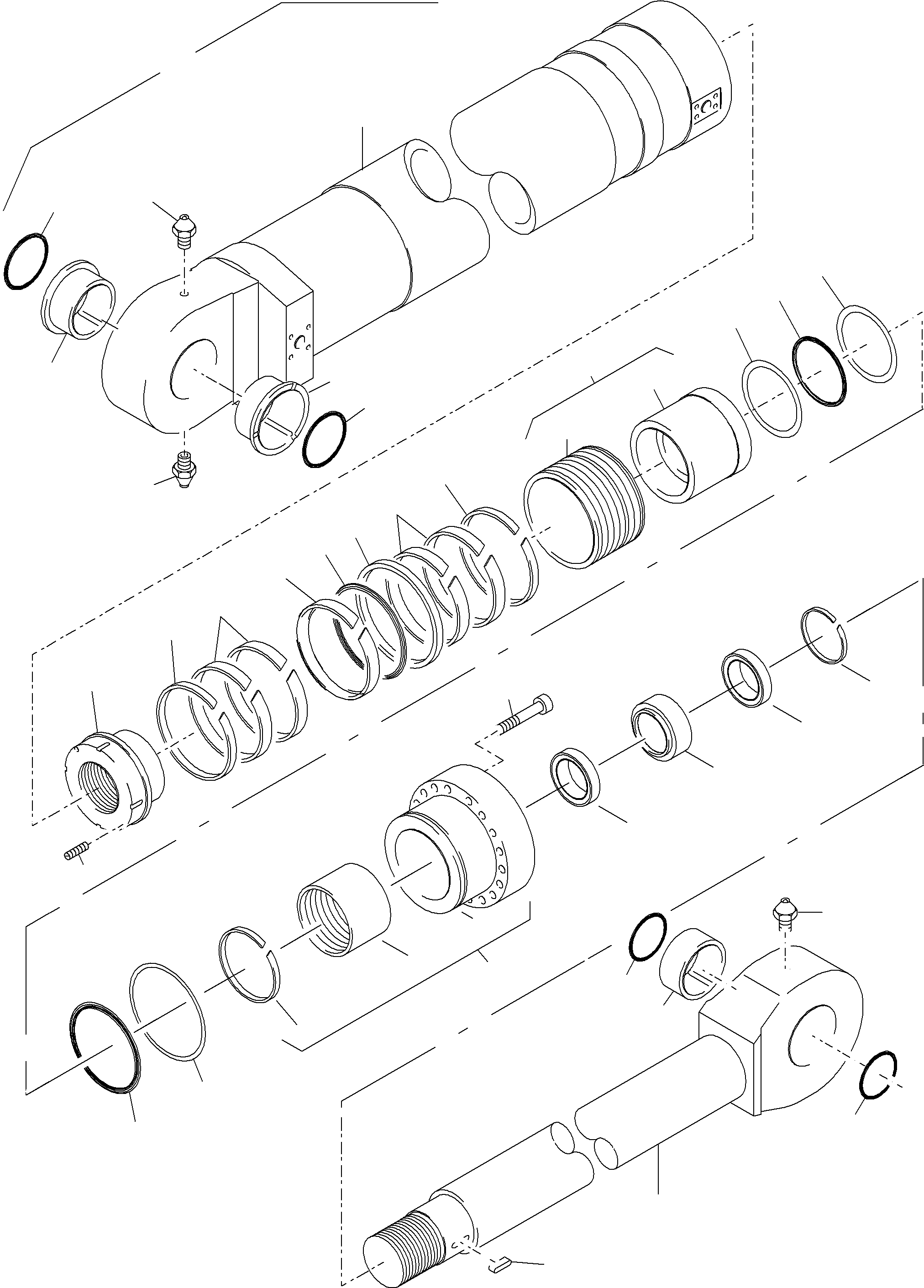

Hydraulic cylinder |
1 |
InternBDB: KMG 330 / 220 x 2750 (4150) NOK | InternKon: 931 558 40 / 1
|
|
|
|
02 |
794 798 73
|
Cylinder barrel assy. incl. fig-nos. 03-06 |
1 |
|
|
|
|
03 |
|
Cylinder barrel |
1 |
InternBDB: 901 504 40 | InternKon: 931 545 40 / 1
|
|
|
|
04 |
430 771 40
|
Flanged bush |
2 |
InternKon: 931 545 40 / 6
|
|
|
|
05 |
907 023 40
|
Seal ring |
2 |
InternBDB: RXYD091604T46 180/7x4 | InternKon: 931 545 40 / 8
|
|
|
|
06 |
004 860 98
|
Grease nipple |
3 |
InternBDB: AR 1/4 / 011 207 99 | InternKon: 931 545 40 / 25
|
|
|
|
07 |
794 805 73
|
Piston rod assy. incl. fig-nos. 06,08,09,10 |
1 |
InternBDB: E-ST
|
|
|
|
08 |
|
Piston rod |
1 |
InternBDB: 901 509 40 | InternKon: 931 545 40 / 2
|
|
|
|
09 |
627 572 40
|
Freeze-in bushing |
1 |
InternKon: 931 545 40 / 7
|
|
|
|
10 |
907 022 40
|
Seal ring |
2 |
InternBDB: RXYD091604T46 170/7x4 | InternKon: 931 545 40 / 9
|
|
|
|
11 |
927 993 40
|
Sealing flange incl. fig-nos. 12-14 |
1 |
InternKon: 931 545 40 / 3
|
|
|
|
12 |
|
Flanged bush |
1 |
InternBDB: 931 523 40 | InternKon: 927 993 40 / 1
|
|
|
|
13 |
931 524 40
|
Bearing bush (no field repair item) |
1 |
InternKon: 927 993 40 / 2
|
|
|
|
14 |
502 333 98
|
Snap ring |
1 |
InternBDB: 245x5 /472 | InternKon: 927 993 40 / 3
|
|
|
|
15 |
901 514 40
|
Piston assy. incl. fig-nos. 16+17 |
1 |
InternKon: 931 545 40 / 4
|
|
|
|
16 |
|
Piston |
1 |
InternBDB: 901 511 40 | InternKon: 901 514 40 / 1
|
|
|
|
17 |
456 123 40
|
Liner (no field repair item) |
1 |
InternKon: 901 514 40 / 2
|
|
|
|
18 |
947 196 40
|
Groove nut |
1 |
InternBDB: M160x3 | InternKon: 931 545 40 / 5
|
|
|
|
19 |
947 188 40
|
Threaded pin |
1 |
InternBDB: M 16 x 40 / 915 | InternKon: 931 545 40 / 24
|
|
|
|
20 |
440 717 40
|
Sealing element |
1 |
InternBDB: PG-44-03300-T46 | InternKon: 931 545 40 / 10
|
|
|
|
21 |
440 718 40
|
O-ring |
1 |
InternBDB: 304,2 x 7,0 B 453-8307 | InternKon: 931 545 40 / 11
|
|
|
|
22 |
440 716 40
|
Piston guide ring |
5 |
InternBDB: Bu.+Sh. GP-75-03300-C900 | InternKon: 931 545 40 / 12
|
|
|
|
23 |
269 494 40
|
Piston guide strap |
2 |
InternBDB: Bu.+Sh. GM-99-00000-T47 | InternKon: 931 545 40 / 13
|
|
|
|
24 |
515 694 98
|
O-ring |
1 |
InternBDB: 221,6 x 5,33 | InternKon: 931 545 40 / 19
|
|
|
|
25 |
896 674 40
|
Support ring |
2 |
InternBDB: 218,0 x 226,6 x 1,7 | InternKon: 931 545 40 / 20
|
|
|
|
26 |
516 599 98
|
Bolt |
20 |
InternBDB: M 30 x 220 / DIN 912 / 10.9 Kaltz | InternKon: 931 545 40 / 22
|
|
|
|
27 |
502 086 98
|
O-ring |
1 |
InternBDB: 316,9 x ,7,0 B NB70 / 011 745 99 | InternKon: 931 545 40 / 17
|
|
|
|
28 |
440 715 40
|
Support ring |
1 |
InternBDB: 317,8 x 330,0 x 1,2 | InternKon: 931 545 40 / 18
|
|
|
|
29 |
932 548 40
|
Buffer ring |
1 |
InternBDB: 220x245x9,6 U641 80NP HBY 7075122840 | InternKon: 931 545 40 / 14
|
|
|
|
30 |
940 457 40
|
Rod seal |
1 |
InternBDB: 220x245x20 A903 19YF IUY 7075122730 | InternKon: 931 545 40 / 15
|
|
|
|
31 |
932 552 40
|
Scraper |
1 |
InternBDB: 220 x 240 x 10x14 U593 SPCC DKBI 7075622530 | InternKon: 931 545 40 / 16
|
|
|
|
32 |
517 840 98
|
Snap ring |
1 |
InternBDB: B240 | InternKon: 931 545 40 / 23
|
|
|
|
33 |
354 534 99
|
Feather key |
1 |
InternBDB: A 20 x 12 x 45 / 6885 | InternKon: 931 545 40 / 21
|
|
|
|
|$$34 |
794 806 73
|
Seal kit piston consist. of fig nos: 20-25 |
1 |
|
|
|
|
|$$35 |
794 807 73
|
Seal kit piston rod consist. of fig.-nos: 26-31 |
1 |
|
|
