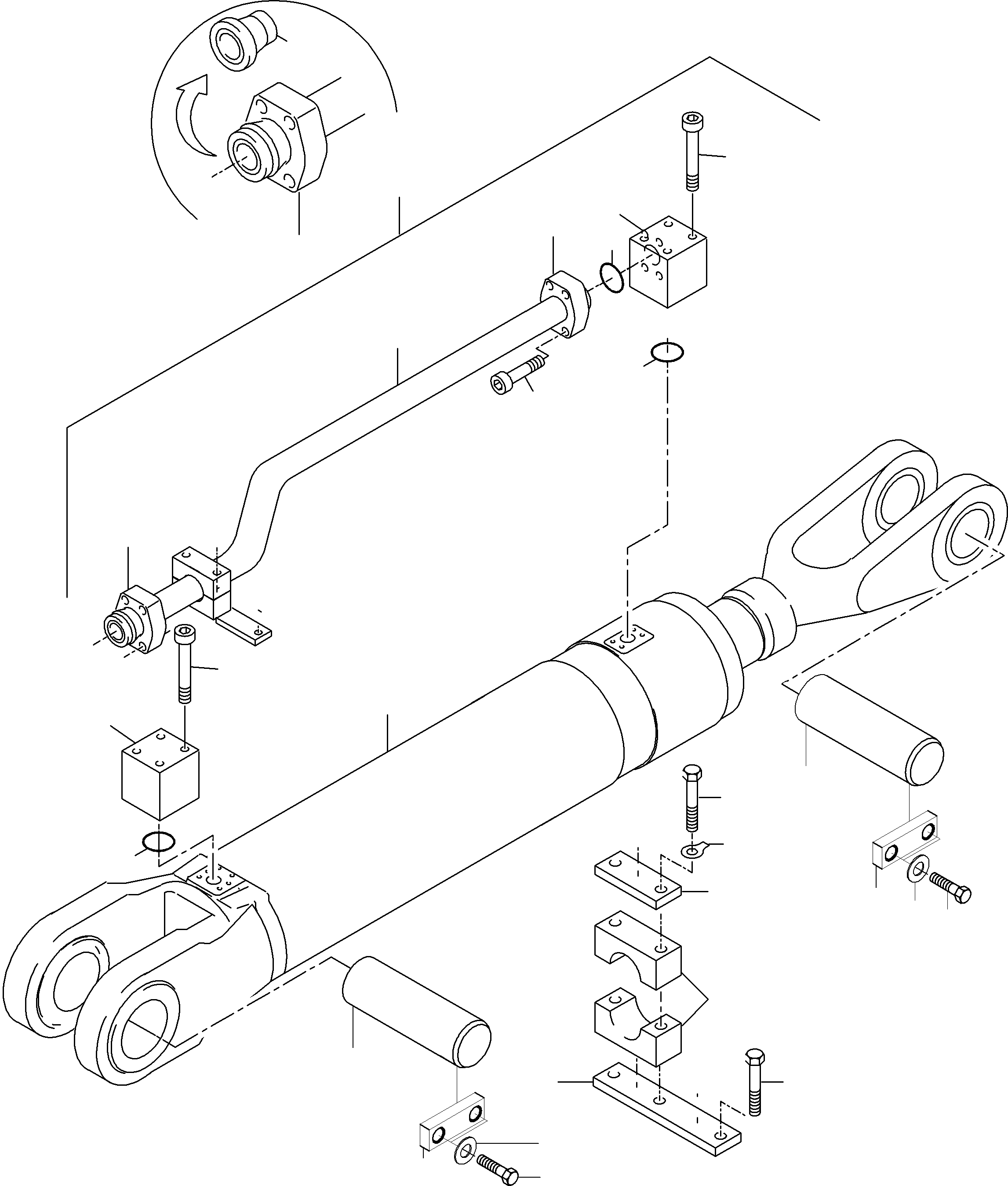

01 |
|
Hydr. cylinder |
1 |
InternBDB: 931 550 40 | InternKon: 931 559 40 / 1
|
355-4176a |
|
|
02 |
902 721 40
|
Piping, assy. |
1 |
InternBDB: E-ST | InternKon: 931 559 40 / 2
|
|
|
|
05 |
513 302 98
|
Connecting block |
1 |
InternKon: 902 721 40 / 3
|
|
|
|
06 |
769 916 73
|
Pipe assy.Ш 50 |
1 |
InternBDB: 430 792 40 | InternKon: 902 721 40 / 1
|
|
|
|
08 |
502 977 98
|
Clamp set |
1 |
InternBDB: S-4-G-50 | InternKon: 902 721 40 / 13
|
|
|
|
09 |
534 008 99
|
Cover plate |
1 |
InternBDB: S-DP-A-4 | InternKon: 902 721 40 / 12
|
|
|
|
10 |
500 127 98
|
Flange |
2 |
InternBDB: FE 5000-24/6 | InternKon: 902 721 40 / 4
|
|
|
|
11 |
500 203 98
|
Collar ring |
1 |
InternBDB: KO-5060-24 | InternKon: 902 721 40 / 5
|
|
|
|
12 |
501 898 98
|
Collar ring |
1 |
InternBDB: K-5060-24 | InternKon: 902 721 40 / 6
|
|
|
|
13 |
385 243 40
|
Flange seal |
1 |
InternBDB: 2 NBR 90 | InternKon: 902 721 40 / 7
|
|
|
|
15 |
356 209 40
|
Flange seal |
2 |
InternBDB: 1 1/2" NB 90 | InternKon: 902 721 40 / 14
|
|
|
|
16 |
308 459 99
|
Bolt |
2 |
InternBDB: M12x100 /931 | InternKon: 902 721 40 / 10
|
|
|
|
17 |
319 289 99
|
Bolt |
4 |
InternBDB: M16x60 /912 | InternKon: 902 721 40 / 8
|
|
|
|
18 |
308 424 99
|
Bolt |
4 |
InternBDB: M16x110 /912 | InternKon: 902 721 40 / 9
|
|
|
|
20 |
343 006 99
|
Washer |
2 |
InternBDB: 13 /93 | InternKon: 902 721 40 / 11
|
|
|
|
21 |
430 793 40
|
Plate |
1 |
InternKon: 902 721 40 / 2
|
|
|
|
22 |
500 333 98
|
Bolt |
2 |
InternBDB: M20x50 /933 10.9 | InternKon: 902 721 40 / 15
|
|
|
|
23 |
308 414 99
|
Bolt |
4 |
InternBDB: M20x130 /931 10.9 | InternKon: 902 721 40 / 17
|
|
|
|
24 |
513 303 98
|
Connecting block |
1 |
InternKon: 902 721 40 / 16
|
|
|
|
25 |
912 656 40
|
Pin |
1 |
InternKon: 931 559 40 / 3
|
|
|
|
26 |
637 549 40
|
Achsel stirrup |
2 |
InternKon: 931 559 40 / 4
|
|
|
|
27 |
308 407 99
|
Bolt |
4 |
InternBDB: M24x100 10.9 / 931 | InternKon: 931 559 40 / 5
|
|
|
|
28 |
915 899 40
|
Pin |
1 |
InternKon: 931 559 40 / 7
|
|
|
|
29 |
340 471 99
|
Washer |
4 |
InternBDB: B 25/125 | InternKon: 931 559 40 / 6
|
|
