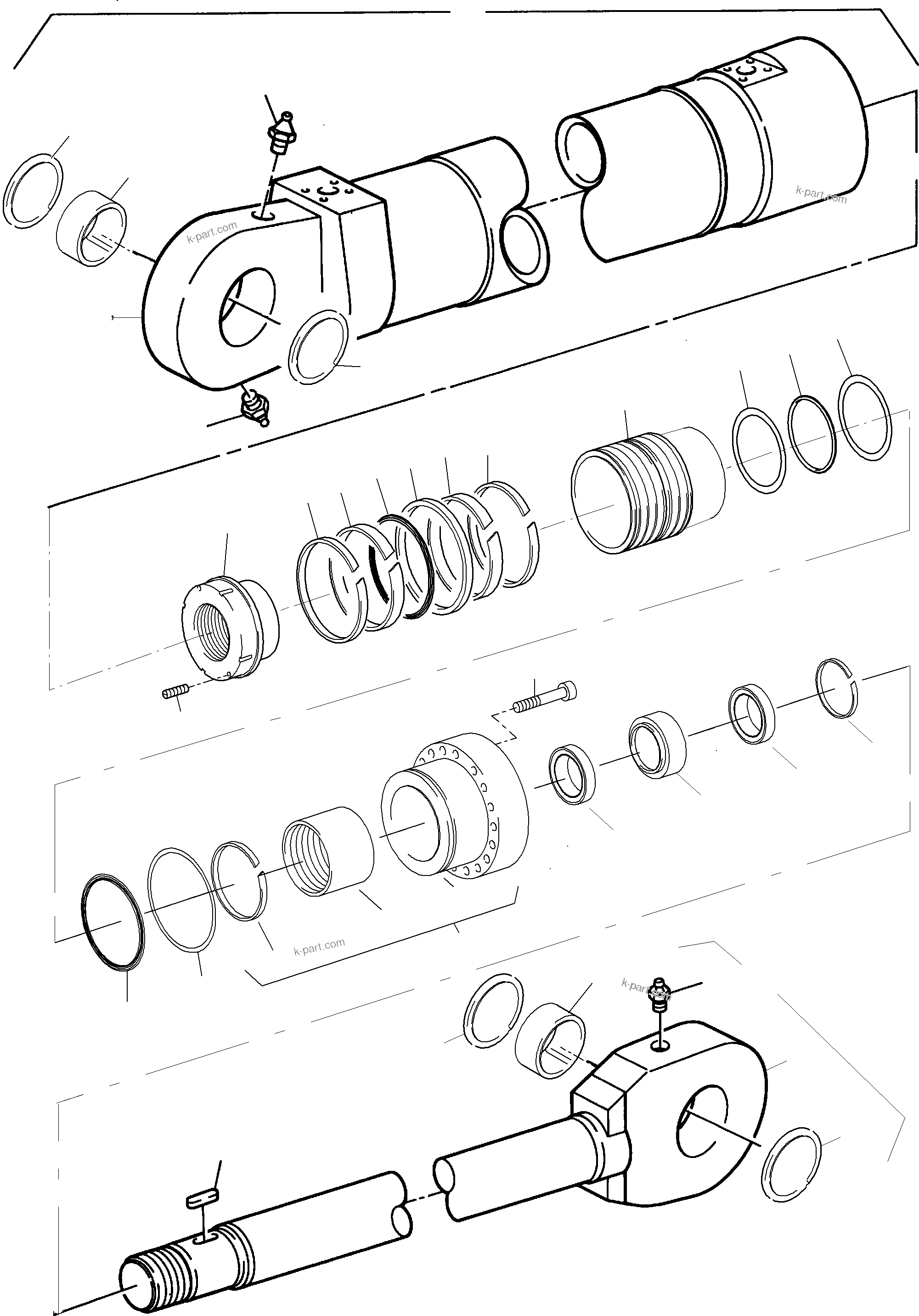

931 560 40
|
Hydr. cylinder |
1 |
InternBDB: KMG 225 / 110 x 750 (1640) NOK | InternKon: 931 562 40 / 1
|
|
|
|
? |
794 823 73
|
Cylinder barrel cpl. incl. fig-nos. 03-06 |
1 |
InternBDB: EST
|
|
|
|
? |
|
Cylinder barrel |
1 |
InternBDB: 928 621 40 | InternKon: 931 560 40 / 1
|
|
|
|
? |
907 017 40
|
Seal ring |
4 |
InternBDB: 120 x 4 x 4 | InternKon: 931 560 40 / 7
|
|
|
|
? |
938 874 40
|
Freeze-in bush |
2 |
InternKon: 931 560 40 / 6
|
|
|
|
? |
004 860 98
|
Grease nipple |
3 |
InternBDB: AR 1/4 /011 207 99 | InternKon: 931 560 40 / 23
|
|
|
|
? |
794 824 73
|
Piston rod assy. incl. fig-nos. 04-06, 08 |
1 |
InternBDB: E-ST
|
|
|
|
? |
|
Piston rod |
1 |
InternBDB: 938 891 40 | InternKon: 931 560 40 / 2
|
|
|
|
? |
354 532 99
|
Feather key |
1 |
InternBDB: 16 x 10 x 40 /6885 | InternKon: 931 560 40 / 19
|
|
|
|
? |
897 717 40
|
Piston |
1 |
InternKon: 931 560 40 / 4
|
|
|
|
? |
897 716 40
|
Groove nut |
1 |
InternKon: 931 560 40 / 5
|
|
|
|
? |
501 025 98
|
Threaded pin |
1 |
InternBDB: M12 x 35 / 915 / 10.9 | InternKon: 931 560 40 / 22
|
|
|
|
? |
269 494 40
|
Piston guide strap |
2 |
InternBDB: GM-99-00000-T47 | InternKon: 931 560 40 / 11
|
|
|
|
? |
269 254 40
|
Piston guide ring |
2 |
InternBDB: GP-75-02250-C900 | InternKon: 931 560 40 / 10
|
|
|
|
? |
501 901 98
|
O-ring |
1 |
InternBDB: 196,2 x 7,0 B / NB70 | InternKon: 931 560 40 / 9
|
|
|
|
? |
202 700 40
|
Seal ring |
1 |
InternBDB: B+S PG-44-02250-T46 | InternKon: 931 560 40 / 8
|
|
|
|
? |
502 005 98
|
O-ring |
1 |
InternBDB: 110,49 x 5,33 B NB70 /011 745 99 | InternKon: 931 560 40 / 17
|
|
|
|
? |
270 354 40
|
Support ring |
2 |
InternBDB: B+S BP-09-0A348-PT005 | InternKon: 931 560 40 / 18
|
|
|
|
? |
927 997 40
|
Sealing flange assy. incl. fig-nos. 10-12 |
1 |
InternKon: 931 560 40 / 3
|
|
|
|
? |
|
Flanged bush |
1 |
InternBDB: 929 266 40 | InternKon: 927 997 40 / 1
|
|
|
|
? |
429 361 40
|
Bearing bush (no field repair item) |
1 |
InternKon: 927 997 40 / 2
|
|
|
|
? |
342 676 99
|
Circlip |
1 |
InternBDB: 130 x 4 /472 | InternKon: 927 997 40 / 3
|
|
|
|
? |
504 583 98
|
Bolt |
12 |
InternBDB: M24 x 110 / DIN 912 / 10.9 Kaltz | InternKon: 931 560 40 / 21
|
|
|
|
? |
500 669 98
|
O-ring |
1 |
InternBDB: 212,0 x 7,0 B NB80 /011 745 99 | InternKon: 931 560 40 / 15
|
|
|
|
? |
269 247 40
|
Support ring |
1 |
InternBDB: 214,0 x 226,0 x 2,0 | InternKon: 931 560 40 / 16
|
|
|
|
? |
907 853 40
|
Buffer ring |
1 |
InternBDB: 110x125,5x6 U641 80NP HBY | InternKon: 931 560 40 / 12
|
|
|
|
? |
932 902 40
|
Rod seal |
1 |
InternBDB: 110 x 130 x 13 A903 19YF IUY | InternKon: 931 560 40 / 13
|
|
|
|
? |
011 616 79
|
Scraper |
1 |
InternBDB: 110x126x9x12 UR-4 SPCC DKBI | InternKon: 931 560 40 / 14
|
|
|
|
? |
011 799 79
|
Snap ring |
1 |
InternBDB: 77 /KES07179 | InternKon: 931 560 40 / 20
|
|
|
|
? |
794 825 73
|
Seal kit - piston consist. of fig-nos: 16-21 |
-2 |
InternBDB: E-ST
|
|
|
|
? |
794 826 73
|
Seal kit - piston rod consist. of fig-nos: 22-25, 32 |
-2 |
InternBDB: E-ST
|
|
