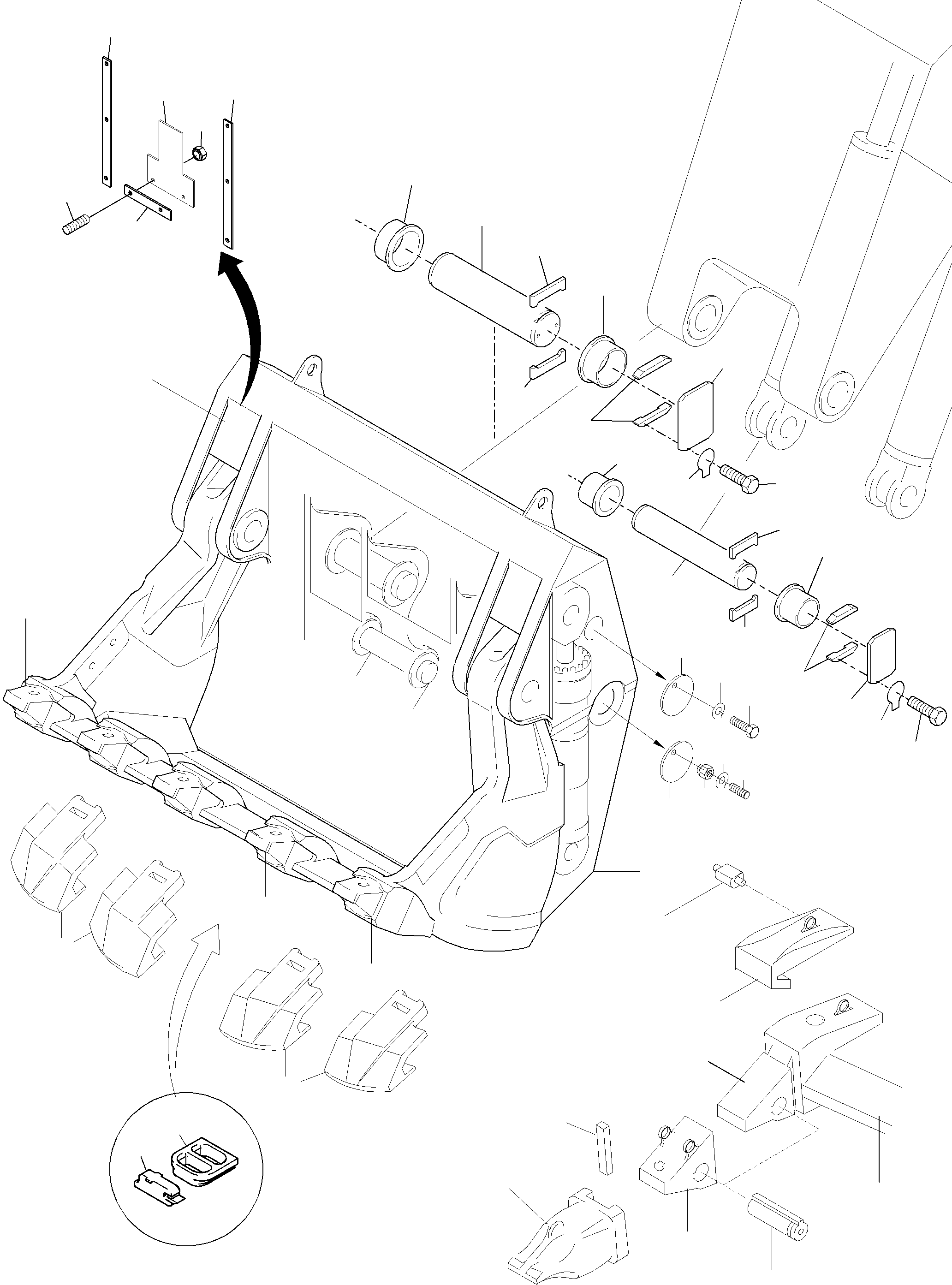

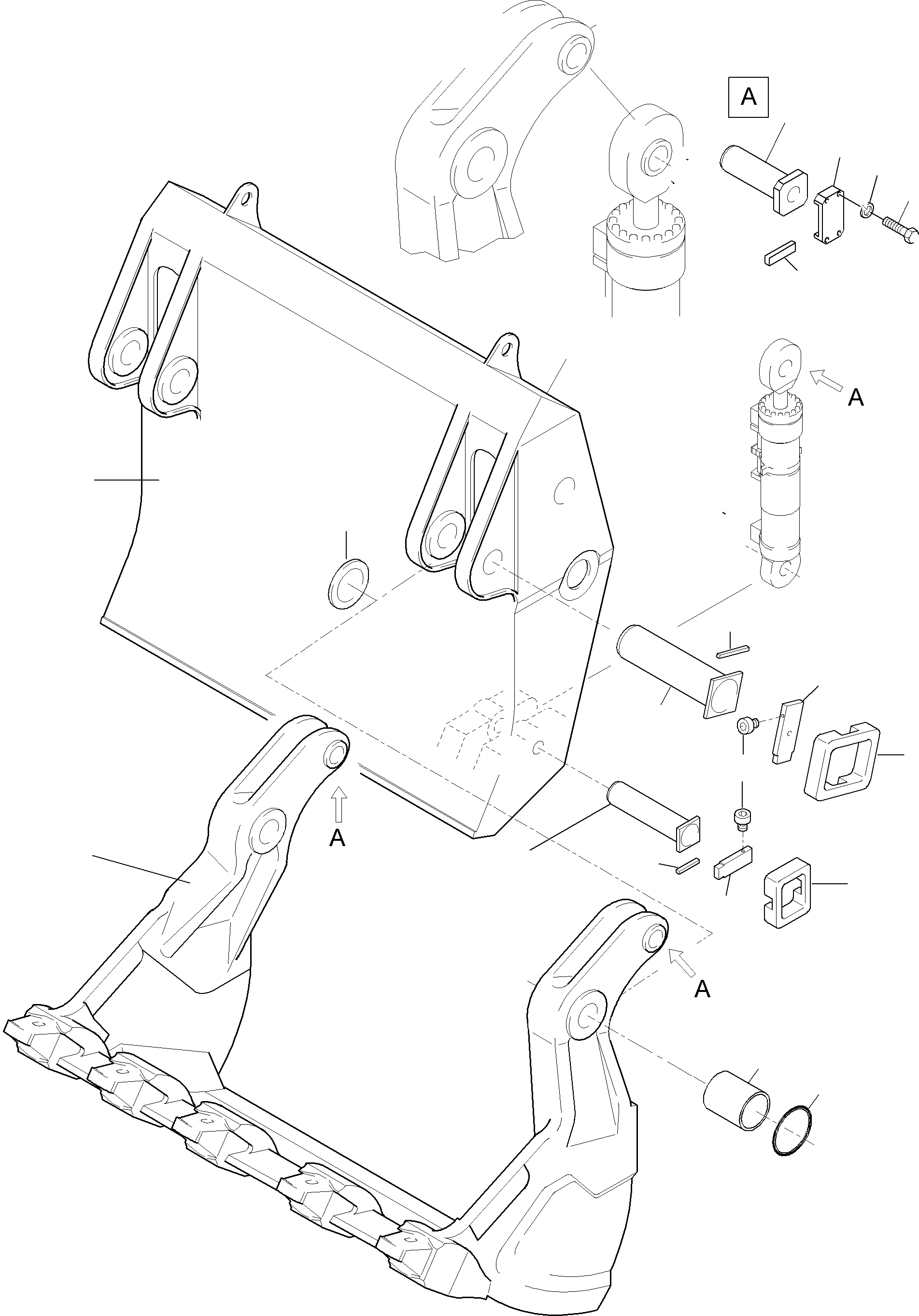

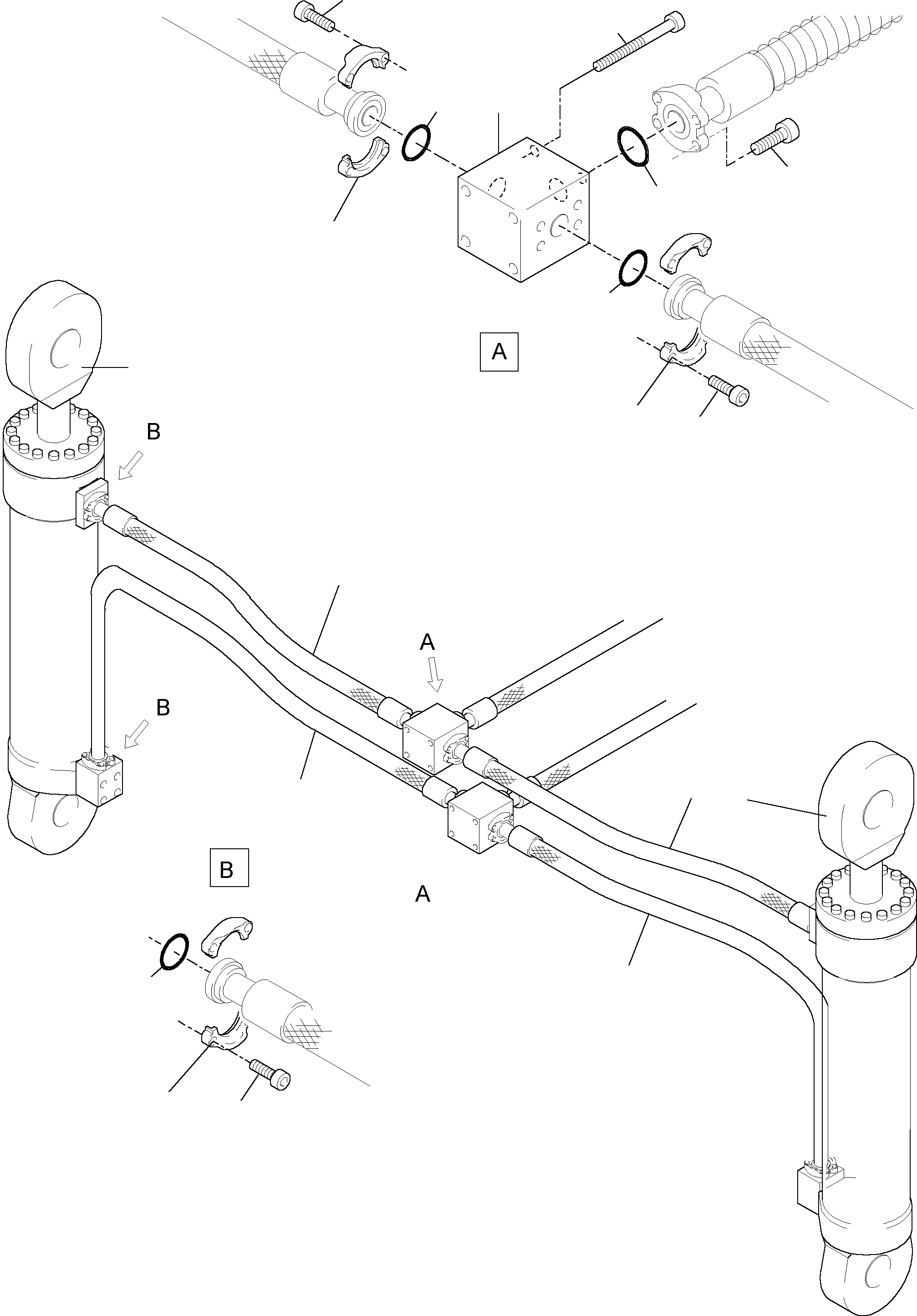

Diagram image 1 of 3

PC4000-6E S/N 08202

01 02 03 04 05 06 07 08 08 09 10 11 12 13 14 15 16 17 20 21 21 22 22 23 24 25 25 26 26 27 28 29 29 30 31 31 32 33 34 35 36 37 54 55 56 56 57 58 59 60 85 86

PC4000-6E S/N 08202

40 41 42 43 44 45 46 47 48 49 50 51 52 53 61 64 65 66 67 68 69 70 83 84 87

PC4000-6E S/N 08202

71 71 72 73 74 75 76 76 76 77 77 77 78 79 80 81 82 82 82

#	Part Number	Partname	Quantity	Options	Reference
01	928 190 40	Bullclam bucket 4000 wide w/o lip	1	InternKon: KO-900 700 40 / 1
02	896 240 40	Lip assy.	1	InternKon: 928 175 40 / 1
03	896 239 40	Lip	1	InternBDB: Esco S 110 \| InternKon: 896 240 40 / 1
04	654 547 40	Shroud	2	InternBDB: Esco TBC 160x570-1R \| InternKon: 900 761 40 / 2
05	654 548 40	Shroud	2	InternBDB: Esco TBC 160x570-1L \| InternKon: 900 761 40 / 1
06	900 753 40	Corner adapter	1	InternBDB: Esco PWL3-S110 \| InternKon: 896 240 40 / 2
07	900 754 40	Corner adapter l.h.	1	InternBDB: Esco PWR3-S110 \| InternKon: 896 240 40 / 3
08	655 891 40	Tooth adapter	3	InternBDB: Esco 5875-S110 \| InternKon: 896 240 40 / 4
09	655 894 40	Wear cap	3	InternBDB: Esco WC 95 \| InternKon: 902 971 40 / 6
10	896 729 40	Wear cap lock	-2	InternBDB: Esco S110 WC-L \| InternKon: 902 971 40 / 7
11	606 948 40	Posilock point	5	InternBDB: Esco H92KHA \| InternKon: 902 971 40 / 1
12	655 893 40	Pin	5	InternBDB: Esco S110 PN \| InternKon: 902 971 40 / 5
13	606 949 40	Pin	5	InternBDB: Esco PN 92K \| InternKon: 902 971 40 / 2
14	606 950 40	Lock	5	InternBDB: Esco H92KA \| InternKon: 902 971 40 / 3
15	655 892 40	Tooth adapter	5	InternBDB: Esco S110 H92K \| InternKon: 902 971 40 / 4
16	660 486 40	Key	4	InternBDB: Esco TBP \| InternKon: 900 761 40 / 4
17	660 485 40	Locking	4	InternBDB: Esco TBB \| InternKon: 900 761 40 / 3
20	900 744 40	Pin (Standard)	2	InternKon: 928 450 40 / 5
21	900 747 40	Freeze-in bushing	4	InternKon: 928 450 40 / 8
22	900 750 40	Axle stirrup	4	InternKon: 928 450 40 / 18
23	900 749 40	Catch	4	InternKon: 928 450 40 / 16
24	900 751 40	Cover	2	InternKon: 928 450 40 / 20
25	517 123 98	Lock washer	16	InternBDB: 16 WN 655 938 40 \| InternKon: 928 450 40 / 35
26	307 826 99	Bolt	16	InternBDB: M16 x 50 /933 Kaltzдh \| InternKon: 928 450 40 / 34
27	647 279 40	Cover	2	InternKon: 928 450 40 / 21
28	647 277 40	Catch	4	InternKon: 928 450 40 / 17
29	647 275 40	Axle stirrup	4	InternKon: 928 450 40 / 19
30	900 745 40	Pin (Standard)	2	InternKon: 928 450 40 / 6
31	900 748 40	Flanged bush	4	InternKon: 928 450 40 / 9
32	307 775 99	Bolt	6	InternBDB: M10x20 /933 \| InternKon: 928 450 40 / 38
33	517 122 98	Lock washer	6	InternBDB: 10 WN 655 938 40 \| InternKon: 928 450 40 / 39
34	928 449 40	Cover	2	InternKon: 928 450 40 / 40
35	334 600 99	Nut	8	InternBDB: M 12 /985 \| InternKon: 928 450 40 / 41
36	510 213 98	Thread pin	8	InternBDB: PM 12x30 /32500 \| InternKon: 928 450 40 / 42
37	517 118 98	Lock washer	8	InternBDB: 12 WN 655 938 40 \| InternKon: 928 450 40 / 43
40	793 310 73	Bullclam bucket wall	1	InternBDB: E-ST
41		Bullclam bucket wall	1	InternBDB: 928 400 40 \| InternKon: 928 450 40 / 1
42	793 311 73	Bucket clam	1
43		Bucket clam	1	InternBDB: 928 155 40 \| InternKon: 928 180 40 / 1
44	928 448 40	Washer	2	InternKon: 928 450 40 / 7
45	927 367 40	Bushing	2	InternKon: 928 180 40 / 3
46	935 516 40	Cover	2	InternKon: 928 180 40 / 4
47	935 515 40	Catch	4	InternKon: 928 180 40 / 5
48	307 824 99	Bolt	8	InternBDB: M16x40 /933 \| InternKon: 928 180 40 / 6
49	935 514 40	Pin with plate (Standard)	2	InternKon: 928 180 40 / 2
50	900 740 40	Pin with plate (Standard)	2	InternKon: 928 450 40 / 3
51	900 742 40	Pin with plate (Standard)	2	InternKon: 928 450 40 / 4
52	517 123 98	Lock washer	8	InternBDB: 16 WN 655 938 40 \| InternKon: 928 180 40 / 7
53	896 665 40	Plug, tapered	4	InternBDB: B 2312 GPN 600 \| InternKon: 928 450 40 / 36
54	925 573 40	Cover	-2	InternKon: 928 450 40 / 37
55	928 451 40	Plate	2	InternKon: 928 190 40 / 3
56	919 348 40	Strip	4	InternKon: 928 190 40 / 4
57	928 452 40	Strip	2	InternKon: 928 190 40 / 5
58	928 453 40	Protection rubber	2	InternKon: 928 190 40 / 6
59	511 263 98	Thread pin	20	InternBDB: PM 10x25 /32500 \| InternKon: 928 190 40 / 7
60	507 037 98	Nut	20	InternBDB: M 10 /985 \| InternKon: 928 190 40 / 8
61	907 019 40	Pin seal ring	4	InternKon: 928 180 40 / 8
64	643 160 40	Protective frame	2	InternKon: 928 450 40 / 10
65	577 368 40	Protective frame	2	InternKon: 928 450 40 / 11
66	643 161 40	Catch	2	InternKon: 928 450 40 / 14
67	577 369 40	Catch	2	InternKon: 928 450 40 / 15
68	643 183 40	Catch	4	InternKon: 928 450 40 / 12
69	506 179 40	Catch	4	InternKon: 928 450 40 / 13
70	320 374 99	Bolt	4	InternBDB: M16x20 /6912 \| InternKon: 928 450 40 / 33
71		Cylinder with piping	2	InternBDB: 897 714 40 \| InternKon: 928 450 40 / 2	355-5036a
72	366 010 40	Manifold	2	InternKon: 928 450 40 / 22
73	504 503 98	Bolt	8	InternBDB: M14x120 /912 \| InternKon: 928 450 40 / 32
74	356 209 40	Flange seal	2	InternBDB: 1 1/2 NBR 90 \| InternKon: 928 450 40 / 30
75	319 288 99	Bolt	8	InternBDB: M16x50 /912 10.9 \| InternKon: 928 450 40 / 31
76	356 210 40	Flange seal	8	InternBDB: 1 1/4 NBR 90 \| InternKon: 928 450 40 / 28
77	319 209 99	Bolt	32	InternBDB: M14x45 /912 10.9 \| InternKon: 928 450 40 / 29
78	515 682 98	Hose assy. DN 32x1400 mm	1	InternBDB: FS 1 1/4 FS 1 1/4-45 \| InternKon: 928 450 40 / 23
79	515 683 98	Hose assy. DN 32x1560 mm	1	InternBDB: FS 1 1/4 FS 1 1/4-45 \| InternKon: 928 450 40 / 24
80	516 197 98	Hose assy. DN 32x2200 mm	1	InternBDB: FS 1 1/4 FS 1 1/4 \| InternKon: 928 450 40 / 25
81	512 977 98	Hose assy. DN 32x2050 mm	1	InternBDB: FS 1 1/4 FS 1 1/4 \| InternKon: 928 450 40 / 26
82	006 638 98	Half flange	16	InternBDB: 32 /420 \| InternKon: 928 450 40 / 27
83	913 607 40	Pin with plate (Cold weather design)	2	InternKon: 913 609 40 / 3
84	913 610 40	Pin with plate (Cold weather design)	2	InternKon: 913 609 40 / 4
85	913 612 40	Pin (Cold weather design)	2	InternKon: 913 609 40 / 5
86	913 613 40	Pin (Cold weather design)	2	InternKon: 913 609 40 / 6
87	913 605 40	Pin with plate (Cold weather design)	2	InternKon: 913 604 40 / 2

Komatsu PC4000-6E S/N 08202 parts catalog PDF

BULLCLAM BUCKET 22,0 CBM (355-5005a) in PC4000-6E S/N 08202. Diagram image and parts list.
