PC4000-6E S/N 08202

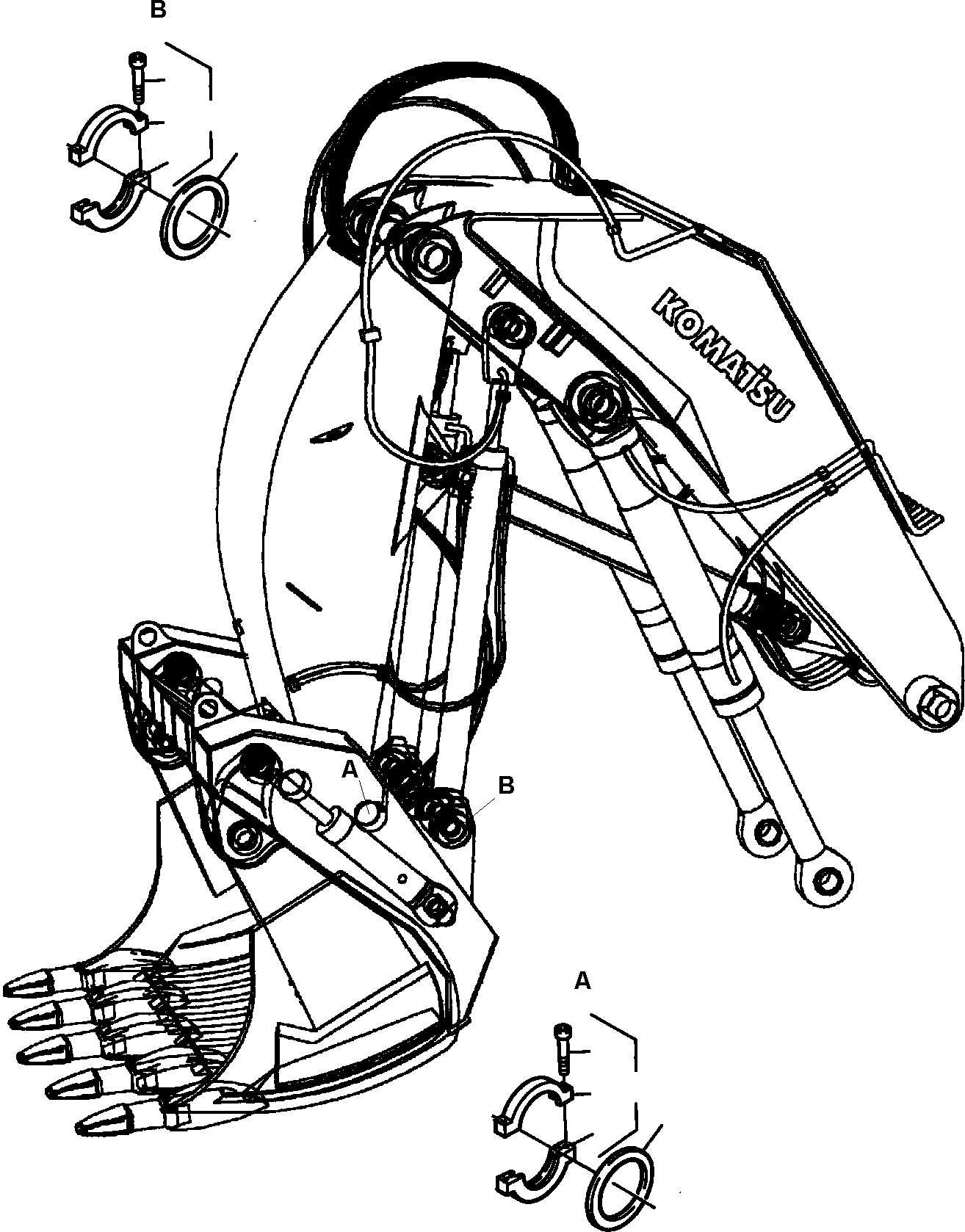

Komatsu parts book diagram for PC4000-6E S/N 08202: PIN SEALING BULLCLAM BUCKET

01 02 03 04 21 22 23 24 25 26

	#	Part Number	Partname	Quantity	Options	Reference
	01	890 909 40	Seal fixing assy. incl. fig-nos. 21-23	4	InternKon: 928 504 40 / 1
	02	655 733 40	Seal	4	InternKon: 928 504 40 / 2
	03	620 923 40	Seal fixing assy. incl. fig-nos. 24-26	4	InternKon: 928 504 40 / 3
	04	247 091 40	Seal	4	InternKon: 928 504 40 / 4
	21		Ring half, upper These parts are not sold separately	1	InternBDB: 890 910 40 \| InternKon: 890 909 40 / 1
	22		Ring half, lower These parts are not sold separately	1	InternBDB: 890 911 40 \| InternKon: 890 909 40 / 2
	23	509 170 98	Bolt	2	InternBDB: M16x90 /912 \| InternKon: 890 909 40 / 3
	24		Ring half, upper These parts are not sold separately	1	InternBDB: 620 924 40 \| InternKon: 620 923 40 / 1
	25		Ring half, lower These parts are not sold separately	1	InternBDB: 620 925 40 \| InternKon: 620 923 40 / 2
	26	500 987 98	Bolt	2	InternBDB: M16x90 /912 \| InternKon: 620 923 40 / 3

Komatsu PC4000-6E S/N 08202 parts catalog PDF

PIN SEALING BULLCLAM BUCKET (355-4611a) in PC4000-6E S/N 08202. Diagram image and parts list.
