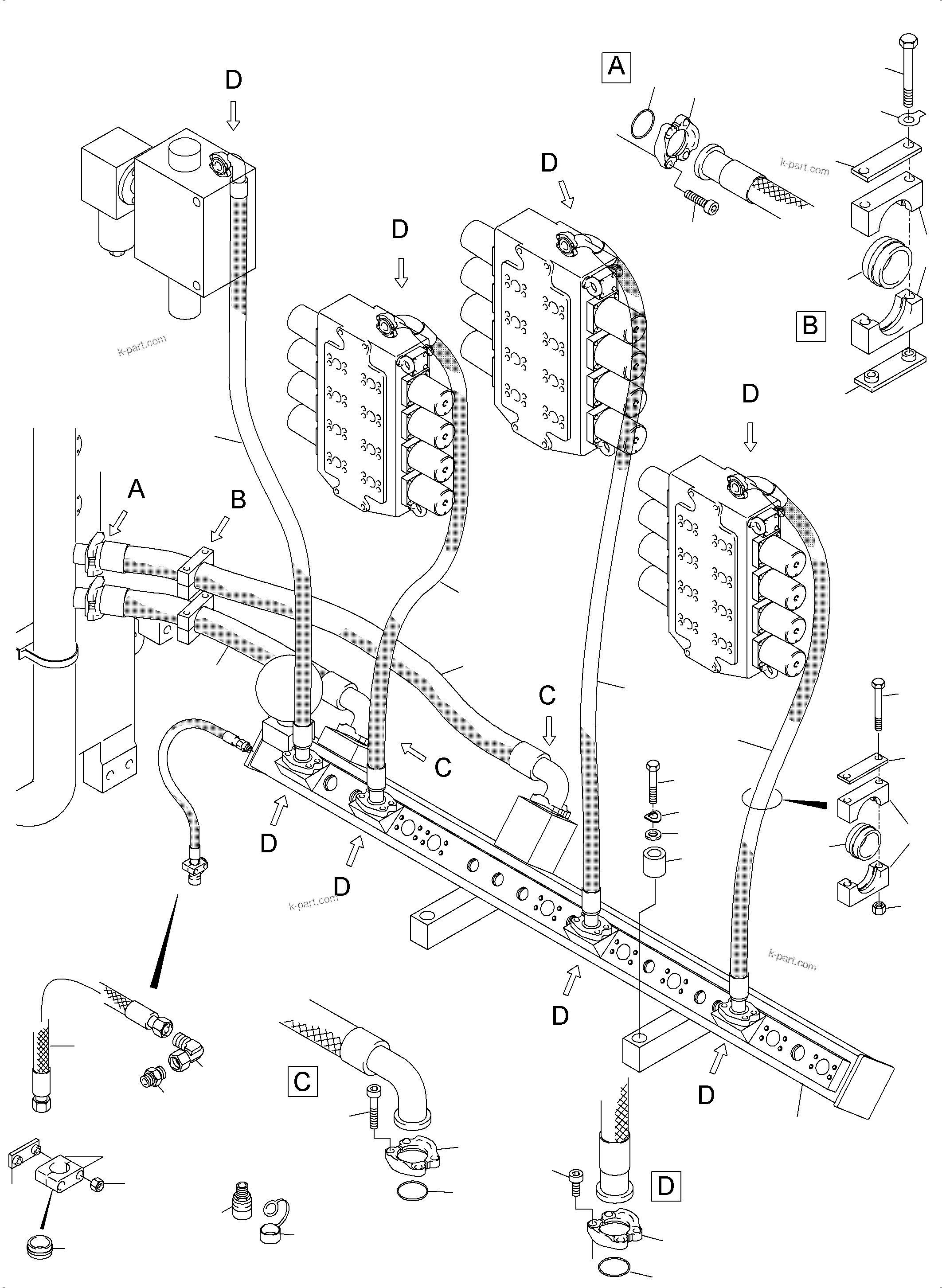

RETURN LINES, CONTROLBLOCKS | PC5500-6 S/N 15056

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC5500-6 S/N 15056

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	518 030 98	Hose assy. DN 50 x 2400	1	InternBDB: 090 FL 2 / FL 2 \| InternKon: 933 920 40 / 44
?	517 945 98	Hose assy. DN 50 x 1550	2	InternBDB: 090 FL 2 / FL 2 \| InternKon: 933 920 40 / 45
?	517 946 98	Hose assy. DN 50 x 2420	1	InternBDB: 090 FL 2 / FL 2 \| InternKon: 933 920 40 / 46
?	385 243 40	Flange seal	8	InternBDB: 2 NBR 90 \| InternKon: 933 920 40 / 29
?	006 635 98	Half flange	16	InternBDB: 50 /210 \| InternKon: 933 920 40 / 31
?	319 272 99	Bolt	32	InternBDB: M12x30 / 912/ 10.9 \| InternKon: 933 920 40 / 32
?	933 930 40	Header	1	InternKon: 933 920 40 / 3
?	517 706 98	Hose assy. DN 75 x 1360	1	InternBDB: SHL 35 / FL 3 / FL 3 - 90 / Interhydraulik \| InternKon: 913 585 40 / 27
?	932 912 40	Hose assy. DN 75 x 2120	1	InternBDB: SHL 35 / FL 3 / FL 3 - 90 / Interhydraulik \| InternKon: 913 585 40 / 28
?	501 543 98	O-ring	4	InternBDB: 85,32x3,53 B NB 80 \| InternKon: 913 585 40 / 101
?	501 542 98	Half flange	8	InternBDB: 75 /210 \| InternKon: 913 585 40 / 102
?	307 824 99	Bolt	16	InternBDB: M16x40 / 933 / 8.8 \| InternKon: 913 585 40 / 103
?	509 064 98	Clamp set	10	InternBDB: S-5-E \| InternKon: 933 962 40 / 1
?	500 398 98	Plate	10	InternBDB: S-DP-A-5 \| InternKon: 933 962 40 / 2
?	505 212 98	Insert	8	InternBDB: S-5-68 / 3015 \| InternKon: 933 962 40 / 3
?	334 601 99	Nut	16	InternBDB: M16 /985 \| InternKon: 933 962 40 / 4
?	308 643 99	Bolt	16	InternBDB: M16x160 / 931 / 8.8 \| InternKon: 933 962 40 / 17
?	374 409 99	Socket	1	InternBDB: L22 E-M / 3901 \| InternKon: 933 961 40 / 49
?	516 160 98	Socket	1	InternBDB: L22 / 3942 \| InternKon: 933 961 40 / 50
?	513 867 98	Hose assy. DN 20x1800	1	InternBDB: 120 DOL 22 / DOL 22 \| InternKon: 933 961 40 / 51
?	081 495 40	Quick disconnect coupling	1	InternBDB: 61-6511-620-022 \| InternKon: 933 961 40 / 52
?	081 496 40	Protection cap	1	InternBDB: 63-6591-620-051 \| InternKon: 933 961 40 / 53
?	308 887 99	Bolt	4	InternBDB: M 20x160 / 931 / 10.9 \| InternKon: 930 156 40 / 29
?	515 713 98	Lock washer	4	InternBDB: A 71G / 2093 \| InternKon: 930 156 40 / 30
?	340 618 99	Washer	4	InternBDB: 36 / 1440 \| InternKon: 930 156 40 / 31
?	899 929 40	Resilient sleeve	4	InternKon: 930 156 40 / 32
?	507 037 98	Nut	4	InternBDB: M10 \| InternKon: 933 962 40 / 5
?	534 004 99	Cover plate	2	InternBDB: S-DP-A-3 /3015 \| InternKon: 933 962 40 / 7
?	502 618 98	Clamp set	2	InternBDB: S-3-E /3015 \| InternKon: 933 962 40 / 6
?	504 926 98	Insert	2	InternBDB: S-3-32 \| InternKon: 933 962 40 / 8
?	504 854 98	Insert	2	InternBDB: S-5-72
?	500 399 98	Weld on plate	2	InternBDB: S-AP-A-5 \| InternKon: 914 978 40 / 5
?	308 641 99	Bolt	4	InternBDB: M16x130 / 931 \| InternKon: 914 978 40 / 7
?	343 008 99	Washer	4	InternBDB: 17/93 \| InternKon: 914 978 40 / 8
