PC5500-6 S/N 15056

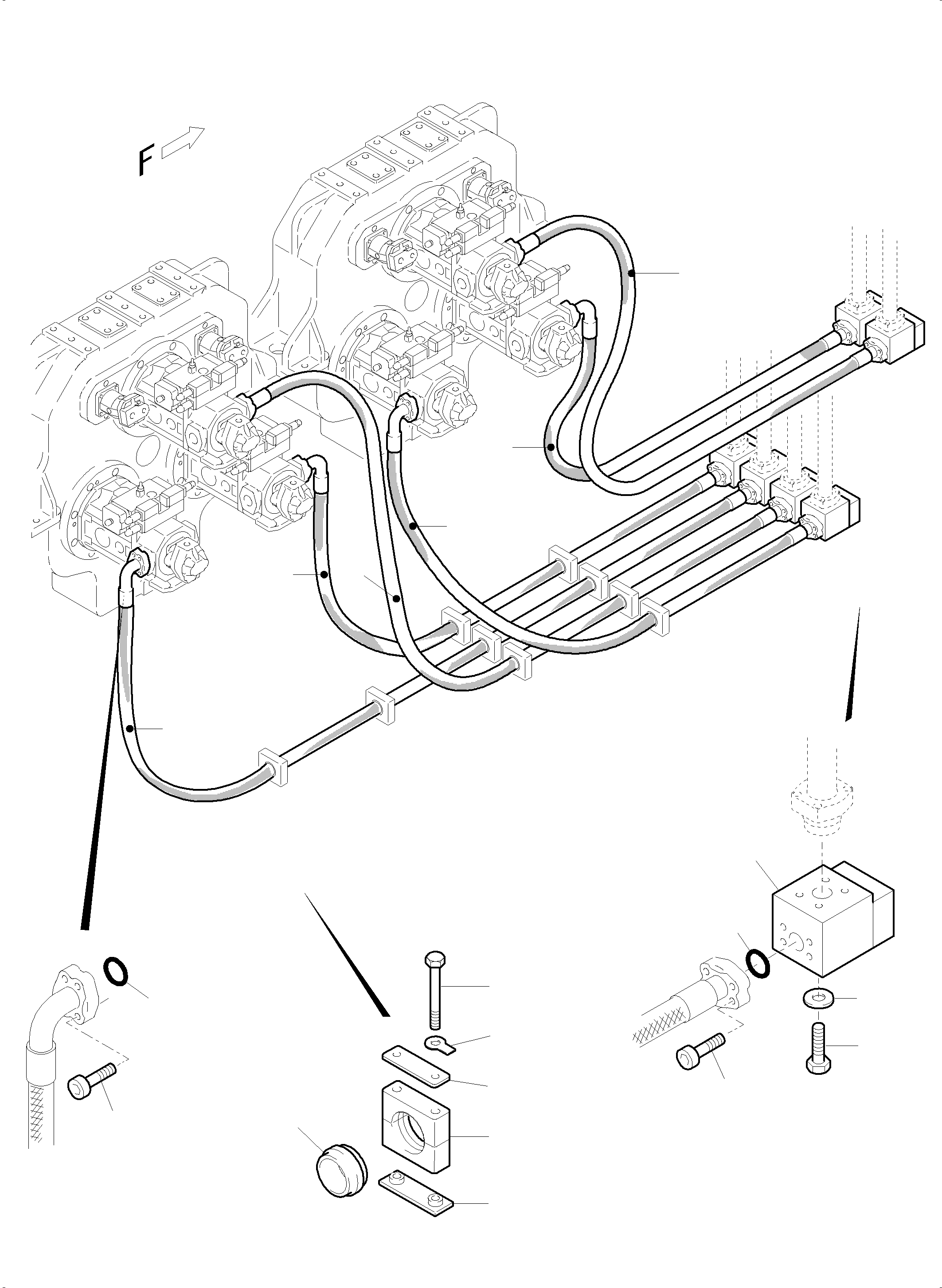

Komatsu parts book diagram for PC5500-6 S/N 15056: PRESSURE LINES, MAIN PUMPS - NON RETURN VALVES

01 02 03 04 05 06 07 08 09 10 11 11 12 12 15 16 17 18 19 20

	#	Part Number	Partname	Quantity	Options	Reference
	01		Non-return valve	6	InternBDB: 902 510 40 \| InternKon: 933 961 40 / 2	114-1821b
	02	940 402 40	Hose assy. DN 50 x 4820	1	InternBDB: FS 2 / FS 2 - 90 \| InternKon: 933 946 40 / 1
	03	940 336 40	Hose assy. DN 50 x 4350	1	InternBDB: FS 2 / FS 2 \| InternKon: 933 946 40 / 2
	04	940 391 40	Hose assy. DN 50 x 3550	1	InternBDB: FS 2 / FS 2 - 90 \| InternKon: 933 946 40 / 3
	05	940 381 40	Hose assy. DN 50 x 2750	1	InternBDB: FS 2 / FS 2 - 90 \| InternKon: 933 946 40 / 4
	06	940 322 40	Hose assy. DN 50 x 2500	1	InternBDB: FS 2 / FS 2 \| InternKon: 933 946 40 / 5
	07	940 360 40	Hose assy. DN 50 x 1500	1	InternBDB: FS 2 / FS 2 - 90 \| InternKon: 933 946 40 / 6
	08	316 212 99	Washer	12	InternBDB: 21 /6916 \| InternKon: 933 961 40 / 32
	09	500 333 98	Bolt (50 mm lg.)	4	InternBDB: M20x50 /933 10.9 \| InternKon: 933 961 40 / 31
	10	504 663 98	Bolt (140 mm lg.)	8	InternBDB: M20x140 /933 10.9 \| InternKon: 933 961 40 / 30
	11	319 305 99	Bolt	24	InternBDB: M20x60 /912 10.9 \| InternKon: 933 946 40 / 26
	12	385 243 40	Flange seal	6	InternBDB: 2 NBR 90 \| InternKon: 933 946 40 / 25
	15	500 399 98	Weldonplate	10	InternBDB: S-AP-A5 \| InternKon: 914 974 40 / 4
	16	509 064 98	Clamp set	10	InternBDB: S-5-E \| InternKon: 914 974 40 / 1
	17	500 398 98	Plate	10	InternBDB: S-DP-A-5 \| InternKon: 914 974 40 / 3
	18	343 008 99	Washer	40	InternBDB: 17 /93 \| InternKon: 914 974 40 / 6
	19	308 641 99	Bolt	40	InternBDB: M16x130 /931 8.8 \| InternKon: 914 974 40 / 5
	20	504 854 98	Insert	10	InternBDB: S-5-72 \| InternKon: 914 974 40 / 2

Komatsu PC5500-6 S/N 15056 parts catalog PDF

PRESSURE LINES, MAIN PUMPS - NON RETURN VALVES (515-1820d) in PC5500-6 S/N 15056. Diagram image and parts list.
