PC5500-6 S/N 15056

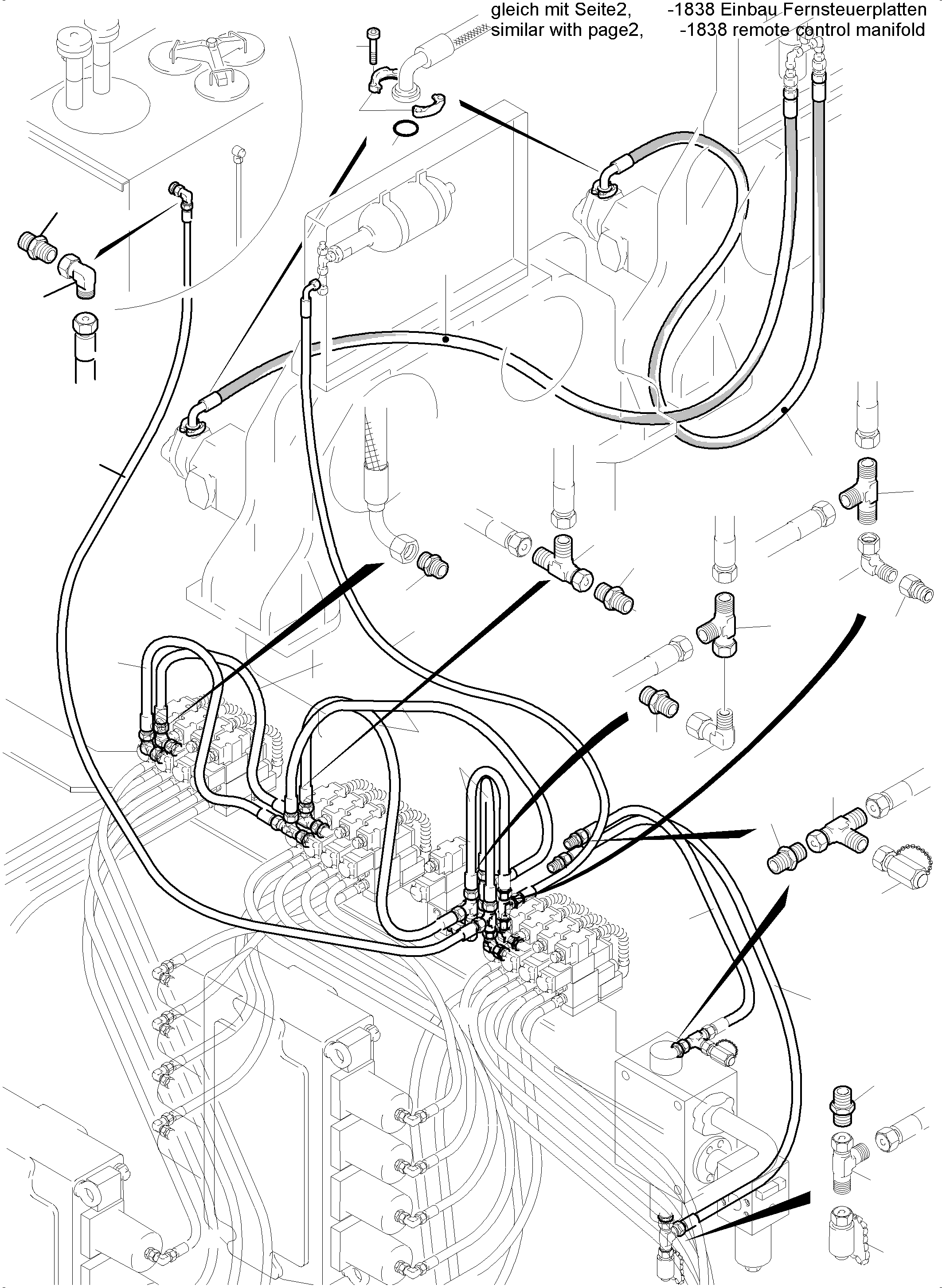

Komatsu parts book diagram for PC5500-6 S/N 15056: PILOT OIL LINES

01 01 01 01 01 02 02 03 03 03 03 04 05 05 05 07 10 11 11 11 12 13 20 21 22 23 24 30 31 34 35 35 515 515

	#	Part Number	Partname	Quantity	Options	Reference
	01	371 459 99	Socket	6	InternBDB: SDS-L 12 G 3/8A Type E /ISO 8434 \| InternKon: 934 286 40 / 42
	02	516 157 98	Socket	4	InternBDB: L12 / 3942 \| InternKon: 934 286 40 / 43
	03	516 174 98	Socket	4	InternBDB: L 12 / 3944 \| InternKon: 934 286 40 / 44
	04	516 184 98	Socket	2	InternBDB: L 12-G / 3945 \| InternKon: 934 286 40 / 45
	05	643 872 40	Hose assy. DN 10x 850	4	InternBDB: 240 DOL 12 /DOL 12-90 \| InternKon: 934 286 40 / 53
	07	514 491 98	Hose assy. DN 10x500	2	InternBDB: 240 DOL 12 /DOL 12-90 \| InternKon: 934 286 40 / 55
	10	514 734 98	Hose assy. DN 12 x 9600	1	InternBDB: 240 / DOL 15 / DOL 15 - 90 \| InternKon: 913 585 40 / 12
	11	513 839 98	Hose assy. DN 12 x 7000	1	InternBDB: 240 DOL 15 / DOL 15 - 90 \| InternKon: 913 585 40 / 39
	12	516 158 98	Socket	1	InternBDB: L 15 / 3942 \| InternKon: 913 585 40 / 64
	13	374 407 99	Socket	1	InternBDB: L 15 E-M / 3901 \| InternKon: 913 585 40 / 65
	20	513 829 98	Hose assy. DN 25 x 5100	1	InternBDB: 120 DOL 28 / FL 1 1/4 - 90 \| InternKon: 933 976 40 / 9
	21	515 658 40	Half flange	4	InternBDB: 32 /210 \| InternKon: 933 976 40 / 30
	22	319 272 99	Bolt	8	InternBDB: M12x30 /912 10.9 \| InternKon: 933 976 40 / 32
	23	356 210 40	Quadring	2	InternKon: 933 976 40 / 31
	24	513 830 98	Hose assy. DN 25 x 4600	1	InternBDB: 120 DOL 28 / FL 1 1/4 - 90 \| InternKon: 933 976 40 / 10
	30	512 332 98	Hose assy. DN 10x1150	1	InternBDB: 240 / DOL 12 / DOL 12 - 90 \| InternKon: 934 286 40 / 63
	31	515 556 98	Hose assy. DN 10x900	1	InternBDB: 240 / DOL 12 / DOL 12 \| InternKon: 934 286 40 / 64
	34	906 798 40	Union	2	InternBDB: TR 12/15/12PL/OMD \| InternKon: 934 286 40 / 46
	35	502 752 98	Test Socket	2	InternBDB: 12 L \| InternKon: 934 286 40 / 80

Komatsu PC5500-6 S/N 15056 parts catalog PDF

PILOT OIL LINES (515-1839f) in PC5500-6 S/N 15056. Diagram image and parts list.
