PC5500-6 S/N 15056

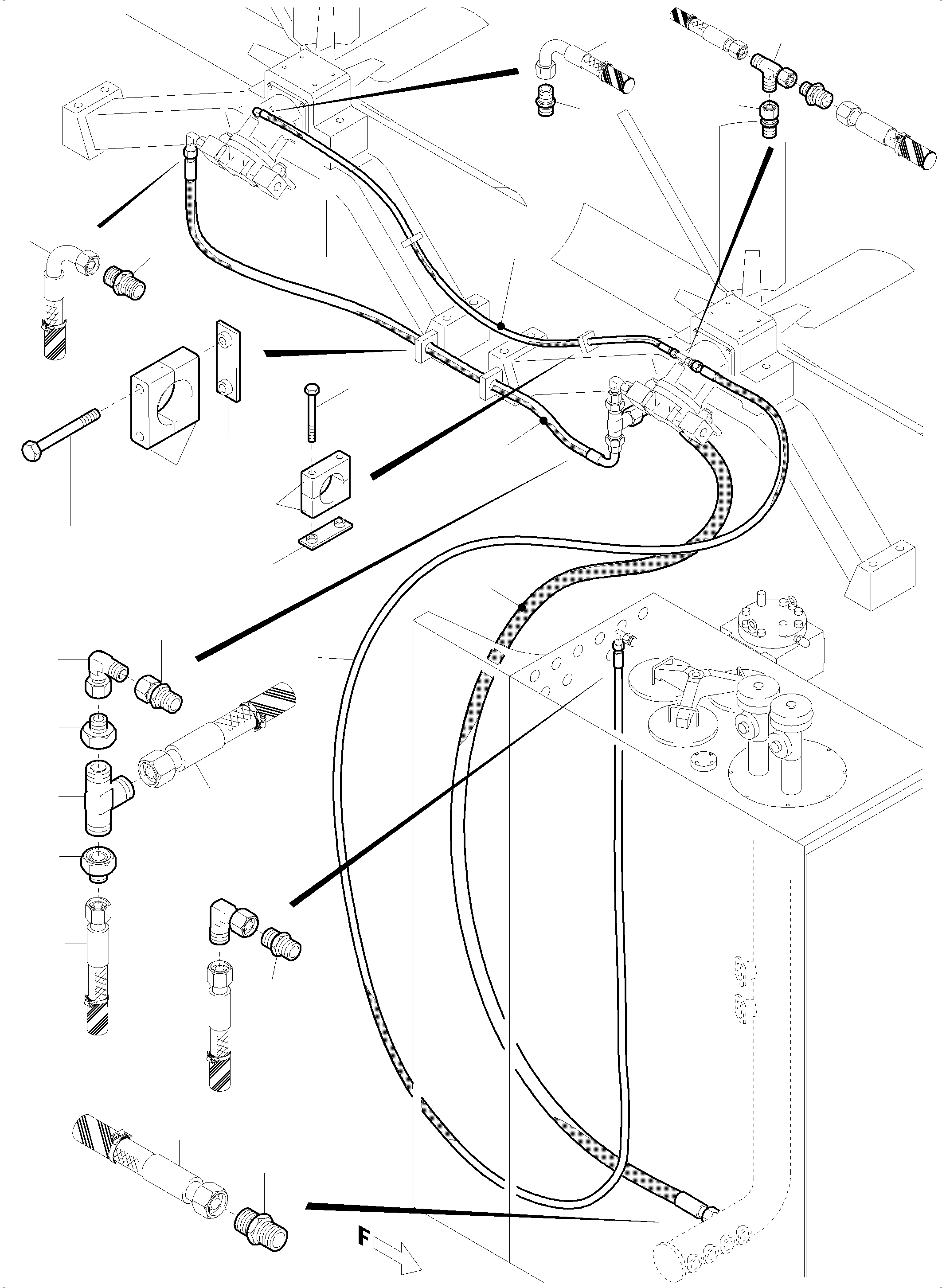

Komatsu parts book diagram for PC5500-6 S/N 15056: RETURN LINES - FAN MOTORS

01 01 02 02 02 03 03 04 04 04 05 06 07 08 09 10 11 12 13 14 14 15 20 20 22 23 23 27

	#	Part Number	Partname	Quantity	Options	Reference
	01	518 204 98	Hose assy., with fire protection coating, DN 12 x 2200	1	InternBDB: DOL 15 / DOL 15 - 90 \| InternKon: 933 976 40 / 21
	02	513 840 98	Hose assy., with fire protection coating, DN 25 x 2300	1	InternBDB: DOL 28 / Dol 28 - 90 \| InternKon: 933 976 40 / 20
	03	518 203 98	Hose assy., with fire protection coating, DN 20 x 8200	1	InternBDB: DOL 22 / DOL 22 \| InternKon: 913 585 40 / 14
	04	513 841 98	Hose assy., with fire protection coating, DN 40 x 6400	1	InternBDB: DOL 42 / DOL 42 - 90 \| InternKon: 913 585 40 / 13
	05	374 407 99	Socket	1	InternBDB: L15B-M / 3901 \| InternKon: 933 976 40 / 38
	06	516 186 98	Socket	1	InternBDB: L 15-M / 3945 \| InternKon: 933 976 40 / 39
	07	634 496 40	Union	1	InternBDB: TR 15/22/15-PL \| InternKon: 933 976 40 / 40
	08	374 409 99	Union	1	InternBDB: L22 E_M / 3901 \| InternKon: 913 585 40 / 57
	09	516 281 98	Union	1	InternBDB: L 22 / 3901 \| InternKon: 913 585 40 / 59
	10	374 415 99	Socket	1	InternBDB: L 42 3901 \| InternKon: 913 585 40 / 67
	11	374 431 99	Socket	1	InternBDB: L 28 \| InternKon: 933 976 40 / 33
	12	372 176 99	Union	1	InternBDB: DDL 28
	13	513 153 98	Union	1	InternBDB: L 42 / 3908 \| InternKon: 933 976 40 / 43
	14	634 306 40	Socket	2	InternBDB: RED 42/28-PL/ OMD / Ermeto \| InternKon: 933 976 40 / 42
	15	516 189 98	Socket	1	InternBDB: L 28 -M/3945 \| InternKon: 933 976 40 / 41
	20	319 133 99	Bolt	16	InternBDB: M6x30 8.8 / 912 \| InternKon: 913 585 40 / 97
	22	509 057 98	Clamp set	4	InternBDB: L-3-G 20 / 3015 \| InternKon: 913 585 40 / 92
	23	533 992 99	Weld on plate	8	InternBDB: L -AP-K-3 W1 / 3105 \| InternKon: 913 585 40 / 93
	27	509 058 98	Clamp set	4	InternBDB: L-3-G-23 / 3015 \| InternKon: 913 585 40 / 91

Komatsu PC5500-6 S/N 15056 parts catalog PDF

RETURN LINES - FAN MOTORS (515-1819e) in PC5500-6 S/N 15056. Diagram image and parts list.
