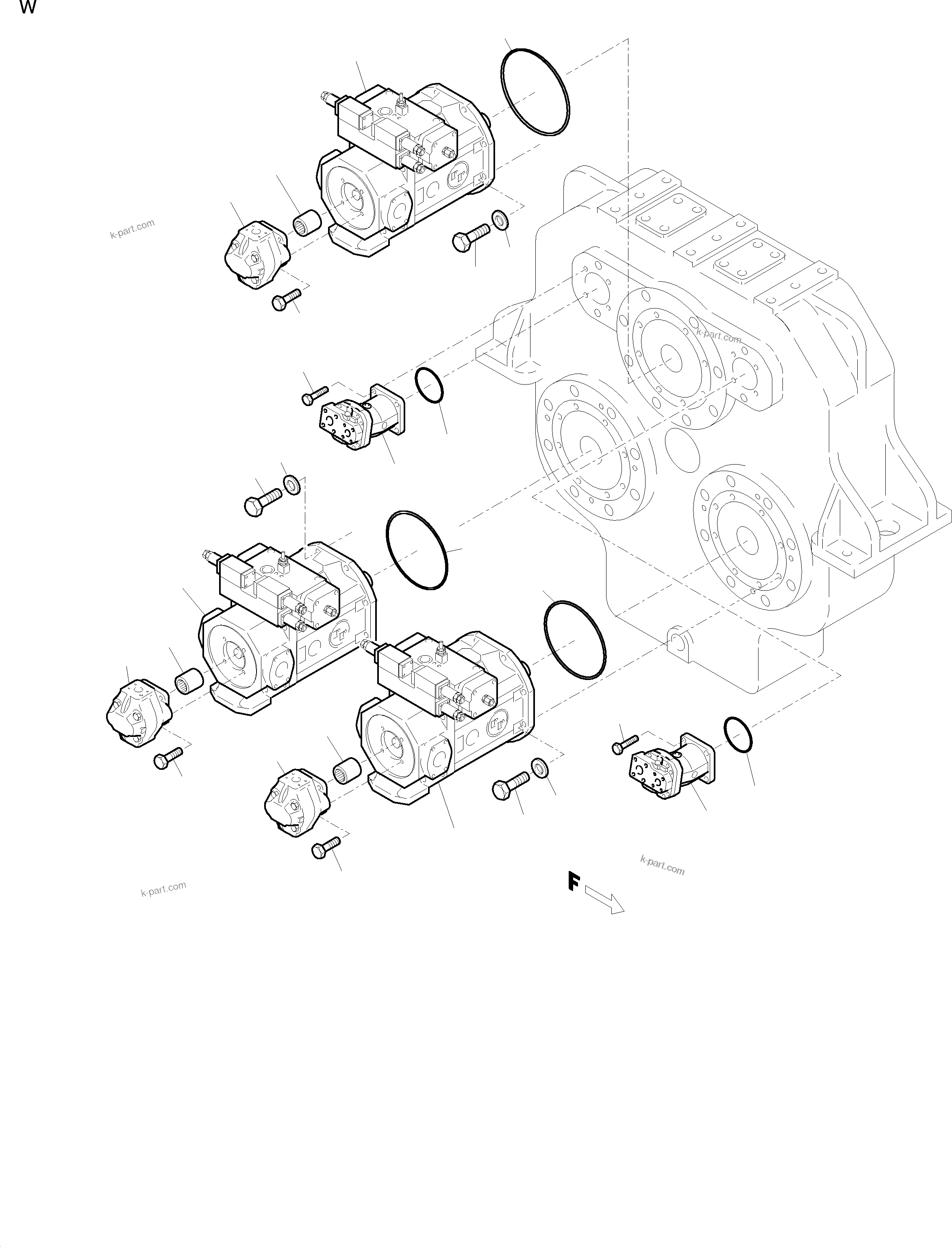

Komatsu parts book diagram for H455S S/N 15005: PUMP MOUNTING (FRONT/REAR)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?		Main pumps	6	InternBDB: 634 628 40 \| InternKon: 872 252 40 / 1	090-3212
	?	634 121 40	Circulation pump	2	InternBDB: Hamworthy PA-2208/-C3 B26 A \| InternKon: 872 252 40 / 2
	?	634 121 40	Gear oil pump	2	InternBDB: Hamworthy PA-2208/-C3 B26 A \| InternKon: 872 252 40 / 2
	?	634 121 40	Pilot pump	2	InternBDB: Hamworthy PA-2208/-C3 B26 A \| InternKon: 872 252 40 / 2
	?		Fan pump ( water )	1	InternBDB: 461 516 40 \| InternKon: 872 252 40 / 4	090-0549
	?		Fan pump ( oil )	1	InternBDB: 461 516 40 \| InternKon: 872 252 40 / 4	090-0549
	?	307 804 99	Bolt	24	InternBDB: M12 x 30 / 933 \| InternKon: 872 252 40 / 12
	?	307 806 99	Bolt	16	InternBDB: M12 x 40 / 933 \| InternKon: 872 252 40 / 13
	?	500 152 98	O-ring	6	InternBDB: 315 x 5 / 3771 83 FPM
	?	958 230	O-ring	4	InternBDB: 140 x 3
	?	621 666 40	Splined hub	6	InternBDB: Brьninghaus A4VS 500 1 1/4" SO \| InternKon: 872 252 40 / 3
	?	307 848 99	Bolt	48	InternBDB: M20 x 65 / 933 8.8 \| InternKon: 872 252 40 / 10
	?	340 470 99	Washer	48	InternBDB: B 21 / 125 \| InternKon: 872 252 40 / 11

Komatsu H455S S/N 15005 parts catalog PDF

PUMP MOUNTING (FRONT/REAR) (515-1230) in H455S S/N 15005. Diagram image and parts list.
