H455S S/N 15005

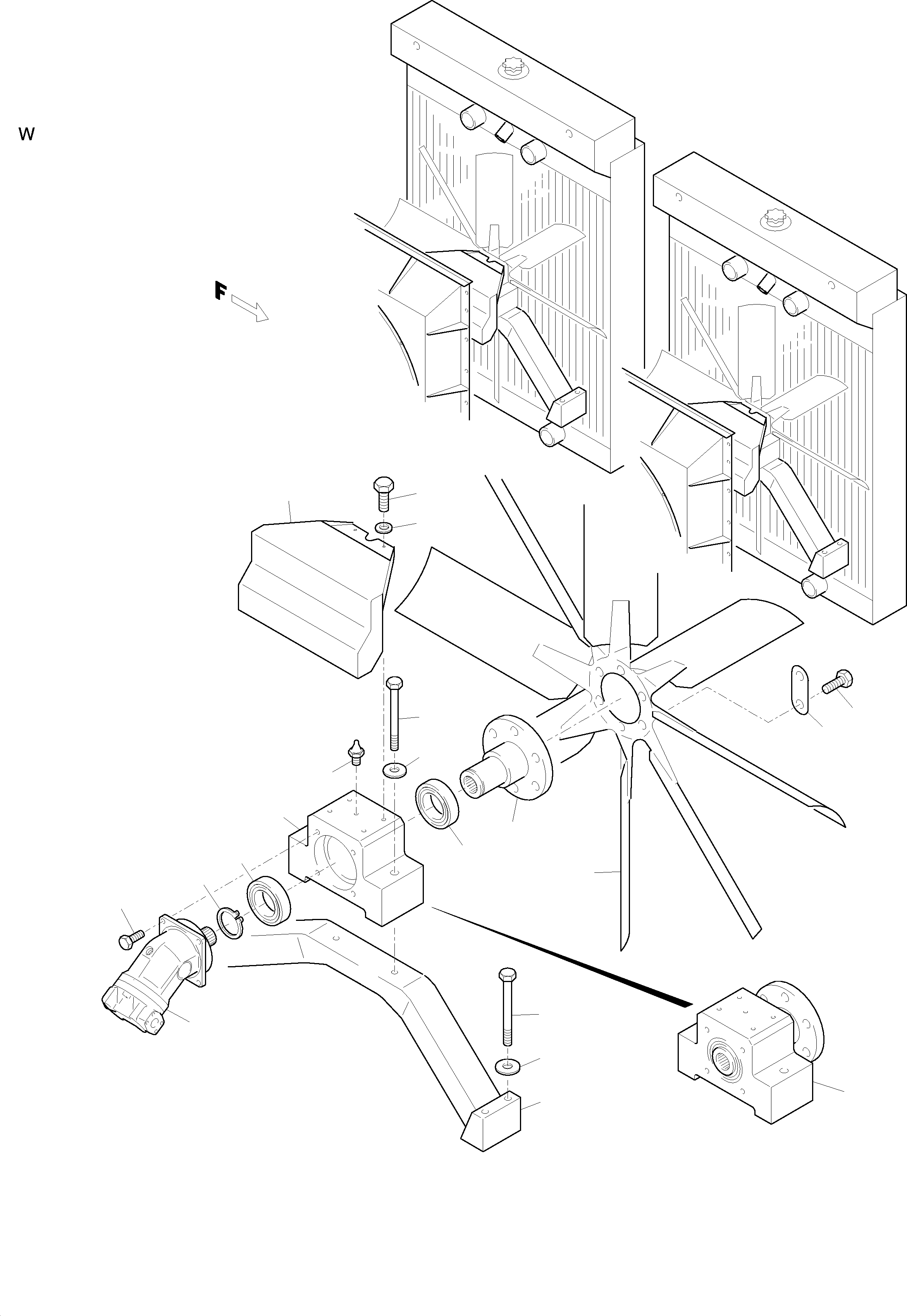

Komatsu parts book diagram for H455S S/N 15005: RADIATOR - FAN DRIVE (FRONT/REAR)

01 05 07 09 10 12 13 14 14 15 16 17 18 19 20 21 22 22 23 24

	#	Part Number	Partname	Quantity	Options	Reference
	01		Hydr.- motor	2	InternBDB: 635 308 40 \| InternKon: 650 363 40 / 3	991-0044
	05	646 156 40	Guard plate	2	InternKon: 650 367 40 / 8
	07	307 773 99	Bolt	4	InternBDB: M10 x 16 /933 \| InternKon: 650 367 40 / 26
	09	343 005 99	Washer	4	InternBDB: 10,5 / 93 \| InternKon: 650 367 40 / 33
	10	650 359 40	Fan crosshead	2	InternKon: 650 363 40 / 1
	12	635 242 40	Fan	2	InternBDB: Truflo 52" 11/41877 \| InternKon: 650 363 40 / 4
	13	308 337 99	Bolt	8	InternBDB: M24 x 180 / 931 \| InternKon: 650 363 40 / 5
	14	316 213 99	Washer	12	InternBDB: 25/6916 \| InternKon: 650 363 40 / 6
	15	308 402 99	Bolt	4	InternBDB: M24 x 70 / 931 \| InternKon: 650 363 40 / 7
	16	307 825 99	Bolt	8	InternBDB: M16 x 45 / 933 \| InternKon: 650 363 40 / 8
	17	307 600 99	Bolt	12	InternBDB: M12 x 40 / 933 \| InternKon: 650 363 40 / 9
	18	409 978 40	Locking plate	6	InternKon: 650 363 40 / 10
	19	650 364 40	Fan mount assy.	2	InternKon: 650 363 40 / 2
	20	650 365 40	Fan mount	2	InternKon: 650 364 40 / 1
	21	342 562 99	Circlip	2	InternBDB: 75 x 2,5 / 471 \| InternKon: 650 364 40 / 3
	22	512 363 98	Roller bearing	4	InternBDB: 6215 RS / 625 \| InternKon: 650 364 40 / 4
	23	350 564 99	Grease nipple	2	InternBDB: BM 10 x 1 / 71412 \| InternKon: 650 364 40 / 5
	24	606 672 40	Shaft	2	InternKon: 650 364 40 / 2

Komatsu H455S S/N 15005 parts catalog PDF

RADIATOR - FAN DRIVE (FRONT/REAR) (515-1236) in H455S S/N 15005. Diagram image and parts list.
