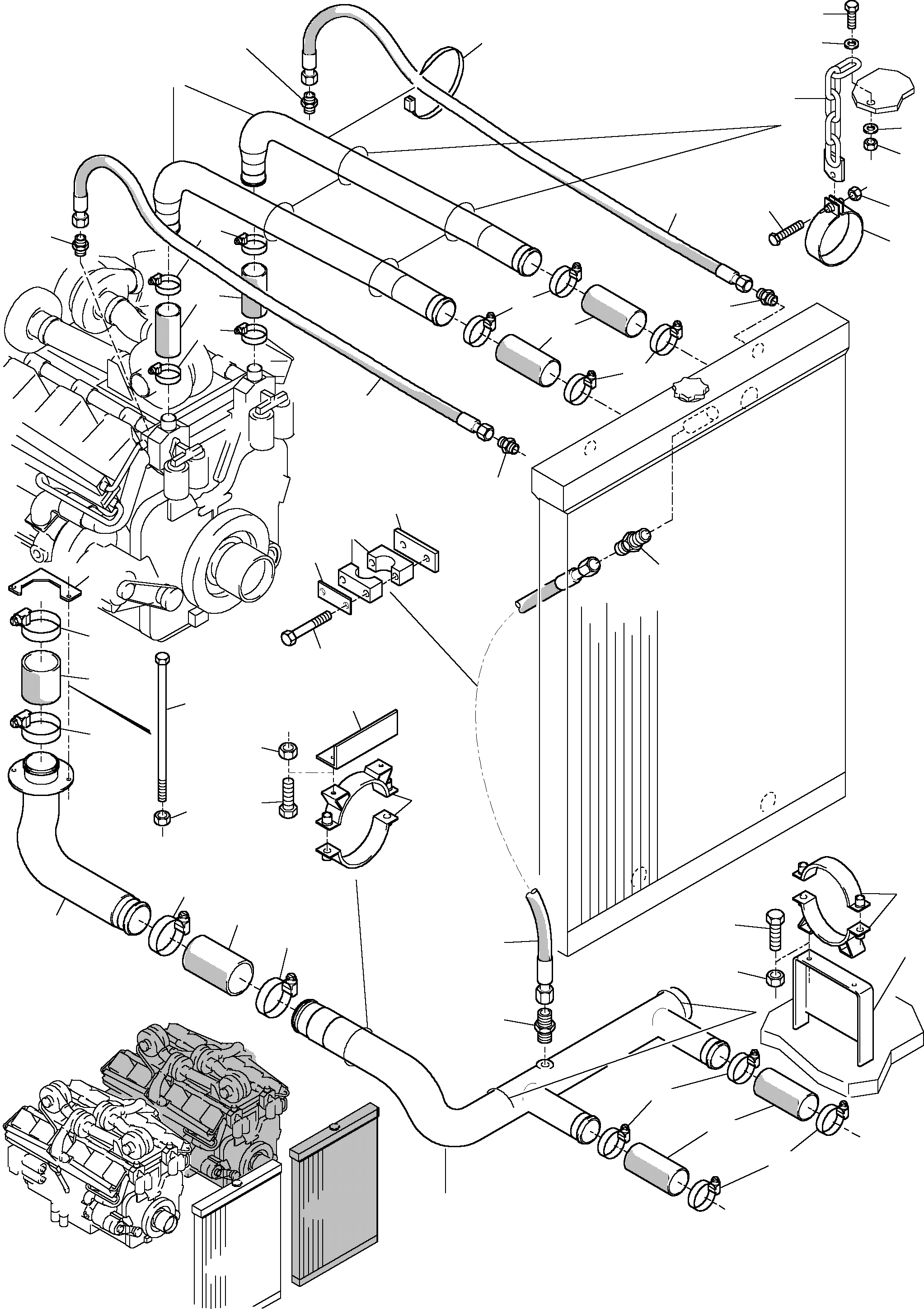

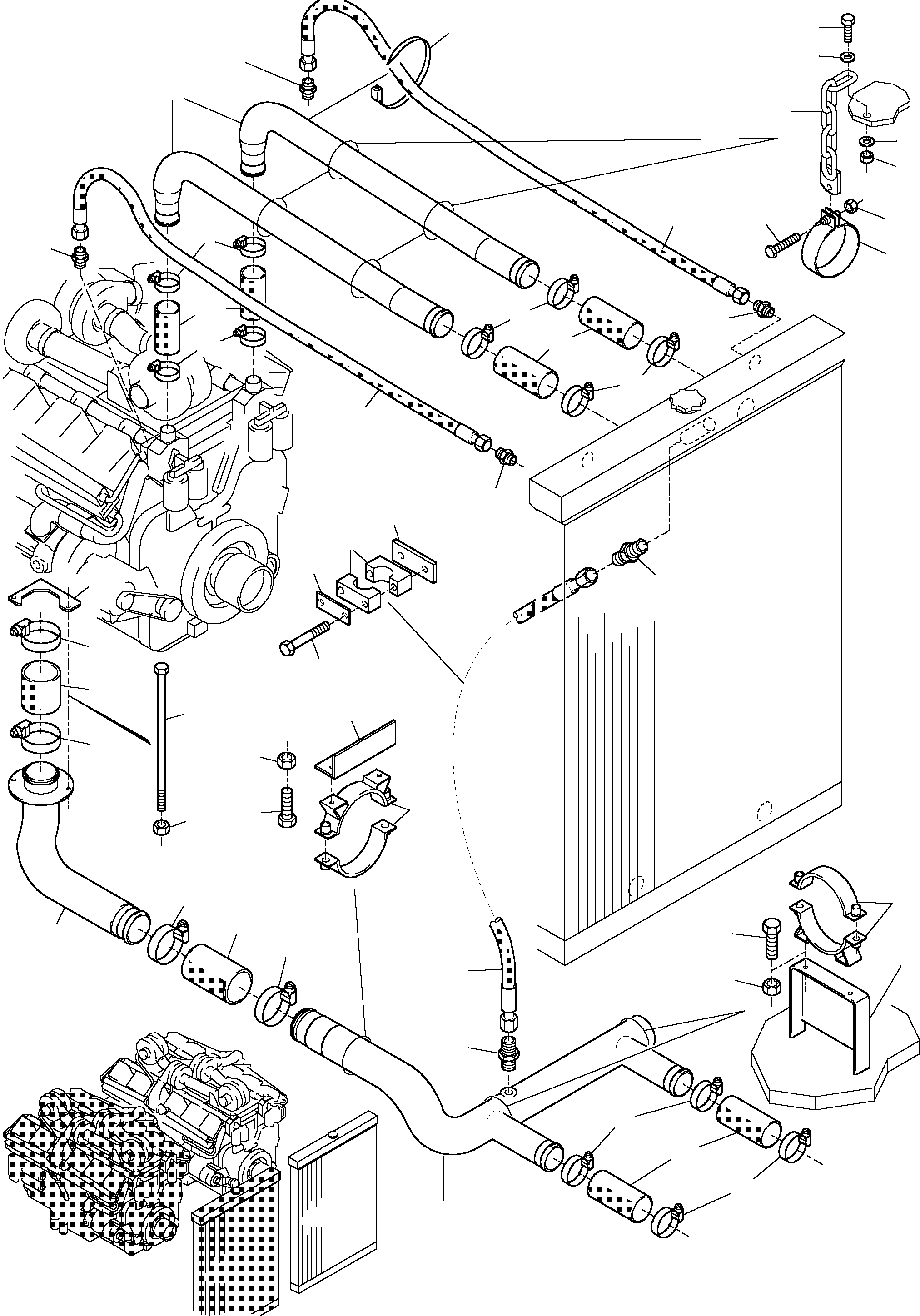

COOLANT WATER LINES | H455S S/N 15005 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
01	650 389 40	Water pipe	2	InternKon: 650 350 40 / 1
02	650 384 40	Header	1	InternKon: 650 350 40 / 3
03	650 373 40	Water pipe	2	InternKon: 650 350 40 / 5
04	650 357 40	Retainer	4	InternKon: 650 350 40 / 6
05	650 381 40	Angle	2	InternKon: 650 350 40 / 7
06	594 957 40		8	InternKon: 650 350 40 / 8
07	498 985 40	Retainer plate	2	InternKon: 650 350 40 / 9
08	330 970 40	Radiator hose LW 127 x 245 Bulk ware, state length required	2	InternKon: 650 350 40 / 10
09	500 239 98	Clamp	8	InternBDB: 2 S 142 x 30 SK / 010 422 99 \| InternKon: 650 350 40 / 11
10	330 969 40	Radiator hose LW 90 x 200 Bulk ware, state length required	8	InternKon: 650 350 40 / 12
11	501 437 98	Clamp	16	InternBDB: 1 S 102 x 20 / 010 422 99 \| InternKon: 650 350 40 / 13
12	324 241 40	Radiator hose LW 75 x 135 Bulk ware, state length required	4	InternKon: 650 350 40 / 14
13	005 866 98	Clamp	8	InternBDB: 1 S 86 x 15 / 010 422 99 \| InternKon: 650 350 40 / 15
14	504 827 98	Half clamp	8	InternBDB: S-3-G-38 / 3015 \| InternKon: 650 350 40 / 16
15	534 005 99	Plate	4	InternBDB: S-AP-A-3 \| InternKon: 650 350 40 / 17
16	534 004 99	Plate	4	InternBDB: S-DP-A-3 \| InternKon: 650 350 40 / 18
17	500 385 98	Clamp	8	InternBDB: 1 S 88 x 20 / 010 422 99 \| InternKon: 650 350 40 / 19
18	490 020 40	Clamp	6	InternBDB: Norma 181 6025 133 D=133mm \| InternKon: 650 350 40 / 20
19		Hose assy.	2	InternKon: 650 350 40 / 21
20	641 586 40	Hose assy. DN 08 x 1900	4	InternBDB: DOL 10 / DOL 10 - 90 \| InternKon: 650 350 40 / 22
21	170 427 40	Cable strap	4	InternBDB: TY 27M \| InternKon: 650 350 40 / 23
22	308 310 99	Bolt	4	InternBDB: M12 x 260 / 931 \| InternKon: 650 350 40 / 24
23	307 754 99	Bolt	12	InternBDB: M8 x 25 / 933 \| InternKon: 650 350 40 / 25
24	308 555 99	Bolt	8	InternBDB: M 8 x 45 / 931 \| InternKon: 650 350 40 / 26
25	307 730 99	Bolt	8	InternBDB: M 6 x 20 / 933 \| InternKon: 650 350 40 / 27
26	006 267 98	Bolt	6	InternBDB: 3/8-16 UNCX 1 3/4 \| InternKon: 650 350 40 / 28
27	308 581 99	Bolt	8	InternBDB: M10 x 70 / 931 \| InternKon: 650 350 40 / 29
28	334 600 99	Nut	4	InternBDB: M12 / 985 \| InternKon: 650 350 40 / 30
29	334 599 99	Nut	20	InternBDB: M8 / 985 \| InternKon: 650 350 40 / 31
30	507 025 98	Nut	8	InternBDB: M6 / 985 \| InternKon: 650 350 40 / 32
31	340 463 99	Washer	8	InternBDB: B6,4 / 125 \| InternKon: 650 350 40 / 33
32	374 410 99	Socket	4	InternBDB: S30 B-M / 3901 \| InternKon: 650 350 40 / 34
33	374 420 99	Socket	4	InternBDB: L 10 B-M / 3901 \| InternKon: 650 350 40 / 35
34	372 472 99	Union	4	InternBDB: GE 10-PL / 1/4 NPT \| InternKon: 650 350 40 / 36
35	650 385 40	Water pipe	2	InternKon: 650 350 40 / 2
36	650 376 40	Header	1	InternKon: 650 350 40 / 4
37	330 970 40	Radiator hose LW 127 x 155 Bulk ware, state length required	2	InternKon: 650 350 40 / 10
