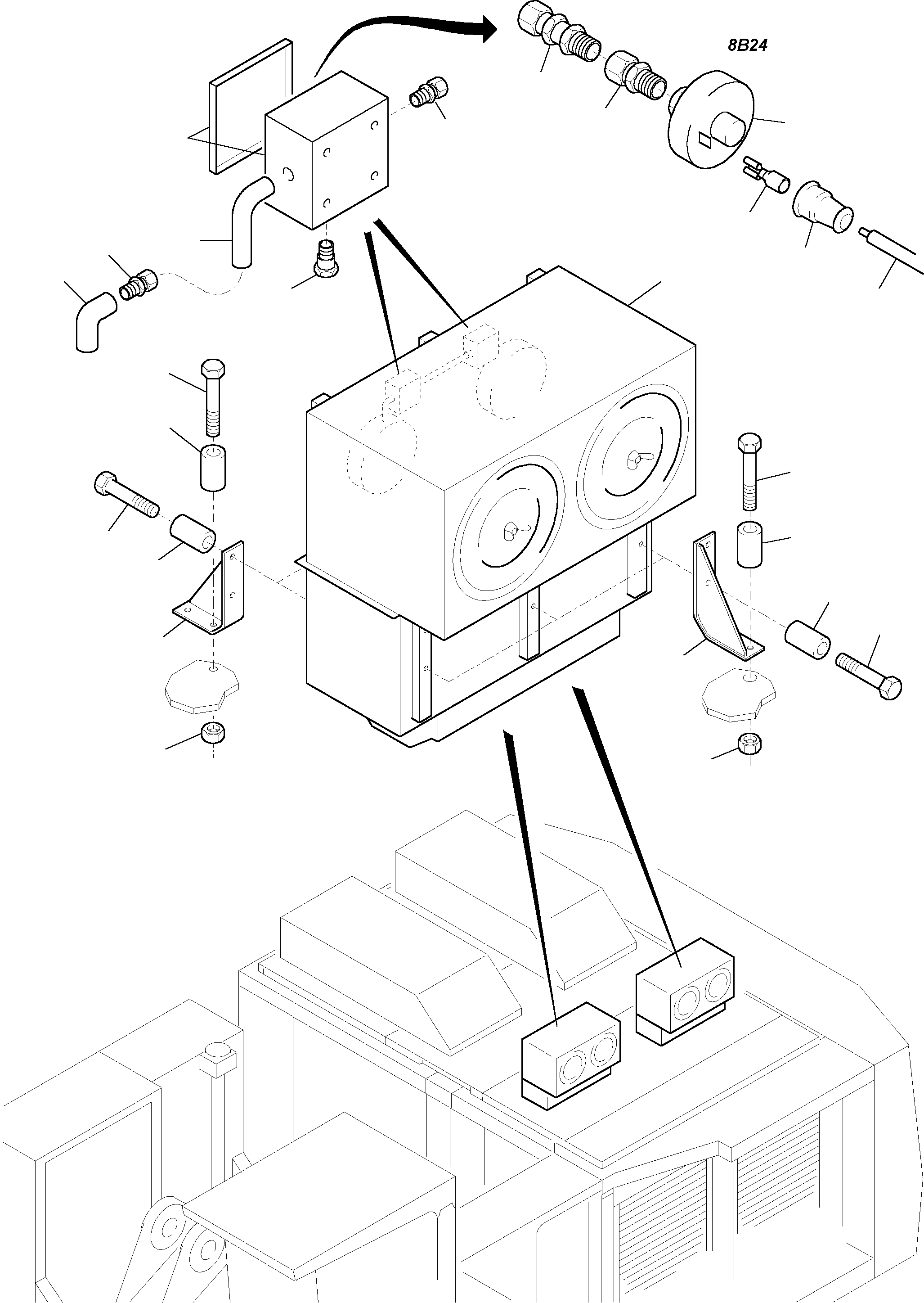

Komatsu parts book diagram for H455S S/N 15005: AIR CLEANER MOUNTING

01 02 02 03 03 03 03 04 04 05 05 06 06 15 16 17 20 21 22 23 24 25 26 29 30

	#	Part Number	Partname	Quantity	Options	Reference
	01		Air cleaner	2	InternBDB: 414 984 40 \| InternKon: 873 026 40 / 01	090-5581a
	02	872 808 40	Console	12	InternKon: 873 026 40 / 2
	03	510 733 98	Resilient sleeve	48	InternBDB: 17/30 x 50 \| InternKon: 873 026 40 / 20
	04	502 434 98	Bolt	24	InternBDB: M16 x 90 / 933 \| InternKon: 873 026 40 / 19
	05	506 256 98	Bolt	24	InternBDB: 5/8-11 UNC x 3 1/4 \| InternKon: 873 026 40 / 18
	06	332 355 99	Nut	24	InternBDB: M16 / 934 \| InternKon: 873 026 40 / 21
	15	215 622 99	Pipe Ш 6 Bulk ware, state length required	-2	InternBDB: 6 x 1 / 2391 \| InternKon: 873 026 40 / 26
	16	370 690 99	Elbow union	4	InternBDB: 1/8 / 2986 \| InternKon: 873 026 40 / 27
	17	372 446 99	Union	4	InternBDB: DL 6 /2353 \| InternKon: 873 026 40 / 28
	20	607 464 40	Housing, empty	4	InternKon: 603 343 40 / 2
	21	145 895 40	Maintenance switch	4	InternBDB: Ma. u. Hu. 390 006 2901 \| InternKon: 603 343 40 / 1
	22	371 780 99	Socket	4	InternBDB: EVGE 6-LM-ED \| InternKon: 603 343 40 / 3
	23	370 380 99	Union	4	InternBDB: RL 6 / 2353 \| InternKon: 603 343 40 / 5
	24	440 944 40	Aeration assembly	4	InternBDB: Elek 85-0128 \| InternKon: 603 343 40 / 4
	25	471 861 99	Cable Bulk ware, state length required	-2
	26	300 970 40	Cable union PG 9	4	InternBDB: WADI D 107.09.09 \| InternKon: 603 343 40 / 6
	29	440 151 99	Receptacle for tabs	4	InternBDB: He. u. Bu. 50.252.510
	30		Insulation sleeve	4	InternBDB: He. u. Bu. 50.251.562

Komatsu H455S S/N 15005 parts catalog PDF

AIR CLEANER MOUNTING (515-1250a) in H455S S/N 15005. Diagram image and parts list.
