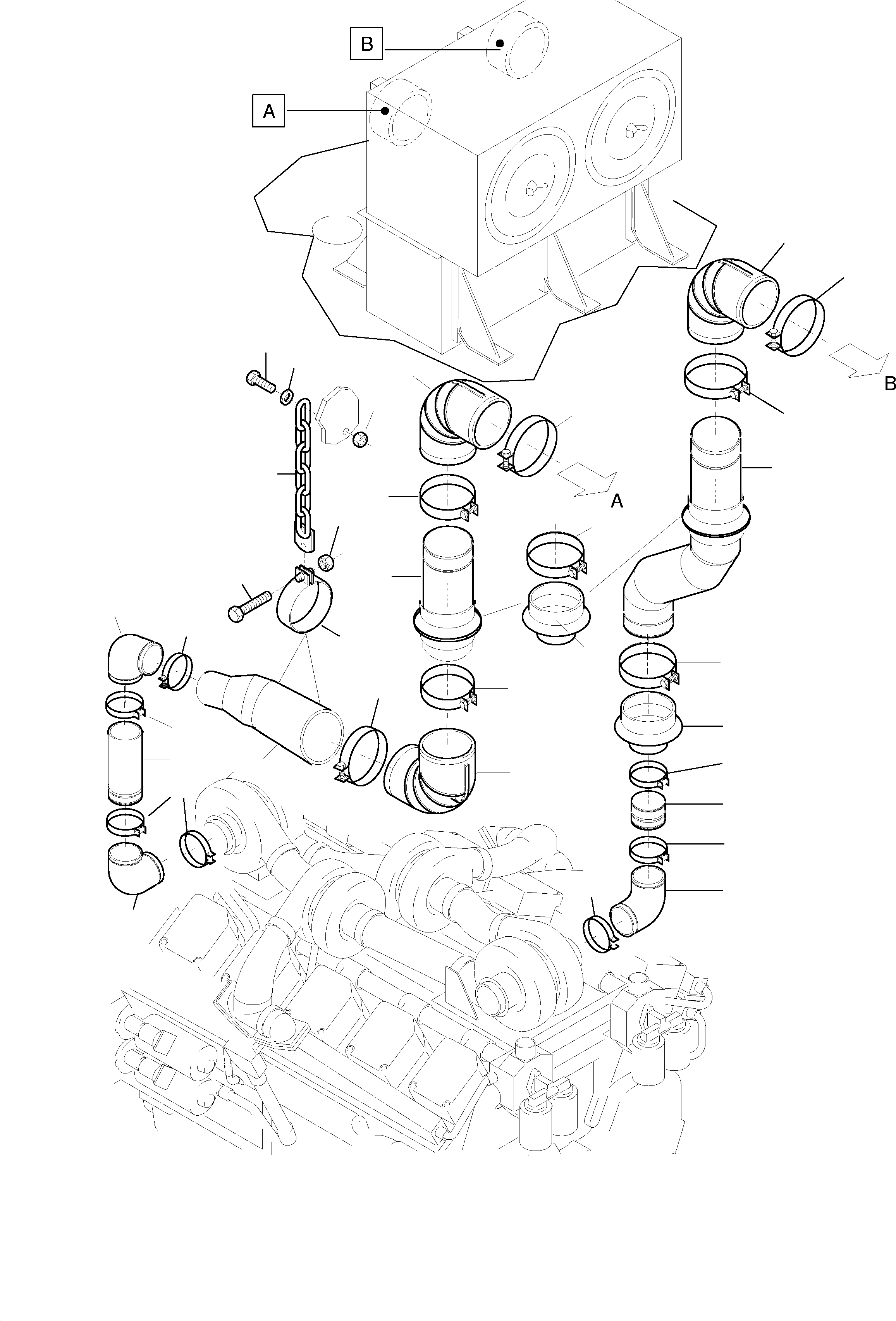

Komatsu parts book diagram for H455S S/N 15005: ENGINE AIR INTAKE LINES

01 02 03 04 05 05 05 05 05 05 06 06 06 07 08 09 10 11 11 11 11 11 11 11 11 12 13 14 15 15 15 16 17 18

	#	Part Number	Partname	Quantity	Options	Reference
	01	873 028 40	Air suction pipe	2	InternKon: 873 026 40 / 4
	02	873 029 40	Air suction pipe	2	InternKon: 873 026 40 / 6
	03	594 982 40	Chain	4	InternKon: 873 026 40 / 8
	04	226 984 40	Hose	2	InternBDB: Donaldson P12-9660 \| InternKon: 873 026 40 / 12
	05	576 249 40	Clamp	14	InternBDB: Norma GBS 153/25 \| InternKon: 873 026 40 / 15
	06	269 062 40	Manifold	6	InternBDB: Donaldson P10-5534 5 1/2" 90 \| InternKon: 873 026 40 / 11
	07	641 336 40	Air suction pipe	2	InternKon: 873 026 40 / 7
	08	307 730 99	Bolt	4	InternBDB: M6 x 20 / 933 \| InternKon: 873 026 40 / 22
	09	340 463 99	Washer	4	InternBDB: B6,4 / 125 \| InternKon: 873 026 40 / 23
	10	507 025 98	Nut	4	InternBDB: M6 / 985 \| InternKon: 873 026 40 / 24
	11	551 149 40	Clamp	8	InternBDB: Rasmussen GBS 220/30 W2 2T \| InternKon: 873 026 40 / 14
	12	507 037 98	Nut	4	InternBDB: M10 /985 \| InternKon: 873 026 40 / 17
	13	308 579 99	Bolt	4	InternBDB: M10 x 60 / 931 \| InternKon: 873 026 40 / 16
	14	511 708 98	Clamp	4	InternBDB: 1 S 205 x 25 \| InternKon: 873 026 40 / 9
	15	226 985 40	Manifold	6	InternBDB: Donaldson P11-2605 8" 90 \| InternKon: 873 026 40 / 10
	16	873 031 40	Air suction pipeRohr	2	InternKon: 873 026 40 / 3
	17	873 030 40	Pipe	2	InternKon: 873 026 40 / 5
	18	621 129 40	Hose	2	InternBDB: Donaldson P11-2607 \| InternKon: 873 026 40 / 13

Komatsu H455S S/N 15005 parts catalog PDF

ENGINE AIR INTAKE LINES (515-1255a) in H455S S/N 15005. Diagram image and parts list.
