H135S S/N 61064

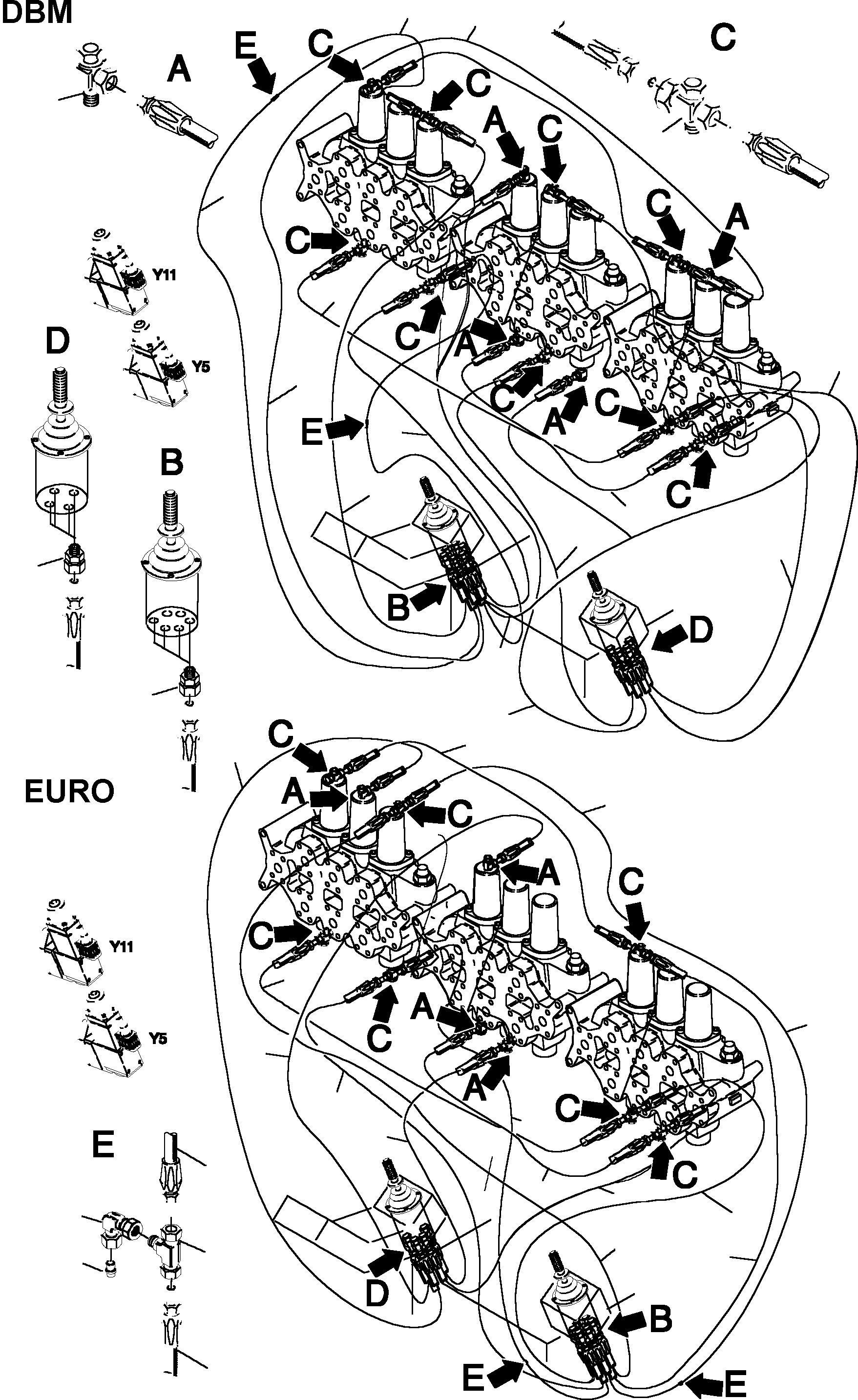

Komatsu parts book diagram for H135S S/N 61064: PILOT OIL UNITS, L.H.AND R.H.

01 01 02 03 03 03 03 04 04 05 05 06 06 07 08 09 09 10 10 11 11 12 12 13 13 13 14 15 15 15 15 16 16 16 16 17 18

	#	Part Number	Partname	Quantity	Options	Reference
	01	370 312 99	Union	12	InternBDB: DL 10 /2353 \| InternKon: 651 673 40 / 31
	02	371 953 99	Union	2	InternBDB: FFL 12 /2353 \| InternKon: 651 673 40 / 37
	03	643 820 40	Hose assy. DN 8x6550	2	InternBDB: DOL 10 /DOL 12 WN 341 951 40 \| InternKon: 651 673 40 / 44
	04	643 821 40	Hose assy. DN 8x5650	1	InternBDB: DOL 10 /DOL 12 WN 341 951 40 \| InternKon: 651 673 40 / 45
	05	643 822 40	Hose assy. DN 8x6150	1	InternBDB: DOL 10 /DOL 12 WN 341 951 40 \| InternKon: 651 673 40 / 46
	06	643 823 40	Hose assy. DN 8x6650	1	InternBDB: DOL 10 /DOL 12 WN 341 951 40 \| InternKon: 651 673 40 / 47
	07	007 140 98	Union	4	InternBDB: Voss 12-LR \| InternKon: 651 600 40 / 82
	08	509 700 98	Union	8	InternBDB: DSVT 12-LR \| InternKon: 651 600 40 / 63
	09	643 860 40	Hose assy. DN 10x1650	1	InternBDB: DOL 12 /DOL 12 WN 341 951 40 \| InternKon: 651 600 40 / 57
	10	643 859 40	Hose assy. DN 10x1000	1	InternBDB: DOL 12 /DOL 12 WN 341 951 40 \| InternKon: 651 600 40 / 67
	11	643 857 40	Hose assy. DN 10x1450	1	InternBDB: DOL 12 /DOL 12 WN 341 951 40 \| InternKon: 651 600 40 / 68
	12	643 824 40	Hose assy. DN 8x5550	1	InternBDB: DOL 10 /DOL 12 WN 341 951 40 \| InternKon: 651 673 40 / 48
	13	643 825 40	Hose assy. DN 8x7100	1	InternBDB: DOL 10 /DOL 12 WN 341 951 40 \| InternKon: 651 673 40 / 49
	14	512 781 98	Hose assy. DN 8x6000	1	InternBDB: DOL 12 /DOL 12 WN 341 951 40 \| InternKon: 651 673 40 / 50
	15	631 477 40	Hose assy. DN 8x1140	2	InternBDB: DOL 10 /DOL 12 WN 341 951 40 \| InternKon: 651 673 40 / 66
	16	512 780 98	Hose assy. DN 8x5550	1	InternBDB: DOL 12 /DOL 12 WN 341 951 40 \| InternKon: 651 673 40 / 47
	17	372 710 99	Union	2	InternBDB: KL 12 /2353 \| InternKon: 651 673 40 / 27
	18	371 854 99	Breech block	2	InternBDB: 12-L \| InternKon: 651 673 40 / 39

Komatsu H135S S/N 61064 parts catalog PDF

PILOT OIL UNITS, L.H.AND R.H. (116-1855b) in H135S S/N 61064. Diagram image and parts list.
