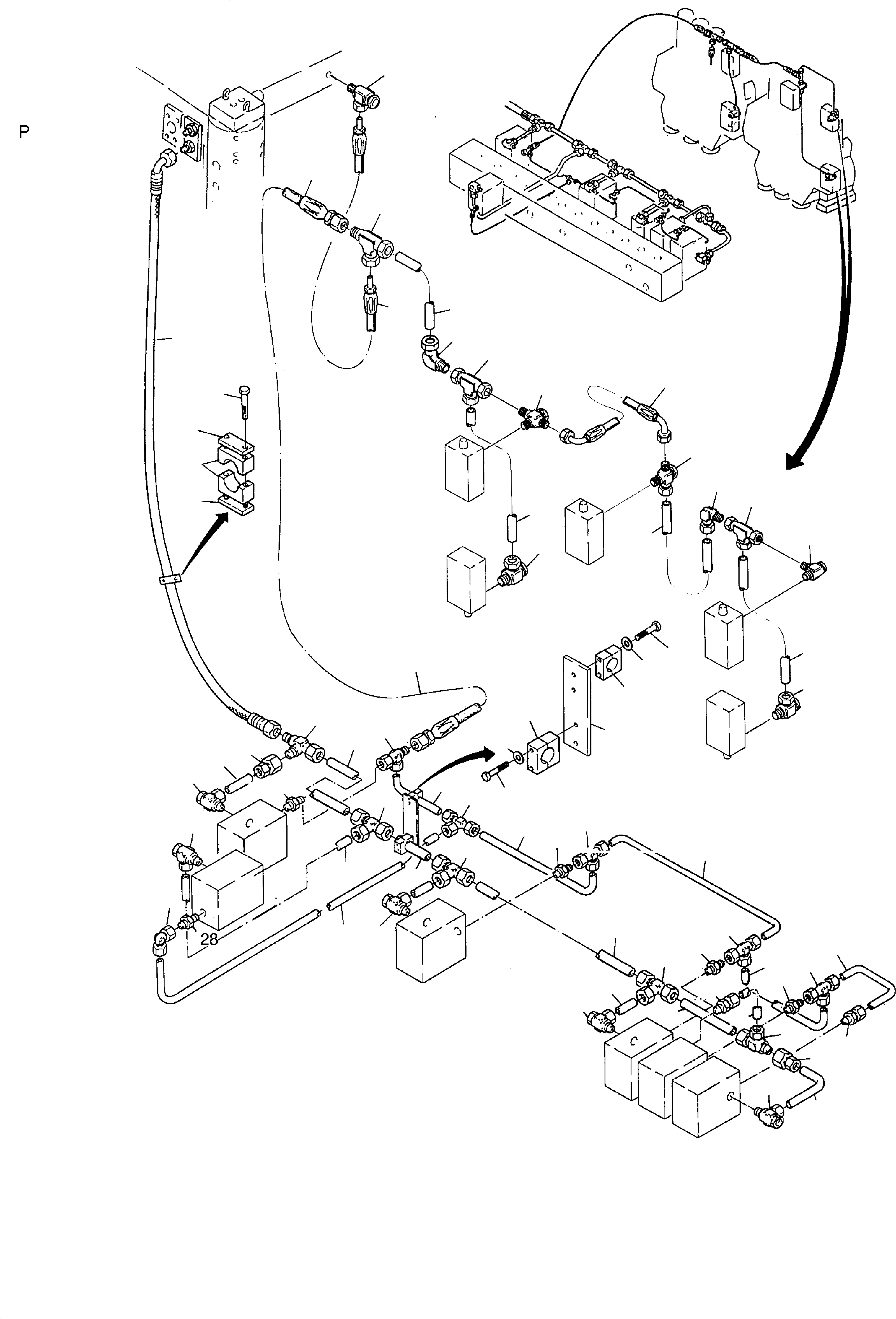

CONTROL- AND TANC LINES, CONTROL BLOCKS | H135S S/N 61064

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
01	006 894 98	Union	3	InternBDB: Voss 10-LR \| InternKon: 651 600 40 / 40
02	372 059 99	Union	2	InternBDB: DSVT 10-LR \| InternKon: 651 600 40 / 41
03	006 891 98	Union	5	InternBDB: Voss 20-SM \| InternKon: 651 600 40 / 42
04	373 775 99	Union	4	InternBDB: TR 25/20/25-S \| InternKon: 651 600 40 / 43
05	372 981 99	Union	2	InternBDB: KOR 25/20-S \| InternKon: 651 600 40 / 44
06	371 952 99	Union	6	InternBDB: FFL 10 /2353 \| InternKon: 651 600 40 / 45
07	373 747 99	Union	1	InternBDB: TR 10/12/10-L
08	215 627 99	Pipe Ш 10 Bulk ware, state length required	-2	InternBDB: 47-51,59,69,73,81 10x2 /2391
09	594 141 40	Pipe assy. Ш 20x195	1	InternBDB: 20x3 /2391 \| InternKon: 651 600 40 / 52
10	594 145 40	Pipe assy. Ш 25x310	1	InternBDB: 25x3 /2391 \| InternKon: 651 600 40 / 53
11	594 144 40	Pipe assy. Ш 25x295	1	InternBDB: 25x3 /2391 \| InternKon: 651 600 40 / 54
12	594 142 40	Pipe assy. Ш 20x177	2	InternBDB: 20x3 /2391 \| InternKon: 651 600 40 / 55
13	643 855 40	Hose assy. DN 8x1750	1	InternBDB: DOL 10 /DOL 10 WN 341 951 40 \| InternKon: 651 600 40 / 56
14	643 993 40	Hose assy. DN 8x400	1	InternBDB: DOL 10 - 90 /DOL 10 WN 341 951 40 \| InternKon: 651 600 40 / 58
15	440 167 40	Hose assy. DN 25x1800 lg.	1	InternBDB: DKO/DKL-90 ? 6000 PSI \| InternKon: 646 800 40 / 93
16	007 140 98	Union	1	InternBDB: Voss-12-LR \| InternKon: 646 800 40 / 60
17	643 881 40	Hose DN 10x2400	1	InternBDB: DOL 12 /DOL 12 WN 341 951 40 \| InternKon: 646 800 40 / 34
18	594 143 40	Pipe assy. Ш 20x146 lg.	1	InternBDB: 215 539 99 20x3 /2391 \| InternKon: 651 600 40 / 71
19	373 776 99	Union	1	InternBDB: TR 30/25/25-S \| InternKon: 651 600 40 / 74
22	651 503 40	Pipe bracket	1	InternKon: 651 600 40 / 86
23	370 506 99	Union	1	InternBDB: CS 20 /2353 \| InternKon: 651 600 40 / 29
24	594 153 40	Pipe assy. Ш 20x310	1	InternBDB: 20x3 /2391 \| InternKon: 651 600 40 / 31
25	594 154 40	Pipe assy. Ш 20x310	1	InternBDB: 20x3 /2391 \| InternKon: 651 600 40 / 60
26	594 155 40	Pipe assy. Ш 20x310	1	InternBDB: 20x3 /2391 \| InternKon: 651 600 40 / 61
27	594 156 40	Pipe assy. Ш 25	1	InternKon: 651 600 40 / 65
28	370 312 99	Union	6	InternBDB: DL 10 /2353 \| InternKon: 651 600 40 / 64
29	372 171 99	Union	3	InternBDB: DDL 10 /2353 \| InternKon: 651 600 40 / 72
30	372 612 99	Union	1	InternBDB: QL 10 /2353 \| InternKon: 651 600 40 / 80
31	533 984 99	Clamp	1	InternBDB: L-1-R-10 /3015 \| InternKon: 651 600 40 / 87
32	500 980 98	Clamp	1	InternBDB: L-3-R-25 /3015 \| InternKon: 651 600 40 / 89
33	320 214 99	Screw	2	InternBDB: M6x20 /912 \| InternKon: 651 600 40 / 88
34	319 133 99	Screw	2	InternBDB: M6x30 /912 \| InternKon: 651 600 40 / 69
35	340 405 99	Washer	4	InternBDB: 6,4 /433 \| InternKon: 651 600 40 / 46
36	504 827 98	Clamp	1	InternBDB: S-3-G 38 /3015 \| InternKon: 646 800 40 / 120
37	534 005 99	Plate	1	InternBDB: S-AP-A-3 /3015 \| InternKon: 646 800 40 / 121
38	534 004 99	Plate	1	InternBDB: S-DP-A-3 /3015 \| InternKon: 646 800 40 / 122
39	308 581 99	Bolt	2	InternBDB: M10x70 /931 \| InternKon: 646 800 40 / 123
