PC3000-6 S/N 46174

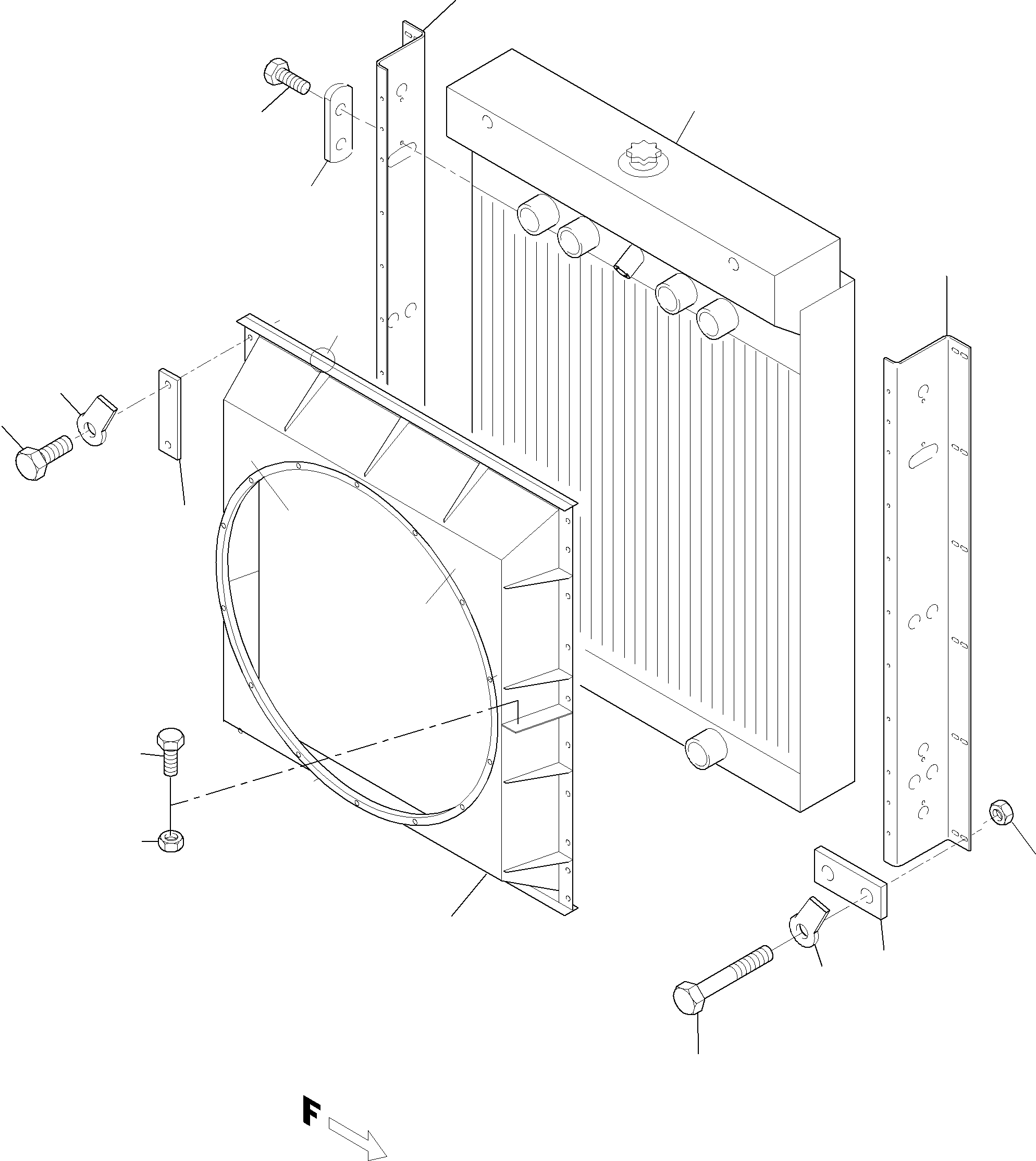

Komatsu parts book diagram for PC3000-6 S/N 46174: RADIATOR ARR.

01 02 02 03 05 06 09 10 11 12 13 14 15 16 16 17 17 18

	#	Part Number	Partname	Quantity	Options	Reference
	01		Radiator	1	InternBDB: 655 206 40 \| InternKon: 923 920 40 / 6	991-0079a
	02	307 600 99	Bolt	40	InternBDB: M12x40 /933 \| InternKon: 923 920 40 / 12
	03	395 513 40	Locking plate	8	InternKon: 923 920 40 / 18
	05	440 821 40	Profiled joint Bulk ware, state length required	-2	InternBDB: 1,6 m \| InternKon: 923 920 40 / 19
	06	372 394 40	Plate	12	InternKon: 923 920 40 / 4
	09	332 353 99	Nut	32	InternBDB: M 12 /934 \| InternKon: 923 920 40 / 9
	10	883 898 40	Sheet metal	1	InternKon: 887 901 40 / 01
	11	883 899 40	Sheet metal	1	InternKon: 887 901 40 / 02
	12	883 895 40	Cowl	1	InternKon: 887 901 40 / 03
	13	883 896 40	Cowl	1	InternKon: 887 901 40 / 04
	14	883 897 40	Cowl	1	InternKon: 887 901 40 / 05
	15	491 056 40	Connector plate	12	InternKon: 887 901 40 / 06
	16	343 006 99	Washer	48	InternBDB: 13 /93 \| InternKon: 887 901 40 / 07
	17	307 802 99	Bolt	38	InternBDB: M12x25 /933 \| InternKon: 887 901 40 / 08
	18	334 600 99	Nut	14	InternBDB: M 12 /985 \| InternKon: 887 901 40 / 09

Komatsu PC3000-6 S/N 46174 parts catalog PDF

RADIATOR ARR. (485-1236) in PC3000-6 S/N 46174. Diagram image and parts list.
