PC3000-6 S/N 46174

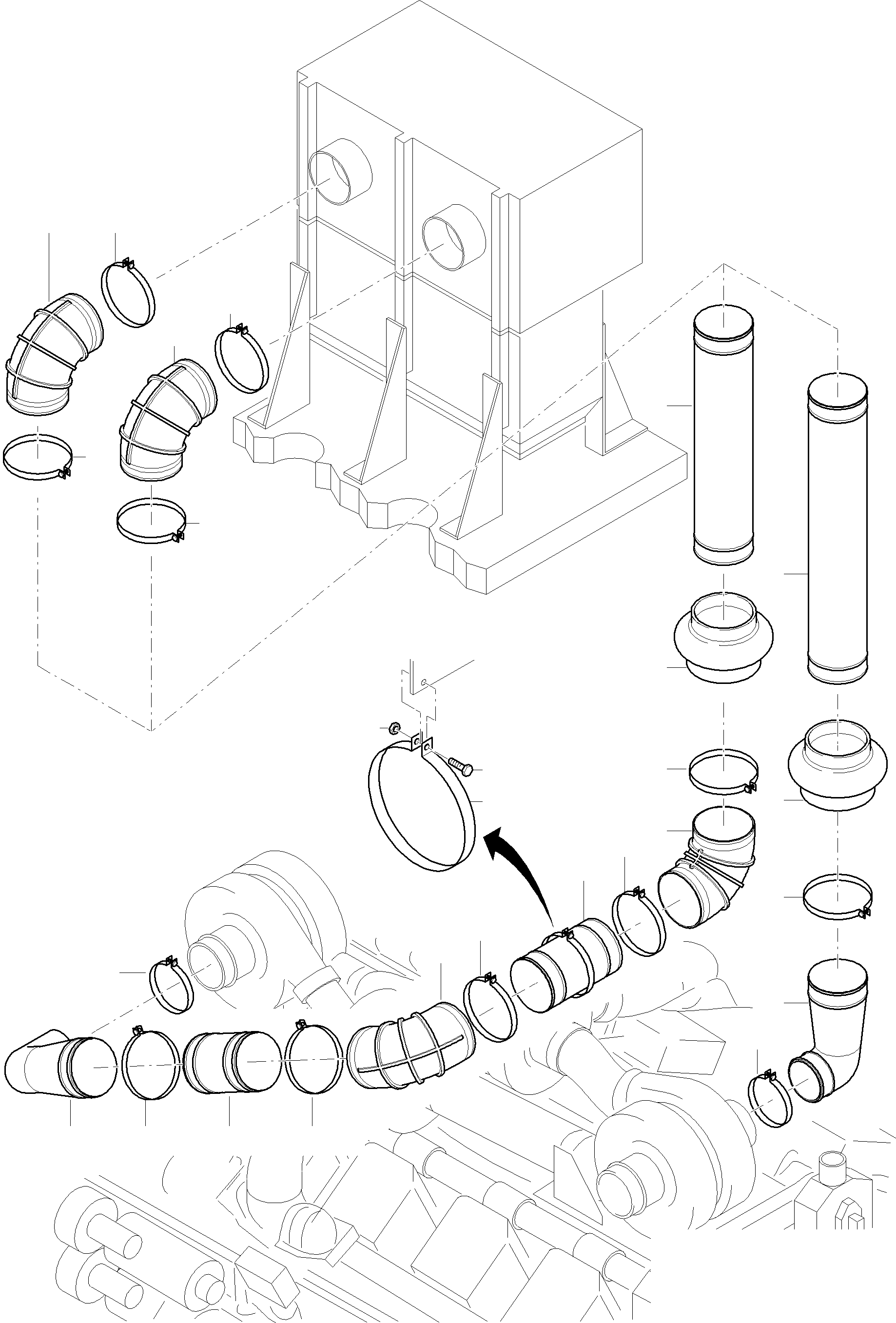

Komatsu parts book diagram for PC3000-6 S/N 46174: AIR INTAKE LINES

01 01 02 02 02 02 02 02 02 02 02 03 03 04 05 06 07 08 08 09 09 10 11 12 13 14 14

	#	Part Number	Partname	Quantity	Options	Reference
	01	226 985 40	Manifold	2	InternBDB: Donaldson P11-2605 8" 90° \| InternKon: 923 985 40 / 7
	02	906 912 40	Clamp	10	InternBDB: C1-2-220X30 W2-2 DIN 03017 \| InternKon: 923 985 40 / 8
	03	621 129 40	Hose	2	InternBDB: Donaldson P11-2607 \| InternKon: 923 985 40 / 9
	04	934 344 40	Air intake pipe	1	InternKon: 923 985 40 / 10
	05	883 109 40	Air intake pipe	1	InternKon: 923 985 40 / 11
	06	883 110 40	Air intake pipe	1	InternKon: 923 985 40 / 12
	07	934 345 40	Air intake pipe	1	InternKon: 923 985 40 / 13
	08	932 916 40	Manifold	2	InternBDB: 90' SILIKON TYP 573 \| InternKon: 923 985 40 / 14
	09	906 911 40	Clamp	2	InternBDB: GBS 153/25 SK W2N SONDERGROESSE 1TLG \| InternKon: 923 985 40 / 15
	10	518 018 98	Hose clamp	1	InternBDB: B2 - 206x25 W1-2 DIN 3017 \| InternKon: 923 985 40 / 16
	11	308 579 99	Bolt	1	InternBDB: M10x60 /931 \| InternKon: 923 985 40 / 17
	12	507 037 98	Nut	1	InternBDB: M 10 /985 \| InternKon: 923 985 40 / 18
	13	551 149 40	Clamp	2	InternBDB: C2-1-220X30 W2-2 DIN 03017 \| InternKon: 923 985 40 / 29
	14	932 998 40	Manifold	2	InternBDB: MTS 90' 8'' \| InternKon: 923 985 40 / 30

Komatsu PC3000-6 S/N 46174 parts catalog PDF

AIR INTAKE LINES (485-1255b) in PC3000-6 S/N 46174. Diagram image and parts list.
