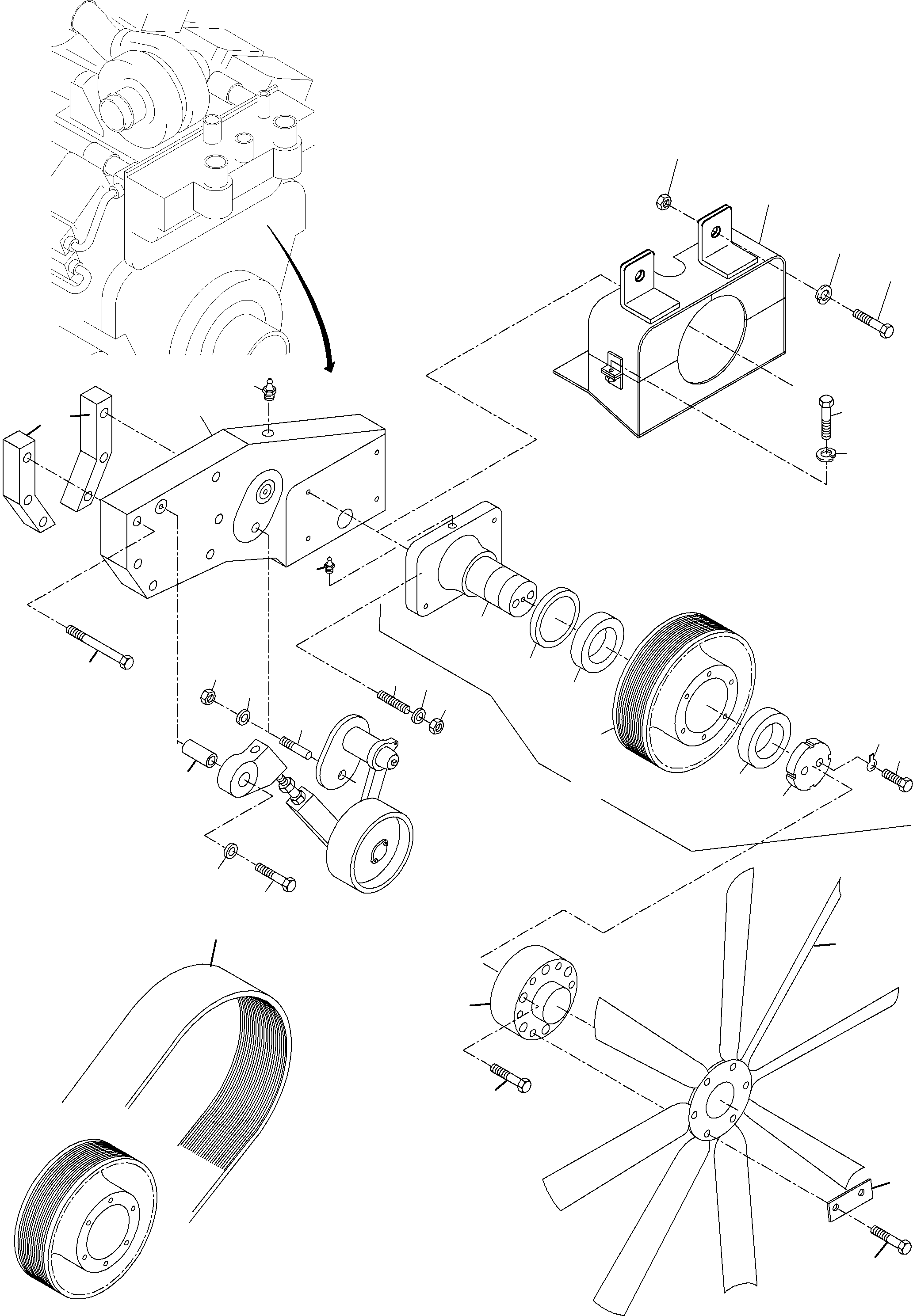

01 |
896 597 40
|
Fan |
1 |
InternBDB: 52" Alu | InternKon: 924 888 40 / 1
|
|
|
|
02 |
942 439 40
|
Fan carrier |
1 |
InternBDB: 348x704 | InternKon: 924 888 40 / 3
|
|
|
|
03 |
428 993 40
|
Spacer block |
2 |
InternKon: 924 888 40 / 4
|
|
|
|
04 |
658 809 40
|
Extension |
1 |
InternKon: 924 888 40 / 5
|
|
|
|
05 |
409 978 40
|
Locking plate |
3 |
InternKon: 924 888 40 / 6
|
|
|
|
06 |
319 277 99
|
Bolt |
6 |
InternBDB: M12x70 10.9 DIN00912 | InternKon: 924 888 40 / 7
|
|
|
|
07 |
308 436 99
|
Bolt |
6 |
InternBDB: M12x75 10.9 DIN00931 | InternKon: 924 888 40 / 8
|
|
|
|
08 |
621 625 40
|
Stud |
4 |
InternBDB: ST50-2K | InternKon: 924 888 40 / 9
|
|
|
|
09 |
334 601 99
|
Nut |
4 |
InternBDB: M16 DIN00985 | InternKon: 924 888 40 / 10
|
|
|
|
10 |
316 211 99
|
Washer |
4 |
InternBDB: 17 DIN06916 | InternKon: 924 888 40 / 11
|
|
|
|
11 |
514 292 98
|
Bolt |
6 |
InternBDB: 3/4"-10-UNC x 10 1/4 / 010 500 99 | InternKon: 924 888 40 / 12
|
|
|
|
12 |
924 892 40
|
|
1 |
InternBDB: ST52-3 | InternKon: 924 888 40 / 13
|
|
|
|
13 |
334 686 99
|
Nut |
1 |
InternBDB: M20 DIN00985 | InternKon: 924 888 40 / 14
|
|
|
|
14 |
340 470 99
|
Washer |
1 |
InternBDB: 21,0 DIN00125 | InternKon: 924 888 40 / 15
|
|
|
|
15 |
350 567 99
|
Grease nipple |
1 |
InternBDB: AR 1/8 / 71412 | InternKon: 924 888 40 / 16
|
|
|
|
16 |
517 573 98
|
Resilient sleeve |
1 |
InternBDB: 13/30x25 | InternKon: 924 888 40 / 17
|
|
|
|
17 |
308 610 99
|
Bolt |
1 |
InternBDB: M12x80 DIN00931 | InternKon: 924 888 40 / 18
|
|
|
|
18 |
340 467 99
|
Washer |
1 |
InternBDB: 13,0 DIN00125 | InternKon: 924 888 40 / 19
|
|
|
|
19 |
924 893 40
|
Drive belt |
1 |
InternBDB: Optibelt 23K x 1825 5Z | InternKon: 924 888 40 / 20
|
|
|
|
25 |
925 189 40
|
Fan drive assy. consist. of fig-nos: 26-33 |
1 |
InternKon: 924 888 40 / 2
|
|
|
|
26 |
925 190 40
|
Flange shaft |
1 |
InternKon: 925 189 40 / 1
|
|
|
|
27 |
539 832 40
|
Pulley |
1 |
InternKon: 925 189 40 / 2
|
|
|
|
28 |
539 831 40
|
Washer |
1 |
InternKon: 925 189 40 / 3
|
|
|
|
29 |
361 723 99
|
Roller bearing |
2 |
InternBDB: 75x115x25/ 32015 | InternKon: 925 189 40 / 4
|
|
|
|
30 |
501 298 98
|
Seal ring |
1 |
InternBDB: A95x125x12/ 3760 | InternKon: 925 189 40 / 5
|
|
|
|
31 |
307 844 99
|
Bolt |
2 |
InternBDB: M20x45 DIN00933 | InternKon: 925 189 40 / 6
|
|
|
|
32 |
003 185 98
|
Locking plate |
1 |
InternBDB: A90x40x1 010 939 99 | InternKon: 925 189 40 / 7
|
|
|
|
33 |
350 561 99
|
Grease nipple |
1 |
InternBDB: AM8x1 DIN71412 | InternKon: 925 189 40 / 8
|
|
|
|
35 |
943 547 40
|
Cover fan supporting |
1 |
InternBDB: GEHAEUSE KPL PC 3000- 6 | InternKon: 924 888 40 / 21
|
|
|
|
36 |
307 773 99
|
Bolt |
4 |
InternBDB: M10x16 8.8 DIN00933 | InternKon: 924 888 40 / 22
|
|
|
|
37 |
517 122 98
|
Lock washer |
4 |
InternBDB: SG10 WN65593840 | InternKon: 924 888 40 / 23
|
|
|
|
38 |
332 332 99
|
Nut |
2 |
InternBDB: M8 8 DIN 00934 | InternKon: 943 547 40 / 8
|
|
|
|
39 |
307 752 99
|
Bolt |
2 |
InternBDB: M8X20 8.8 DIN 00933 | InternKon: 943 547 40 / 9
|
|
|
|
40 |
517 121 98
|
Lock washer |
2 |
InternBDB: SG8 WN 65593840 | InternKon: 943 547 40 / 10
|
|
