PC5500-6E S/N 15060

01 02 03 04 05 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86

#	Part Number	Partname	Quantity	Options
01	795 933 73	Ring body assy.	1	InternBDB: 70.211/12-4000:00 \| InternKon: 70.211/12-0000:00 / 2
02	770 240 73	Ring group 1 (medium voltage) fig-nos. 03-22	1	InternBDB: 70.211/5-4100:00 \| InternKon: 70.211/12-4000:00 / 2
03	793 896 73	Pin	3	InternBDB: 70.211/10-4100:01 \| InternKon: 70.211/12-4000:00 / 3
04	765 625 73	Slip ring	4	InternBDB: 070.900:1000:00 \| InternKon: 70.211/12-4000:00 / 4
05	770 241 40	Bushing	12	InternBDB: 70.211/5-4100:03 \| InternKon: 70.211/12-4000:00 / 5
06	770 242 73	Flange assy.	1	InternBDB: 70.211/5-4110:00 \| InternKon: 70.211/12-4000:00 / 6
07	765 275 73	Inside isolator 10 KV	18	InternKon: 70.211/12-4000:00 / 7
08	765 633 73	Pin	9	InternBDB: 70.211/5-4100:02 \| InternKon: 70.211/12-4000:00 / 8
09	770 243 73	Loom	1	InternBDB: 70.211/5-4100:05 \| InternKon: 70.211/12-4000:00 / 9
10	770 244 73	Flange assy.	1	InternBDB: 70.211/5-4120:00 \| InternKon: 70.211/12-4000:00 / 10
11	307 829 99	Bolt	3	InternBDB: M16x65 /933 \| InternKon: 70.211/12-4000:00 / 11
12	512 466 98	Nut	3	InternBDB: M 16 /982 \| InternKon: 70.211/12-4000:00 / 12
13	307 779 99	Bolt	3	InternBDB: M10x30 /933 \| InternKon: 70.211/12-4000:00 / 13
14	343 095 99	Lock washer	3	InternBDB: B 10 /127 FST \| InternKon: 70.211/12-4000:00 / 14
15	770 245 73	Connecting bracket	1	InternBDB: 70.211/5-4100:08 \| InternKon: 70.211/12-4000:00 / 15
16	340 467 99	Washer	8	InternBDB: B 13 /125 \| InternKon: 70.211/12-4000:00 / 16
17	343 113 99	Lock washer	8	InternBDB: B 12 /127 FST \| InternKon: 70.211/12-4000:00 / 17
18	307 802 99	Bolt	4	InternBDB: M12x25 /933 \| InternKon: 70.211/12-4000:00 / 18
19	332 334 99	Nut	4	InternBDB: M 12 /934 \| InternKon: 70.211/12-4000:00 / 19
20	307 805 99	Bolt	4	InternBDB: M12x35 /933 \| InternKon: 70.211/12-4000:00 / 20
21	770 246 73	Connecting bracket	1	InternBDB: 70.211/5-4100:07 \| InternKon: 70.211/12-4000:00 / 21
22	770 247 73	Connecting bracket	2	InternBDB: 70.211/5-4100:06 \| InternKon: 70.211/12-4000:00 / 22
23	795 934 73	Ring group 2 (low voltage)	1	InternBDB: 70.211/12-4200:00 -4300:00 -4400:00 \| InternKon: 70.211/12-4000:00 / 23
24	770 249 73	Flange	1	InternBDB: 70.211/5-4200:02 \| InternKon: 70.211/12-4000:00 / 24
25	342 572 99	Circlip	1	InternBDB: 110x4 /471 \| InternKon: 70.211/12-4000:00 / 25
26	511 462 98	Roller bearing	1	InternBDB: 61822 2RS /625 \| InternKon: 70.211/12-4000:00 / 26
27	342 678 99	Circlip	1	InternBDB: 140x4 /472 \| InternKon: 70.211/12-4000:00 / 27
28	770 250 73	Flange	1	InternBDB: 70.211/5-4200:01 \| InternKon: 70.211/12-4000:00 / 28
29	795 935 73	Pin	3	InternBDB: 70.211/12-4200:03 \| InternKon: 70.211/12-4000:00 / 29
30	795 936 73	Loom	3	InternBDB: 70.211/12-4200:04 \| InternKon: 70.211/12-4000:00 / 30
31	332 336 99	Nut	2	InternBDB: M 16 /934 \| InternKon: 70.211/12-4000:00 / 31
32	795 937 73	Collector rod	2	InternBDB: 70.211/12-4240:01 \| InternKon: 70.211/12-4000:00 / 32
33	795 938 73	Loom	2	InternBDB: EGBS 214-1 70.211/12-4240:02 \| InternKon: 70.211/12-4000:00 / 33
34	340 464 99	Washer	3	InternBDB: B 8,4 /125 \| InternKon: 70.211/12-4000:00 / 34
35	512 557 98	Nut	8	InternBDB: M 8 /982 \| InternKon: 70.211/12-4000:00 / 35
36	764 644 73	Insulating disc	6	InternBDB: geschlitzt \| InternKon: 70.211/12-4000:00 / 36
37	764 643 73	Slip ring	6	InternBDB: d=33 nach 423.080/21-1100:02 \| InternKon: 70.211/12-4000:00 / 37
38	319 551 99	Screw	6	InternBDB: M5x8 /912 \| InternKon: 70.211/12-4000:00 / 38
39	343 105 99	Lock washer	6	InternBDB: A 5 /127 FST \| InternKon: 70.211/12-4000:00 / 39
40	770 255 73	Slip ring	1	InternBDB: d=133 /M5 - versilbert 70.211/5-4200:05 \| InternKon: 70.211/12-4000:00 / 40
41	770 256 73	Collector with graphit-carbon	1	InternBDB: 70.211/5-4251:01 \| InternKon: 70.211/12-4000:00 / 41
42	770 257 73	Graphit-carbon	1	InternBDB: 70.211/5-4251:01 \| InternKon: 70.211/12-4000:00 / 42
43	765 915 73	Collector fig-nos. 44-58	15	InternBDB: EST 63-00 \| InternKon: 70.211/12-4000:00 / 43
44	764 630 73	Brush	6	InternBDB: fьr EST 63 \| InternKon: 70.211/12-4000:00 / 44
45	770 258 73	Retainer	6	InternBDB: 834.080/11-1000:01 \| InternKon: 70.211/12-4000:00 / 45
46	770 259 73	Draw spring	6	InternBDB: B 1,2x8,5x16 \| InternKon: 70.211/12-4000:00 / 46
47	770 260 73	Adapter	6	InternBDB: 834.080/11-1000:02 \| InternKon: 70.211/12-4000:00 / 47
48	770 261 73	Yoke	6	InternBDB: 834.080/11-1000:04 \| InternKon: 70.211/12-4000:00 / 48
49	342 037 99	Cotter pin	6	InternBDB: 2,5x20 /94 \| InternKon: 70.211/12-4000:00 / 49
50	770 262 73	Lever	12	InternBDB: 834.080/11-1000:03 \| InternKon: 70.211/12-4000:00 / 50
51	770 263 73	Bar	18	InternBDB: 834.080/11-1000:05 \| InternKon: 70.211/12-4000:00 / 51
52	307 732 99	Bolt	6	InternBDB: M6x25 /933 \| InternKon: 70.211/12-4000:00 / 52
53	340 463 99	Washer	18	InternBDB: B 6,4 /125 \| InternKon: 70.211/12-4000:00 / 53
54	343 085 99	Lock washer	18	InternBDB: B 6 /127 FST \| InternKon: 70.211/12-4000:00 / 54
55	332 331 99	Nut	12	InternBDB: M 6 /934 \| InternKon: 70.211/12-4000:00 / 55
56	307 693 99	Bolt	6	InternBDB: M5x20 /933 \| InternKon: 70.211/12-4000:00 / 56
57	332 292 99	Nut	6	InternBDB: M 5 /934 \| InternKon: 70.211/12-4000:00 / 57
58	319 412 99	Screw	6	InternBDB: M5x10 /912 \| InternKon: 70.211/12-4000:00 / 58
59	343 105 99	Lock washer	12	InternBDB: B 5 /127 FST \| InternKon: 70.211/12-4000:00 / 59
60	795 939 73	Insulating disc	1	InternBDB: d=133 aus 423.0800/21-1100:03 \| InternKon: 70.211/12-4000:00 / 60
61	323 354 40	Cable union	1	InternBDB: PG 29 \| InternKon: 70.211/12-4000:00 / 61
62	795 940 73	Pipe	1	InternBDB: 70.211/12-4200:06 \| InternKon: 70.211/12-4000:00 / 62
63	323 359 40	Socket PG 29	1	InternKon: 70.211/12-4000:00 / 63
64	795 941 73	Assembly rail	-2	InternBDB: 70.211/12-4230:02 \| InternKon: 70.211/12-4000:00 / 64
65	795 942 73	Holding plate	2	InternBDB: 70.211/12-4230:01 \| InternKon: 70.211/12-4000:00 / 65
66	307 727 99	Bolt	4	InternBDB: M6x12 /933 \| InternKon: 70.211/12-4000:00 / 66
67	793 862 73	Series terminal	6	InternBDB: Wago 281-101 \| InternKon: 70.211/12-4000:00 / 67
68	906 612 40	Throught clamp	16	InternBDB: Wago 870-531 \| InternKon: 70.211/12-4000:00 / 68
69	793 861 73	Cover plate	1	InternBDB: Wago 281-301 \| InternKon: 70.211/12-4000:00 / 69
70	906 613 40	Cover plate	2	InternBDB: Wago 870-573 \| InternKon: 70.211/12-4000:00 / 70
71	356 265 40	Clamp	4	InternKon: 70.211/12-4000:00 / 71
72	795 943 73	Flange	1	InternBDB: 70.211/12-4310:00 \| InternKon: 70.211/12-4000:00 / 72
73	368 171 99	Roller bearing	1	InternBDB: 6012 2RS /625 \| InternKon: 70.211/12-4000:00 / 73
74	342 555 99	Circlip	1	InternBDB: 60x2 /471 \| InternKon: 70.211/12-4000:00 / 74
75	795 944 73	Flange	1	InternBDB: 70.211/12-4300:02 \| InternKon: 70.211/12-4000:00 / 75
76	342 669 99	Circlip	1	InternBDB: 95x3 /472 \| InternKon: 70.211/12-4000:00 / 76
77	795 945 73	Modul	1	InternBDB: 016-Bahnen 6A/125V 521 102 100 \| InternKon: 70.211/12-4000:00 / 77
78	795 946 73	Union assy.	1	InternBDB: 70.211/12-4320:00 \| InternKon: 70.211/12-4000:00 / 78
79	323 354 40	Cable union	1	InternBDB: PG 29 \| InternKon: 70.211/12-4000:00 / 79
80	332 332 99	Nut	4	InternBDB: M8/934 \| InternKon: 70.211/12-4000:00 / 80
81	795 947 73	16-Wave brush block	1	InternBDB: 16-Wege-Bьrstenblock 6A/125V 522 600 910 \| InternKon: 70.211/12-4000:00 / 81
82	795 948 73	Mounting bracket	2	InternBDB: 70.211/12-4400:03 \| InternKon: 70.211/12-4000:00 / 82
83	340 458 99	Washer	4	InternBDB: 3,2/125 \| InternKon: 70.211/12-4000:00 / 83
84	508 729 98	Lock washer	4	InternBDB: 3/127 \| InternKon: 70.211/12-4000:00 / 84
85	508 783 98	Screw	4	InternBDB: M3x10/912 \| InternKon: 70.211/12-4000:00 / 85
86	307 730 99	Screw	2	InternBDB: M6x20/933 \| InternKon: 70.211/12-4000:00 / 86

Komatsu PC5500-6E S/N 15060 parts catalog PDF

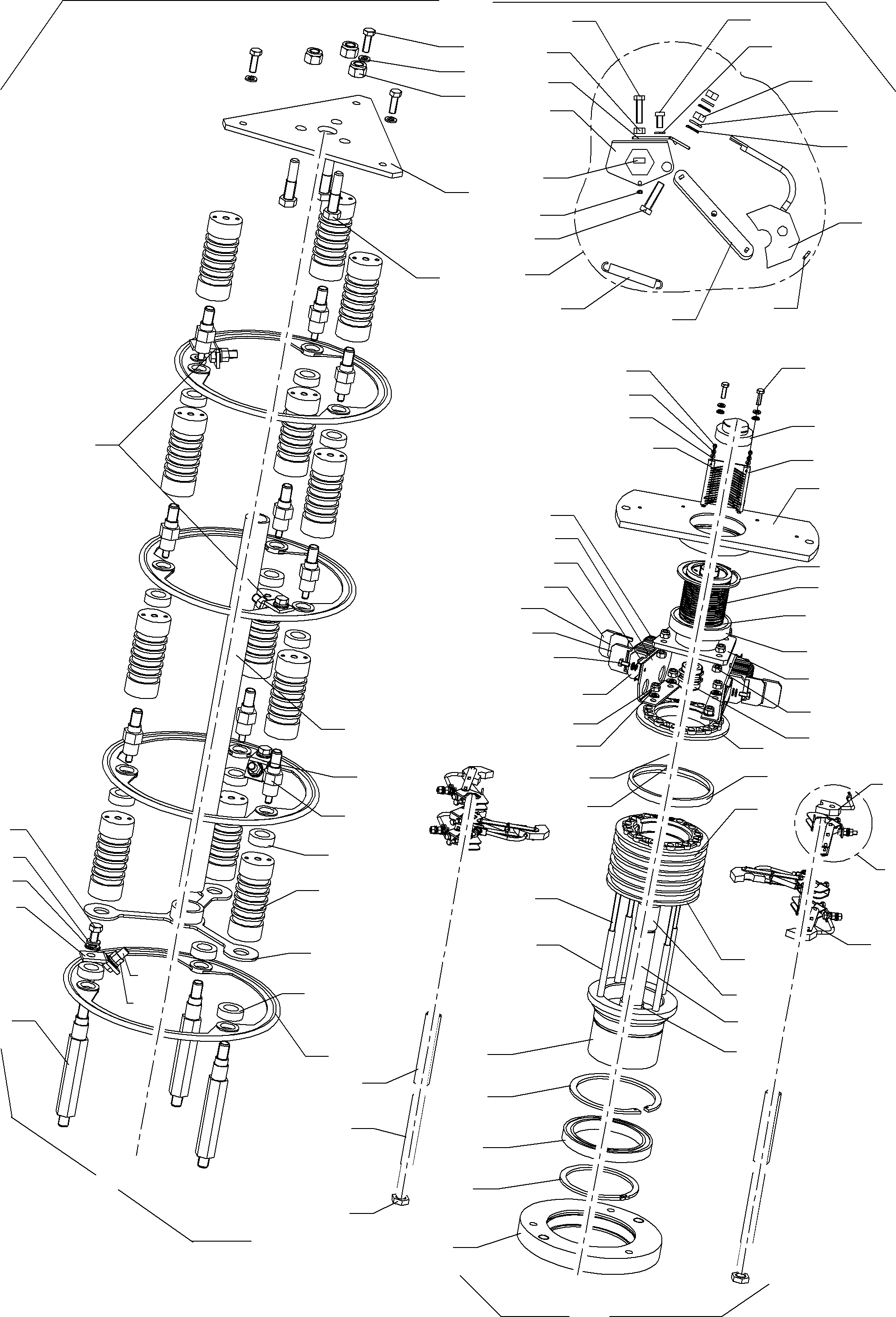

RING BODY (991-0730) in PC5500-6E S/N 15060. Diagram image and parts list.
