Diagram image 1 of 2

PC5500-6E S/N 15060

01 02 03 04 05 06 07 09 10 11 11 12 13 14 15 16 17 18 18 19 31 31 31 31 31 40 40 40 42 42 43 45 46 46 46 48 48 48 49 50 51 51 51 51 52 52 52 52 53 54 55 60 61 68 69 71 72 73 74 75 76 83 84 85 86 87 90 91 92 93 94 95

PC5500-6E S/N 15060

08 20 20 20 21 21 21 21 22 22 23 24 24 24 25 25 25 25 26 26 26 27 27 27 27 27 27 27 28 28 29 29 30 31 32 32 33 33 34 34 35 35 35 35 36 37 38 39 41 44 47 50 56 56 57 57 58 59 62 67 70 70 70 77 78 79 79 80 81 81 82 88 89

#	Part Number	Partname	Quantity	Options
01	918 836 40	Float switch	1	InternBDB: TL/NS12B552A11 \| InternKon: 923 533 40 / 11
02	894 583 40	Sensor assy.	1	InternBDB: TL \| InternKon: 923 533 40 / 13
03	896 669 40	Level probe	3	InternBDB: Bedia 425 031 3/8 NPTF mit Kabelenden 94279340Pos.8 \| InternKon: 923 533 40 / 12
04	604 732 40	Pressure switch	1	InternBDB: 0166 403 05 \| InternKon: 919 578 40 / 1
05	621 338 40	Pressure switch	1	InternBDB: 0166 407 01 \| InternKon: 894 541 40 / 8
06	654 652 40	Maintenance switch	1	InternBDB: Mann u. Hummel 3908070802 \| InternKon: 923 533 40 / 10
07	927 037 40	Temperature transmitter assy.	1	InternKon: 923 533 40 / 14
08	923 144 40	Harness - hydr. tank	1	InternKon: 923 170 40 / 1
08	923 161 40	Harness - hydr. Tank, Cold weather	1	InternKon: 923 170 40 / 1
09	003 670 79	Clip	8	InternKon: 903 399 40 / 1
10	350 762 99	Washer	7	InternBDB: R 6,6 /440 \| InternKon: 903 399 40 / 4
11	510 210 98	Thread pin	50	InternBDB: PM 6x20 /32500 \| InternKon: 903 399 40 / 2
12	006 301 98	Clamp 12/15	14	InternBDB: RSGU 1100 12/15 \| InternKon: 910 019 40 / 1
13	006 339 98	Clamp 18/15	6	InternBDB: RSGU 1100 18/15 \| InternKon: 910 798 40 / 1
14	510 363 98	Clamp 29/15	4	InternBDB: RSGU 1100 29/15 \| InternKon: 910 028 40 / 1
15	006 306 98	Clamp 30/25	7	InternBDB: RSGU 1100 30/25 \| InternKon: 910 021 40 / 1
16	509 875 98	Thread pin	7	InternBDB: PM 8x25 /32500 \| InternKon: 910 021 40 / 2
17	006 304 98	Clamp 20/25	9	InternBDB: RSGU 1100 20/25 \| InternKon: 910 020 40 / 1
18	507 025 98	Nut	50	InternBDB: M6 /985 \| InternKon: 903 399 40 / 3
19	334 599 99	Nut	7	InternBDB: M8 /985 \| InternKon: 910 021 40 / 3
20	655 649 40	Protecting hose DN 10	-2	InternBDB: PMA VCST-10 B \| InternKon: 923 144 40 / 28
21	655 651 40	Protecting hose DN 17	-2	InternBDB: PMA VCSG-17 B \| InternKon: 923 144 40 / 30
22	655 652 40	Protecting hose DN 23	-2	InternBDB: PMA VCSG-23 B \| InternKon: 923 144 40 / 31
23	655 696 40	Protecting hose DN 29	-2	InternBDB: PMA VCSG-29 B \| InternKon: 923 144 40 / 32
24	655 634 40	Pipe adapter DN 23/17	2	InternBDB: PMA BAVR - 23 G 17 G \| InternKon: 923 144 40 / 15
25	655 633 40	Pipe adapter DN 17/12	5	InternBDB: PMA BAVR - 17 G 12 T \| InternKon: 923 144 40 / 14
26	655 630 40	T-Distributor DN 29/23	2	InternBDB: PMA BFTL - 29 23 23 GGG \| InternKon: 923 144 40 / 11
27	655 650 40	Protecting hose DN 12	-2	InternBDB: VCST-12 B \| InternKon: 923 144 40 / 29
28	655 629 40	T-Distributor DN 17	2	InternBDB: PMA BFTL - 17 17 17 GGG \| InternKon: 923 144 40 / 10
29	655 631 40	Pipe adapter DN 12/10	8	InternBDB: BAVR 12 T 10 T \| InternKon: 923 144 40 / 13
30	906 079 40	T-Distributor DN 29	-2	InternBDB: PMA BFTL - 29 29 29 GGG \| InternKon: 923 144 40 / 12
31	515 213 40	Cable 1 qmm	-2	InternKon: 923 144 40 / 33
32	515 214 40	Cable 2,5 qmm	-2	InternKon: 923 144 40 / 34
33	896 558 40	Pipe adapter DN 29/23	2	InternBDB: PMA BAVR - 29 G 23 G \| InternKon: 923 144 40 / 18
34	907 693 40	Fitting PG 16	3	InternBDB: PMA BVIR - M 207 \| InternKon: 923 144 40 / 21
35	907 692 40	Fitting PG 9	4	InternBDB: PMA BVIR - M 162 \| InternKon: 923 144 40 / 20
36	907 703 40	Cable union PG 9	4	InternBDB: Pflitsch 21650 YNPM 4x3 \| InternKon: 923 144 40 / 22
37	655 810 40	Pipe adapter DN 29/12	1	InternBDB: BAVR 29 G 12 T \| InternKon: 923 144 40 / 16
38	440 092 40	Single spade connector 1,5-2,5	1	InternKon: 923 144 40 / 44
39	056 069 40	Cable union	1	InternKon: 923 144 40 / 47
40	891 032 40	Plug with bushings assy.	4	InternKon: 923 144 40 / 2
41	907 705 40	Cable union	1	InternBDB: Pflitsch 22051 YNPM 5x2,5 \| InternKon: 923 144 40 / 46
42	256 721 40	Rubber grommet	1	InternBDB: 3 340 522 025 \| InternKon: 923 144 40 / 41
43	455 757 99	Insulating tube B 7x0,7	-2	InternBDB: B 7x0,7 /40621
44	907 948 40	Fitting M25/NW23	1	InternBDB: PMA BVIR - M 253 \| InternKon: 923 144 40 / 43
45	903 422 40	Plug assy.	2	InternKon: 923 144 40 / 3
46	910 055 40	Protection cap assy.	2	InternKon: 923 144 40 / 6
47	517 320 98	Nut	1	InternBDB: M12x1,5 / 50262 \| InternKon: 923 144 40 / 49
48	891 040 40	Plug with pins assy.	4
49	431 168 40	Temperature transmitter(standard)	1	InternBDB: Moto-Meter 642.007.1006 M14x1,5 \| InternKon: 927 037 40 / 1
50	906 922 40	Rubber grommet	1	InternBDB: SUCO 116 6621 003 \| InternKon: 910 055 40 / 1
51	323 961 40	Sleve 6,3x0,8	2	InternBDB: 35180 \| InternKon: 910 055 40 / 2
52	455 756 99	Insulating tube B 6x0,6	-2	InternBDB: B 6x0,6 /40621 \| InternKon: 910 055 40 / 3
53	907 653 40	Insulating tube	-2	InternBDB: 91F3752 \| InternKon: 894 583 40 / 4
54	510 561 98	Breech block	1	InternKon: 927 037 40 / 2
55	894 576 40	Sensor assy.with plug	1	InternBDB: Bedia PT100 4-Leiter TL \| InternKon: 894 583 40 / 1
56	056 070 40	Cable sleeve 1,0-1,5	38	InternKon: 923 144 40 / 38
57	056 071 40	Cable sleeve 2,5	4	InternKon: 923 144 40 / 39
58	655 635 40	Pipe adapter DN 29/17	1	InternBDB: BAVR - 29 G 17 G \| InternKon: 923 144 40 / 17
59	907 708 40	Cable union PG 13,5	1	InternBDB: Pflitsch 22052YNPM6x2,5 \| InternKon: 923 144 40 / 23
60	891 084 40	Plug assy.	2	InternKon: 923 144 40 / 4
61	891 085 40	Plug assy.	1	InternKon: 923 144 40 / 5
62	907 711 40	Cable union PG 16	1	InternBDB: Pflitsch 22553 YNPM 6x4,0 \| InternKon: 923 144 40 / 24
67	907 709 40	Cable union PG 16	1	InternBDB: Pflitsch 22553 YNPM 13x2,7 \| InternKon: 923 144 40 / 25
68	256 514 40	Name plate	15	InternKon: 923 144 40 / 36
69	056 292 40	Cable strap	15	InternBDB: TY 23 M \| InternKon: 923 144 40 / 37
70	906 420 40	T-Distributor	2	InternBDB: BFTL 12 12 12 TTT \| InternKon: 923 144 40 / 9
71	651 461 40	Housing assy.	1	InternKon: 923 144 40 / 7
72	655 547 40	Housing	1	InternBDB: Amp. 282189-1 \| InternKon: 651 461 40 / 1
73	655 548 40	Contact seal	2	InternBDB: Amp. 929937-1 \| InternKon: 651 461 40 / 2
74	655 549 40	Single seal	2	InternBDB: Amp. 828905-1 \| InternKon: 651 461 40 / 3
75	655 550 40	Rubber grommet	1	InternBDB: Amp. 880810-1 \| InternKon: 651 461 40 / 4
76	907 651 40	Sensor	1	InternBDB: Bedia 420 236 PT100-4Leiter \| InternKon: 894 576 40 / 1
77	635 677 40	Cable 4x1	-2	InternKon: 923 144 40 / 35
78	907 476 40	Cable union MW 10	1	InternBDB: PMA BVNV-M120 \| InternKon: 923 144 40 / 19
79	896 520 40	End pin	8	InternBDB: Pflitsch BD 3x25 \| InternKon: 923 144 40 / 26
80	896 521 40	End pin	1	InternBDB: Pflitsch BD 4x25 \| InternKon: 923 144 40 / 27
81	923 174 40	Harness - butterfly valve	1	InternKon: 923 170 40 / 19
81	923 180 40	Harness - butterfly valve, cold weather	-2	InternKon: 923 170 40 / 19
82	906 483 40	Valve plug	1	InternKon: 923 144 40 / 42
83	055 140 40	Cable shoe	4	InternBDB: 0,5-1,0 \| InternKon: 894 583 40 / 4
84	907 536 40	Seal	1	InternBDB: 12,7x19,00xDDM200127-4N49 \| InternKon: 919 578 40 / 2
85	907 538 40	Seal	1	InternBDB: 10,7x17,00xDDM200107-4N49 \| InternKon: 894 541 40 / 2
86	795 495 73	Plug	1	InternBDB: 000819214920 KES 08192 92314440 Pos.48 \| InternKon: 894 583 40 / 2
87	795 497 73	Plug	2	InternBDB: 000819224820 KES 08192 \| InternKon: 894 576 40 / 2
88	940 471 40	Fitting M16/NW10	1	InternBDB: PMA BVIR - M 160 \| InternKon: 923 180 40 / 2
89	907 704 40	Cable union	1	InternBDB: Pflitsch 21650 YNPM 3x3,5 \| InternKon: 923 180 40 / 3
90	907 725 40	Different pressure Switch with	1	InternBDB: Argo DG 021-16 2,0bar \| InternKon: 923 533 40 / 16
91	634 009 40	Spotlight	1	InternKon: 926 550 40 / 1
92	507 383 99	Halogen lamp	1	InternBDB: H1 /24V /70W \| InternKon: 926 550 40 / 2
93	769 155 73	Seal	1	InternBDB: ABL 18-11401
94	769 156 73	Pane, white	1	InternBDB: ABL 18-10201
95	896 579 40	Sensor	1	InternBDB: Bedia 420 100 PT 100 R1/2 \| InternKon: 934 945 40 / 2

Komatsu PC5500-6E S/N 15060 parts catalog PDF

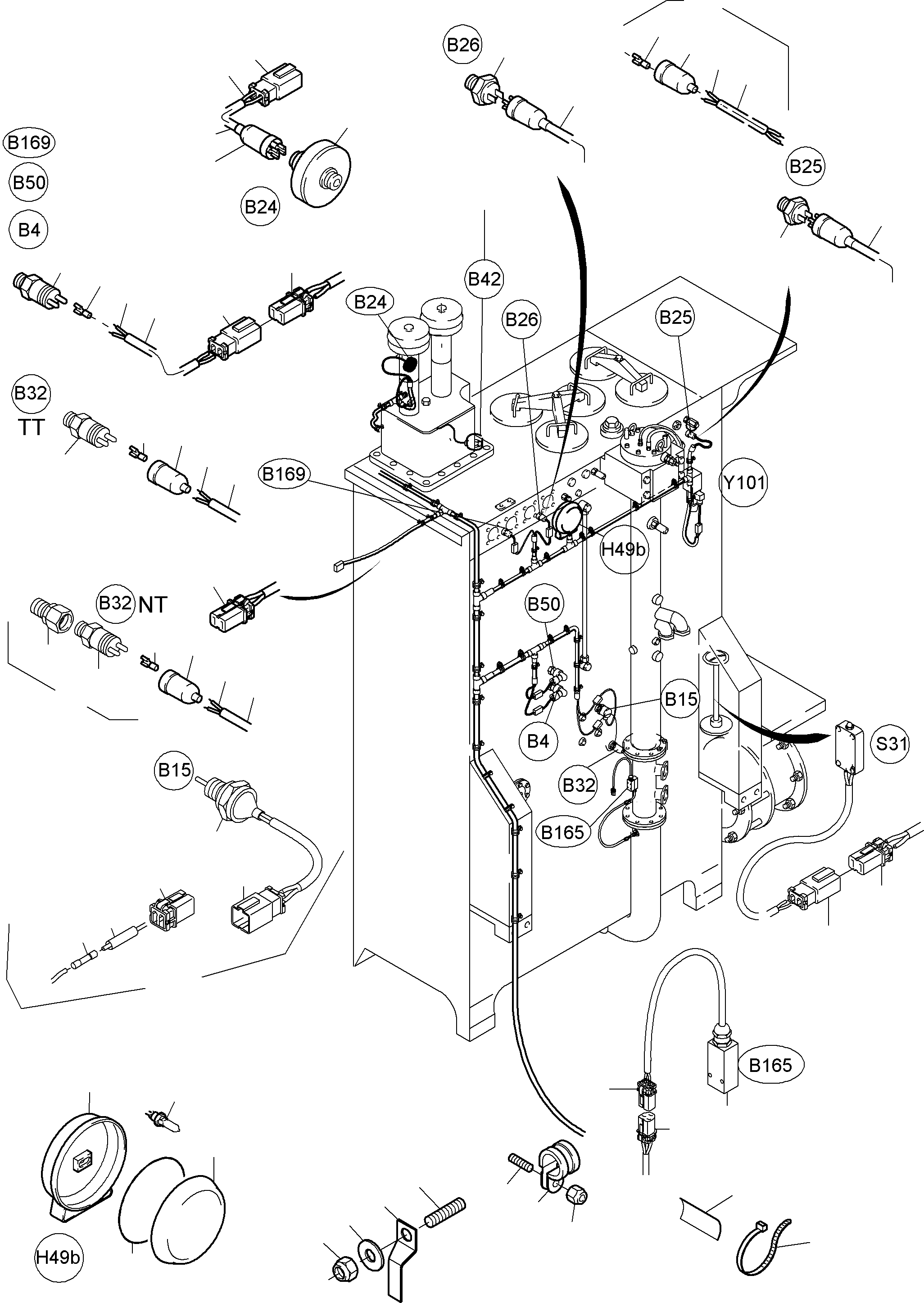

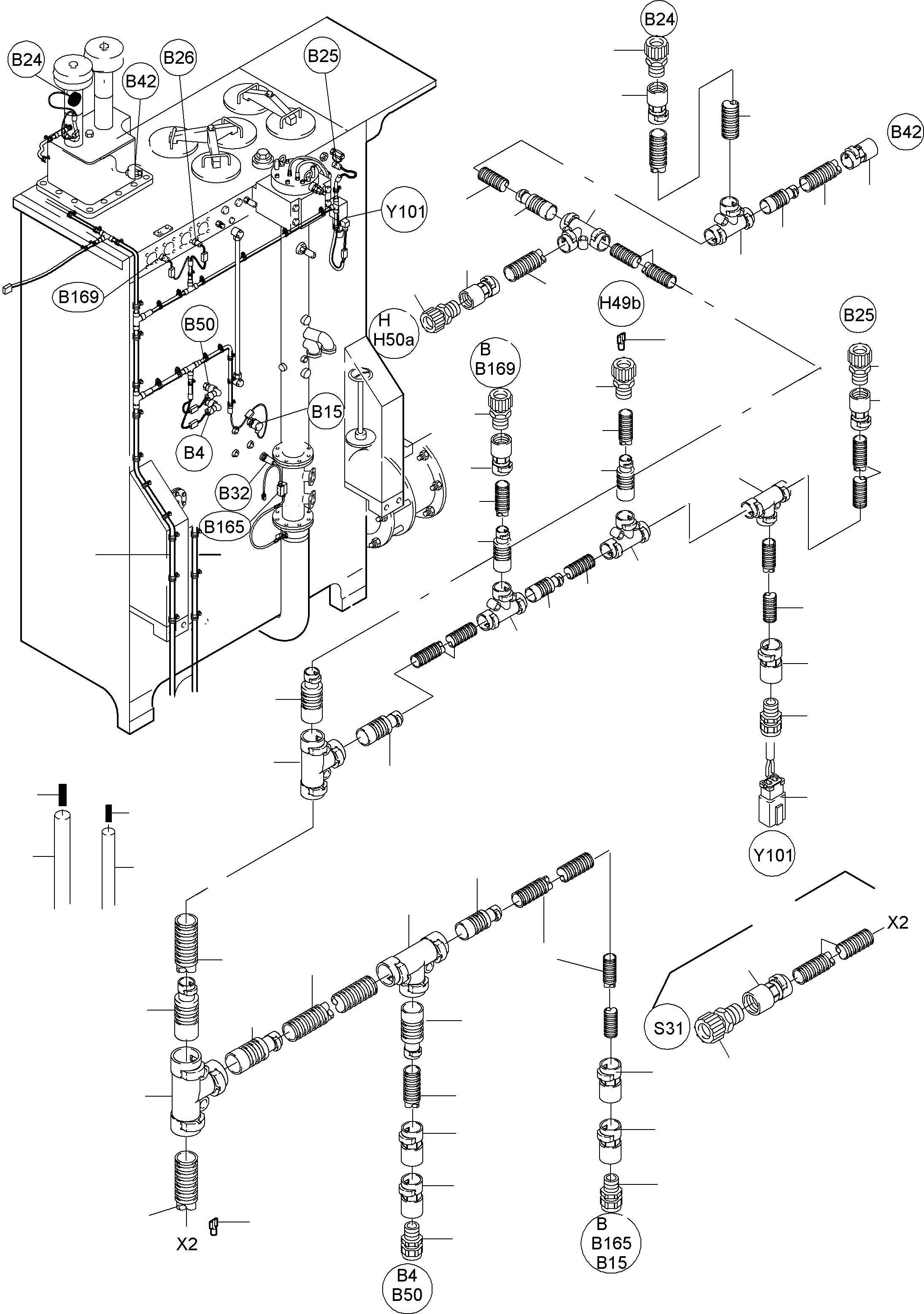

CABLES - OIL TANK AND SWITCH (515-2144m) in PC5500-6E S/N 15060. Diagram image and parts list.
