Diagram image 1 of 5

PC5500-6E S/N 15060

01 04 05 06 07 08 09 10 11 12 12 16 17 18 19 69 70 71 72

PC5500-6E S/N 15060

13 35 35 37 37 38 38 39 39 40 40

PC5500-6E S/N 15060

02 14 15 36 36 41 42 43 44 45 46 47 48 48 49

PC5500-6E S/N 15060

03 03 13 16 41 42 48 48 49 50 50 51 52 53 54 63 64 65 66 67 68

PC5500-6E S/N 15060

20 29 30 32 33 34 35 56

#	Part Number	Partname	Quantity	Options
01	943 287 40	Switch cabinet assy.	1	InternBDB: Fa. AK R 06/06/015.15060.0506 / TL \| InternKon: 943 292 40 / 2
02	510 729 98	Resilient sleeve	4	InternBDB: Werfel
03	693 154	Silencer	4	InternBDB: Phoenix 786 001-45
04	081 323 40	Hinge	2	InternBDB: GHE 601 0003
05	463 700 40	Seal 8x70x70	1
06	457 799 40	Bolt	1
07	693 151	Silencer	12	InternBDB: Phoenix 781 097-45
08	445 211 40	Cover	1
09		Door	1	InternBDB: 04/10/008.15028.0603
10	440 388 40	Profiled joint	-2	InternBDB: Happich 461 0070
11	440 387 40	Fastener	2	InternBDB: EMKA 1091-U 1
12	307 775 99	Bolt	18	InternBDB: M10x20 /933
13	307 300 99	Bolt	4	InternBDB: M8x15/933
14	308 426 99	Bolt	4	InternBDB: M16x80 /931
15	766 261 73	AC-dry transformer	1	InternBDB: 55 KVA 6600 V 50 Hz 400 V DHKA 120 115 DYN 5 verkettet mit 230V \| InternKon: 06/06/015.15060.0506 / 5
16	332 332 99	Nut	5	InternBDB: M 8 /934
17	345 176 99	Dowel pin	1	InternBDB: 2x14 /1481
18	346 510 99	Lock washer	1	InternBDB: 8 /128
19	696 867 73	Silencer	6	InternBDB: 781-147-60
20	796 548 73	Load-break switch	1	InternBDB: H27EK12-630-20P155X290Y398 /12KV 630ADriescher \| InternKon: 06/06/015.15060.0506 / 1
29	795 018 73	Shift-lever	1	InternBDB: 0Q1 Driesher C520SW24
30	795 024 73	Fuse 25 A	3	InternBDB: 0F2.1 Siba 300 0213 - 25A \| InternKon: 06/06/015.15060.0506 / 7
32	696 365 73	Current rail 40x5	-2	InternBDB: Siemens 8 WC 5035
33	692 746	Current rail 30x5	-2	InternBDB: Siemens 8 WC 5033
34	693 187	Ball pin	3	InternBDB: Horstmann 1.005.48
35	694 195	Insulator	18	InternBDB: 3 FA 1110-7
36	765 912 73	Potential transformer	2	InternBDB: GSZ 6 /6600 V 100 V 30 VA /7.2 50 Hz \| InternKon: 06/06/015.15060.0506 / 4
37	793 905 73	Current transformer	6	InternBDB: GSW 12,0 125/5 A 50 Hz 30 VA 5 P 10 12,5 KA \| InternKon: 06/06/015.15060.0506 / 3
38	761 651 73	Fuse base	6	InternBDB: 310 102
39	792 853 73	Fuse 200 A	6	InternBDB: 0F1.1 Siba 301 0014-200 \| InternKon: 06/06/015.15060.0506 / 6
40	796 011 73	Vacuum contactor	2	InternBDB: Merlin-Gerin Rollarc 400A /12 KV 230V AC 50 Hz \| InternKon: 06/06/015.15060.0506 / 2
41	696 376 73	Assembly rail	-2	InternBDB: 18x35 Kuhmann 024 480
42	696 375 73	Clamp PG 29	-2	InternBDB: Kuhmann 04 18 005
43	600 207 99	Cable shoe Ш 12 - 102	-2	InternBDB: Klauke
44	600 223 99	Cable shoe Ш 12 - 502	-2	InternBDB: Klauke
45	600 208 99	Cable shoe Ш 10 - 702	-2	InternBDB: Klauke
46	696 366 73	Silicon cable 102	-2	InternBDB: AEG Rheytherm 180 rotbraun 6 KV-102
47	696 892 73	Silicon cable 1202	-2	InternBDB: AEG Rheytherm 180 rotbraun 6 KV-1202
48	696 373 73	Plastic socket PG 29	-2	InternBDB: Kuhmann 0501 5306
49	696 371 73	Plastic pipe PG 29	-2	InternBDB: A Ш 36 Kuhmann 05 06 316
50	761 576 73	Thermostat	2	InternBDB: 6B2 Alco TF 115-S5 AF 06
51	766 506 73	Hydrostat	1	InternBDB: JCI EHBC-111 (HC-1240-7001)
52	696 887 73	Heater 180 W	2	InternBDB: LM-Therm 180 W 230 V Maxi 50 Hz \| InternKon: 06/06/015.15060.0506 / 10
53	761 579 73	Heater 250 W	1	InternBDB: LM-Therm 250 W Super-Maxi 230 V 50 Hz \| InternKon: 06/06/015.15060.0506 / 11
54	319 061 99	Bolt	8	InternBDB: M6x20/84
56	793 909 73	Excess-voltage dicharger	3	InternBDB: SPA-12-I-M 12KV 10KA M=250 \| InternKon: 06/06/015.15060.0506 / 15
63	502 709 98	Assembly rail NS 35/7,5	-2	InternBDB: Phцnix 0801 730
64	356 265 40	Clamp	-2	InternBDB: 116535-04
65	906 630 40	Protective wire clip	-2	InternBDB: Wago 870-537
66	906 612 40	Clamp	-2	InternBDB: Wago 870-531
67	906 792 40	Protective wire clip	-2	InternBDB: Wago 282-907
68	906 768 40	Clamp	-2	InternBDB: Wago 282-901
69	634 135 40	Fluorescent lamp	1	InternBDB: KIRA KE-CL-DW 6318/24-0 \| InternKon: 06/06/015.15060.0506 / 13
70	766 904 73	Fluorescent lamp	1	InternBDB: PL-L 18 W /84 P Art-Nr. 201884
71	765 736 73	Sensor	2	InternBDB: TK 4236-11Z Schmersal \| InternKon: 06/06/015.15060.0506 / 12
72	334 681 99	Nut	6	InternBDB: M 10 /985

Komatsu PC5500-6E S/N 15060 parts catalog PDF

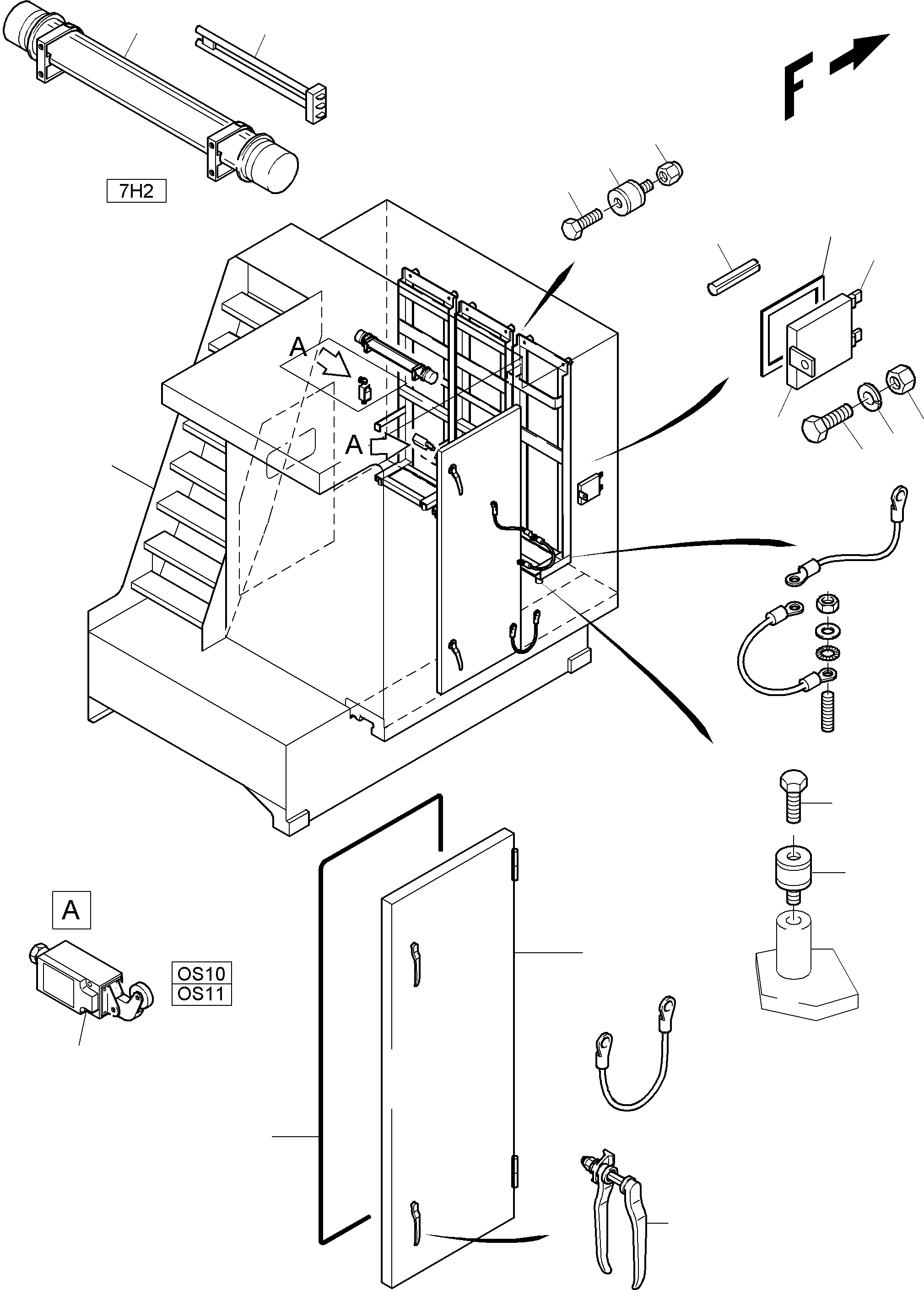

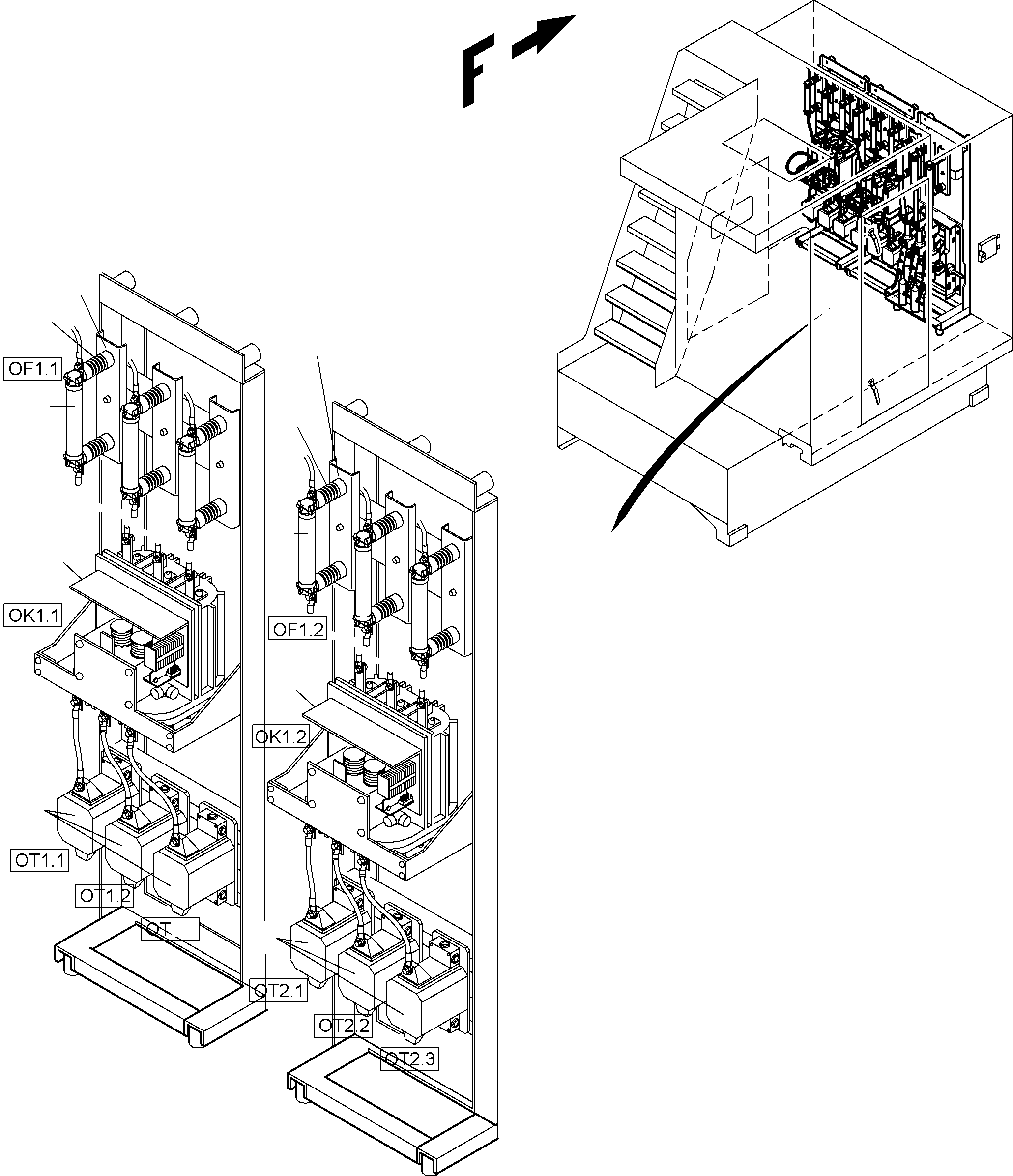

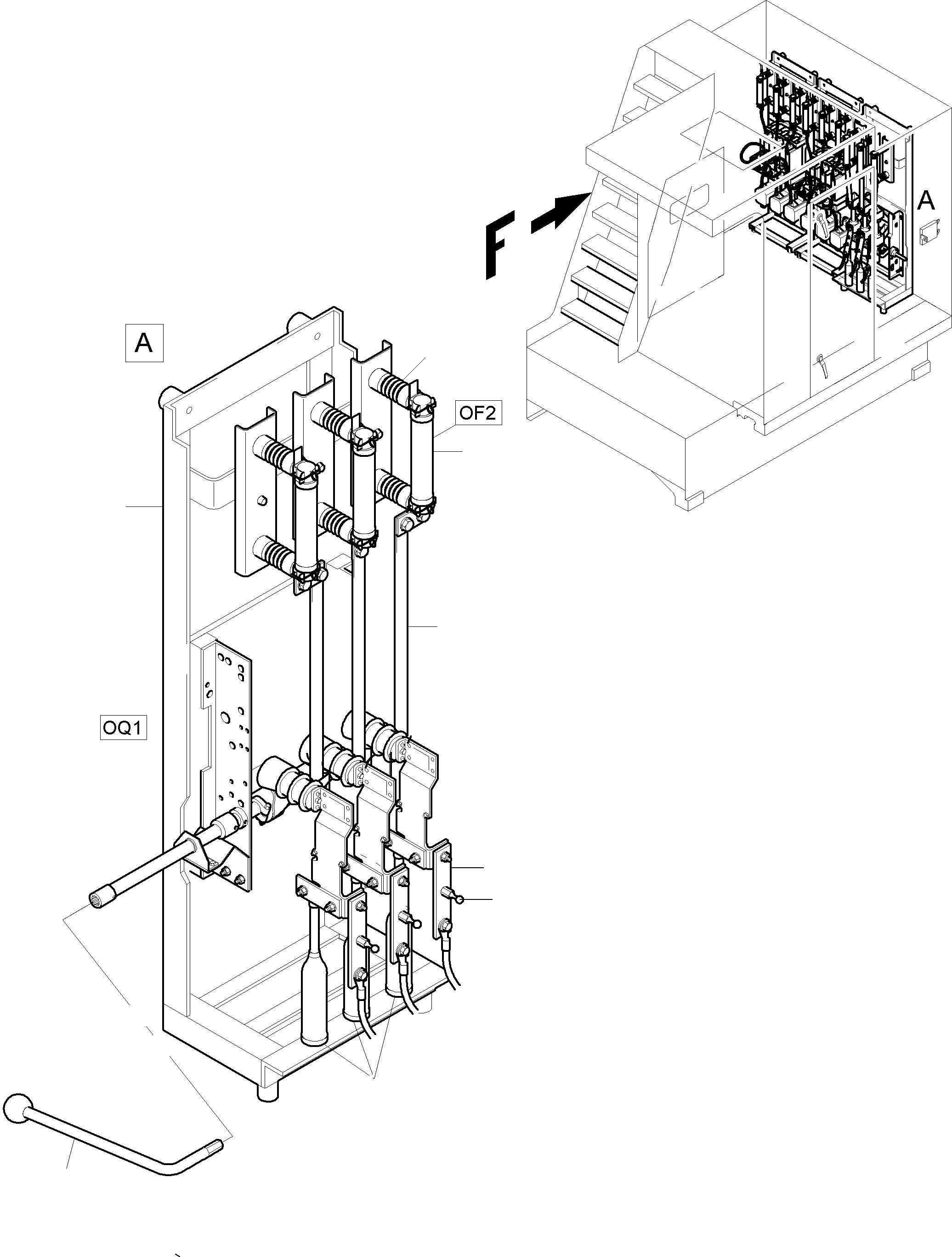

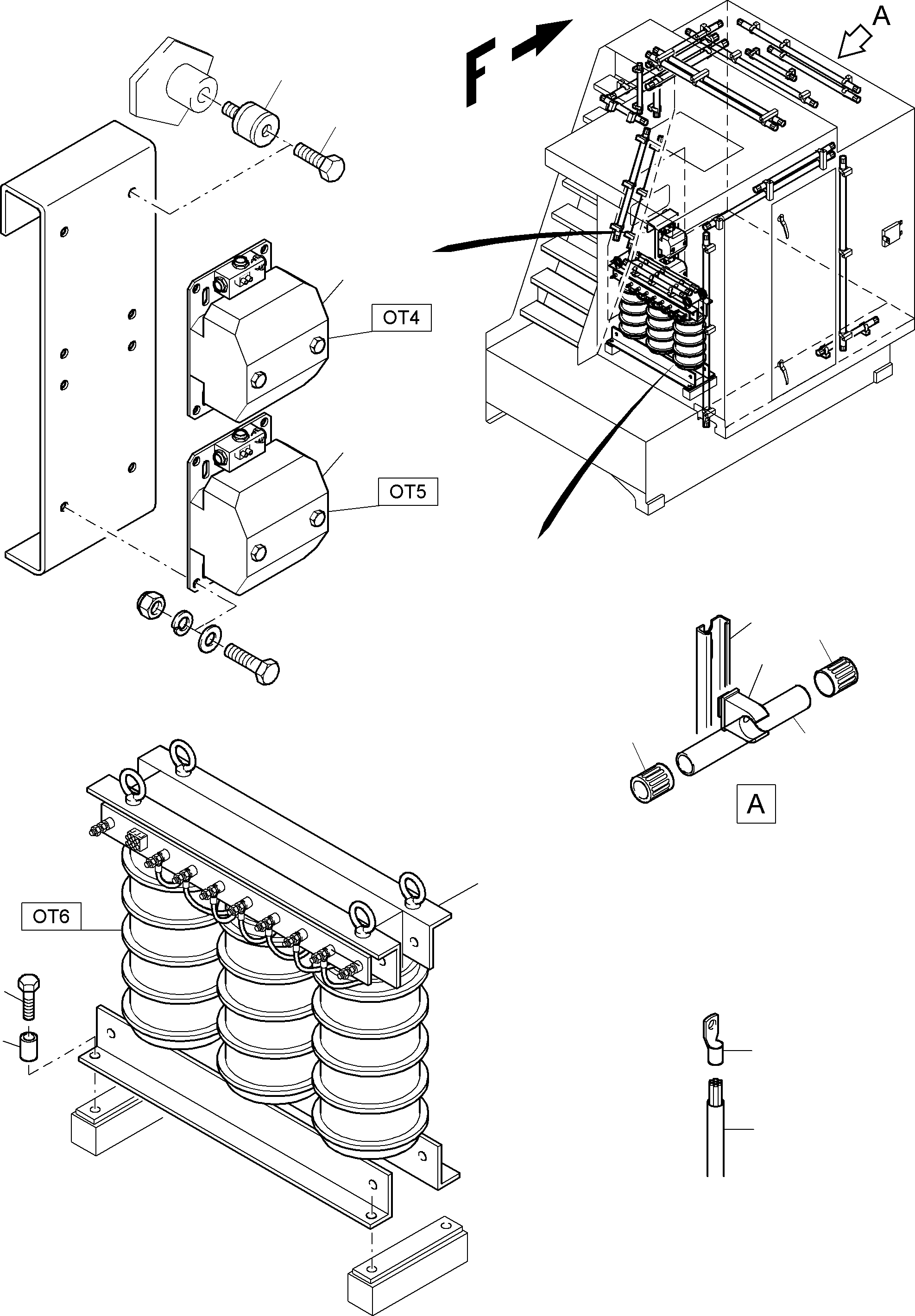

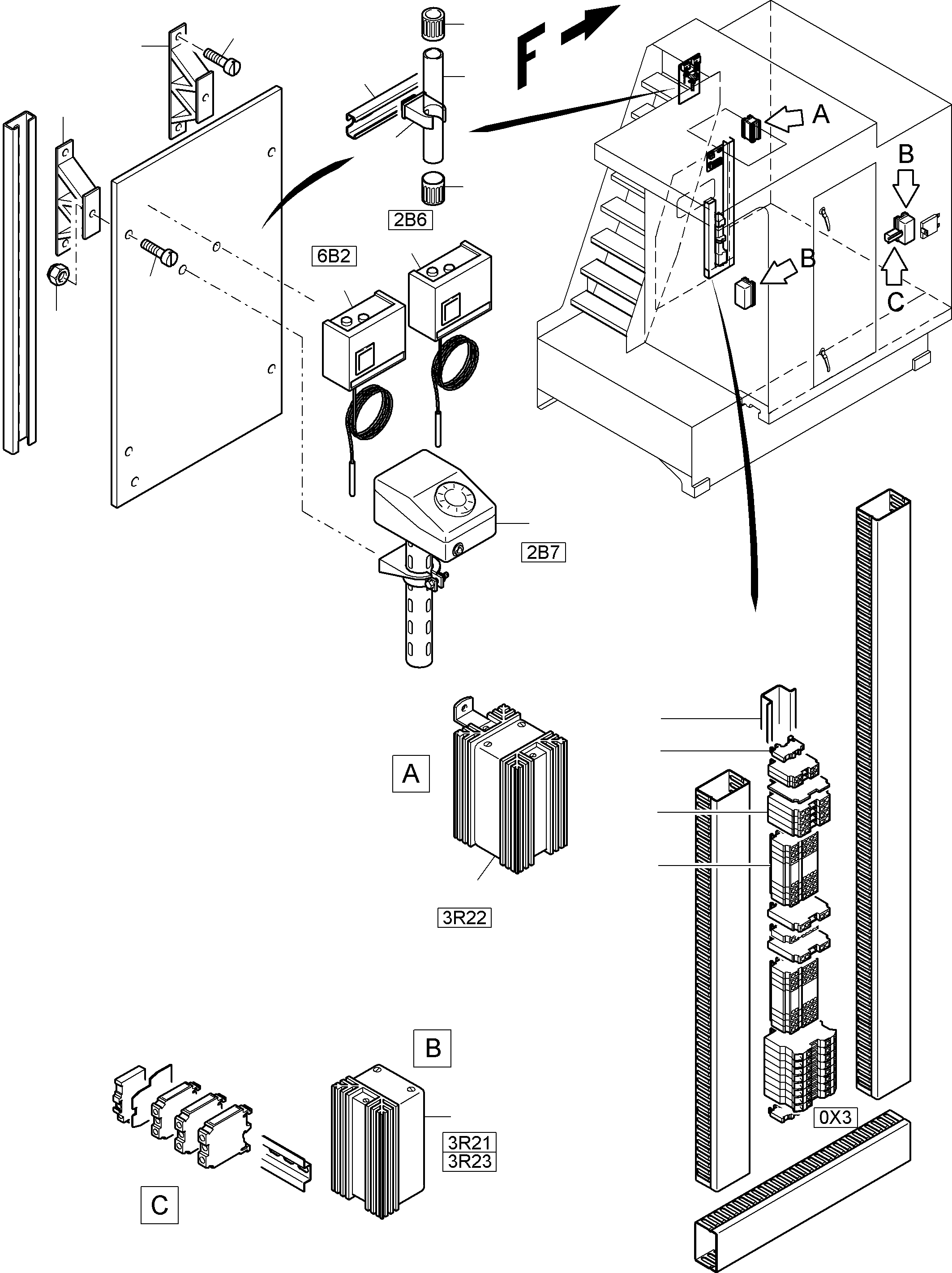

SWITCH CABINET (991-0790) in PC5500-6E S/N 15060. Diagram image and parts list.
