H455-SD S/N 15009

01 01 02 02 02 03 03 04 04 05 05 06 06 07 07 08 08 09 09 09 09 09 10 10 10 11 13 14 14 15 16 17 18 18 19 20 20 21 22 23 23 24 25 25 26 27 28 28 29 30 31 32 33 33 34 35 36 36 37 37 38 38 39 40 40 40 40 41 42 43 43 44 45 46 47 48 48 49 49 49 49 50 51 52 52 52 53 54 55 55 56 57 58 59 60 61 62 62 63 64 65 66 67 68

#	Part Number	Partname	Quantity	Options
01	255 032 40	Housing, empty	2	InternBDB: Bopla A 160 \| InternKon: 903 383 40 / 6
02	505 940 99	Assembly rail Bulk ware, state length required	-2	InternBDB: TS 32 /46277
03	356 271 40	Series terminal	-2	InternBDB: 115 116-07
04	356 272 40	Cover plate	-2	InternBDB: 118 368-16
05	356 269 40	Bridge	-2	InternBDB: OV4-173 517-13
06	356 276 40	Separator	-2	InternBDB: 113 003-10
07	356 265 40	Clamp	-2	InternBDB: Entrelec 116 535-04
08	490 372 40	Protective wire clip	-2	InternBDB: 165 113-06
09	655 621 40	Cable union DN 10	-2	InternBDB: PMA BVNV-P 090 T \| InternKon: 903 383 40 / 37
10	655 624 40	Cable union DN 23	-2	InternBDB: BVNV-P 213 G \| InternKon: 903 383 40 / 8
11	461 933 40	Ground strap 70 qmm x 300 mm	1	InternKon: 903 344 40 / 13
13	634 936 40	Socket	30	InternBDB: 10.5770 H-A 32 TS 29 \| InternKon: 903 383 40 / 49
14	385 225 40	Plug insert	12	InternBDB: 10.5330 H-A 16 BS (1-16) \| InternKon: 903 383 40 / 12
15	385 226 40	Plug insert	12	InternBDB: 10.5430 H-A 16 BS (17-32) \| InternKon: 903 383 40 / 13
16	358 264 40	Protecting cover	22	InternBDB: 10.4816
17	385 224 40	Socket	12	InternBDB: 10.5830 \| InternKon: 903 383 40 / 11
18	385 227 40	Insert	15	InternBDB: 10.5320 A-A 16 SS (1-16) \| InternKon: 903 383 40 / 54
19	385 228 40	Insert	10	InternBDB: 10.5420 H-A 16 SS (17-32) \| InternKon: 903 383 40 / 55
20	621 450 40	Socket	25	InternBDB: 10.5645 \| InternKon: 903 383 40 / 45
21	655 834 40	Cable protection hose DN 36 Bulk ware, state length required	-2	InternBDB: PMA VCSG 36 B
22	655 652 40	Cable protection hose DN 23 Bulk ware, state length required	-2	InternBDB: PMA VCSG 23 B \| InternKon: 903 383 40 / 2
23	655 651 40	Cable protection hose DN 17 Bulk ware, state length required	-2	InternBDB: PMA VCSG 17 B \| InternKon: 903 383 40 / 7
24	655 697 40	Cable union DN 29	-2	InternBDB: PMA BVNV-P 299 G \| InternKon: 903 383 40 / 15
25	358 263 40	Protecting cover	5	InternBDB: 10.4815 \| InternKon: 903 383 40 / 56
26	621 748 40	Cable channel Bulk ware, state length required	-2	InternBDB: Tehalit KBL 80150 \| InternKon: 903 383 40 / 57
27	621 749 40	Cable channel Bulk ware, state length required	-2	InternBDB: Tehalit KBL 80200 \| InternKon: 903 383 40 / 58
28	621 750 40	Cover Bulk ware, state length required	-2	InternBDB: KBA 80150 \| InternKon: 903 383 40 / 59
29	621 751 40	Cover Bulk ware, state length required	-2	InternBDB: KBA 80200 \| InternKon: 903 383 40 / 60
30	621 754 40	Spring	50	InternBDB: Tehalit L 7000 \| InternKon: 903 383 40 / 63
31	621 755 40	Spring	80	InternBDB: Tehalit L 7030 \| InternKon: 903 383 40 / 64
32	655 623 40	Cable union DN 17	-2	InternBDB: PMA BVNV-P 167 G \| InternKon: 903 383 40 / 16
33	655 696 40	Cable protection hose DN 29 Bulk ware, state length required	-2	InternBDB: PMA VCSG-29 B \| InternKon: 903 383 40 / 1
34	621 752 40	Cable channel Bulk ware, state length required	-2	InternBDB: LFG 40060/0 \| InternKon: 903 383 40 / 61
35	621 753 40	Cable channel Bulk ware, state length required	-2	InternBDB: LFG 50100/0 \| InternKon: 903 383 40 / 62
36	255 712 40	Housing, empty	1	InternBDB: Bopla A 125 \| InternKon: 903 383 40 / 5
37	896 699 40	Series terminal	-2	InternBDB: 115 685.12
38	461 731 40	Encoder	-2	InternKon: 903 383 40 / 51
39	896 747 40	Wiring channel Bulk ware, state length required	-2	InternBDB: Sievert LKV 100/100 223 1126 \| InternKon: 903 383 40 / 71
40		see page lighting equipment	1
41		see page battery cables	1
42		see page cables oil tank	1
43		see page cables control- and filter plate	1
44		see page battery switch box	1
45		see page cables control blocks	1
46		see page horn	1
47		see page electric cab support	1
48	906 064 40	Protective wire clip	-2	InternBDB: 195 638-23
49	504 546 99	Cable nut	-2	InternBDB: APG 9 /46258 \| InternKon: 903 383 40 / 74
50	896 700 40	Cover plate	-2	InternBDB: 116 987-02
51	896 701 40	Cross connection	-2	InternBDB: 168 974-00
52	501 677 98	Cable nut	-2	InternBDB: APG 21 /46258 \| InternKon: 903 383 40 / 24
53	502 828 98	Cable nut	-2	InternBDB: APG 16 /46258 \| InternKon: 903 383 40 / 43
54	501 654 98	Cable nut	-2	InternBDB: APG 29 /46258 \| InternKon: 903 383 40 / 25
55	655 649 40	Cable protection hose DN 10 Bulk ware, state length required	-2	InternBDB: PMA VCST-10 B \| InternKon: 903 383 40 / 46
56	655 805 40	Fitting PG 9	-2	InternBDB: PMA BFIL-P 090 T \| InternKon: 903 383 40 / 14
57	655 798 40	Cable union PG 9	-2	InternBDB: Pflitsch 150 YNPM 4x3 \| InternKon: 903 383 40 / 20
58	515 213 40	Cable 1.0 Bulk ware, state length required	-2	InternKon: 903 383 40 / 36
59	891 051 40	Plug with bushings 2-poles	-2
60	891 079 40	Plug with pins 2-poles	-2
61	655 629 40	T-Distributor DN 17	-2	InternBDB: BFTL 17 17 17 GGG
62	655 632 40	Pipe adapter DN 17/10	-2	InternBDB: BAVR - 17 G 10 T
63	903 382 40	Contamination switch assy.	6	InternKon: 903 344 40 / 186
64	906 281 40	Contamination switch assy.	1	InternBDB: Rexroth 422 008 2600593 M22x1,5 \| InternKon: 903 382 40 / 1
65	906 282 40	Reducing union	1	InternBDB: M48x2 /M22x1,5 926 178 \| InternKon: 903 382 40 / 2
66	906 283 40	Seal ring	1	InternBDB: M48x2 600 822 \| InternKon: 903 382 40 / 3
67	600 790 99	Reducing PG 11-9	6
68	600 849 99	Reducing PG 16-11	6

Komatsu H455-SD S/N 15009 parts catalog PDF

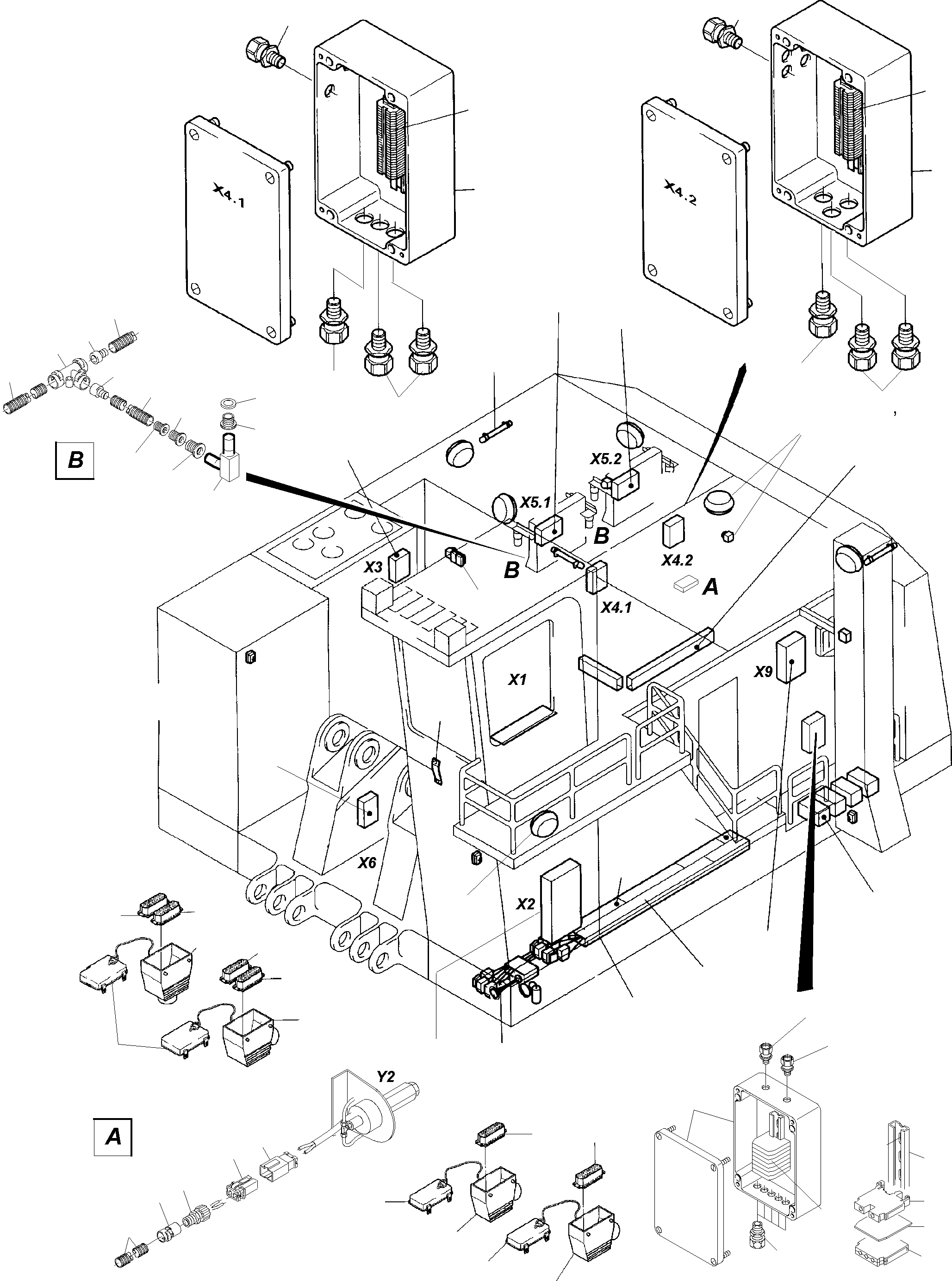

ELECTRIC - GENERAL VIEW (515-2100d) in H455-SD S/N 15009. Diagram image and parts list.
